Richmat Smart Home HJH163 Ble

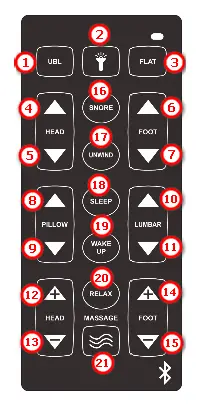

Remote control button silicone diagram
Remote control function description
| Button label | Function |
| 1 | bed light switch |
| 2 | Flashlight, press the flashlight to turn on, release the flashlight to turn off |
| 3 | One key reset, all motors retract to the minimum stroke position |
| 4 | The head motor extends. |
| 5 | The head motor retracts. |
| 6 | The foot motor extends. |
| 7 | The foot motor retracts. |
| 8 | Neck rises, release stops |
| 9 | neck down, release to stop |
| 10 | Waist up, release to stop |
| 11 | Lower waist, release stop |
| 12/13 | Turn on the head massage motor, and adjust the massage motor intensity through “+” and “-“. There are three intensities, in order: 1-2-3-4 gears, 4 is to turn off the massage motor. |
| 14/15 | Turn on the foot massage motor and adjust the intensity of the massage motor through “+” and “-“. There are three intensities, in order: 1-2-3-4 gears, 4 is to turn off the massage motor. |
| 16 | Run to anti-snoring position |
| 17 | run to UNWIND location |
| 18 | Run to SLEEP position |
| 19 | Run to wake up position |
| 20 | Run to RELAX position |
| 21 | MASSAGE button: Turn on the “PULSE” mode of the two massagers, press the massager again, only adjust the vibration frequency of the massager, the order is 1-2-3-4 gears, 4 is to close the two massage motors. |
| Coding method: [Remote head lift + foot UP (5,6) + control box pairing key] The buzzer sounds, indicating that the pairing is successful. | |
Precautions:
To protect the reliability and safety of the motor and control box, do not switch the buttons frequently.
Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment
FCC
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
