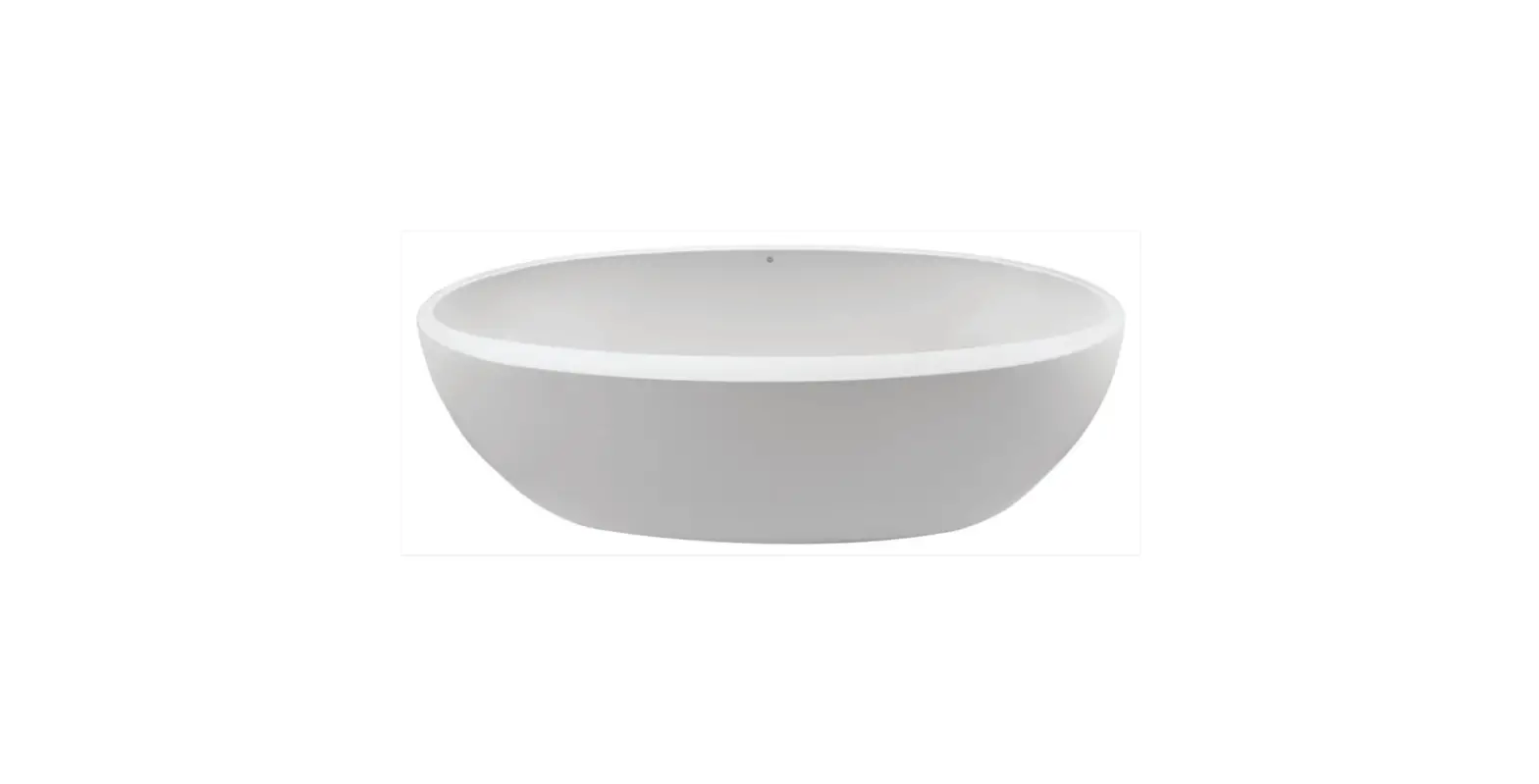

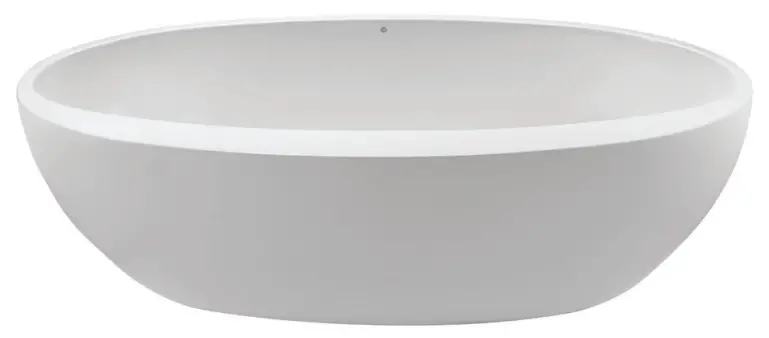

mti Cassandra 253 Bathtub
ELECTRICAL COMPONENTS & SPECIFICATIONS
| model 253 |
| 71.75″ x 37.5″ x 22.25″ |
| FREESTANDING 77 gal to overflow |
| SculptureStone® |
| 405 lbs / 184 kg soaker 435 lbs / 197 kg airbath |
| May also be undermounted. Must specify on order. Not recommended as a tub / shower combination. Filling this tub to the maximum may require an above average size or dedicated water heater. |
| Hydrotherapy Package | Components Included | GFCI |
| Air Massage | heated blower | 1-15 amp |
| Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information. CSA Certified C/US; ANSI Z124.1 and ANSI 112.19.7 and ANSI 112.19.7 | ||

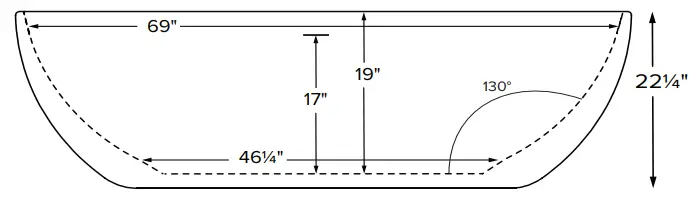

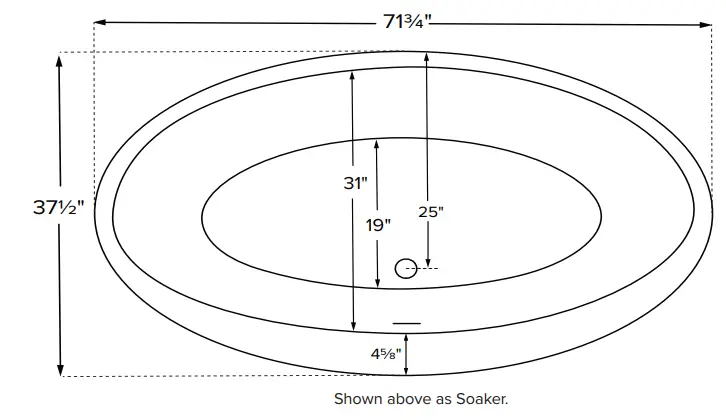

DIMENSION
IMPORTANT ORDERING & INSTALLATION INFORMATION
- Before ordering or installing, please consider future access to equipment.
- Includes an integrated overflow with toe tap drain in chrome finish. May be specified without an overflow (see local codes before ordering without an overflow).
- Air baths require job site preparation for remote installation of the blower and required check valve. Check valve must be installed higher than the rim of the tub.
- Waterproof remote control included with air bath. Keypad shipped loose may be remote mounted on nearby surface/wall.
- Faucet valves cannot be mounted on this tub model.
- Blower & required check valve for airbath must be remote mounted.
- Check valve must be installed higher than the rim of the tub.
- See the Installation & Operation Manual for more details.
PART LIST
| Hydrotherapy | Package Contents | Part # | MSRP |
| Soaker | Soaking bath – no jets. Includes an integrated slotted overflow with a toe-tap drain kit. | S253 | $12,900 |
| Air Bath | 20 air jets, heated air blower, keypad, waterproof remote control, integrated slotted overflow with a toe-tap drain kit. | AST253 | $18,290 |
Options
Must be ordered at time of purchase
| Quick Ship (QSPRI2) $1,025 reduces lead time Please call for availability |
| Standard Color White, matte finish Biscuit Color Upgrade (SSBI) $310 matte finish Additional material colors available for projects only. Please call MTI. |
| Hand-Polished Deep Gloss Finish (SSGLOSS3) $1,295 upcharge For white or biscuit |
Accessories
| Accessories |
| Teak Bath Mat (TKMAT3018) $815 Measures 30″ x 17.5″ x 1″ Custom sizes also available. Contact MTI for details. |
| Floor-Mounted High-Flow Tub Filler Contemporary Chrome (FILLC) $1,480 Brushed Nickel (FILLBN) $1,710 |
Boutique Accessories
Packaging / Handling Fee Applies
| SculptureStone® Bathroom Table (TABLE) $825 matte finish +$430 gloss finish upcharge (SSGLOSSSNK) Order with tub for best color match | |
| SculptureStone® Standard Faucet Stand | |
| Small – 3-hole capacity 14¼” w x 21¾” h Matte (STAND) $725 | Large – 5-hole capacity 22″ w x 21¾” h Matte (STANDL) $855 |
| +$430 gloss finish upcharge (SSGLOSSSNK) | |
| SculptureStone® Premium Faucet Stand | |
| 15″ w x 39” h Matte (SSFSR3915MT) $2,365 Gloss (SSFSR3915GL) $2,720 | 10″ w x 39” h Matte (SSFSR3910MT) $2,135 Gloss (SSFSR3910GL) $2,525 |
| 20″ w x 23” h Matte (SSFSR2320MT) $1,930 Gloss (SSFSR2320GL) $2,315 | 15″ w x 23” h Matte (SSFSR2315MT) $1,825 Gloss (SSFSR2315GL) $2,180 |
| SculptureStone® Premium Component Stand | |
| 20″ l x 22.5″ h Matte (SSPX1MT) $2,000 Gloss (SSPX1GL) $2,640 Compatible with select tub models. Go to www.mtibaths.com | |
Drains & Overflow Kits
Must be ordered at time of purchase
- Toe Tap Drain Cover Finishes
- PVC drain – Chrome included
- +$50 upcharge Br. Nickel (WIOBN), Pol. Nickel (WIOPN)
- +$85 upcharge Matte Black (WIOMB)
- +$105 upcharge Oil-Rubbed Bronze† (WIOOR)
- +$640 upcharge Special Finish* (WIOSF)
- Send finish sample to MTI Baths for best match.
- Toe Tap SculptureStone® Drain Cover Finishes
- Upgrade is in lieu of standard chrome to tap drain cover. White only
- +$90 upcharge Matte Finish (SSWIOMT)
- +$110 upcharge Gloss Finish (SSWIOGL)
- Brass Tailpiece (WIOBS) $85 in addition to finish charge listed above
- Quick Drain Kit (WOQ) $460
ABOUT COMPANY
- MTI has selected an oil-rubbed bronze finish that is compatible with Delta and many other manufacturers. To ensure best match, order as a Special Finish and submit a sample.
- Allow 2-4 weeks lead time for Special Finishes. Send sample for best match.
