Uline H-8547 Windpro Heavy Duty Snap Edge Sign Installation Guide

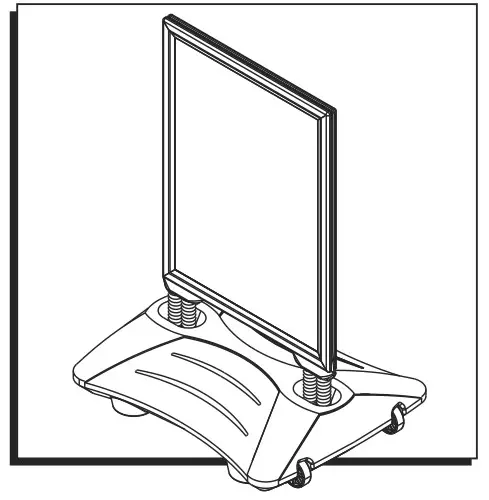

H-7041, H-8546, H-8547 WINDPRO® HEAVY DUTY SNAP EDGE SIGN

1-800-295-5510
uline.com

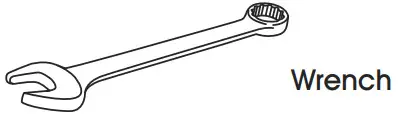

TOOL INCLUDED

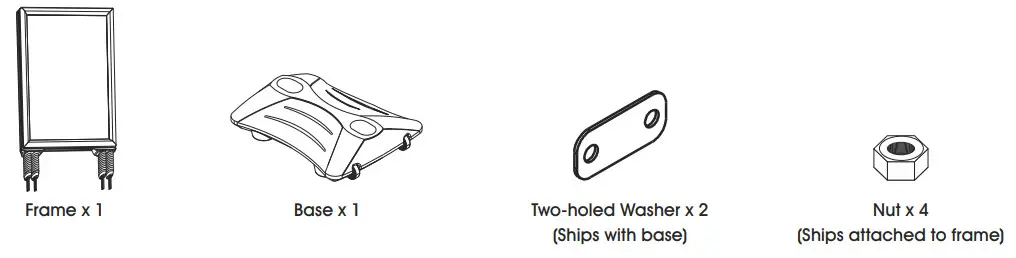

PARTS

ASSEMBLY

NOTE: Remove washers and nuts before assembling the sign.

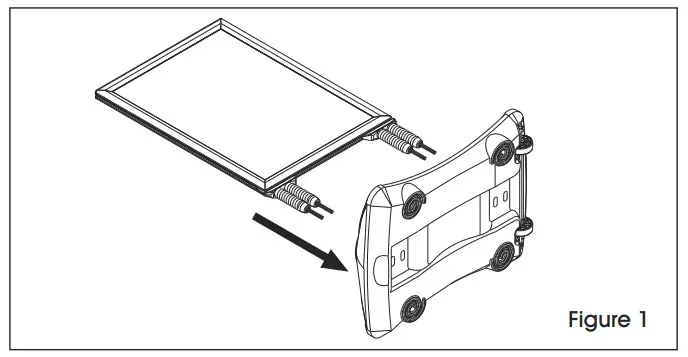

1. Insert screws on the bottom of the frame through the top of the base. (See Figure 1)

2. Place a two-holed washer onto screws at bottom of the base. (See Figure 2)

3. Slide nuts onto screws on the bottom of the base. (See Figure 3)

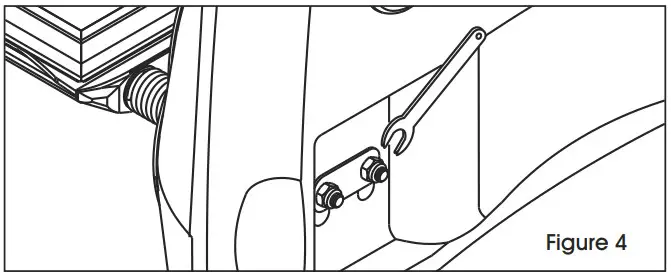

4. Use a wrench to tighten nuts around screws until snug against the washer. (See Figure 4)
   CAUTION! Tighten carefully. When tightened too much, the base can crack.


ASSEMBLY CONTINUED

TO INSERT SIGN

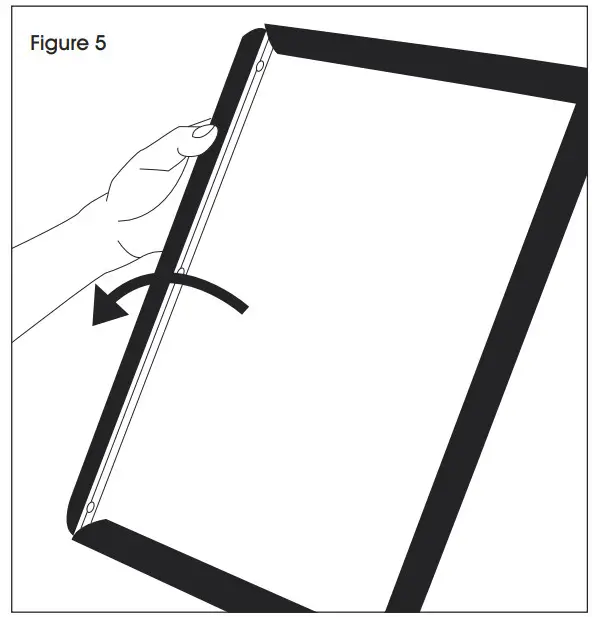

1. Flip open snap edges. (See Figure 5)

2. Remove plastic cover. (See Figure 6)

3. Insert sign.

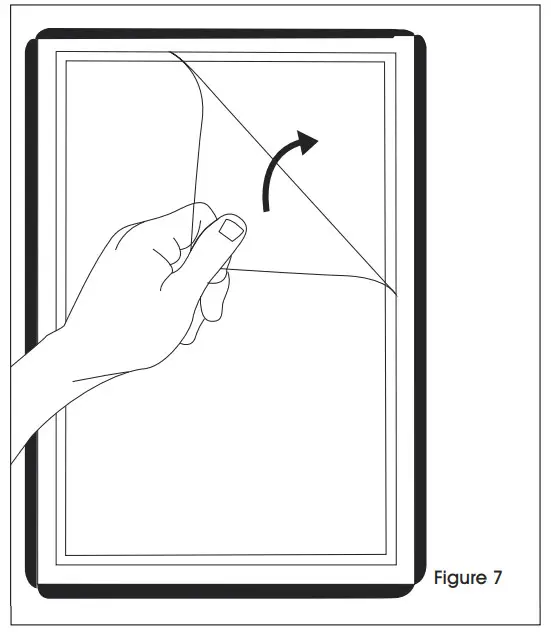

4. Replace the plastic cover to protect the sign. (See Figure 7)

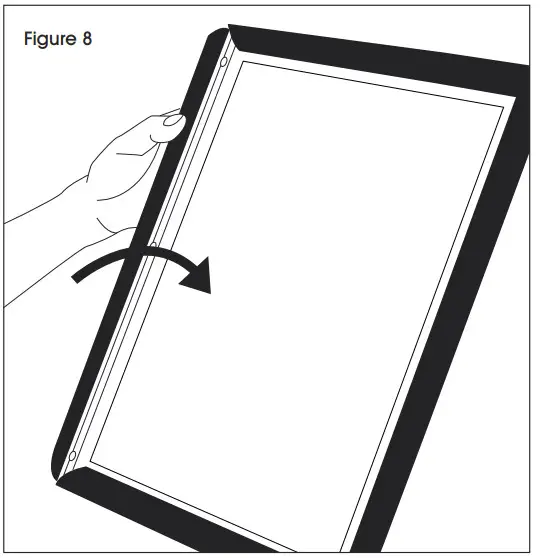

5. Flip snap edges to closed position. (See Figure 8)


1-800-295-5510
uline.com
0621 IH-7041
