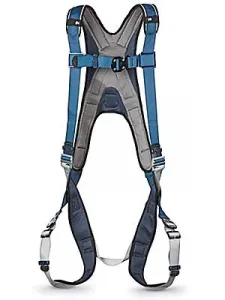

ULINE H-6928 3M Exofit Harness Instructions
1-800-295-5510
uline.com
INSTRUCTIONS
HOW TO DON A HARNESS

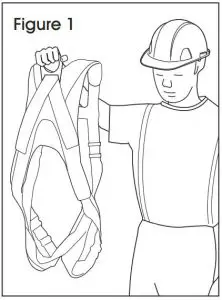

- Holding harness by back D-ring, ensure straps are unbuckled and untwisted. (See Figure 1)
- Slip straps over shoulders so back D-ring is located between shoulder blades. (See Figure 2)

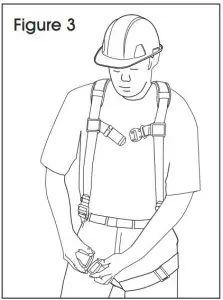

- Pull leg straps between legs and buckle to corresponding ends. Tighten leg straps until snug. (See Figure 3)

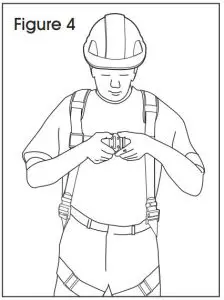

NOTE: Leg straps should not be too snug as to obstruct blood circulation in legs. - Buckle chest strap so that it is positioned in mid-chest area.
If adjustable, tighten until snug. (See Figure 4) NOTE: Chest strap should be 6-8″ below the trachea, but not below the sternum. - After buckling all straps, readjust harness fit as needed. Secure excess strap in elastic loop keepers.
HARNESS CARE
When not in use, hang harness by back D-ring in order to maintain shape.

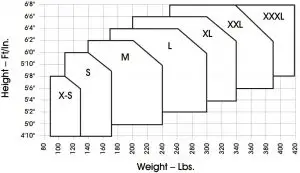

SIZING CHART
NOTE: This chart serves only as a guideline for harness sizing.
