Retrofitlab Wire Harness Layout Instructions

Wire Harness Layout
InstructionsInstructions
WIRE HARNESS LAYOUT – LED SHROUDS
(DRL)

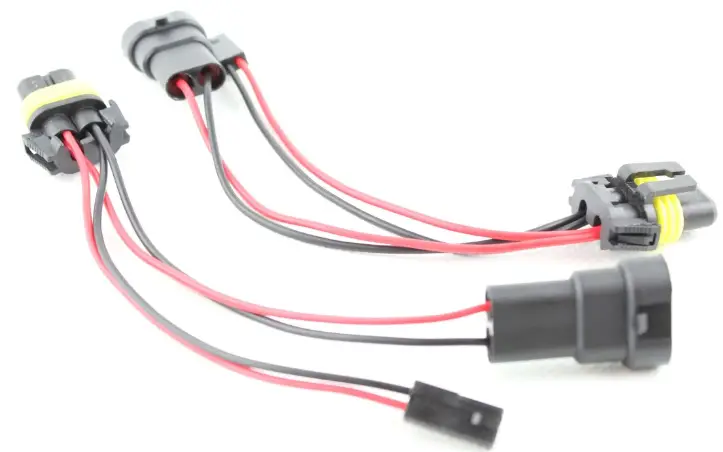

Wire Harness Layout

1. Connect to positive (12v+) of the daytime running light
2. Connect to negative (-) of the daytime running light
3. Connect to the Positive (12V+) of the low-beam signal*

*THIS WILL DIM THE DRL WHEN LOW-BEAM IS ACTIVATED. IN CASE OF HID/XENON WITH A BALLAST, THE +BEFORE THE BALLAST NEEDS TO BE USED.

WWW.RETROFITLAB.COM
