DRL Wire Harness Layout
InstructionsInstructions
WIRE HARNESS LAYOUT – LED SHROUDS (DRL + TURN SIGNAL)

DRL Wire Harness  Layout

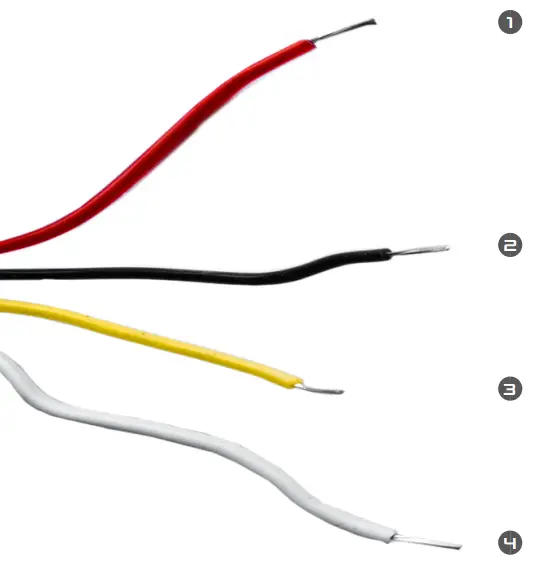

1. Connect to positive (12v+) of the daytime running light
2. Connect to negative (-) of the daytime running light
3. Connect to positive (12v+) of the turn signal
4. Connect to the Positive (12V+) of the low-beam signal*
