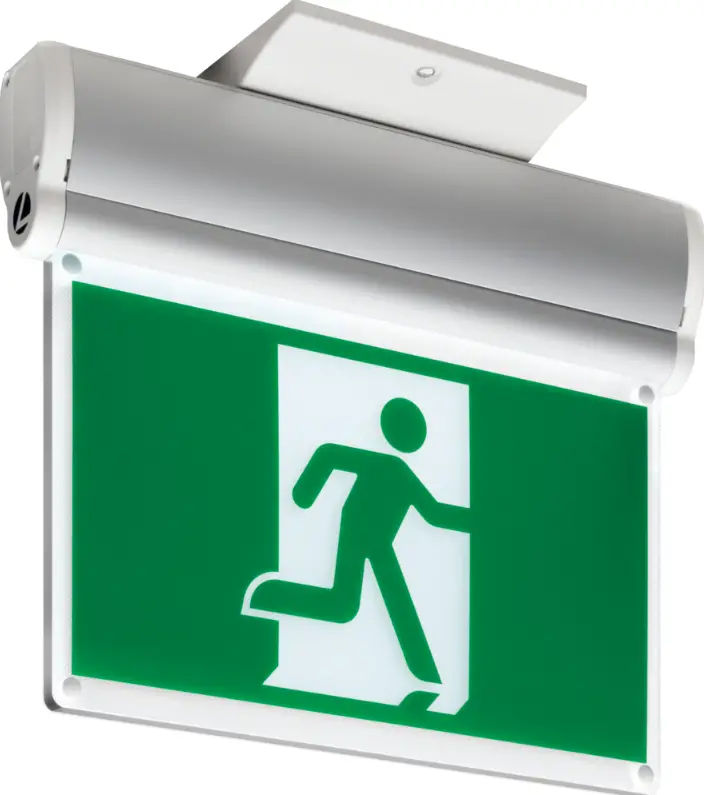

AcuityBrands EDGRM Running Man Edge lit Sign
Confidentiality Statement
The information in this presentation is confidential and proprietary, and may not be used, reproduced or distributed without the express written permission of Acuity Brands Lighting, Inc.
EDGRM

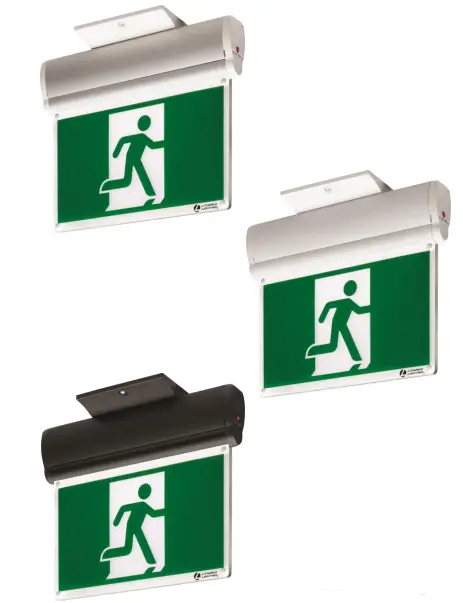

- Extruded Aluminum housing with 3 color options
- Aluminum
- White
- Black
- Field selectable mounting (top, end back) and directional arrow pictograms
- Panel can be angled from 0°-180° for field configurability
- 3.6V Nickel Metal Hydride battery
- Required for all new construction in Canada
Commercial Indoor Running Man Product Positioning
Competitor Comparison
| Lithonia Lighting®: EDGRM | Competitor A | Competitor B | |
| Additional Listings | CSA Damp Location (10°C-40°C) | CSA Approved | CSA Approved |
| Battery Type | Nickel Metal Hydride | Nickel Cadmium | Nickel Cadmium |
| Self Diagnostics | None | None | None |
| Remote Capability | None | None | None |
| Mounting | Universal Mounting | Universal Mounting | Universal Mounting |
| Housing Color Options | Aluminum, White, Black | Silver Only | Silver w/ black end caps Only |
| Voltage | 120-347V | 120-347 | 120-347 |
The data in this comparison was pulled from public specifications dated as of 12/9/2021. Actual performance may differ as a result of end-user environment and application. All trademarks referenced are property of their respective owners.
Signage Offering
| EXRM | ECRM | ECBRM | EARM | LXRM | EDGRM | |
| Key Features & Options | • Remote capability comes standard • Self-diagnostics option • White and black housing available | • Remote capability option • Self-diagnostics option • White and black housing available | • Remote capability option • Self-diagnostics option • White and black housing available | • Lightweight • Self-diagnostics option • White and black housing available • Universal Voltage | • Durable • Self-diagnostics option • White and black housing available • Universal Voltage | • Lightweight • Easy field configurability • Multiple housing colors • Universal Voltage |
| Self- Diagnostics | Yes | Yes | Yes | Yes | Yes | No |
| Remote Capacity | 2W | 3W | 3W | N/A | N/A | N/A |
| Secondary DC Input | N/A | N/A | N/A | 6V, 12V, 24V | 6V, 12V, 24V | N/A |
| Standard Voltage | Dual Voltage (120/347V) | Dual Voltage (120/347V) | Dual Voltage (120/347V) | Universal Voltage (120-347V) | Universal Voltage (120-347V) | Universal Voltage (120-347V) |
| Lamp | LED | LED | LED | LED | LED | LED |
| Construction | Thermoplastic | Thermoplastic | Thermoplastic | Extruded Aluminum | Steel | Aluminum & Acrylic |
| Listings | CSA C22.2 No. 141.15; C860 Meets UL NFPA 101 & NFPA 70-NEC FCC Title 47 OSHA | CSA C22.2 No. 141.15; C860 Meets UL NFPA 101 & NFPA 70-NEC FCC Title 47 OSHA | CSA C22.2 No. 141.15; C860 Meets UL NFPA 101 & NFPA 70-NEC FCC Title 47 OSHA | CSA C22.2 No. 141.15; C860 Meets UL NFPA 101 & NFPA 70-NEC FCC Title 47 OSHA | CSA C22.2 No. 141.15; C860 Meets UL NFPA 101 & NFPA 70-NEC FCC Title 47 OSHA | cUL No. 141.15; C860 Meets CSA NFPA 101 & NFPA 70-NEC FCC Title 47 OSHA |
| Temperature Rating | 10°C to 40°C (50°F to 104°F) | 10°C to 40°C (50°F to 104°F) | 10°C to 40°C (50°F to 104°F) | 10°C to 40°C (50°F to 104°F) | 10°C to 40°C (50°F to 104°F) | 10°C to 40°C (50°F to 104°F) |
| Battery | Nickel Cadmium | Nickel Cadmium | Nickel Cadmium | Nickel Cadmium | Nickel Cadmium | Ni-MH |
| Spacing | N/A | up to 14 ft | up to 14 ft | N/A | N/A | N/A |
| Installation | Universal Mounting (top, end, back) | Universal Mounting (top, end, back) | Universal Mounting (top, end, back) | Universal Mounting (top, end, back) | Universal Mounting (top, end, back) | Universal Mounting (top, end, back) |
Tools to assist
- Specification Sheet
- Includes spacing diagram for proper egress illumination
- Product Page
- Sell Sheet
- Instruction Sheet
- IES file
- Any additional information can be found on our website at www.lithonia.acuitybrands.com
For any questions, please contact [email protected] or 800-705-SERV(7378)
