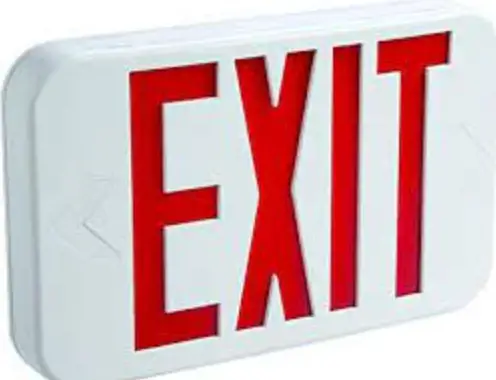

LED LIGHTING WHOLESALE INC GC22 Emergency Exit Sign
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
- Do not use outdoors.
- Do not mount near gas or electric heaters.
- Equipment should be mounted in locations and at heights(MAX:8ft)where it will not be subject to tampering by unauthorized personnel.
- The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
- Do not use this equipment for other than its intended use.
- Before wiring to power supply, turn off electricity at fuse or circuit breaker.
- Consult local building code for approved wiring and installation.
- Installation and servicing should be performed by qualified personnel.
SA VE THESE INSTRUCTIONS
INSTALLATION INSTRUCTIONS
CEILING & BACK MOUNTING (FIG.1) & (FIG.2).
- Connect input as shown in the wiring diagram below and fasten the canopy to the J-box bracket.
- Snap housing to the canopy.
- Secure the faceplate to the housing and remove the proper arrow as required.
WARNING
Unused wires must be capped using enclosed wire nuts.
OPERATION
- During an electrical power failure, the lamps on the unit will automatically come ON for a minimum of 90 minutes.
- To test this unit, let it charge correctly with AC power supply for a minimum of 24 hours after its first installation and then depress the “TEST” switch, the emergency lamps will illuminate. When the switch is released, the lamps will turn OFF.
- To test the unit by using the remote control, click the button on the remote control (dont’ long press), the emergency lamps will illuminate and then go off in 3 seconds after releasing the button. The operation distance is MAX. 4.5m.
Wiring Diagrams

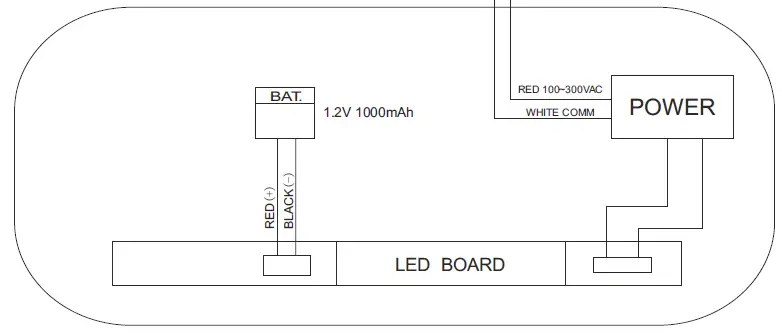

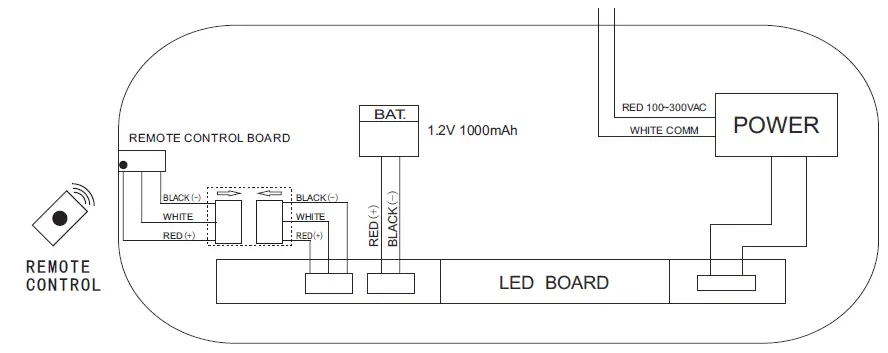

EXIT WITH BATTERY BACKUP With Remote Control

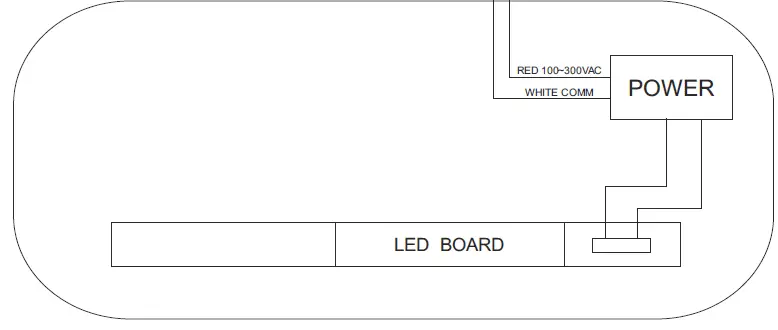

EXIT WITH BATTERY BACKUP Without Remote Control
AC
