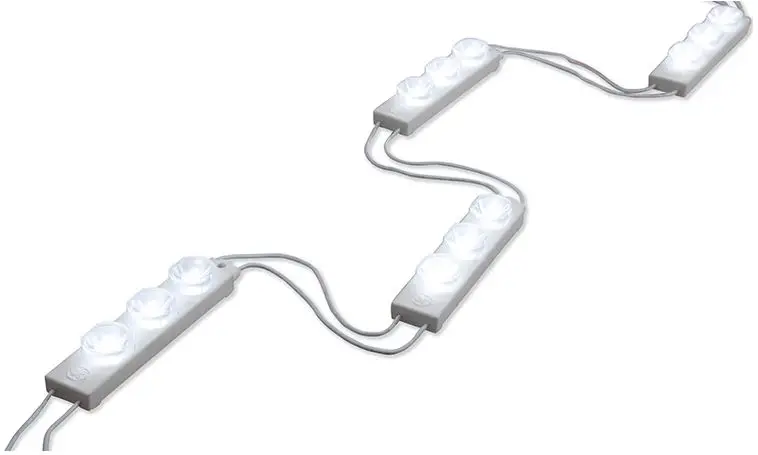

Tetra Slim EdgeStrip Cabinet Sign Lighting System
Tetra® Slim EdgeStrip is engineered to install easily around the edge of shallow to medium-depth signs—as low as 2” (51 mm) deep. Ideal for single or double-sided signs, as well as acrylic or fabric faces, Tetra® Slim EdgeStrip delivers money-saving advantages over competitive LED solutions, while producing an outstanding visual performance that enhances end-user brand image.
Brighter Than Ever
Tetra® EdgeStrip is now brighter than the previous generation, commanding attention to your customer’s brand image. 300 lumens per foot with the same loading: 36 modules per 24V 100W power supply
Increased Loading
Load up to 57 modules per 24V 100W power supply Tetra® Slim EdgeStrip uses only 1.44 Watts per module, for an efficacy of 109 lumens per watts thanks to our 24V platform.
Tetra Slim EdgeStrip Features
- Targeted 15°x35° beam angle
- Improved luminous intensity
- Efficacy: 97-109 lm/W
- 24 Volt DC, Class 2 (UL), Class III (IEC)
- UL Damp Rated & IP66
- 10-year limited warranty
Module Dimensions
| Length | Width | Height |
| 3.76”/96mm | 0.79”/20mm | 0.56”/14mm |
Tetra Slim EdgeStrip Spacing
| Modules/ft | Can Depth | Coverage (1 side) | Coverage (2 sides) |
| 2.5 (8.2 m | 2” (51 mm) | 2 ft (609 mm) | 4 ft (1219 mm) |
| 2 (6.6 m) | 3” (76 mm) | 2 ft (609 mm) | 4 ft (1219 mm) |
| ≥ 4” (102 mm) |
Cover any angle or curved shape with uniform LED light
Tetra® Slim EdgeStrip’s low profile is designed to fit into the frame of shallow cabinet signs, meaning that curved, angular or custom-shaped signs can now benefit from LED technology! Unlike fluorescent tubes, which are hard to fit into unique signs and create shadows and striping, Tetra® Slim EdgeStrip can tightly follow the contour of the sign’s frame and distribute uniform light to every inch of the sign face. Protect the brand image of your business by using Tetra® Slim EdgeStrip LED lighting system in your sign.

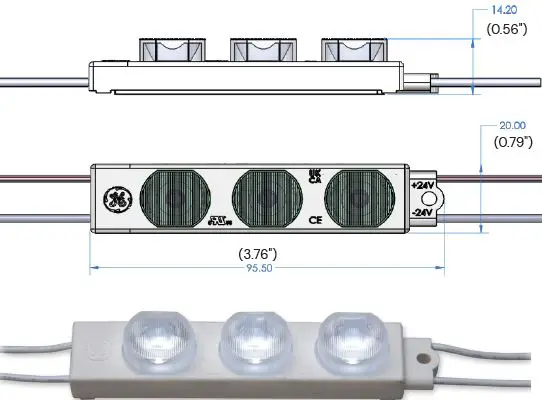

Mechanical Outline
Dimensions in mm. Metric equivalent in (inches)

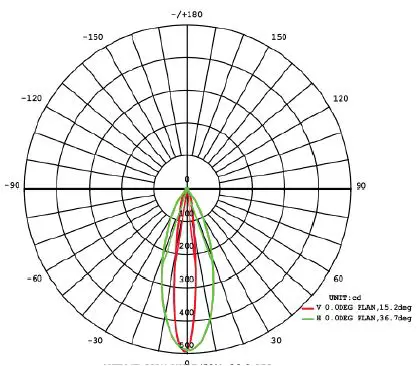

Viewing Angle
Tetra EdgeStrip Features
- Optical design maximizes the area of light coverage by creating a narrow, uniform viewing angle
- 3M VHB™ industrial grade mounting tape allows for greater convenience when installing
- Continuous wire through LED module uses IDC connectors for maximum strain relief
- Robust, over-molded design protects against moisture, dust, and damage
- Can be cut on wires between modules
- Pre-drilled holes make mounting easy
- 10-year limited warranty
Components
| SKU | Order Code | Description | Color | Strip Quantity | Box Quantity |
| 93145561 | GEBI65-S2 | Tetra Slim EdgeStrip 6500K | Warm White | 30 modules per strip, 1 strip per bag | 5 bags (150 modules) per box |
| 93145562 | GEBI50-S2 | Tetra Slim EdgeStrip 5000K | Warm White | 30 modules per strip, 1 strip per bag | 5 bags (150 modules) per box |
| 93145535 | GEBIH65-S2 | Tetra Slim EdgeStrip HO 6500K | Warm White | 30 modules per strip, 1 strip per bag | 5 bags (150 modules) per box |
| 93145536 | GEBIH50-S2 | Tetra Slim EdgeStrip HO 5000K | Warm White | 30 modules per strip, 1 strip per bag | 5 bags (150 modules) per box |
Other CCTs are available on a special order basis. Please reach out to your Current sales manager for details.
Technical Specifications
| Product | CCT | Typical Brightness* Lumens/ module | Typical Brightness* Lumens/Ft (Lumes/m) | LEDs/ Module | Efficacy/ Module Lumens/ Watt | Energy Consumption* Module Wattage | Energy Consumption* System Wattage | 100W GLX Power Supply Loading** | Viewing Angle |
| Tetra Slim EdgeStrip | 6500K, 5000K | 157 | 236 (785) | 3 | 109 | 1.44W/module | 1.69W/module | 57 Modules (37.5 ft) | 15° x 35° |
| Tetra Slim EdgeStrip High Output | 6500K, 5000K | 235 | 353(1175) | 3 | 108 | 2.16W/module | 2.54W/module | 38 Modules (25 ft) | 15° x 35° |
- Typical performance at 25ºC +/- 10%
- 25W, 80W, 180W, and 300W power supply loading information can be found in the ‘Loading Chart’ section of the catalog.
Additional Specifications
| Specification Item | Specification | ||||
| Voltage | 24VDC | ||||
| Dimmable | Yes (with a dimmable power supply) | ||||
| Cutting Resolution | Cut on the wire between every module | ||||
|
Power Supply | GEPS24-25-NA Input: 100-305VAC; Output: 24VDC GEPS24D-80U Input: 90-305VAC; Output: 24VDC GEPS24-100U Input: 108-305VAC; Output: 24VDC GEPS24-180U Input: 90-305VAC; Output: 24VDC GEPS24-300U Input: 108-305VAC; Output: 24VDC | ||||
|
Maximum Remote Mounting Distance | 18 AWG/0.82 MM² Supply Wire | 16 AWG/1.31 MM² Supply Wire | 14 AWG/2.08 MM² Supply Wire | 12 AWG/3.31 MM² Supply Wire | |
| 25W Power Supply | 120 ft./36.6 m | – | – | – | |
| 80W Power Supply | 20 ft./6.1 m | 25 ft./7.6 m | 35 ft./10.6 m | 40 ft./12.1 m | |
| 100W Power Supply | 20 ft./6.1 m | 25 ft./7.6 m | 35 ft./10.6 m | 40 ft./12.1 m | |
| 180W Power Supply | 20 ft./6.1 m | 25 ft./7.6 m | 35 ft./10.6 m | 40 ft./12.1 m | |
| 300W Power Supply | 20 ft./6.1 m | 25 ft./7.6 m | 35 ft./10.6 m | 40 ft./12.1 m | |
| Operating Environment | -40 °C to +60 °C (-40 °F to +140 °F) | ||||
| Dimensions (L x W x H) | N/A | ||||
| Warranty | Currently offers a limited system warranty of up to ten (10) years | ||||
| System Certifications | UL-CUL-E219167, CE, ClassIII, China Rohs II, IP66 | ||||
© 2022 Current Lighting Solutions, LLC. All rights reserved. Information and specifications subject to change without notice. All values are design or typical values when measured under laboratory conditions.
