Tetra MS Channel Letter Lighting System
INTRODUCTION

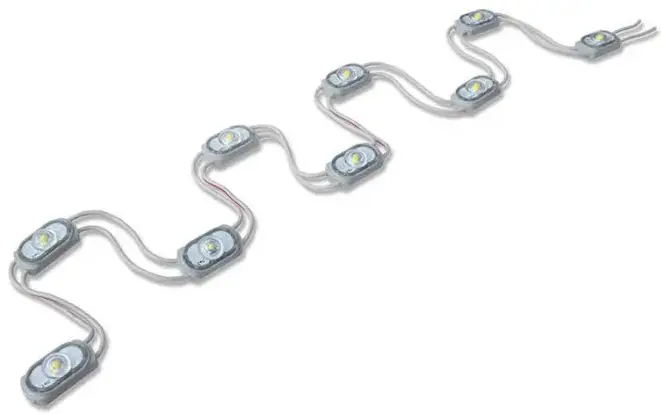

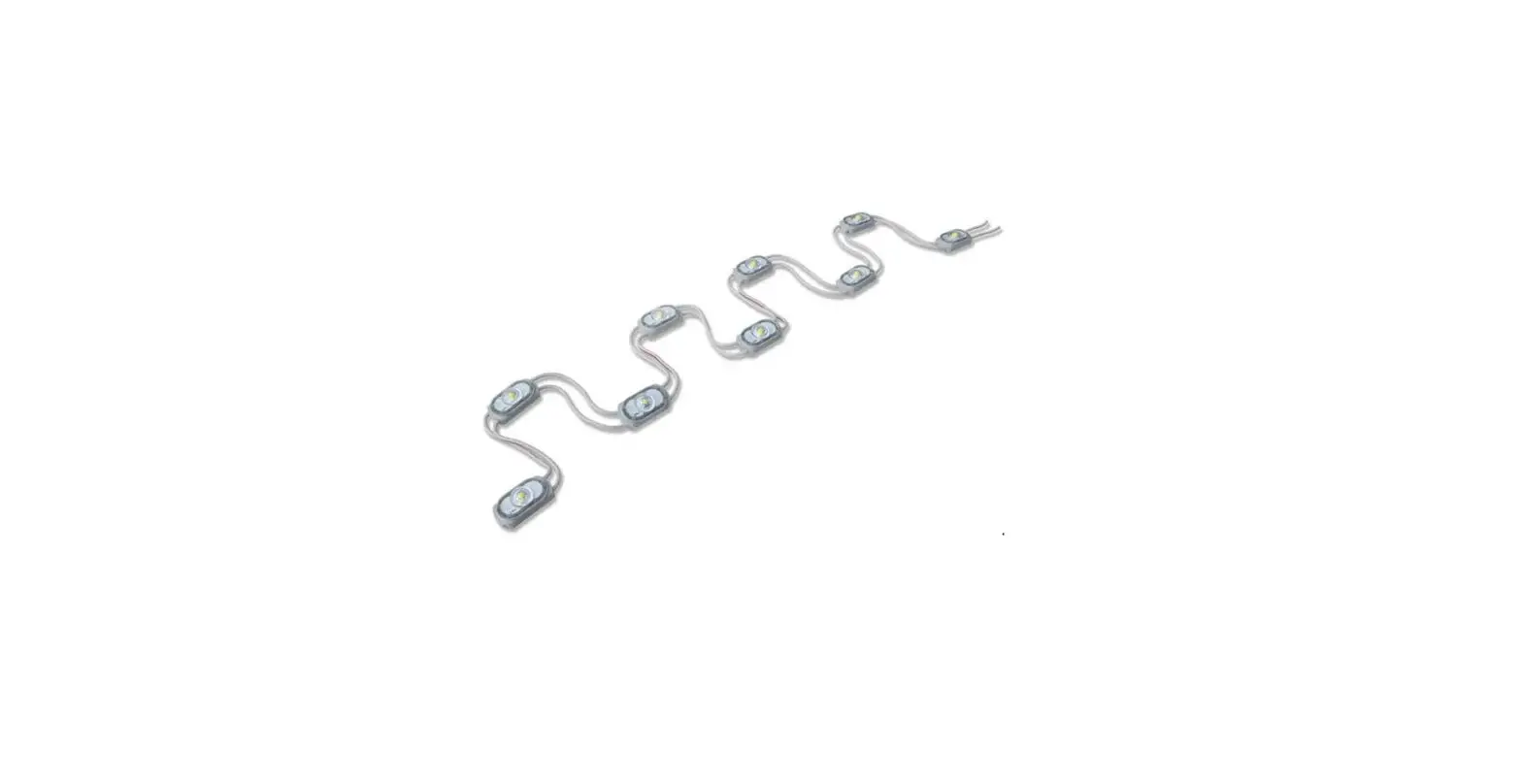

Tetra®MS — the remarkable 24V LED system designed for small channel letters as shallow as 1.5 inches in depth delivers incredibly uniform light, installs easily and operates efficiently. Tetra® MS is IP66 and UL wet rated which makes it more robust and reliable even under wet weather.
Powerful OptiLens™ X
Tetra® MS features OptiLens™ X, our patented technology that allows for a true 165° x 140° viewing angle. This exclusive technology redirects otherwise wasted light to the sign face, making sure your signs shine.
Class-leading loading
Now load up to 90.5 feet (27.6 m) or 362 modules of 24V Tetra® MS per 100W power supply using our new and improved GLX2 power supplies.
Improved stroke spacing
24V Tetra® MS stroke spacing has improved, thanks to the new OptiLens™ X wide beam angle. In addition, its new silicone flow channels have increased bonding strength by 10-20%
Tetra®MS Features
- Wide 165° beam angle
- Improved luminous intensity
- Efficacy: 119 lm/W
- 24 Volt DC, Class 2 (UL), Class III (IEC)
- UL Wet Rated & IP66
- 10-year limited warranty
Tetra®MS Spacing
| Can Depth | Coverage | Multiple Strings |
| 1’’ (25mm) | 2” (51mm) | 1.5” (38mm)* |
| 1.5” (38mm) | 4” (102mm) | 2.5” (64mm) |
| 2’’ (51mm) | 6” (152mm) | 5” (127mm) |
| 3’’ (76mm) | 7” (178mm) | 5” (127mm) |
*Face material must be at least 3/16” (5mm) thick
Total Reliability
To ensure every Tetra® MS installation will operate brilliantly for years, we perform the most extensive, stringent testing in the industry. We test the LED, water and dust ingress protection, sub-system and complete system at our in-house and independent laboratories around the world. Validation of our designs, components, products and processes include high temperature, high humidity and accelerated life testing

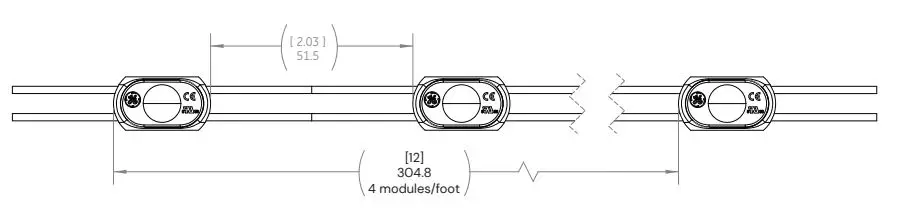

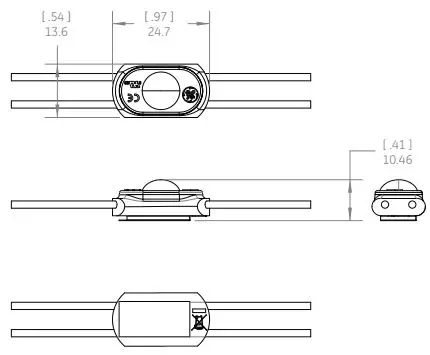

Mechanical Outline & Viewing Angle
Dimensions in (inches). Metric equivalent mm
Accessories
| SKU | Description | Package quantity |
| GETMEC1 | 18 AWG Wire End Caps (0.82 mm²) | 100/bag |
| 9409 | 18 AWG Supply Wire (0.82 mm²) | 500 ft (152.40m)/ spool |
| 191600041 | 22-14 AWG Twist-on Wire Connector (0.33-2.08 mm²) | 500/bag |
| 192160004 | 18-14 AWG In-line Splice Connector (0.82-2.08 mm²) | 500/bag |
Components
| SKU | Model | Details | Color | Pkg. Quantity | Modules per strip |
| 93053674 | GEMS2471-W1 | Tetra® Atom 24V 7100K | White | 5 Strips/Box | 80 modules per strip (20 ft/strip) |
| 93118641 | GEMS2465-W1 | Tetra® Atom 24V 6500K | Warm White | 5 Strips/Box | 80 modules per strip (20 ft/strip) |
| 93053675 | GEMS2450-W1 | Tetra® Atom 24V 5000K | Warm White | 5 Strips/Box | 80 modules per strip (20 ft/strip) |
| 93053676 | GEMS2441-W1 | Tetra® Atom 24V 4100K | Warm White | 5 Strips/Box | 80 modules per strip (20 ft/strip) |
| 93053677 | GEMS2432-W1 | Tetra® Atom 24V 3200K | Warm White | 5 Strips/Box | 80 modules per strip (20 ft/strip) |
Technical Specifications
| Model | Wavelength/ CCT | Typical Brightness Lumens/ module | Typical Brightness Lumens/Ft (Lumens/m) | Energy Consumption Module Wattage | Energy Consumption System Wattage | 100W GLX Power Supply Loading | 100W GLX2/ TT Power Supply Loading | Viewing Angle |
| GEAM2471-W1 | 7100K | 27.5 | 110 (361) | 0.23w/module | 0.27w/module | 85 ft (25.9 m) | 90.5 ft (27.6 m) | 165° |
| GEAM2465-W1 | 6500K | 27.5 | 110 (361) | 0.23w/module | 0.27w/module | 85 ft (25.9 m) | 90.5 ft (27.6 m) | 165° |
| GEAM2450-W1 | 5000K | 27.5 | 110 (361) | 0.23w/module | 0.27w/module | 85 ft (25.9 m) | 90.5 ft (27.6 m) | 165° |
| GEAM2441-W1 | 4100K | 27.5 | 110 (361) | 0.23w/module | 0.27w/module | 85 ft (25.9 m) | 90.5 ft (27.6 m) | 165° |
| GEAM2432-W1 | 3200K | 25 | 100 (328) | 0.23w/module | 0.27w/module | 85 ft (25.9 m) | 90.5 ft (27.6 m) | 165° |
Additional Specifications
| Dimmable | Yes (with dimmable power supply) | ||||
| LEDs/Module | 1 | ||||
| LEDs/ft (LEDs/m) | 4 (13) | ||||
| Modules/ ft. (Modules/m) | 4 (13) | ||||
| Cutting Resolution | Cut on wire between every module | ||||
|
Power Supply | GEPS24-25-NA Input: 100-305VAC; Output: 24VDC GEPS24D-80U Input: 90-305VAC; Output: 24VDC GEPS24-100U Input: 108-305VAC; Output: 24VDC GEPS24-200U Input: 90-305VAC; Output: 24VDC GEPS24-300U Input: 108-305VAC; Output: 24VDC | ||||
|
Maximum Supply Wire Limits | 18 AWG/0.82 MM² Supply Wire | 16 AWG/1.31 MM² Supply Wire | 14 AWG/2.08 MM² Supply Wire | 12 AWG/3.31 MM² Supply Wire | |
| 25W Power Supply | 120 ft./36.6 m | / | / | / | |
| 80W Power Supply | 20 ft./6.1 m | 25 ft./7.6 m | 35 ft./10.6 m | 40 ft./12.1 m | |
| 100W Power Supply | 20 ft./6.1 m | 25 ft./7.6 m | 35 ft./10.6 m | 40 ft./12.1 m | |
| 200W Power Supply | 20 ft./6.1 m | 25 ft./7.6 m | 35 ft./10.6 m | 40 ft./12.1 m | |
| 300W Power Supply | 20 ft./6.1 m | 25 ft./7.6 m | 35 ft./10.6 m | 40 ft./12.1 m | |
| Operating Environment | -40 °C to +60 °C (-40 °F to +140 °F) | ||||
| Module Dimensions (h x l x w) | 0.41” x 0.97” x 0.54” (10.46 mm x 24.7 mm x 13.6 mm) | ||||
| Warranty | Limited system warranty of up to ten (10) years | ||||
| System Certifications | UL Recognized (C-US) #E219167, UL Classified (C-US) #E229508, CE, ROHS • IP66 rated: for dry, damp or wet location. | ||||
