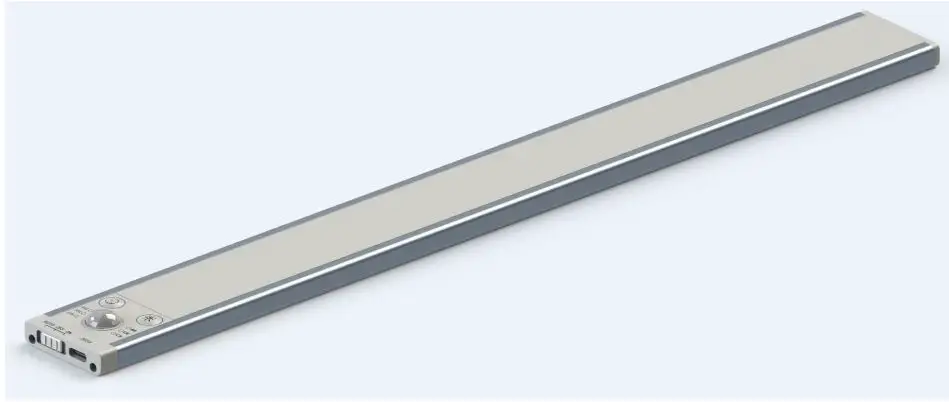

OPTONICA 232 Cabinet Light
Features
- Ultra thin and simple design
- Type-C USB charging Type-C USB
- Magnet, double – sided tape for easy installation
- Soft light, no eye injury
- Two color temperature design, there is always something you like
Applications
Living room, bedroom, washroom, corridor, bedside, basement, garage, bar table, wardrobe, cupboard, cu pboard, bookcase, safe, camping tent, car rear trunk and other family lighting.
Product name and accessories
| Packaging products and accessories | |||
| Photos | Part name | Specification | Quantity |
 | Cabinet light | 400*41.2*9.2 mm | 1pcs |
 | Track | 40*35*4.1mm | 2pcs |
 | 3M | 32* 32*1.0 mm | 2pcs |
 | USB cable | TYPE – C USB | 1pcs |
Specification
| |
| SKU | 232 |
| Power(W) | 2.5W |
| LED Type | SMD4014 |
| LED Qty (PCS) | 138 PCS |
| CCT (K) | CCT |
| Luminous flux (lm) | 200LM |
| CRI(Ra) | >80Ra |
| Battery | 2000mAH |
| Switch function | AUTO/OFF/ON |
| Delay time | 15S/30S/90S |
| Working time | 3 Hour |
| Charge time | 2-4 Hour |
| Shell material | AL+ABS+PC |
| Operation Temperature | -20℃+40℃ |
| Storage Temperature | -20℃+40℃ |
| IP Rating | SKU |
| Product size | 400*41.2*9.2mm |
Installation

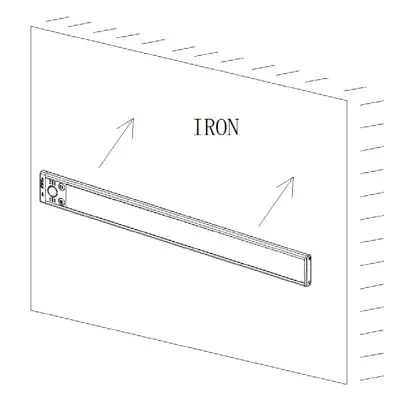

Magnetic Random Installation
There is a strong magnet at the bottom of the product. Directly put the back of the LED lamp on the metal iron plate.

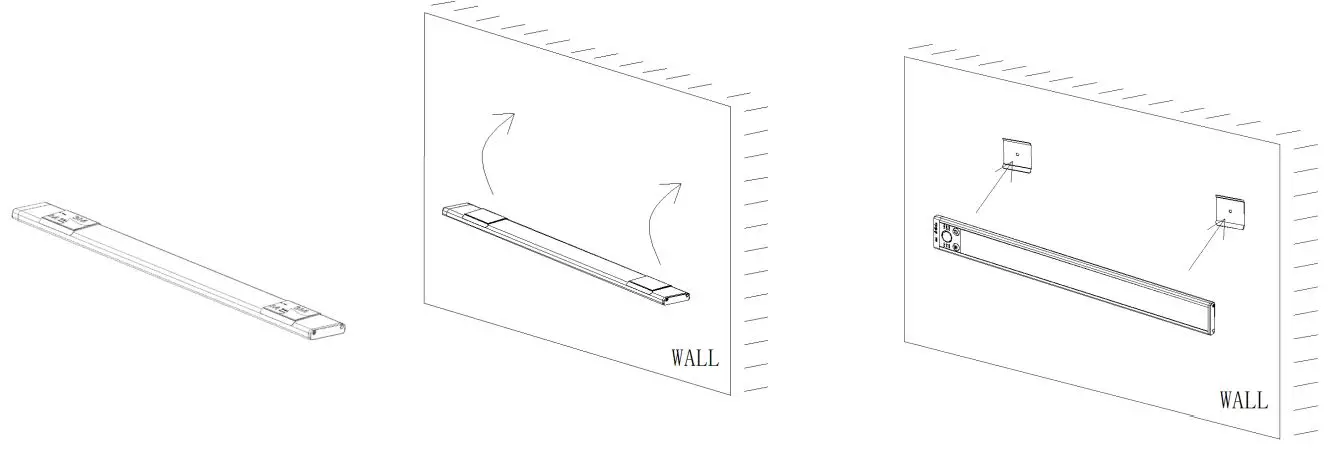

Magnet sheet installation

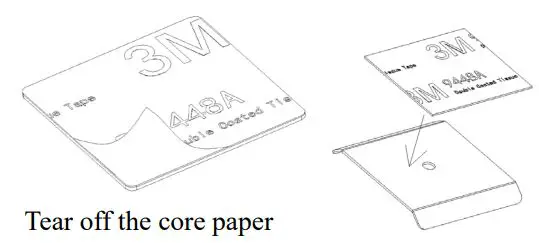

Tear off the release paper on one side of the double-sided adhesive tape and stick it on the magnetic iron sheet.

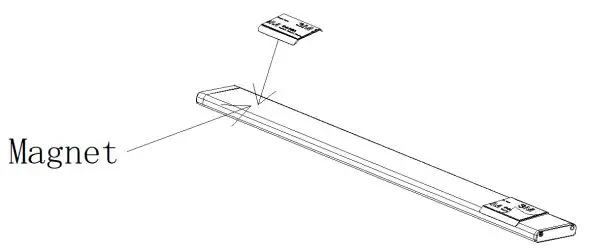

Place the magnetic sheet with release paper on the magnet on the back of the product.
Tear off the release paper on the other side of the magnet sheet, and then paste it to the position to be pasted (wipe off the dust before pasting). Check again if the paste is proper and firm.

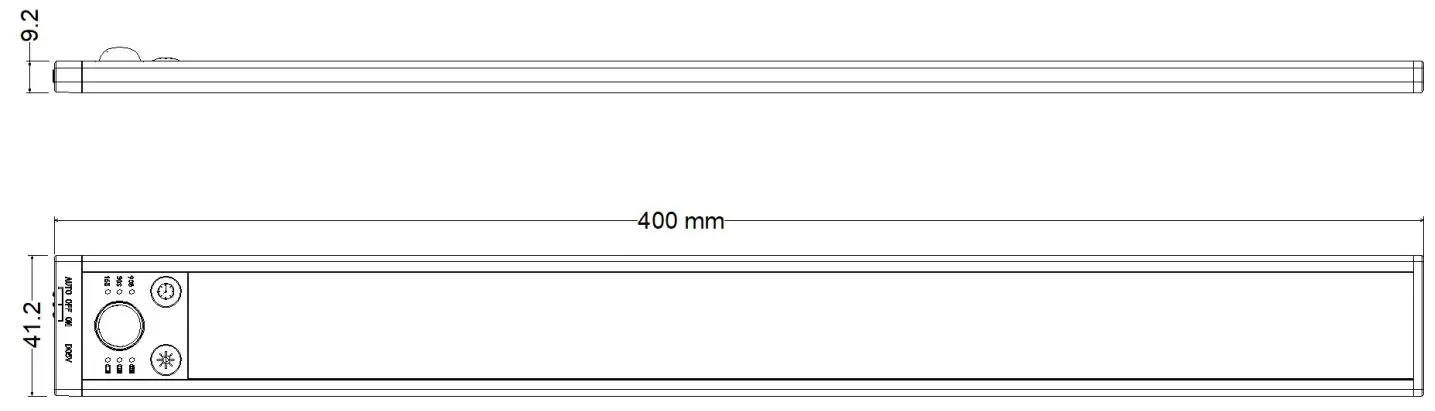

Product size
Cautions
- Please keep away from inflammable and explosive materials when charging. The charging time should not exceed 12 hours. Try to avoid using while charging.
- Do not immerse the product in water, otherwise it may be short circuited or damage d.
- Do not put the product into the fire, otherwise it may cause combustion or explosion.
