F737 Landmine Option
for the BodyCraft F430 / F730 PRO (Power Rack) or F438 / F738 (RFT PRO)
Owner’s Manual
To see in
FULL COLOR & additional information, scan this QR code.
http://www.bodycraft.com/F737-qr.html
Base Lot Number: _ _ _ _ _ _ _ _ _ _ _ _ _
Purchased Date: ___ / ___ / ______
Dealer’s Name:__________________________
Please register your products at:
https://www.bodycraft.com/product-registration/

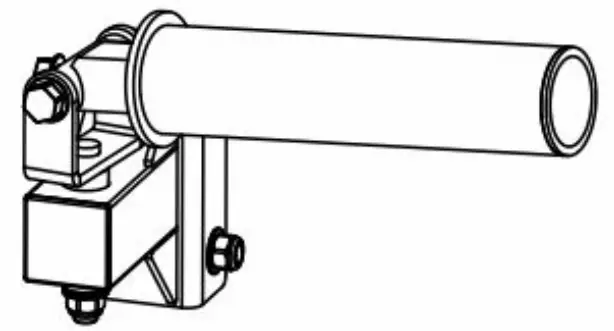

Assembled Parts List
| Part # | Assembly Parts List | QTY |
| F737-602-ASM | Rotating Frame – Assembly | 1 |
| Part # | Assembly Hardware | QTY |
| F737-604 | Nut, Nylon Lock 1/2″ – BLACK | 2 |
| F737-606 | Washer, Flat 1/2″ – BLACK | 4 |
| F737-610 | Bolt, Hex Head 1/2″ x 4-1/2″ – BLACK | 2 |
STEP 1: Installation of the F737 Option to an F730 PRO (Power Rack) or F738 (RFT PRO)
http://www.bodycraft.com/F730-qr.html
http://www.bodycraft.com/F738-qr.html

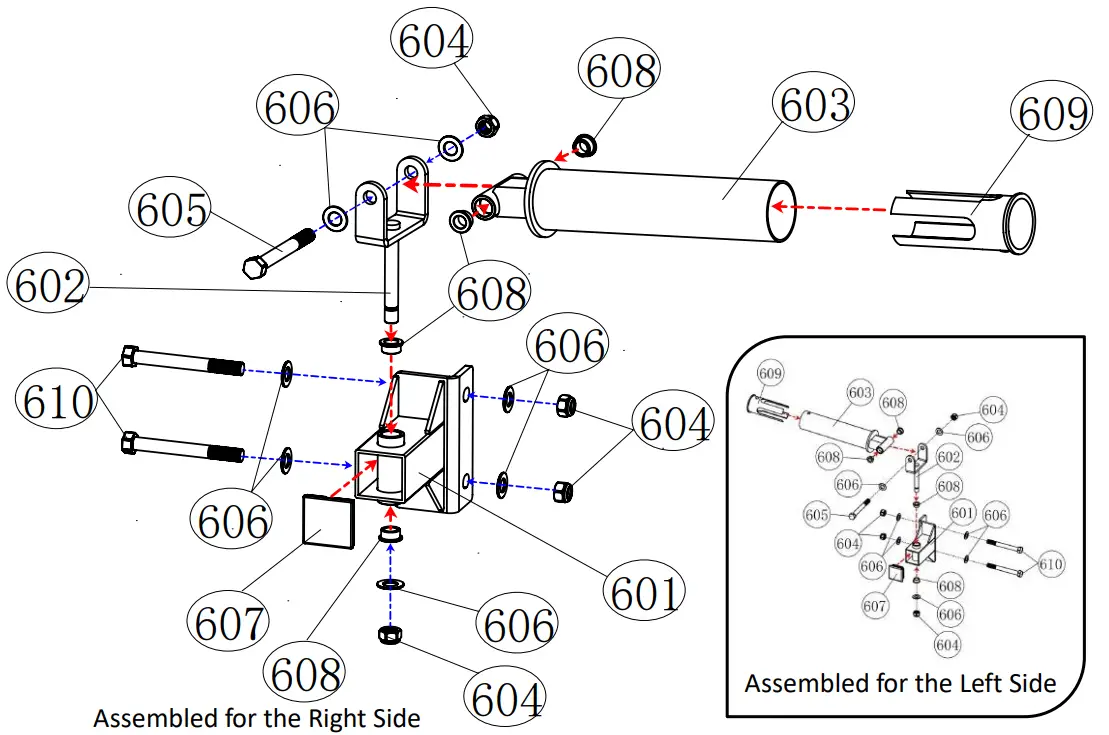

F737 – Optional Mounting Sides, Detailed Parts List & Parts Exploded View
STEP 2: Installation of the F737 Option can be done on Rt side or Lt side by flipping the
Rotating Frame (602) on the Rotating Underframe, Mounting Plate (601).

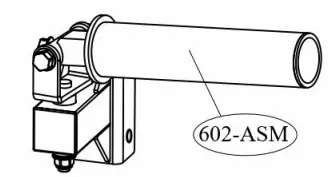

Right Side Assembled

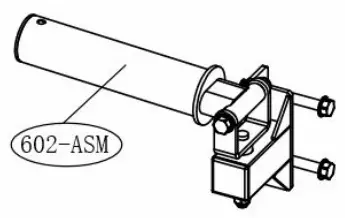

Left Side Assembled
| Part # | Detailed Parts List | QTY |
| F737-601 | Rotating Underframe, Mounting Plate | 1 |
| F737-602 | Rotating Frame | 1 |
| F737-603 | Barbell Frame, with Bushing Holder | 1 |
| F737-604 | Nut, Nylon Lock 1/2″ – BLACK | 4 |
| F737-605 | Bolt, Hex Head 1/2″ x 4-1/4″ – BLACK | 1 |
| F737-606 | Washer, Flat 1/2″ – BLACK | 7 |
| F737-607 | Square Plug, Plastic, to Mounting Plate | 1 |
| F737-608 | Bushing, Steel | 4 |
| F737-609 | Inner Sliding Sleeve, for Oly Barbell | 1 |
| F737-610 | Bolt, Hex Head 1/2″ x 4-1/2″ – BLACK | 2 |
NOTE: Parts are not to scale
