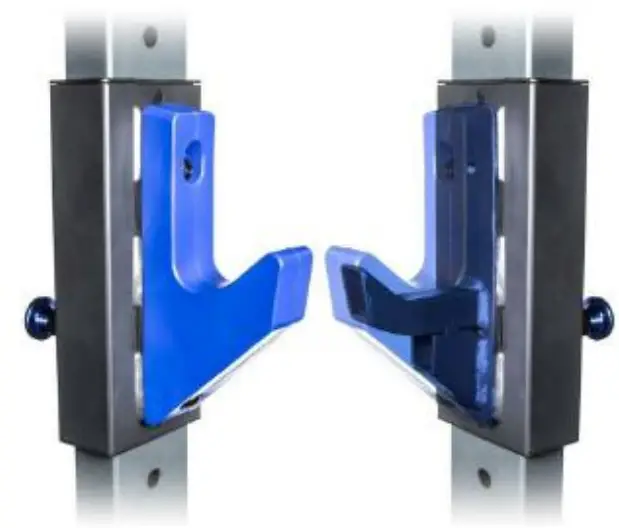

F733 Extra Bar Catch Set
for the BodyCraft F730 PRO (Power Rack)
Owner’s Manual

Contents hide

F733 Extra Bar Catch Set

http://www.bodycraft.com/F733-qr.html

Base Lot Number: _ _ _ _ _ _ _ _ _ _ _ _ _
Purchased Date: ___ / ___ / ______
Dealer’s Name:__________________________
Please register your products at: https://www.bodycraft.com/product-registration/

BODYCRFT
lot Code :F733-YYMM DD

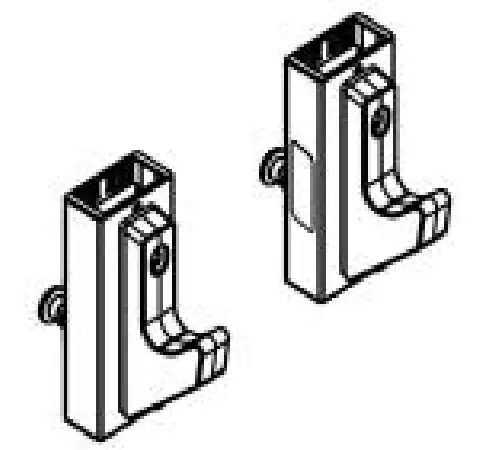

Assembled Parts List

Part #	Assembly Parts List	QTY
F733-801-R-ASM	Bar Catch, Adjustable, Right – Assembly	1
F733-801-L-ASM	Bar Catch, Adjustable, Left – Assembly	1

STEP 1: Installation of the F733 Extra Bar Catch Set to an F730 PRO (Power Rack)

http://www.bodycraft.com/F730-qr.html

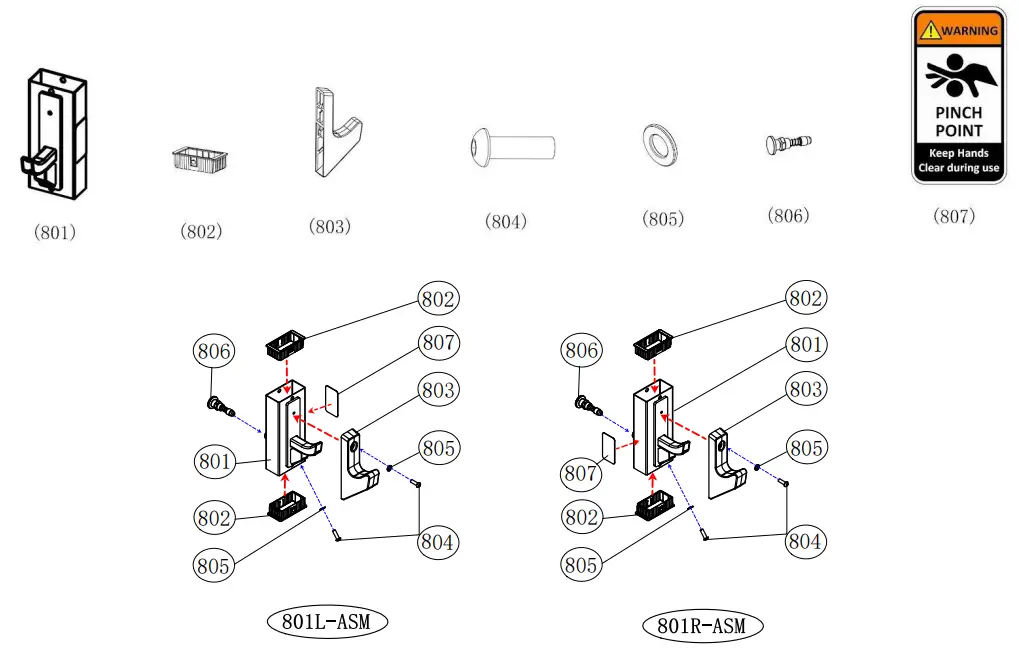

F733 – Mounting on the F730 PRO, Detailed Parts List & Parts Exploded View

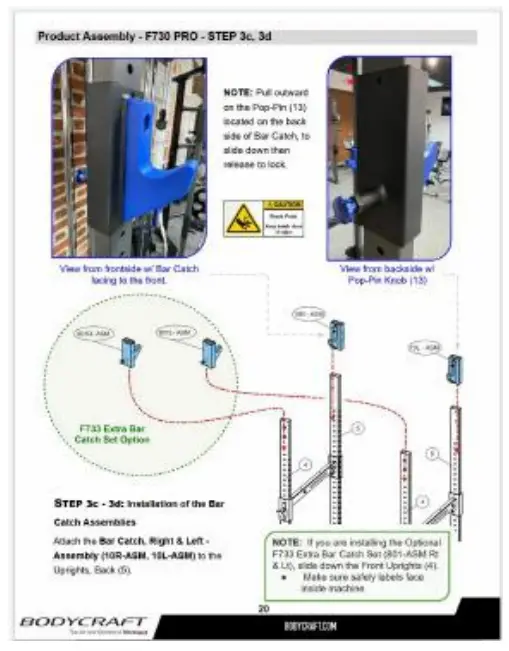

STEP 2: Installation of the F733 Option on the F730 PRO during STEP 3c-d

Part #	Detailed Parts List	QTY
F733-801	Bar Catch Adjuster	2
F733-802	Inner Sliding Sleeve, Rectangular	4
F733-803	Bar Catch Cover, Blue Rubber	2
F733-804	Screw,Hex Recessed Flat Head 5/16″ x 7/8″ – BLACK	4
F733-805	Washer, Flat 5/16″-BLACK	4
F733-806	Pop Pin, Blue, Alum, 45mm L	2
F733-807	Warning Label- Pinch Point, Vertical	2
