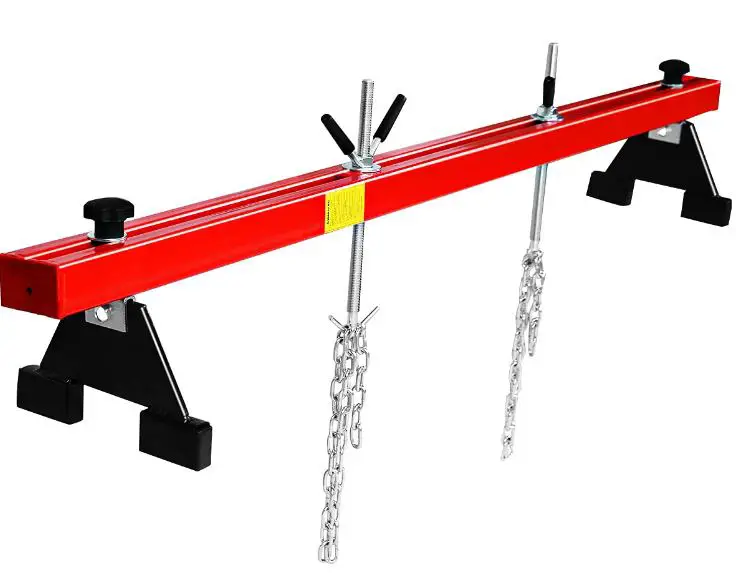

HARBOR FREIGHT 96524 Engine Support Bar

Product Information

This product is an Engine Support Bar with a capacity of 1000 lbs. It is designed to provide support for engines during installation or removal. The product comes with an owner’s manual that contains important safety instructions, specifications, setup guidelines, operation procedures, maintenance tips, and warranty information.

Product Usage Instructions

Before using this product, it is essential to read and understand all the instructions provided in the owner’s manual. Failure to do so may result in serious injury.

Setup

Ensure that the product is intact and undamaged when unpacking. If any parts are missing or broken, contact customer support immediately.
Refer to the assembly diagram in the manual and write down the product’s serial number or the month and year of purchase on the back of the manual for future reference.
Keep the manual and the purchase receipt in a safe and dry place.

Operation

Study, understand, and follow all instructions provided in the manual before using the tool.
Do not exceed the rated capacity of the engine support bar.
Wear ANSI/ISEA Z87.1 compliant eye protection during operation.
The engine support tool should only be installed or removed after lifting the engine. It is designed to be a support device.
Ensure that the tool foot contact points can adequately support the load.
Make sure the engine is securely supported before removing the engine support tool.
Position the tool on areas of the vehicle as specified by the vehicle manufacturer.
Do not make any alterations to the product.
Only use replacement parts approved by the manufacturer.

Maintenance

Regularly inspect the Engine Support Bar for misalignment, binding of moving parts, breakage, or any other condition that may affect its operation. If any damage is found, have the tool repaired before using it. Proper maintenance is crucial to ensure safe operation.
Use the Engine Support Bar in accordance with the instructions provided and for the specific type of tool, it is intended for. Using the tool for operations different from those intended could result in a hazardous situation.
For any further assistance or information, visit the manufacturer’s website at http://www.harborfreight.com or email their technical support at [email protected].
Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.

Warning SyMBOLS anD DeFinitiOnS
	This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
	Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
	Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
	Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
	Addresses practices not related to personal injury.

IMPORTANT SAFETY INFORMATION

Study, understand, and follow all instructions before using this tool.
Do not exceed rated capacity.
Wear eye protection that meets ANSI/ISEA Z87.1.
Support device only. Install or remove the engine support tool only after lifting the engine.
Make sure tool foot contact points can support the load.
Make sure the engine is secure before removing the engine support tool.
Failure to heed and understand these instructions and markings may result in personal injury and/or property damage.
Position this tool on areas of the vehicle as specified by the vehicle manufacturer.
No alterations shall be made to this product.
Use only replacement parts approved by the manufacturer.
Maintain the Engine Support. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the tools operation. If damaged, have the tool repaired before use. Many accidents are caused by poorly maintained tools.
Use the Engine Support in accordance with these instructions and in the manner intended for the particular type of tool, taking into account the working conditions and the work to be performed. Use of the tool for operations different from those intended could result in a hazardous situation.
Use the Engine Support for short-term lifting projects only. The Engine Support is not constructed to endure extended term use.
Do not work on an engine that is supported only by the Engine Support. Do not take any action that will jar, jostle or move the engine. Moving the engine in any way creates a safety hazard and may cause the engine to fall resulting in serious personal injury or property damage.
Do not work underneath an engine while it is supported only by the Engine Support.
Be aware of dynamic loading! Suddenly swinging or dropping load may briefly create excess load causing product failure.
This product is not a toy. Keep it out of reach of children.
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Keep children and bystanders away while using the Engine Support. Distractions can cause you to lose control.
Stay alert, watch what you are doing and use common sense when operating the Engine Support. Do not use it while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating tools may result in serious personal injury.
Use safety equipment. Safety equipment such as dust mask, non-skid safety shoes, hard hat, hearing protection, and work gloves used for appropriate conditions will reduce personal injuries.
Do not overreach. Keep proper footing and balance at all times. This enables better control of the tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
Maintain labels and nameplates on
the tool. They carry important safety information. If unreadable or missing, contact Harbor Freight Tools for a replacement.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.
