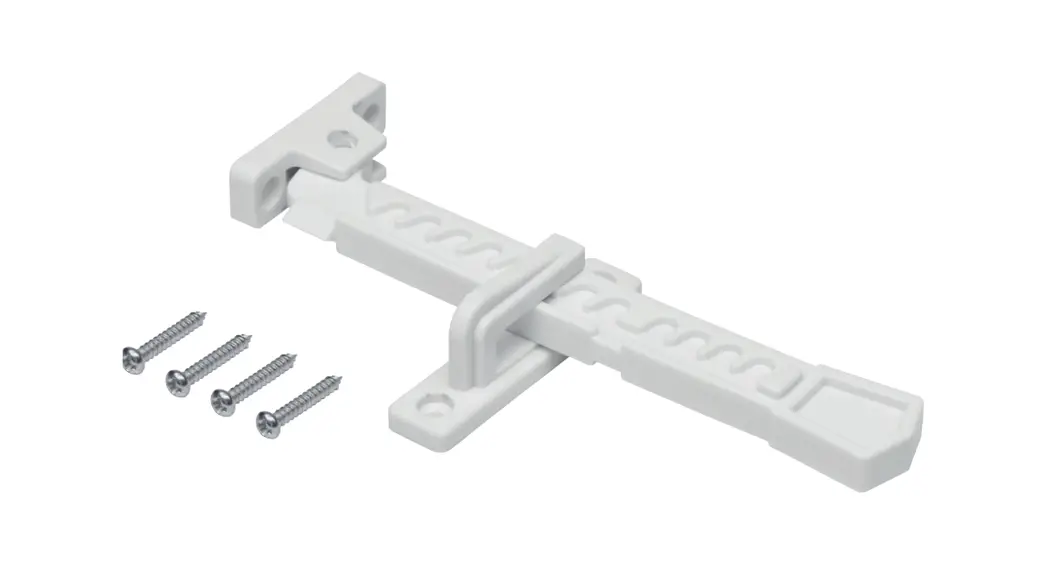

TECHNICAL DATA

Size 150 x 60 x 49 mm
Hole diameter Ø 4 mm

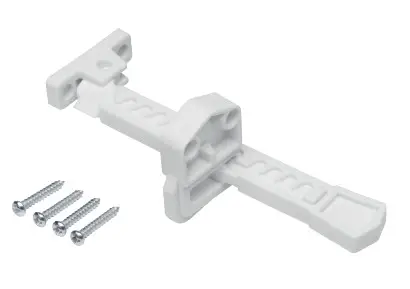

DESCRIPTION

Window stay for inward opening window that can be put in different ventilation positions. Supplied with fittings.

FITTING

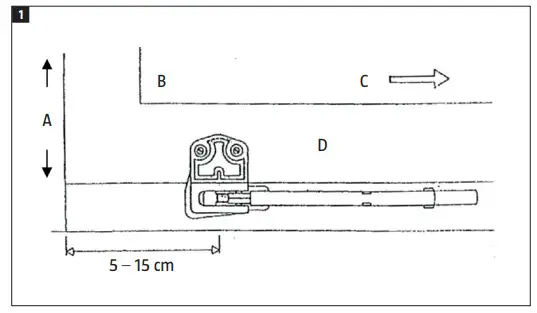

1. Fit the stay at a distance of 5-15 cm from the window frame as shown in the adjacent diagram (A. Frame, B. Pane, C. Hinge side, D. Casement).

   Figure 1
2. The opening arm should be placed so that it can be folded against the hinge side on the window, which also means that the gap on the fastener should be aligned to the hinge side Make sure that the pins in the fastener come in the middle behind the arm wedge..

NOTE:

If fitted according to these instructions there will be a maximum opening of 10 cm.

USE

RELEASING THE OPENING ARM

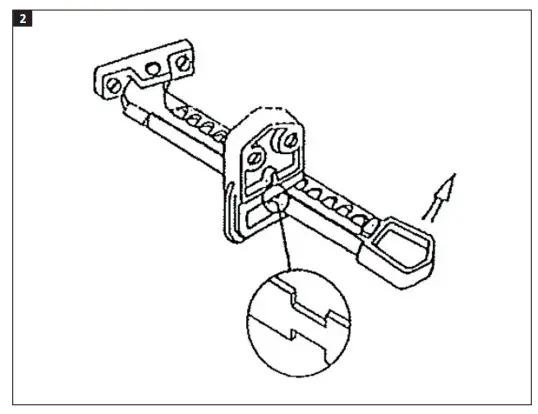

1. Push out the window until the pins in the fastener come opposite the recesses on the arm.
2. Push out the bar in the direction of the arrow.

                                 Figure 2

NOTE:

Closing the window automatically resets the window stay
