Work Trestle Instruction Manual
023858

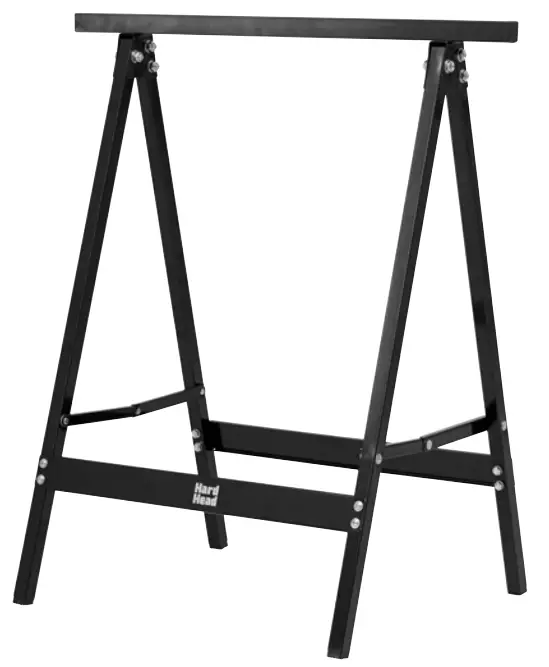

023858 Work Trestle
Jula AB reserves the right to make changes to the product. Jula AB claims copyright on this documentation. It is not allowed to modify or alter this documentation in any way and the manual shall be printed and used as it is in relation to the product. For the latest version of operating instructions, refer to the Jula website.
WWW.JULA.COM
© JULA AB 2022-08-09
JULA AB BOX 363, 532 24 SKARA, SWEDEN
SAFETY INSTRUCTIONS
Read these instructions carefully before use, and follow all warnings and safety instructions. Failure to follow all the instructions and safety instructions can result in the risk of accident, fire and/or personal injury.
- Do not use product as scaffolding, a ladder, or pallet etc.
- Place the product on a level, stable surface suitable for the purpose.
- Do not use the product if any parts are deformed or damaged.
- Do not overload the product. The maximum load is 100 kg.
SYMBOLS
| Read the instructions. |
TECHNICAL DATA
| Max load | 100 kg |
| Size, folded | 75.7 x 63.5 x 6.5 mm |
| Size | L63.5 x W43 x H72 cm |
DESCRIPTION

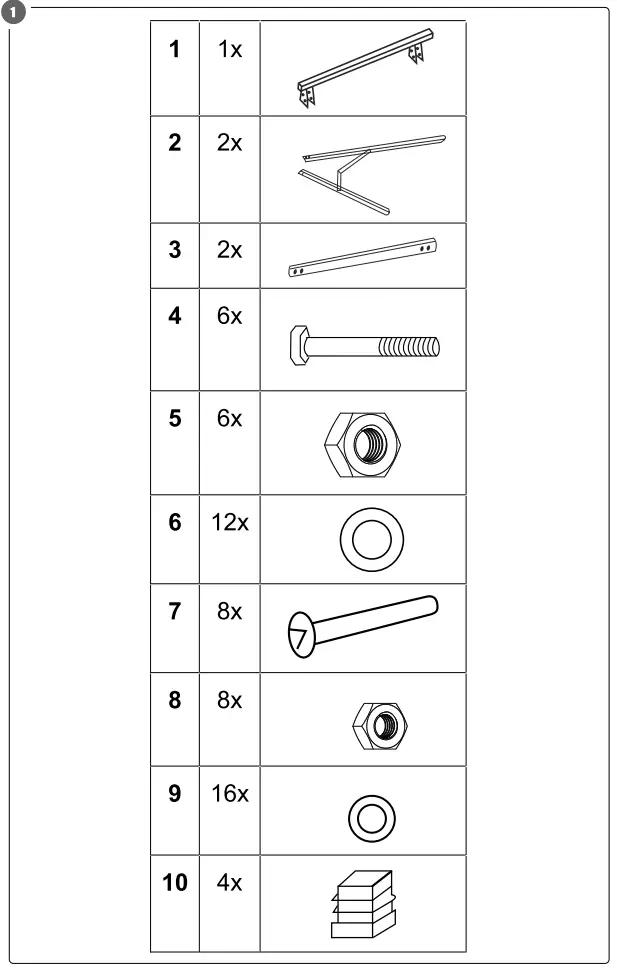

Parts
- Work surface
- Frame
- Strut
- Screw
- Nut
- Washer
- Screw
- Nut
- Washer
- Plastic foot
FIG. 1ASSEMBLY

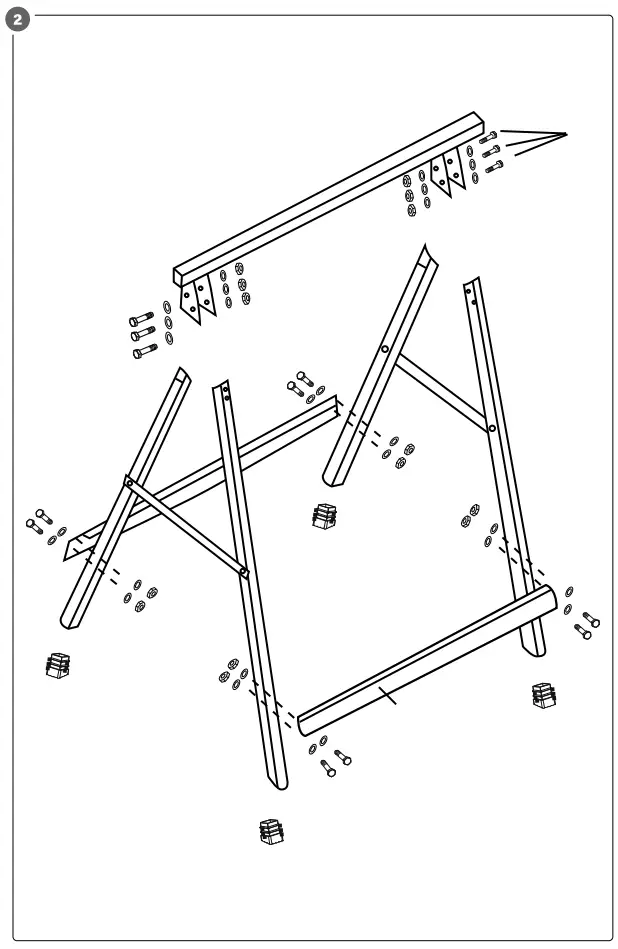

- Assemble the product as shown. FIG. 2
- Tighten all screw unions before using the product. Check that the product is stable. Check all screw unions at regular intervals, and tighten them if necessary.
MAINTENANCE
CLEANING AND STORAGE
- Clean the product with a brush or with a dry or damp cloth.
- Do not use strong chemicals, detergents or solvent.
- Store the product indoors.
