019789 Sliding Door Fittings
Instruction Manual
Item no. 019789
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions)
Jula reserves the right to make changes.
For latest version of operating instructions, see www.jula.com
JULA AB, BOX 363, SE-532 24 SKARA
2021-11-30
© Jula AB
 |  |
 |  |
 |  |
SYMBOLS Read the instructions.
TECHNICAL DATA
| Size | L2 m |
| Maximum load | 100 kg |
DESCRIPTION

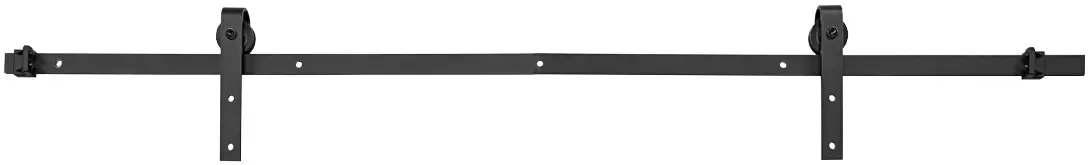

Black sliding door fittings with maximum load of 100 kg. Fit all doors with thickness of 35-45 mm and a width of 100 cm or less. Screws and plugs included.
ASSEMBLY

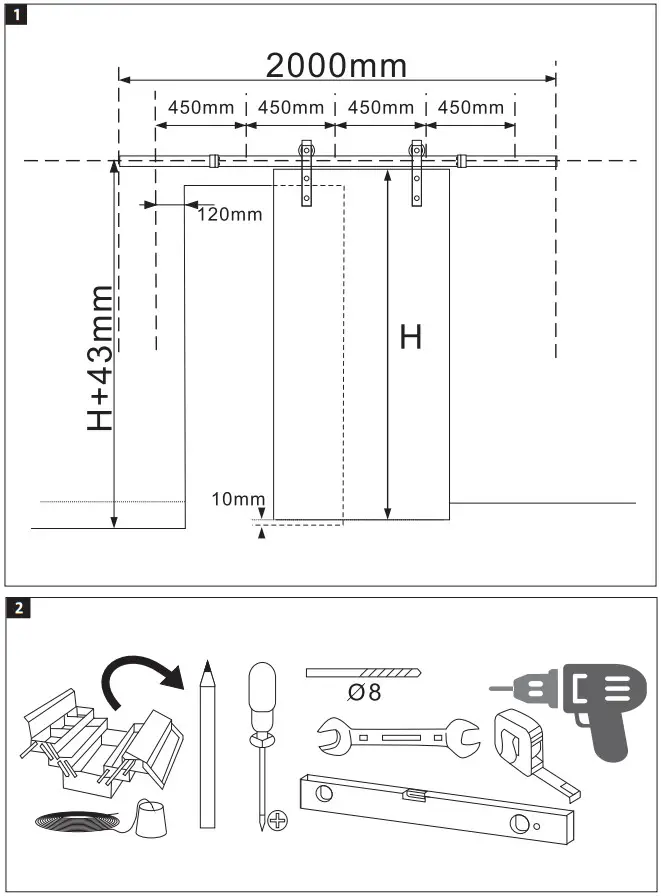

- Size
FIG. 1 - Tools

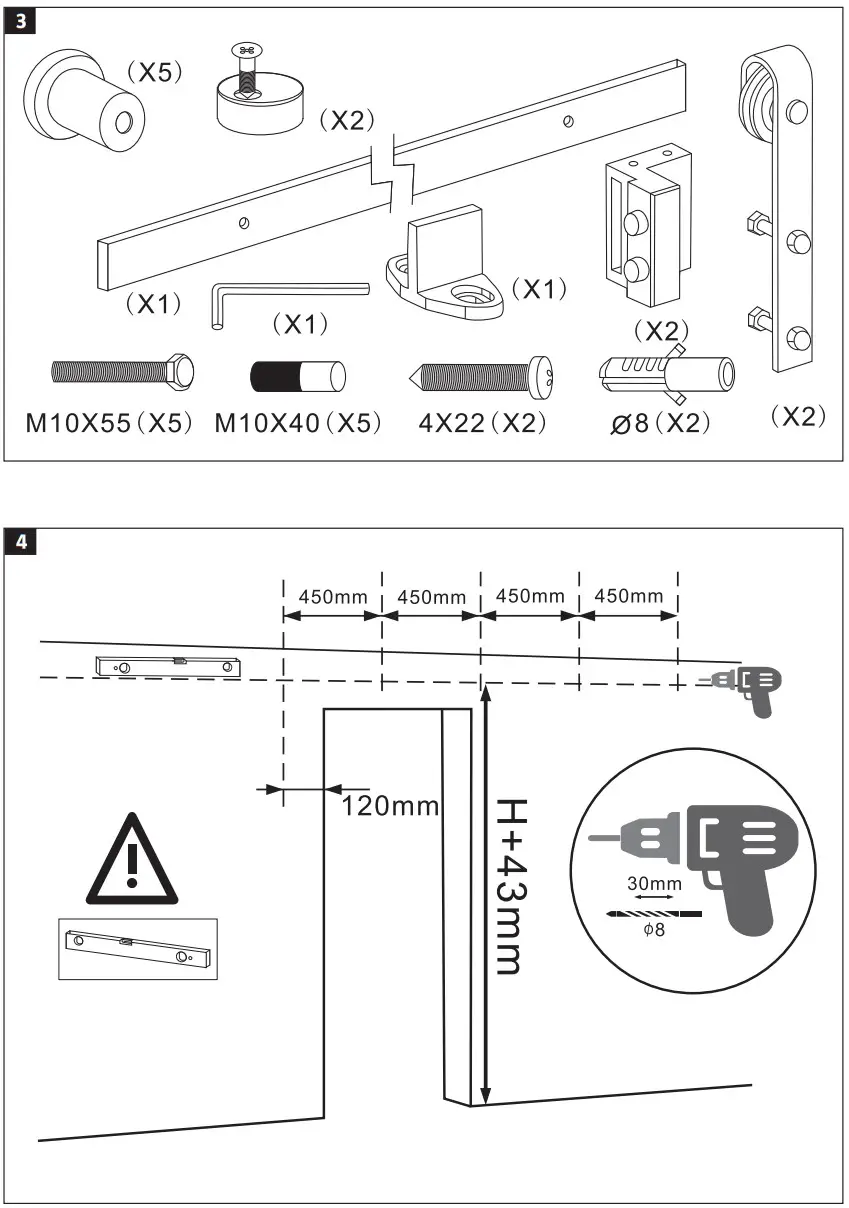

FIG. 2 - Parts
FIG. 3 - Assembly

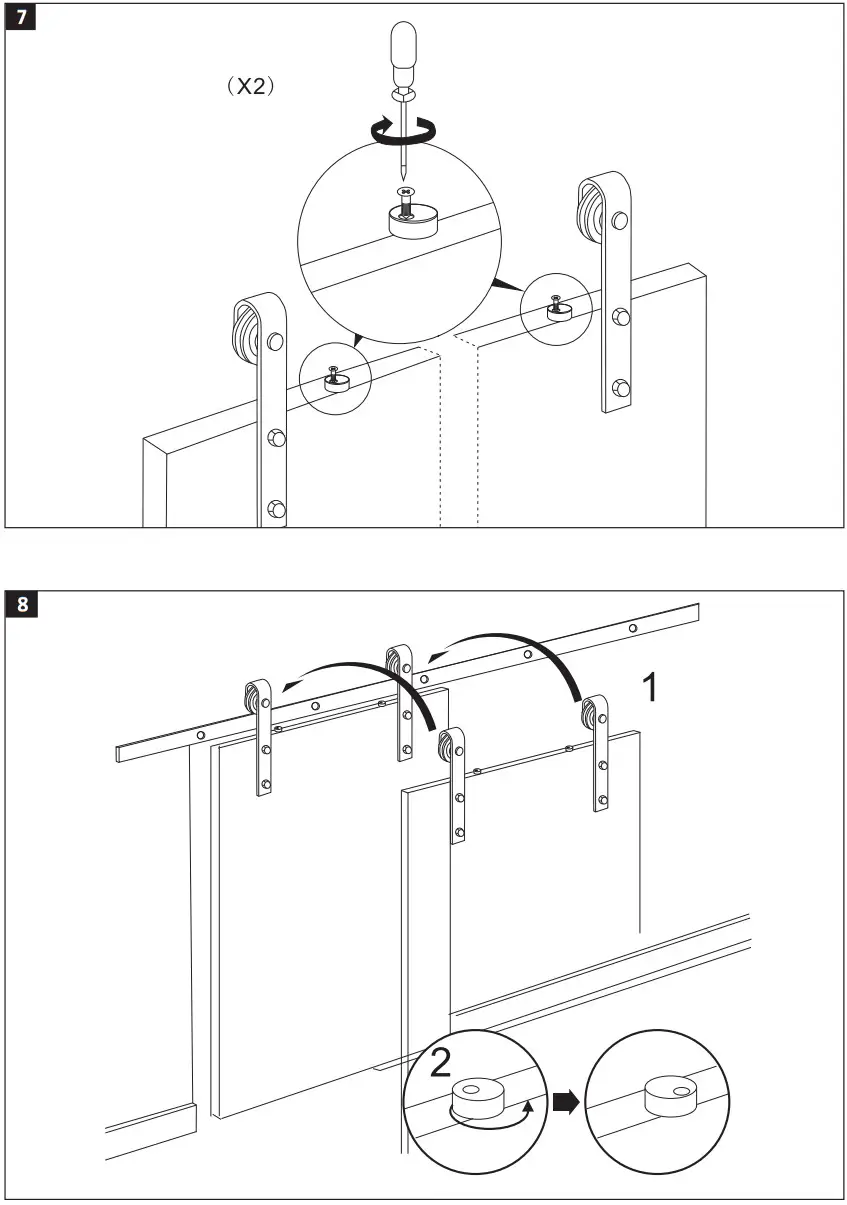

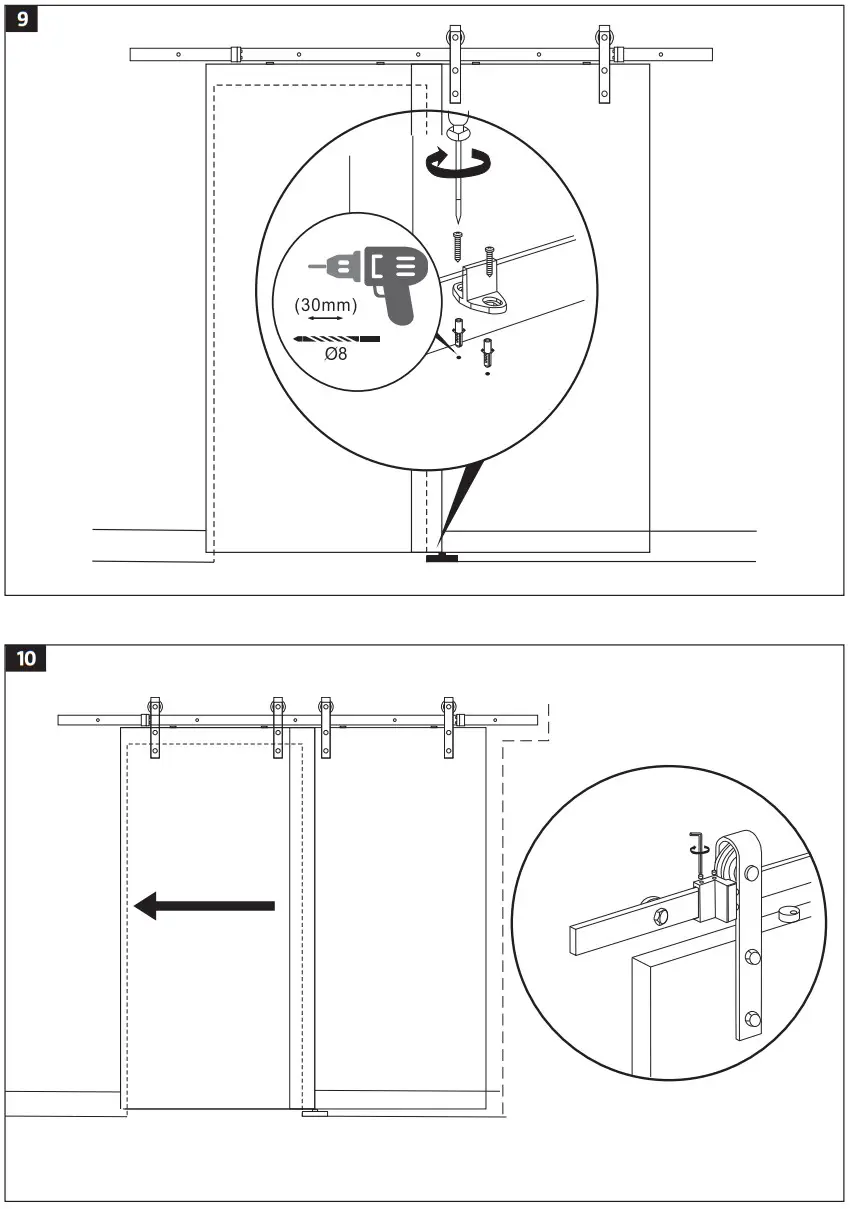

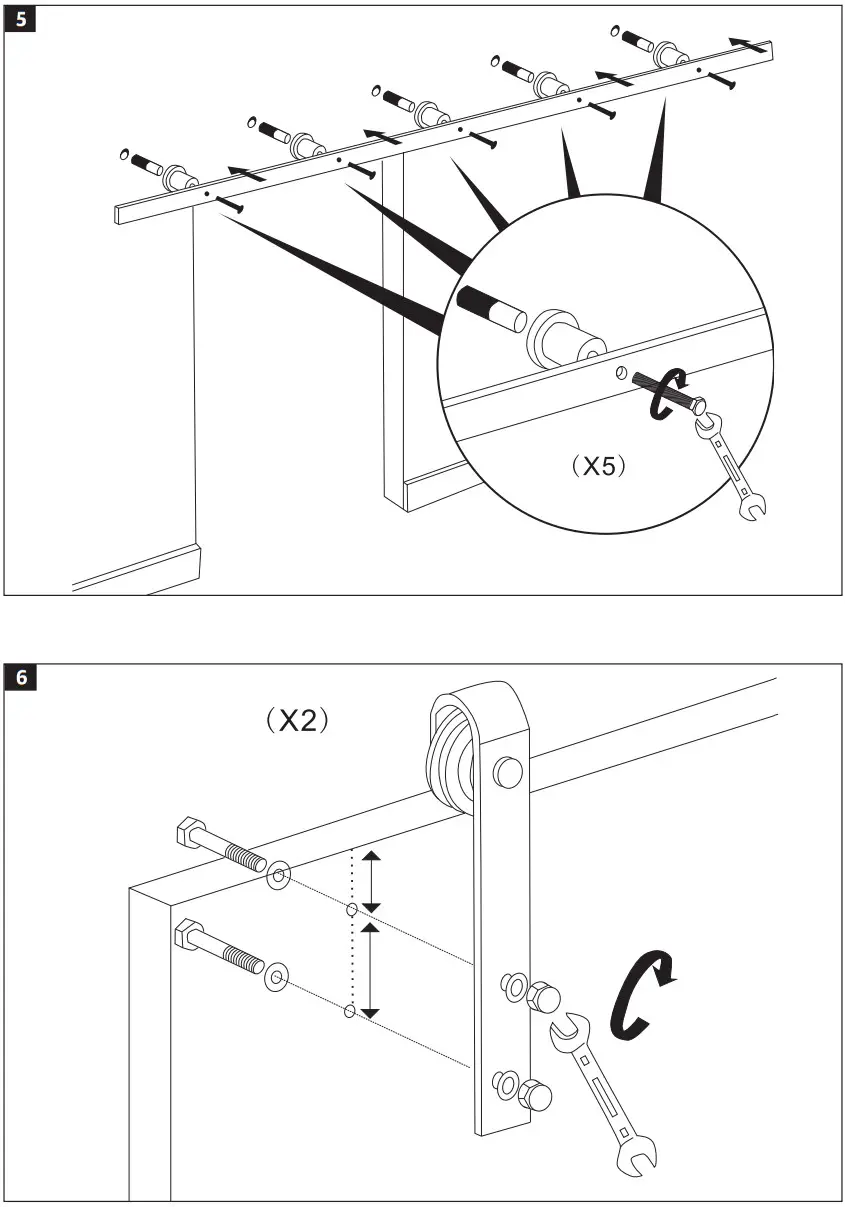

FIG. 4-12
