EcoPower® Flush Valve,
Toilet, Exposed, 1.0 Gpf
TET1UB Series
TET1UB(X)#CP/TET1UB(X)32#CP
Instruction Manual

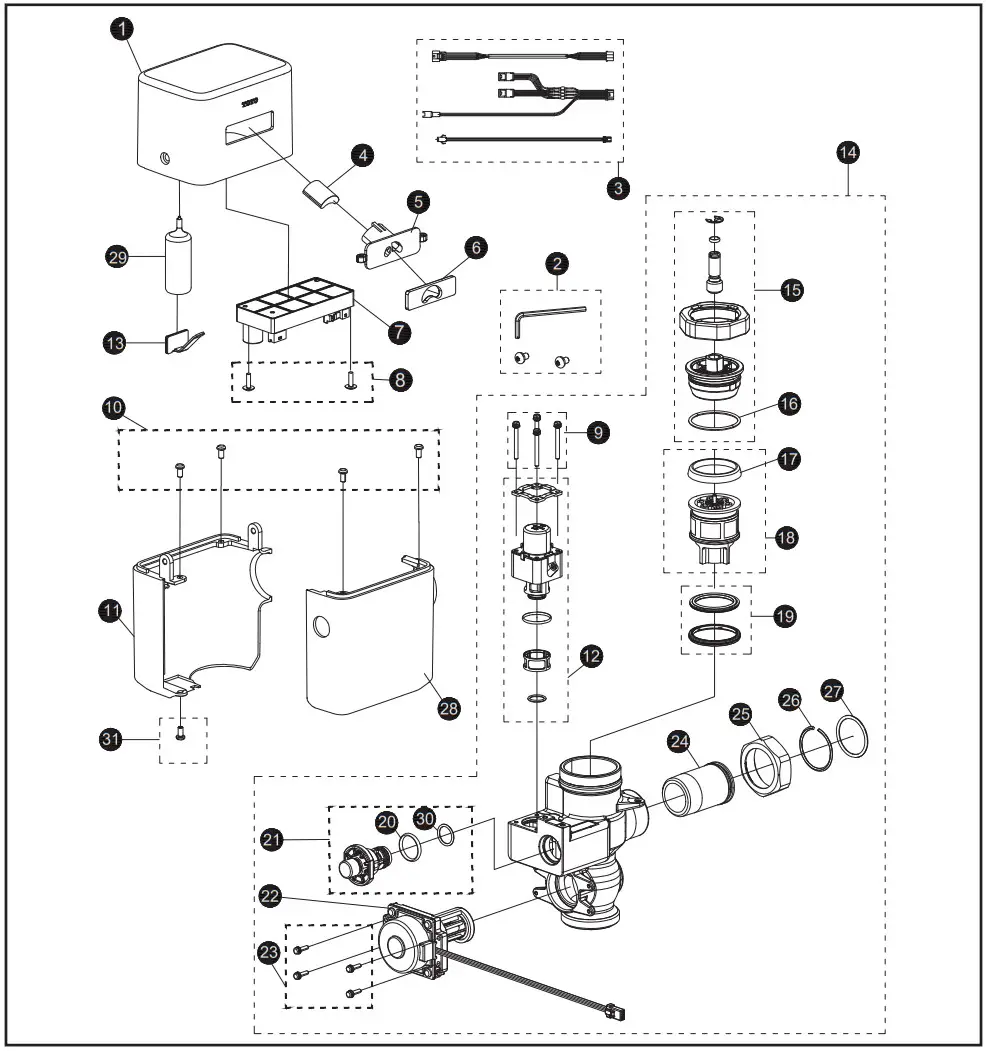

TET1UB Series High-Efficiency Toilet Flushometer
| Item | Part | Description |
| 1 | THP3520#CP | Cover, top |
| 2 | THP3521 | Screw w/wrench set, exposed |
| 3 | THP3522 | Extension harness (3 type/bag) |
| 4 | THP3523 | Sensor unit |
| 5 | THP3205 | Bracket, sensor w/screw (15D) |
| 6 | THP3207 | Glass, sensor window, exposed |
| 7 | THP3524 | Controller unit for 1.0gpf |
| 8 | THP3208 | Screw, controller mount (2/bag) |
| 9 | THP3192 | Screw (4/bag) |
| 10 | THP3527 | Screw, cover, valve (4/bag) |
| 11 | THP3528#CP | Cover, lower, B |
| 12 | THP3190R | Solenoid unit & diaphram assy |
| 13 | TH559EDV517 | Clamp set (10/bag) |
| 14 | THP3529 | Valve bodyassy, exposed, toilet 1.0gpf |
| THP3529X | Valve bodyassy, exposed, toilet 1.0gpf for Reclaimed Water | |
| 15 | THP3532 | Valve cap assembly |
| 16 | THP3533 | O-ring, valve cap top |
| 17 | TH305SV103 | U-packing, piston (10/bag) |
| 18 | TH323V104R | Piston assembly |
| 19 | THP3534 | Seat packing set |
| 20 | THP3013 | O-ring, screen nut (10/bag) |
| 21 | TH559EDV506 | Push button assembly |
| 22 | TH559EDV503 | EcoPower generator, toilet |
| 23 | TH559EDV505 | Screw, EcoPower generator |
| 24 | TH305SV114 | Tailpiece |
| 25 | TH305SV113 | Nut, tailpiece/angle stop |
| 26 | TH305SV105 | Locking ring set, tailpiece (10/bag) |
| 27 | TH305SV106 | O-ring, tailpiece (10/bag) |
| 28 | THP3535#CP | Cover, lower, A |
| 29 | THP3053 | Back-up battery |
| 30 | THP3242 | O-ring (1/bag) |
| 31 | THP3536 | Screw, cover, valve(1/bag) |
Vacuum Breaker Sets
VB0932B#CP Top Spud, 1-1/2″ Outlet, Exposed
VB0932XB#CP Top Spud, 1-1/2″ Outlet, Exposed for Reclaimed Water
Note: For additional information, refer to the individual vacuum breaker parts sheets.
PD-01480 v.01
