Honeyguaridan A40 Automatic Pet Feeder User Manual

A40 Automatic Pet Feeder
User Manual

A40 Automatic Pet Feeder

Dear customer,
We appreciate your choice of the automatic pet feeder. We insist on providing premium pet products, helping pet owners feed pets in a scientific and reasonable way and providing pets a healthy lifestyle. We are working for establishing a harmonious relationship between you and your pets.
For the convenience of using, please read the user manual carefully and follow the instructions.
 WARRANTY
1 Year Warranty
Lifetime Support: For guidance on product use and warranty extension, please contact after-sales email: [email protected]
If you have any questions related to orders, please contact the seller via the shopping platform.

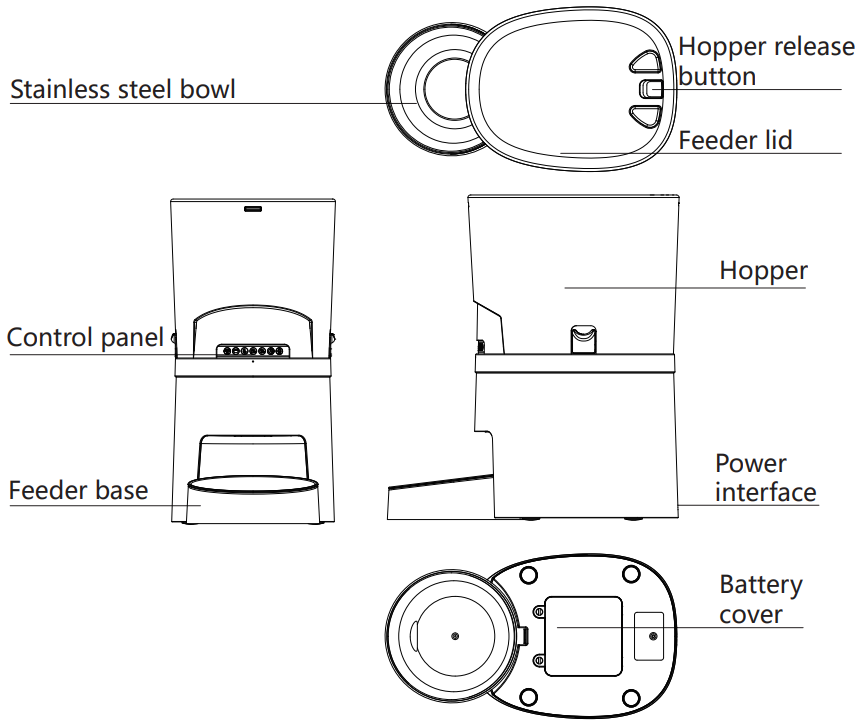

Structural image

Packing List

Single Bowl Version

• 1 x Pet Feeder,
• 1 x Stainless Steel Bowl,
• 1 x Bowl Holder,
• 1 x Power Adapter,
• 1 x Desiccant Bag,
• 1 x User Manual

Dual Bowls Version

• 1 x Pet Feeder,
• 2 x Stainless Steel Bowls,
• 2 x Bowl Holders,
• 1 x Power Adapter,
• 1 x Desiccant Bag,
• 1 x 2-way Splitter,
• 1 x User Manual

Notice

• To prevent the mold growth, it is recommended to change the desiccant bag every 15 days
• The feeder is for indoor household use only.
• The host of the equipment is not washable. The hopper and the food tray and stainless steel bowl can be removed and washable.
• Please keep pets from biting the power cable or it may cause leakage.
• Please place the feeder horizontally and close the lid to keep the food from spilling out.

Setting Instructions

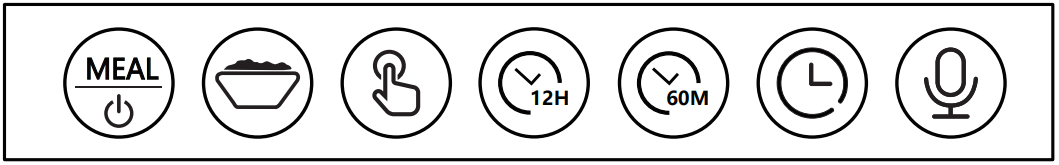

Control panel

	Press and hold the button for 3 seconds to turn off/on Meals Switch Button (1-6 meals)
	Meals Portion Volume Button: Program the meals portion size ( 0- 48 portions)
	Manual Feeding Button: Dispense one portion by pressing this button 1 time.
	Hours Setting Button: Set the hours time.
	Minutes Setting Button: Set the minutes time.
	Time Setting Button: Press this button to enter the time setting and save time when you finished the time setting.
	Recording Button: Record the voice, play the voice or delete the voice recording function.

• Press “ ” and hold for three seconds to unlock the screen and enter the time setting mode, The hour and minute” ” blinks. Press“ ”、” “ to set hours and minutes time as your demand. Press“ ”and hold the button for 3 seconds to exit the time setting.

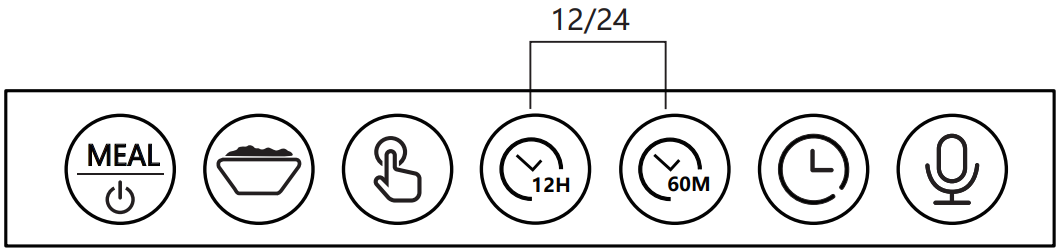

• You can switch the 12-hour clock and 24-hour clock by pressing the “ ” and “ ”at the same time.

Feeding Setting

• Recommended food size: 0.2-1.2cm(0.07-0.47inch) diameter. Please use food smaller than 1.2cm, otherwise the feeder may get stuck.
• You can set 0-6 meals per day and MAX 48 portions volume for each meal.
  One portion size is about 5-6g (16 ml) food kibble. The dual bowls version dispense one portion in each bowl is about 2.5g.

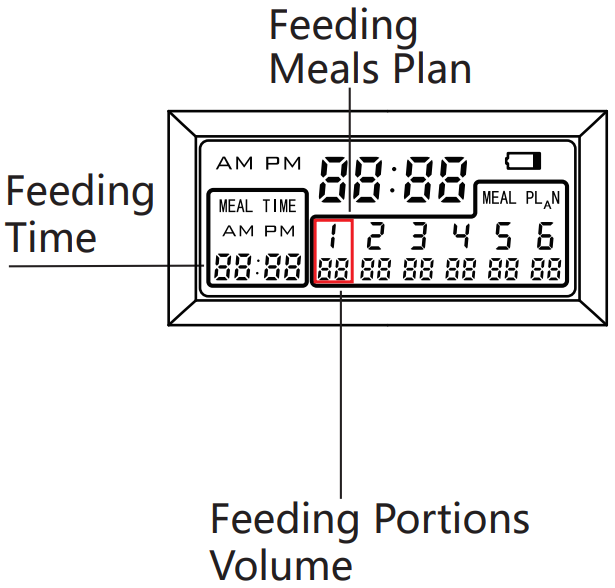

• Meal 1:
  Pressing “ ” one time to enter the feeding plan mode, at this time the meal 1, feeding time and feeding portions volume will blink, press : ” ” and “ ” to set the feeding time, then press “ ” to set the meal portions.

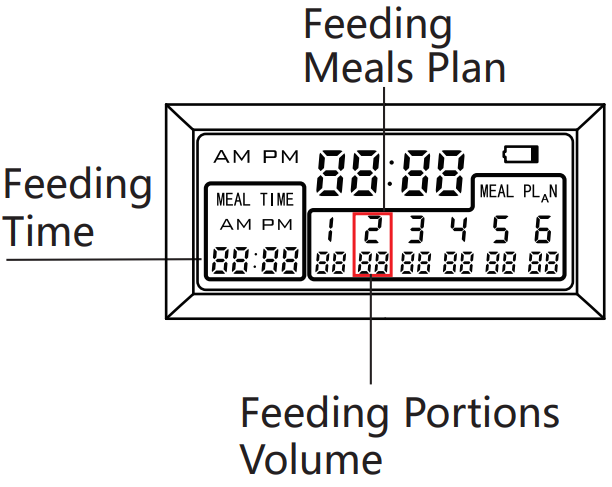

• Meal 2:
  After you finished the meal 1 setting, you can also press the “ ” one time to choose meal 2. The meal feeding time and feeding portions volume will blink, press : ” ”and “ ”to set the feeding time, then press ” ” to set the meal portions.

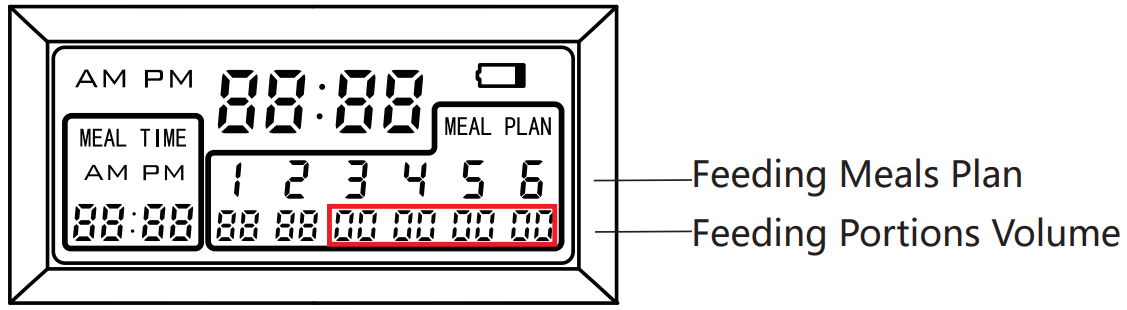

• You can use same method to program 3, 4, 5, 6 feeding plans. If you do not need to program the others feeding plan or delete the previous feeding plan, you can set the feeding portions volume.

Recording Setting

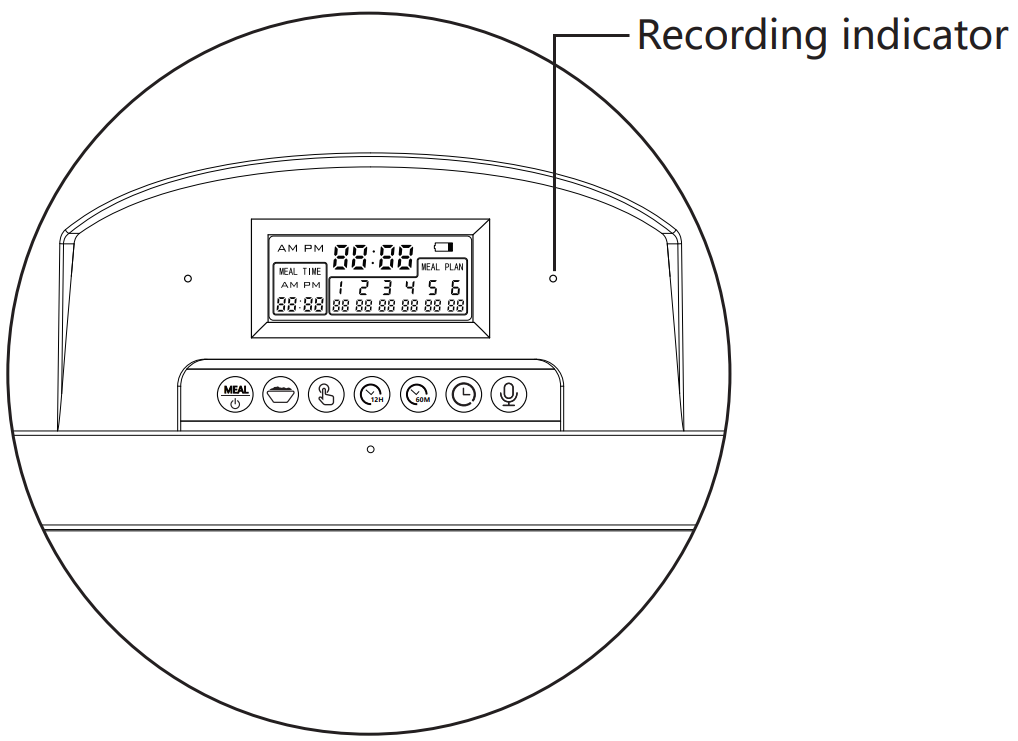

• Press “ ” and hold for three seconds then you can record for Max 10 seconds after the recording indicator lighting up. If you release your hand when recording, the system will recognize you finished the recording. After finishing the recording, you can press “ ” one time to play your recording. You can press “ ” two times until the recording indicator light blinking 3 times, then the recording message is removed.

Manual Feeding

• Press “ ” and hold for three seconds, the food will dispense one portion each time.

Low Battery Reminder

• When the batteries are low, the “ ” on the LCD screen will turn on. After new batteries are installed, the “ ” on the LCD screen will be off.(Battery model: 4×D size alkaline battery）

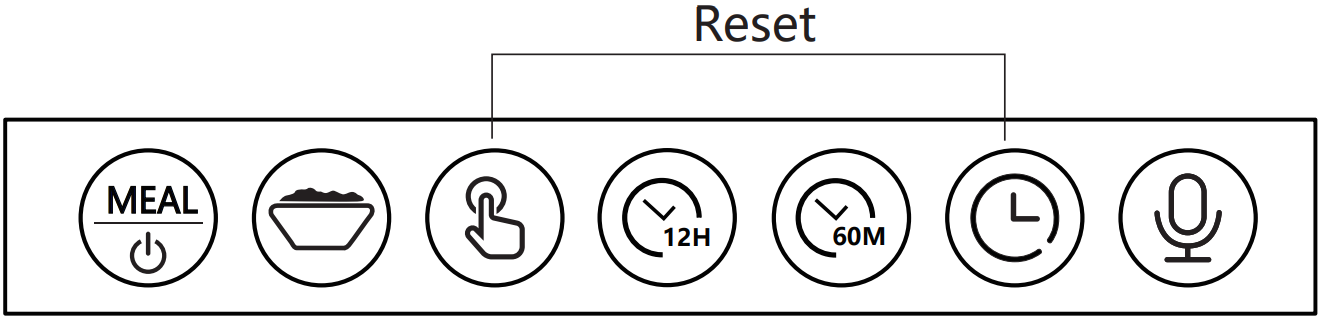

Reset Function

• You can press both the “ ” and “ ” for three seconds to factory reset.

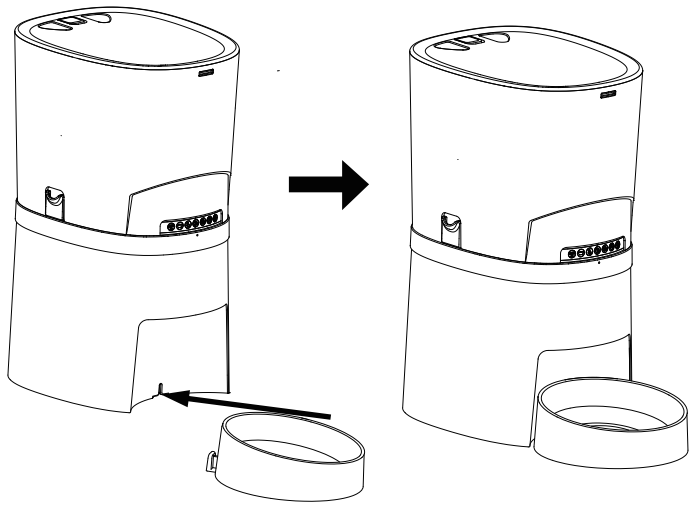

Single bowl installation

Please assemble the base of the food bowl with the host (as shown)

Dual bowls installation
(If you purchased the dual bowls version）

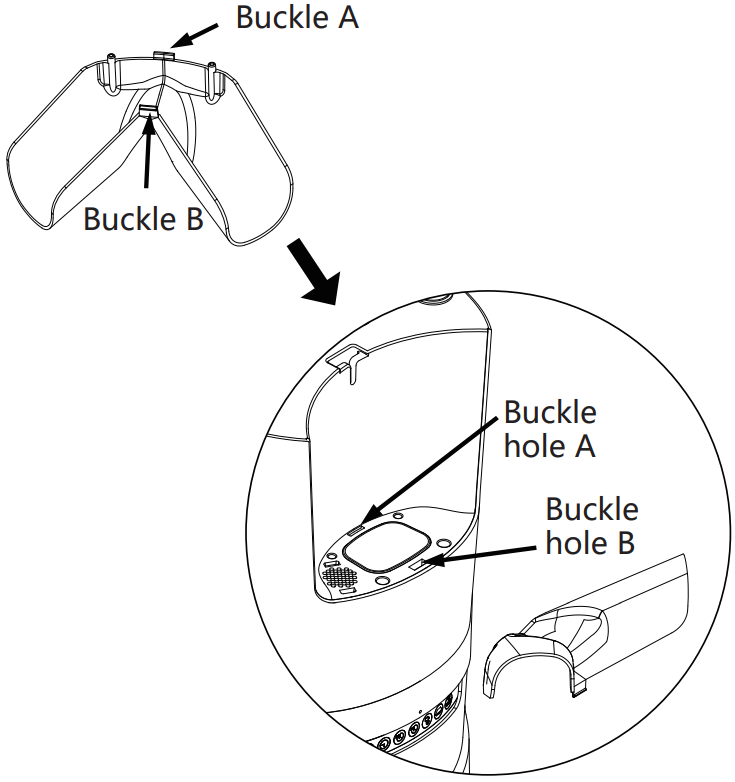

• Step 1: Please install the two way splitter into the host. (as shown)

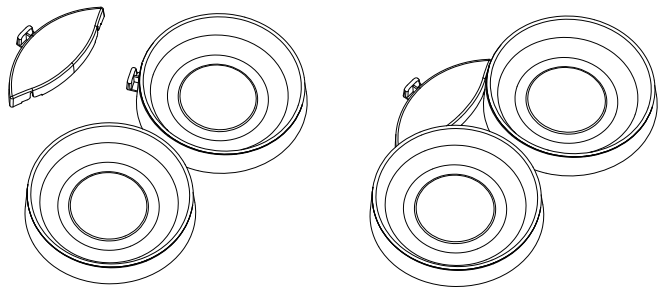

• Step 2: Please assemble the two bowl bases with the connector plate.

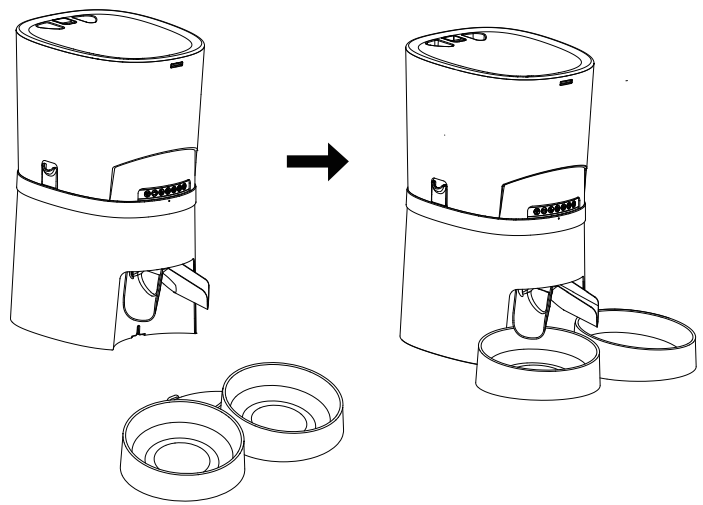

• Step 3: Please put the host in place. (as shown)

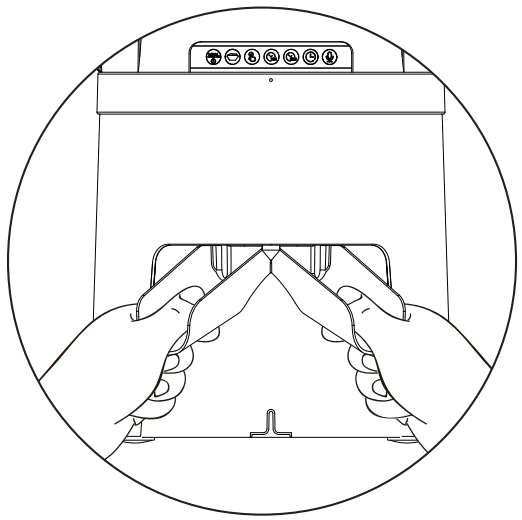

Distributor removal

• Please hold the two way splitter with both hands and press down with the thumb, then it can be removed (as shown)
