BOYA BY-M3D Digital Dual Lavalier Microphones Instruction Manual
Instruction
Designed for recording interviews, the BOYA BY-M3D is a digital USB Type-C microphone and comprised of two well-received omnidirectional condenser lavalier microphones, which is specially designed for Android devices and others devices with Type-C connector, such as iPad Pro, Mac PC.
With 16 bits/48KHz resolution and each microphone recording to a seperate channel features, it’s ideal for presentations, podcasts, webcasts, or any situation where one or two subjects needs to be recorded.
The packeage includes tie clips allow for hands-free operation while the windscreens help ensure quiet, professional-quality recordings.

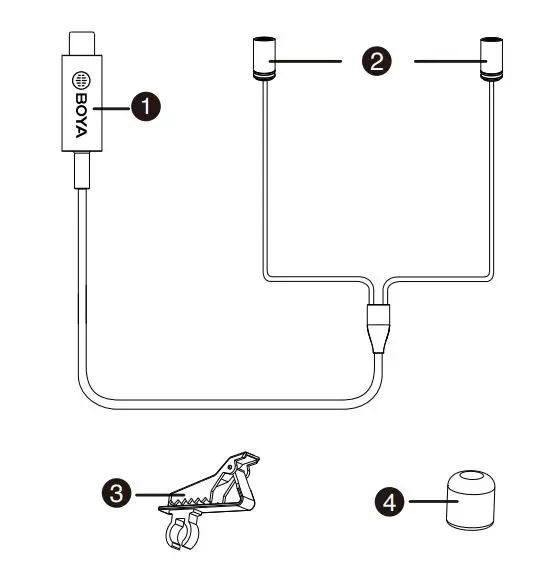

Components
① USB Type-C connector
② Microphone
③ Clothing clip
④ Foam windscreen
NOTE:
Not all Android applications can support USB external microphone when you take video, and you may need to download a third-party
application to use this feature.
Package contents
- BY-M3D dual lapel microphone
- Foam windscreen
- Clothing clip
- Velcro
- Carrying pouch
- User manual
How to use BY-M3D with the mobile devices

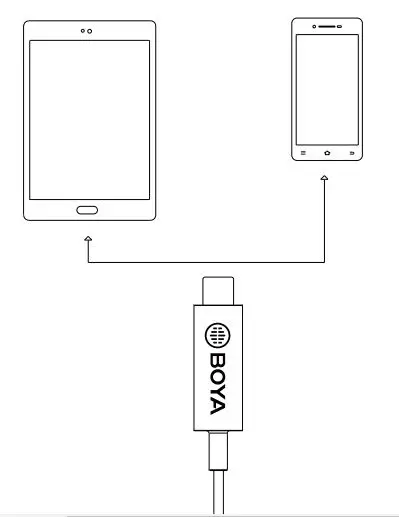

1. Connect BY-M3D to your mobile devices
2. Mounting the microphone to your Clothing

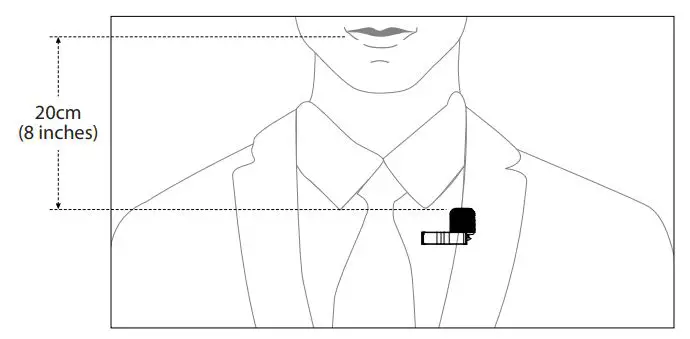

- Attach the microphone to the front of your clothing with the clothing clip, about 20cm (8 inches) from your face.
1) Attach the microphone upside down to reduce excessive breath noises and tonal inconsistencies due to head movements.
2) It is recommended that you use the foam wind screen at all times to avoid wind noise, even when recording inside.
3. Turn on the video / audio application and start the recording
Features:
- Dual-lapel design, allows 2 people to use at the same time
- Omnidirectional polar pattern
- Compatible with most of USB Type-C devices
- 6 meters long cable, comfortably adapter to various environments
- 16 bits/48KHz digital resolution
- Low handing noise
- Each mic routes to left channel and right channel
- Powered by Type-C devices

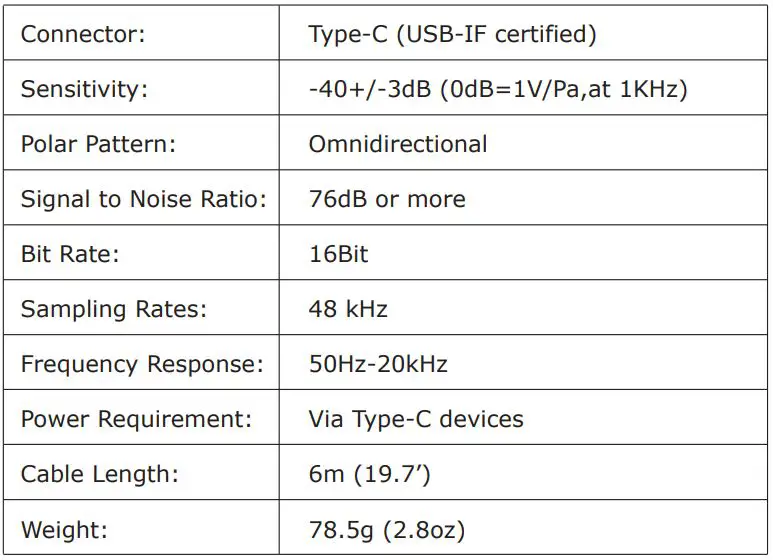

Specifications:
SHENZHEN JIAYZ PHOTO INDUSTRIAL., LTD.
The BOYA logo is a trademark which is registered and owned
by Shenzhen Jiayz Photo Industrial., Ltd.
COPY RIGHT 2010-2020
TEL: 400 6131096
Email: [email protected]
www.boya-mic.com / www.jiayz.com
