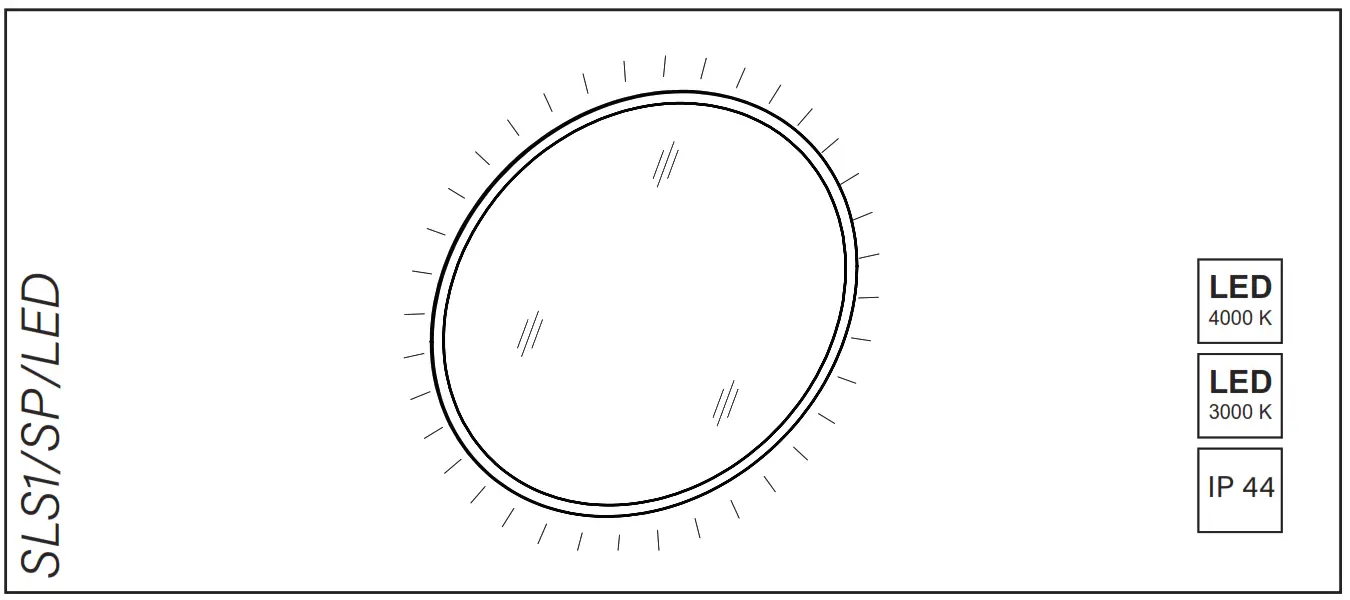

STYLE Line Superior SP LED
Assembling instructions

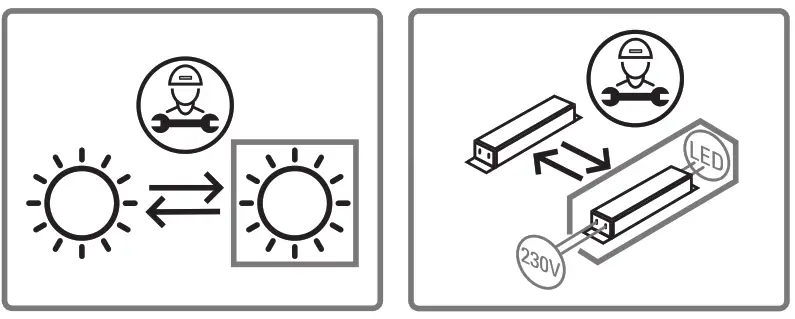

Electric installation work may only be carried out by approved specialists according to the local regulations. Liability will only be accepted by us when our products are installed by qualified engineers. The light sources incorporated in this product should only be replaced by the manufacturer, or by another similarly well-qualified person.

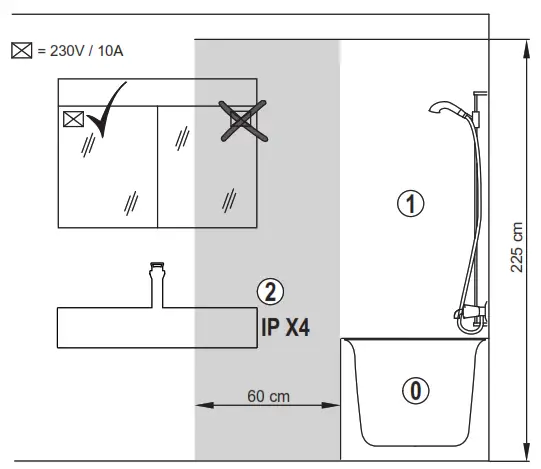

Rooms with bath or showers have to be protected with a residual-current-operated protective device (RCD) FI (RCD) I ∆ n = 30mA. Volume 2 min. protection IP X4. Volume 2 no socket admitted.
BS 7671 – 601
The product is controlled after current guidelines.
Indoor installation only
The product must be disposed of separately from normal household waste.
Energy efficiency class:
| Scope of delivery | 73 cm |
| Illuminated mirror | 1 |
| Suspension rail & magnet | 1 |
| Set of screws | 1 |

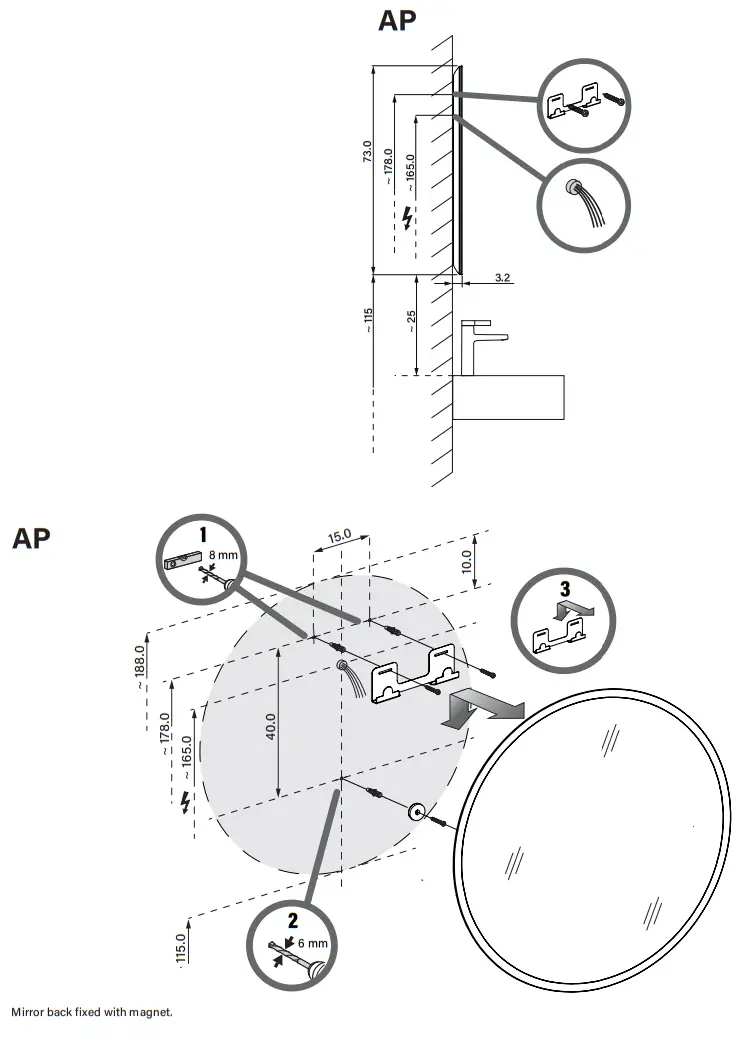

Assembling instructions
Turn off electricity before beginning.

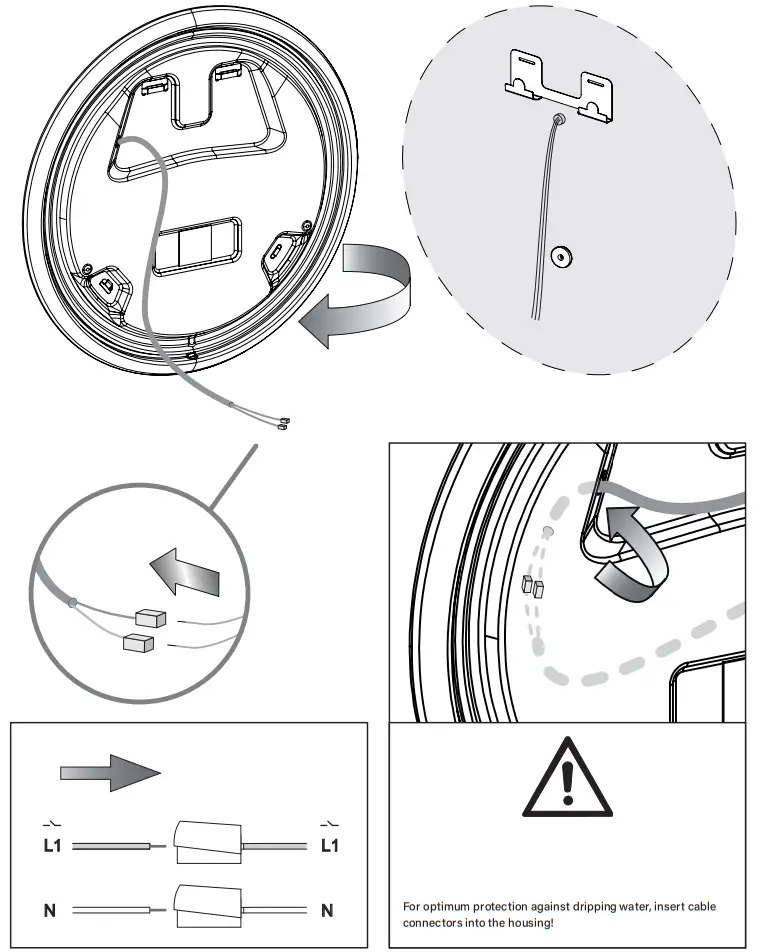

Wiring

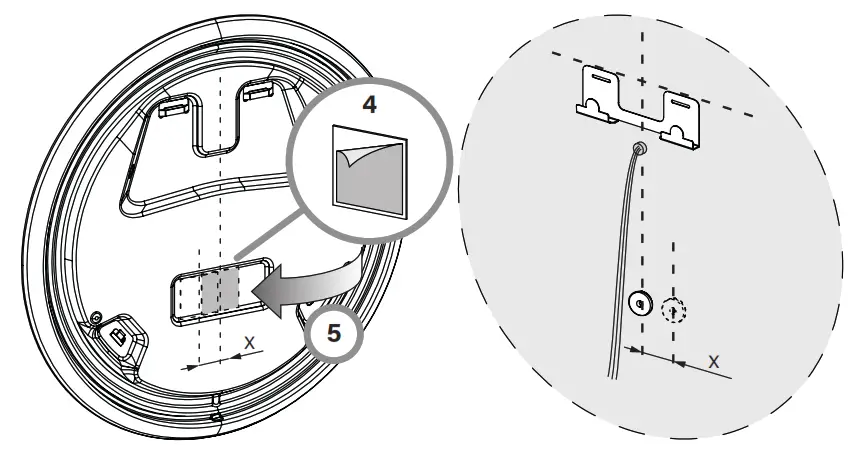

Magnetic mount
Make sure that the magnet sticks! If necessary, add washers underneath the magnet.
Notes
Clean light diffuser and mirror with a damp and soft cloth. Dry edges of mirror immediately. Solvents or chemicals like benzines, alcohols, descalers, detergents and cosmetics may produce material defects.
This product must be switched on and off with an external wall switch!
W. Schneider+Co. AG, Neue Dorfstrasse 27, CH–8135 Langnau a. A.
www.wschneider.com
Schneider mirrors – the high-quality Swiss brand
