INSTALLATION MANUAL
62146
![]() |
![]() |
![]() |
![]() |
![]() |
| 230V | SMD 2835 | 55W | IP20 | Iron + PS | Complete with 600mA driver |

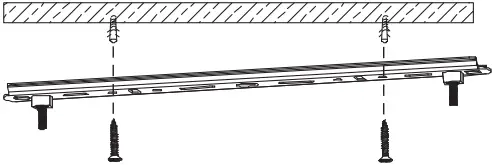

A

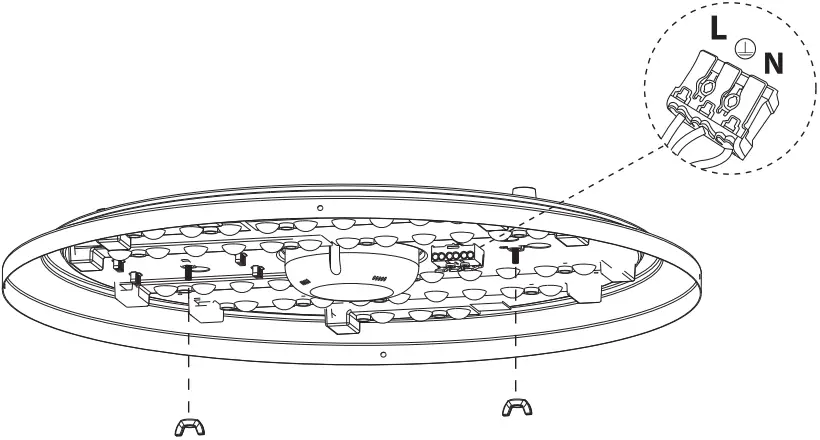

B

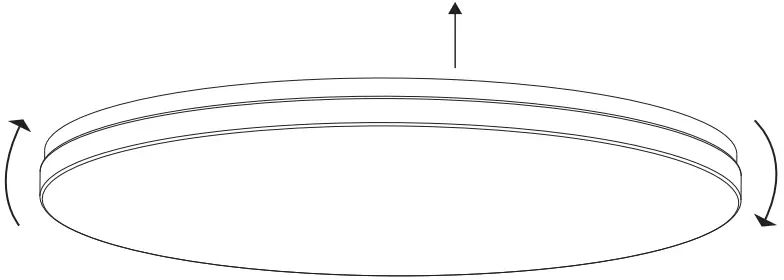

C
Warnings:
- Fix the base on the ceiling.
- Make sure that the product is installed properly before connecting to electricity.
- Connect the AC power cable to the driver’s cable as shown in the above diagram.
- Do not cover the fitting.
- Maintenance and installation should only be carried out by a professional electrician.
