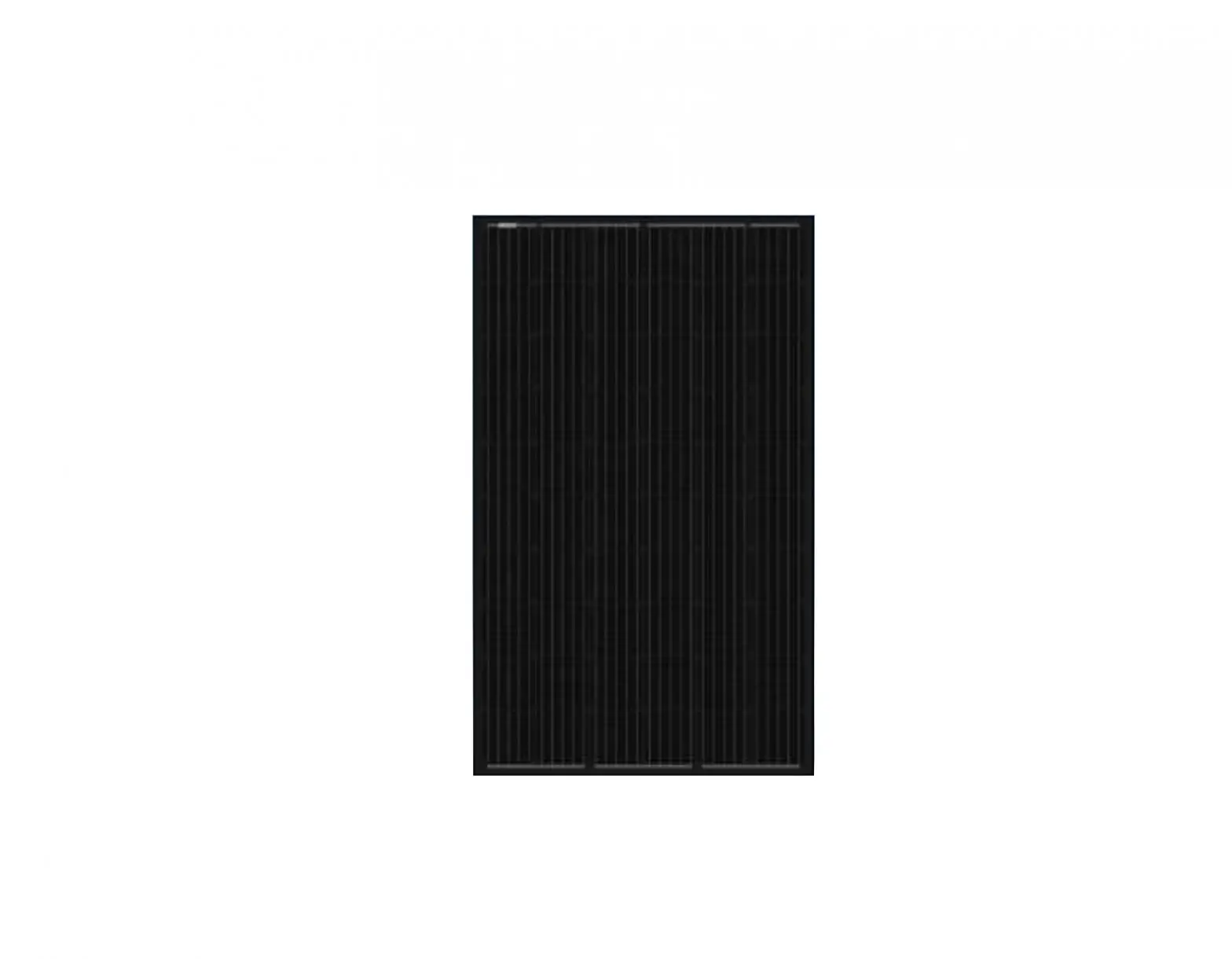

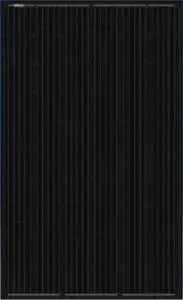

Gcl Monocrystalline Module Instructions (+ PDF)

High conversion efficiency due to top quality wafers and advanced cell technology.
Selected encapsulating material and stringent production process control ensure the product is highly PID resistant and snail trails free.
Sand blowing test, salt mist test and ammonia test passed to endure harsh environments.
Optimized system performance due to module level current sorting.
Special cell process ensures great performance under low irradiance conditions.
Highly transparent self-cleaning glass brings additional yield and easy maintenance.

Company Introduction

GCL System Integration Technology Co. Ltd (002506 Shenzhen Stock) (GCL System) is part of GOLDEN CONCORD Group (GCL) which is an international energy company specializing in clean and sustainable power production. The group, founded in 1990 now employs 30,000 people.

GCL Delivers Reliable Performance Over Time

World-class manufacturer of crystalline silicon photovoltaic modules.
Fully automatic facility and world-class technology.
Rigorous quality control to meet the highest standard: ISO9001:2008, ISO 14001: 2004 and OHSAS: 18001 2007.
Tested for harsh environments (salt mist, ammonia corrosion and sand blowing test: IEC 61701, IEC 62716, DIN EN 60068-2- 68).
Long term reliability tests.
2*100% EL inspection ensuring defect-free modules.

Linear Performance Warranty

10 Years Product Warranty 25 Years Linear Power Warranty

Please refer to GCL standard warranty for details

Additional Insurance Backed by Swiss RE

Please refer to GCL for details

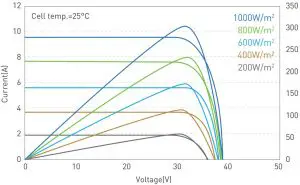

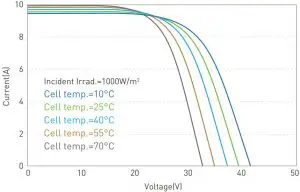

Electrical Specification (STC)

Maximum Power	Pmax(W)	280	285	290	295	300	305	310	315
Maximum Power Voltage	Vmp(V)	31.60	31.80	32.00	32.20	32.40	32.60	32.80	33.00
Maximum Power Current	Imp(A)	8.86	8.96	9.06	9.16	9.26	9.36	9.46	9.55
Short Circuit Current	Isc(A)	9.46	9.54	9.63	9.69	9.78	9.87	9.96	10.04
Open Circuit Voltage	Voc(V)	38.70	38.90	39.10	39.30	39.50	39.70	39.90	40.10
Module Efficiency	(%)	17.2	17.5	17.8	18.1	18.4	18.7	19.1	19.4
Power Output Tolerance	(W)	–	–	–	–	0~+5	–	–	–

Electrical Specification (NOCT)

Maximum Power	Pmax (W)	207.48	210.96	214.76	218.00	221.86	225.45	229.37	233.02
Maximum Power Voltage	Vmp (V)	29.10	29.30	29.50	29.70	29.90	30.10	30.30	30.50
Maximum Power Current	Imp (A)	7.13	7.20	7.28	7.34	7.42	7.49	7.57	7.64
Short Circuit Current	Isc (A)	7.65	7.71	7.78	7.83	7.91	7.98	8.05	8.12
Open Circuit Voltage	Voc(V)	35.80	36.00	36.20	36.30	36.50	36.70	36.90	37.00

Mechanical Data

Solar Cell Type	Mono 156.75×156.75mm (6 inches)
Number of Cells	60 Cells (6×10)

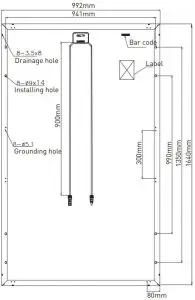

*Dimensions of Module LWH (mm)*	1640×992×35mm (64.56 × 39.05 × 1.38 inches)
Weight (kg)	18.1kg
Glass	High transparency solar glass 3.2mm (0.13 inches)
Backsheet	Black

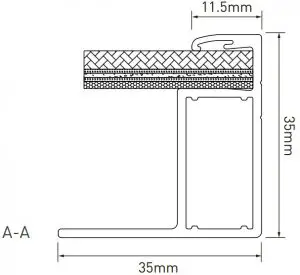

Frame	Black, anodized aluminium alloy
J-Box	IP68 Rated
Cable	4.0mm2 (0.006 inches2 ), 900mm (35.4 inches)
Number of diodes	3
Wind/ Snow	2400Pa/5400Pa*
Load Connector	MC4 Compatible

For more details please check the installation manual of GCLSI

Temperature Ratings

Nominal Operating Cell Temperature (NOCT)	45±2°C
Temperature Coefficient of PMAX	-0.41%/°C
Temperature Coefficient of VOC	-0.31%/°C
Temperature Coefficient of ISC	+0.055%/°C
