Hansgrohe Starck 10715000 High Flow Thermostatic Mixer Instruction Manual

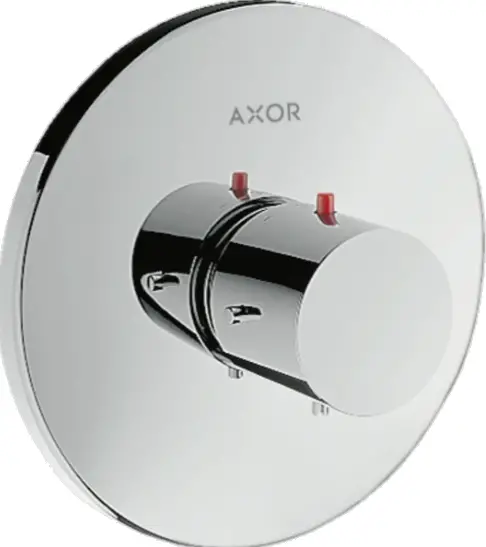

hansgrohe Starck 10715000 High Flow Thermostatic Mixer

OTHER MODEL

• Starck
  10715000

• Starck X 10717000

• Montreux 16815XXX

• Carlton  17712XXX

• Carlton 17716XXX

• Massaud 18741000

• Citterio M 34716000

• Steel 35715800

• Terrano 37711000

• Terrano 37716000

• Uno 38715000

• Citterio 39711000

• Citterio 39716000

• Bouroullec 19702000


Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
Children as well as adults with physical, mental and/ or sensoric impairments must not use this shower
system without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this shower system.
The hot and cold supplies must be of equal pressures

Installation Instructions

The fitting must be installed, flushed and tested after the valid norms!

Technical Data

Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5MPa
Test pressure: 1,6MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Rate of flow by 0,3 MPa: approx. 58 l/min anti-pollution function

Symbol description

Do not use silicone containing acetic acid!

Safety Function

(see page 62)

The desired maximum temperature for example max. 42º C can be pre-set thanks to the safety function.

The desired maximum temperature for example max. 42º C can be pre-set thanks to the safety function.

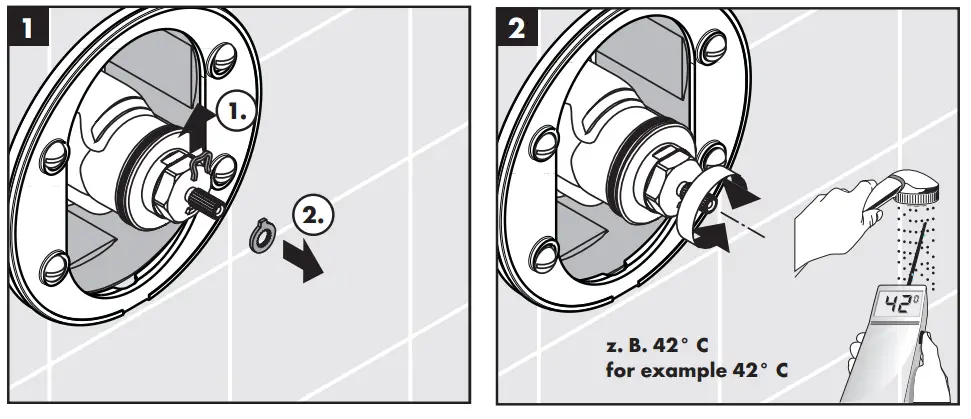

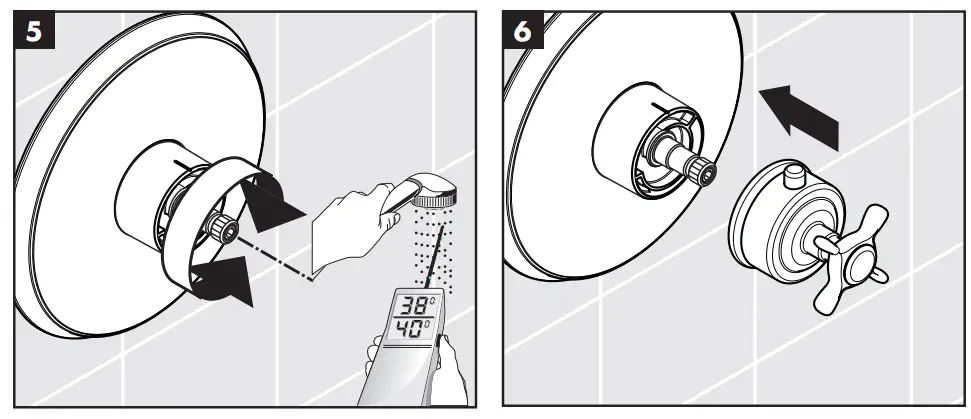

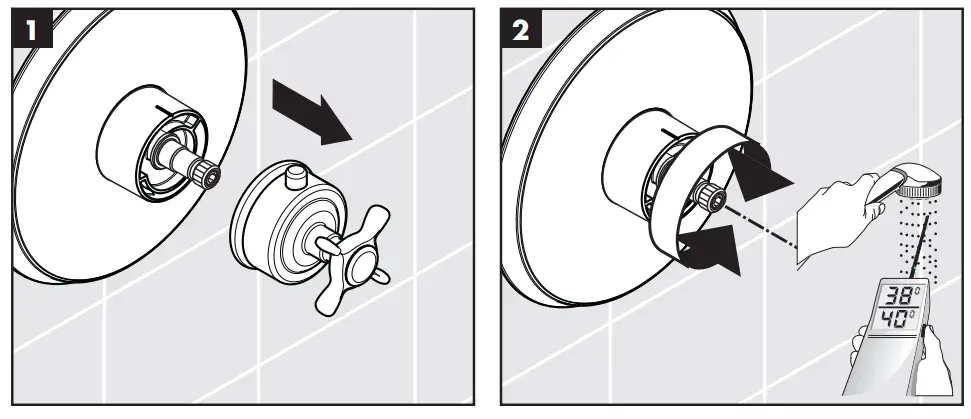

Adjustment

(see page 63)

After the installation, the output temperature of the thermostat must be checked. A correction is necessary if the temperature measured at the output differs from the temperature set on the thermostat.

After the installation, the output temperature of the thermostat must be checked.
A correction is necessary if the temperature measured at the output differs from the temperature set on the thermostat.

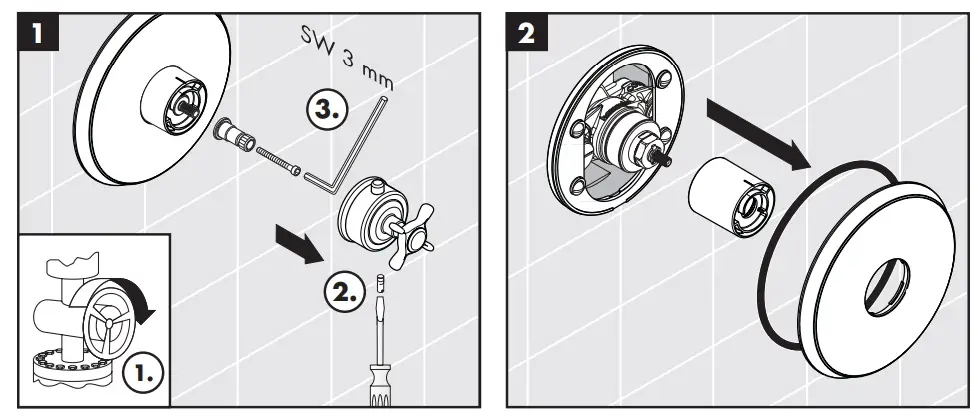

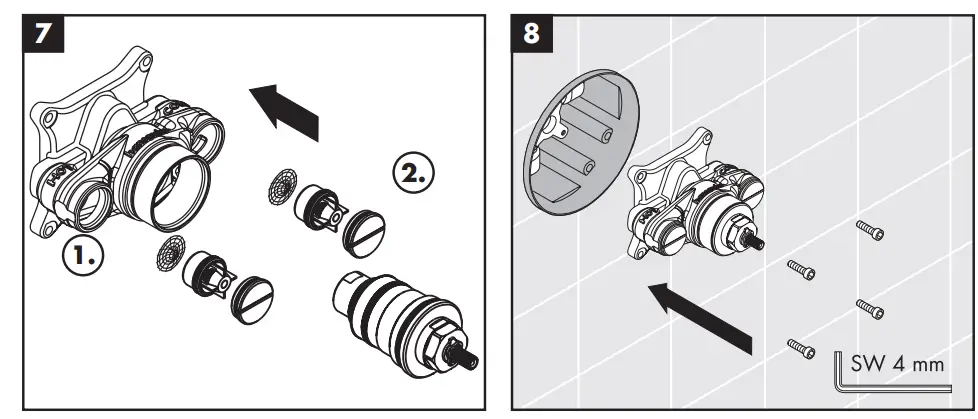

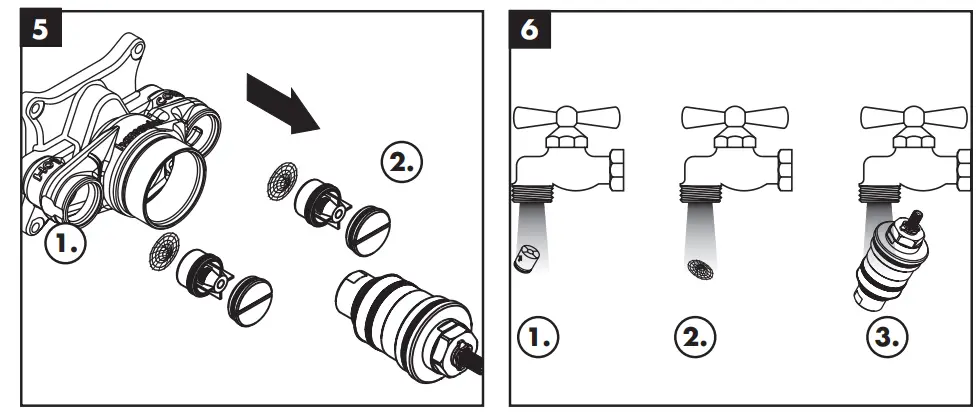

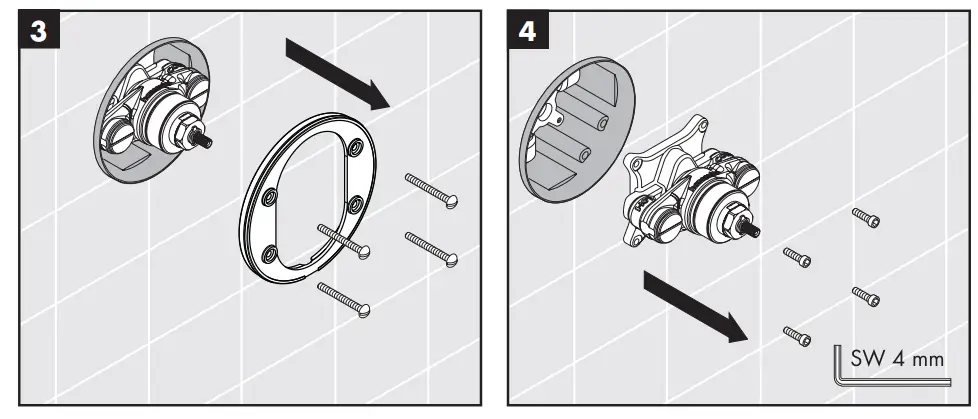

Maintenance

(see page 64)







To guarantee the smooth running of the thermostat, it is necessary from time to time to turn the thermostat from total hot to total cold.
The mixer is equipped with non return valves. The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year). At this time, please also check the filter (A) situated on the BTC-thermoelement (96633000). After assembling the BTC-thermoelement, it is necessary to check the water temperature at the take off point as described under the headline „adjustment“. Before the adjustment, please check, if the warm water supply is activated and the maximum temperature of the warm water is available at the take off point.

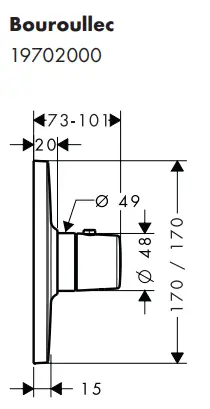

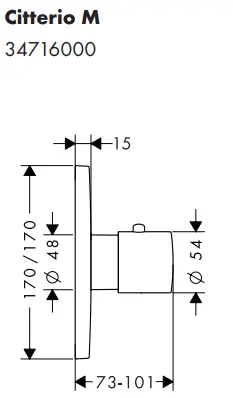

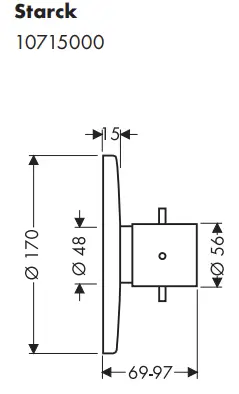

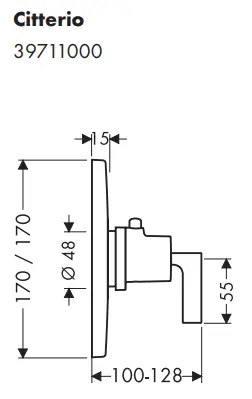

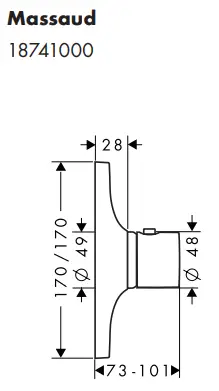

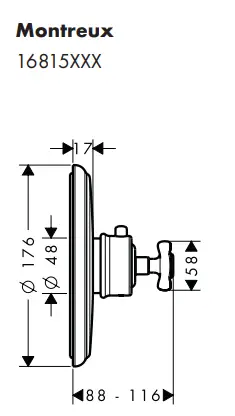

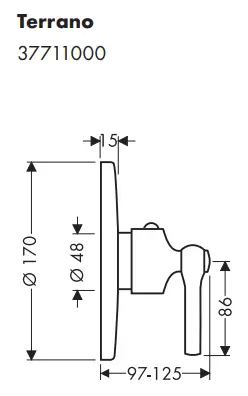

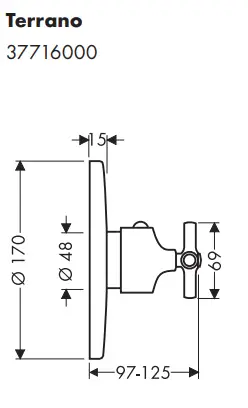

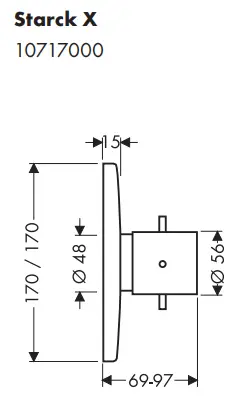

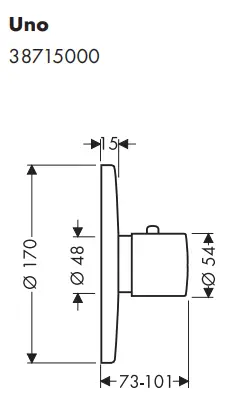

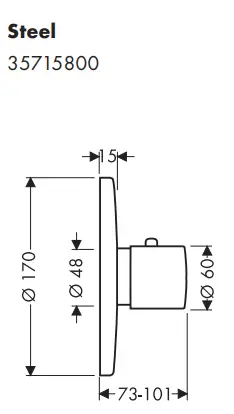

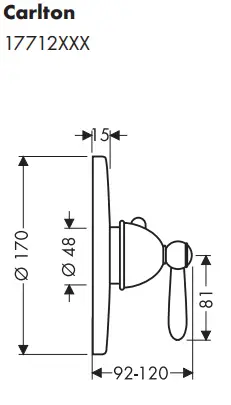

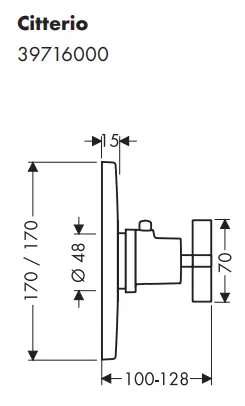

Dimensions

(see page 66)

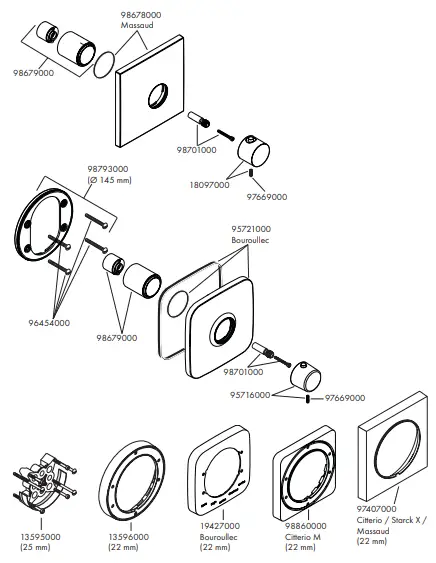

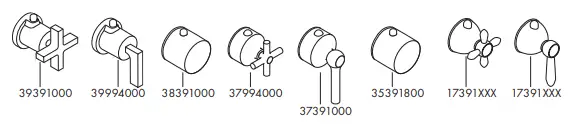

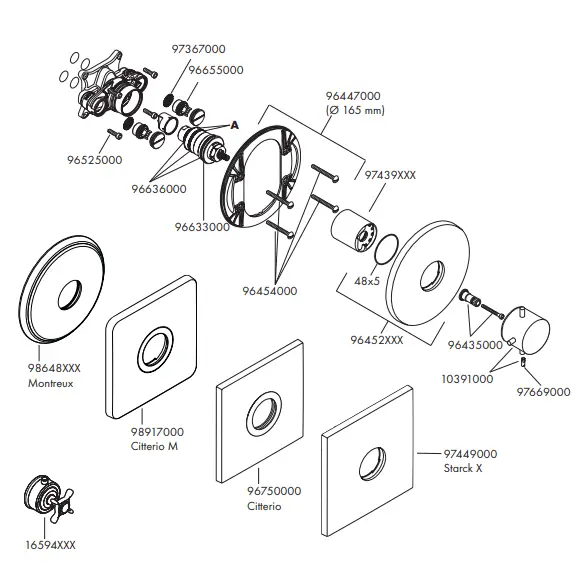

Spare parts

(see page 68)

XXX = Colors
000 chrome plated
090 chrome plated/gold plated
800 stainless steel optic
820 brushed nickel
830 polished nickel

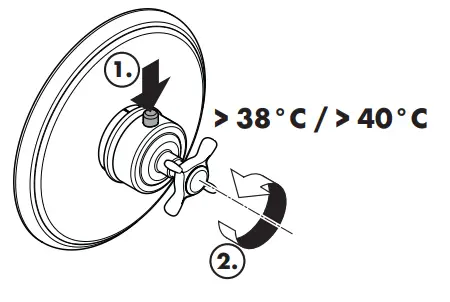

Operation

(see page 70)

Cleaning

see enclosed brochure.

Test certificate

(see page 67)

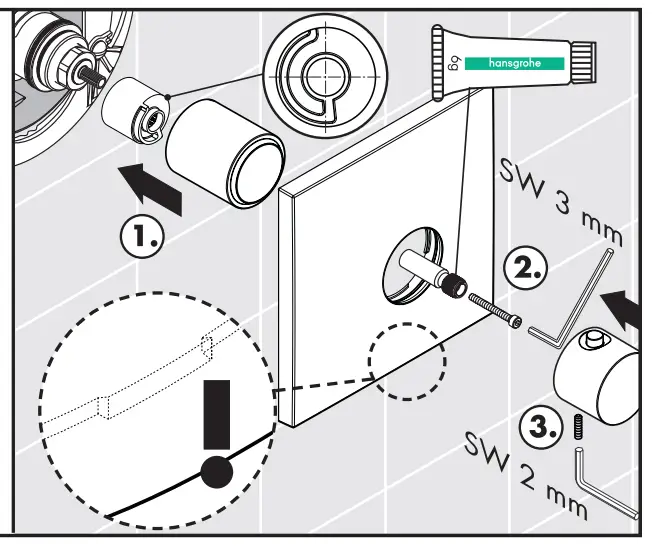

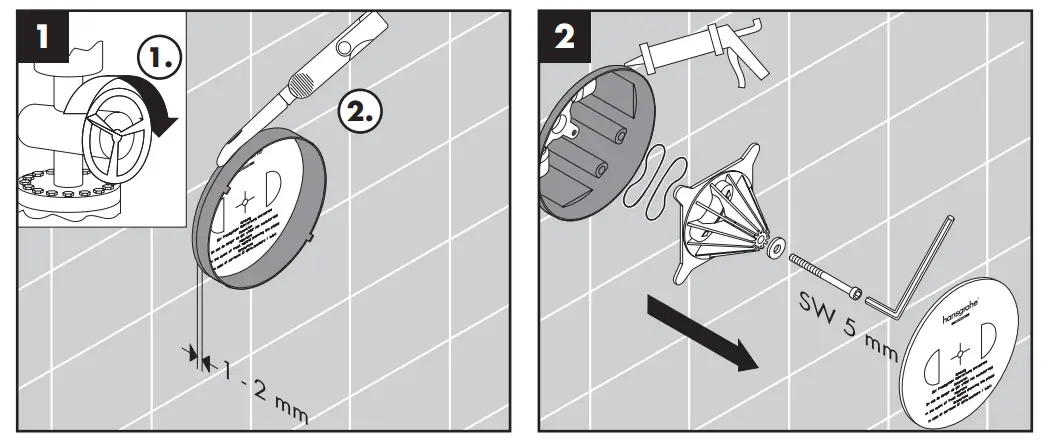

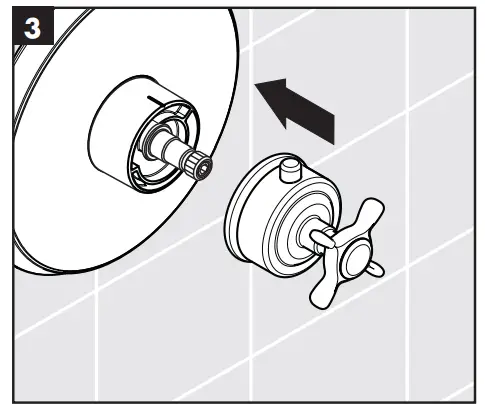

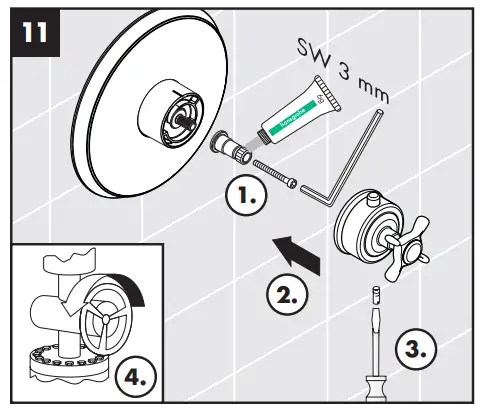

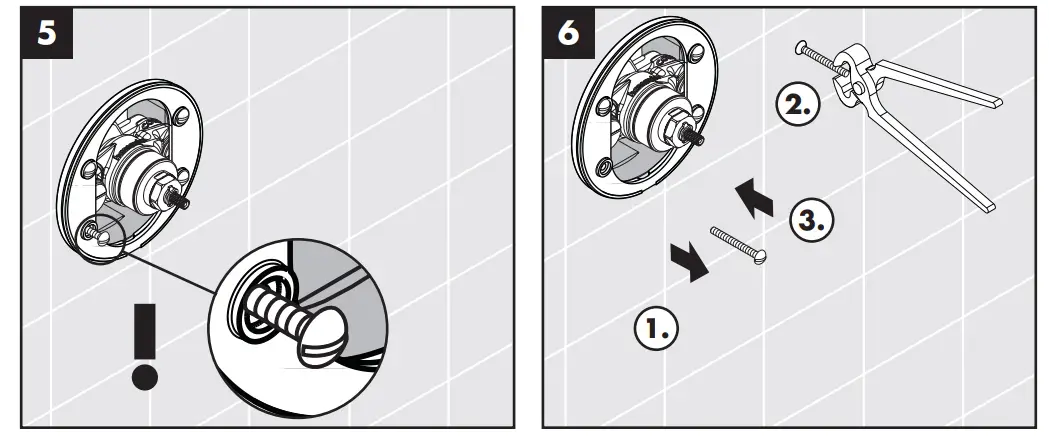

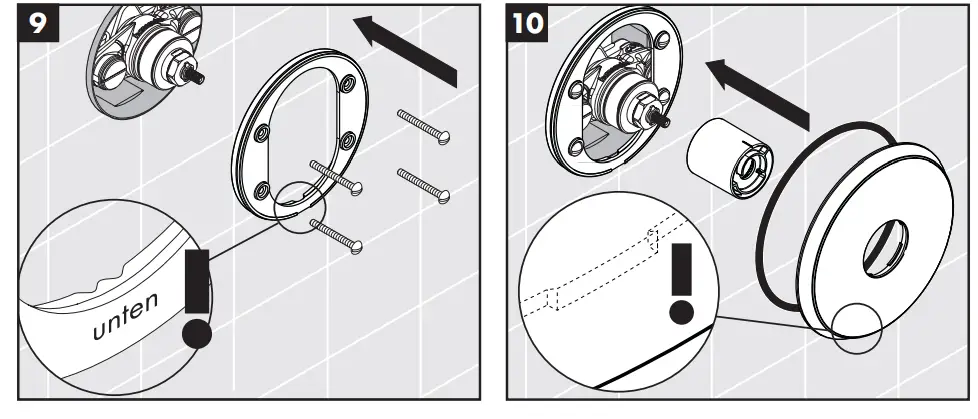

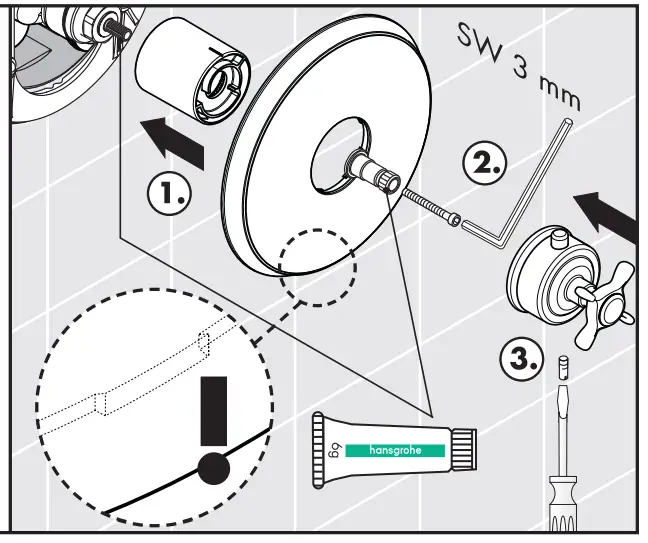

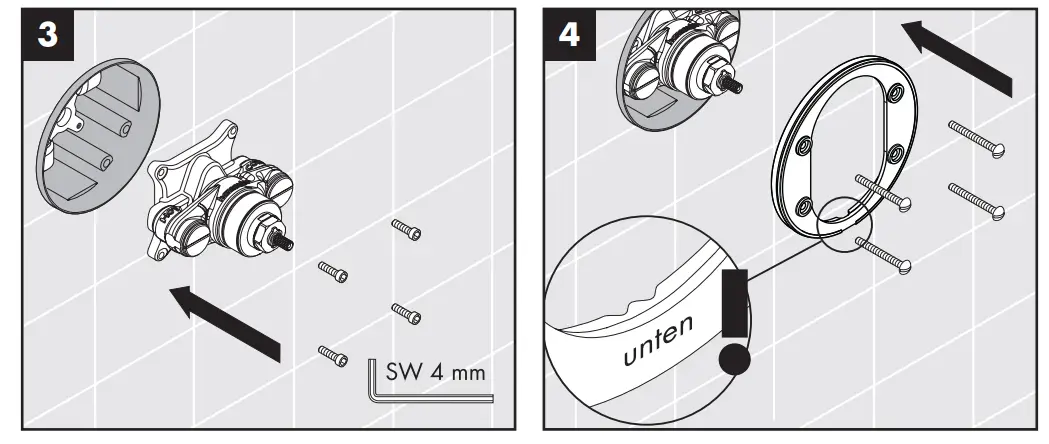

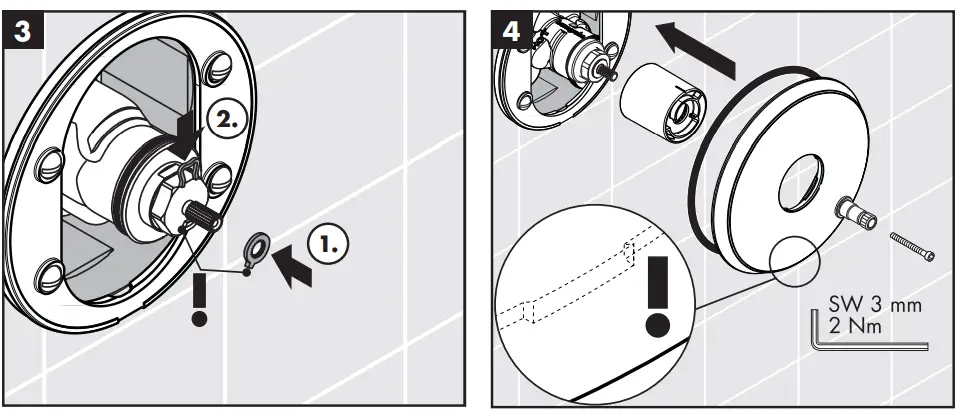

Assembly

Starck 7a

Massaud 7b
