KRAMER
KDS-10 Quick Start Guide
This guide helps you install and use your KDS-10 for the first time.
Go to www.kramerav.com/downloads/KDS-10 to download the latest user manual and check if firmware upgrades are available.
Step 1: Check what’s in the box
KDS-10 4K Video Encoder/Decoder 1 Power cord 4 Rubber feet 1 Quick start guide
Step 2: Get to know your KDS-10

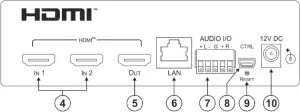

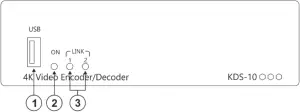

FRONT PANEL BACK PANEL
| # | Feature | Function | |
| 1 | USB Type A Port | For future use. | |
| 2 | POWER LED | Lights when the device is powered ON. | |
| Encoder Mode | Decoder Mode | ||
| 3 | LINK LEDs (1 & 2) | Each LED represents an HDMITM input status. White Flashing = Device booting up. • HDMI In not connected. Blue = The stream is administratively stopped via webpage interface. | LED 1 represents HDMI output. LED 2 is non-functional. White Flashing = Device booting up. • HDMI Out not connected. Blue = The stream is administratively stopped via webpage interface. |
| 4 | IN HDMI Connectors (1 to 2) | Connect to up to 2 HDMI sources. | |
| 5 | OUT HDMI Connector | Connect to an HDMI acceptor. | |
| 6 | LAN RJ-45 Connector | Connect to the network using recommended Kramer cables. | |
| 7 | AUDIO IN/OUT Balanced Stereo Audio 5-pin Terminal Block Connector | Connect to an analog audio acceptor or receiver. | |
| 8 | CTRL Mini USB Connector | Connect to PC to send P3K commands to control device. | |
| 9 | RESET button | Press and hold while powering on the device to reset to factory default parameters. | |
| 10 | 12V DC Connector | Connect to the power adapter. | |

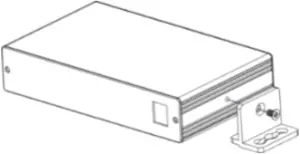

Step 3: Mount KDS-10
Install KDS-10 using one of the following methods:
- Attach the rubber feet and place the unit on a flat surface.
- Fasten a bracket (not included) on each side of the unit and attach it to a flat surface (see www.kramerav.com/downloads/KDS-10).
- Mount the unit in a rack using the recommended rack adapter (see www.kramerav.com/product/KDS-10).
- Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the device.
- Avoid uneven mechanical loading.
- Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of the circuits.
- Reliable earthing of rack-mounted equipment should be maintained.
- Maximum mounting height for the device is 2 meters.
KDS-10 Quick Startx
P/N: 2900–301387QS Rev: 1
Step 4: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your KDS-10.
Connecting audio output

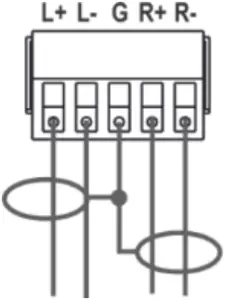

Connecting the audio output to a balanced stereo audio acceptor:
Connecting the audio output to an unbalanced stereo audio acceptor:
Connecting audio Inputs

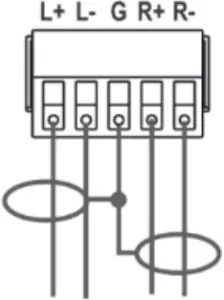

Connecting a balanced stereo audio source to the balanced input

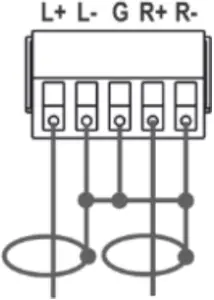

Connecting an unbalanced stereo audio source to the balanced input
For optimal performance, use the recommended Kramer cables available at www.kramerav.com/product/KDS-10.
Using third-party cables may cause damage!
Step 5: Connect power
Connect the power cord to KDS-10 and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
- For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.
- There are no operator serviceable parts inside the unit.
Warning:
- Use only the power cord that is supplied with the unit.
- Disconnect the power and unplug the unit from the wall before installing.
Step 6: Operate KDS-10
Operate KDS-10 via:
- Remotely, by Mini USB serial commands transmitted by a touch screen system, PC, or other serial controller
- Embedded web pages via the Ethernet
| RS-232 Control / Protocol 3000 | |||
| Baud Rate: | 115,200 | Parity: | None |
| Data Bits: | 8 | Command Format: | ASCII |
| Stop Bits: | 1 | ||
| Example: (Switch video input 2 to output 4): #V 2>4<CR> | |||
| Default Ethernet Parameters | |||
| IP Address: | 192.168.1.39 | UDP Port #: | 50000 |
| Subnet Mask: | 255.255.0.0 | TCP Port #: | 5000 |
| Gateway: | 0.0.0.0. | ||
| Default Username: | Admin | Default Password: | Admin |
To control via the Web pages:
- Connect the KDS-10 Ethernet port.
- Access the embedded Web pages.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
