Schneider Electric ABE-7P16T111 INT TECHNICS Industrial Automation Installation Guide

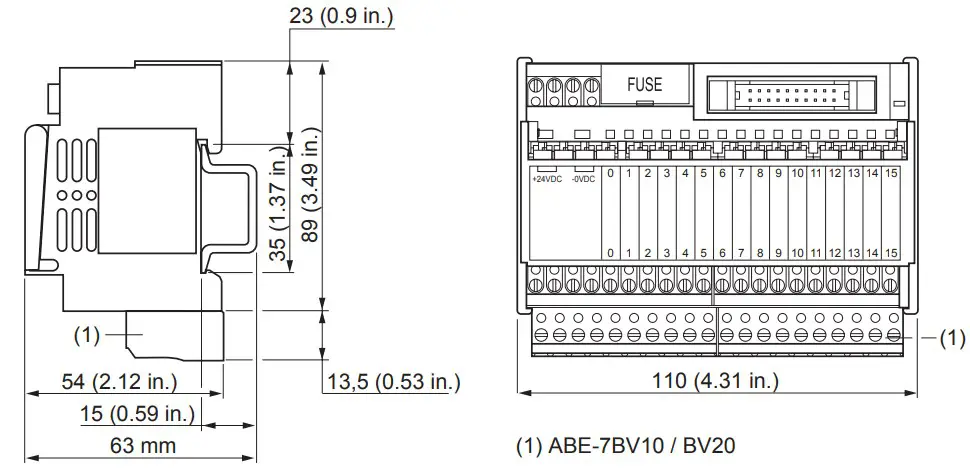

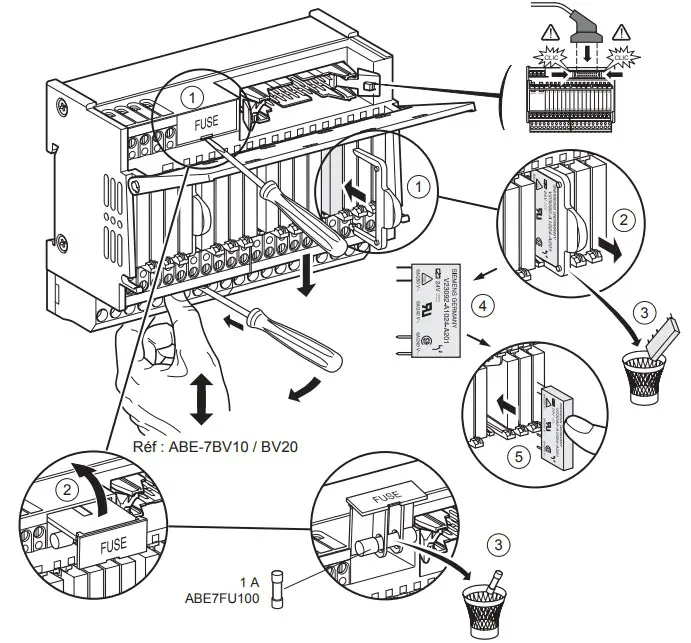

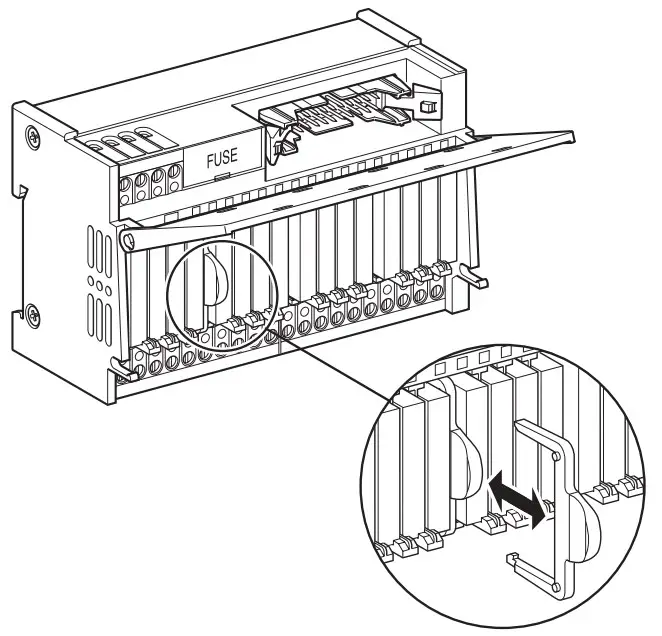

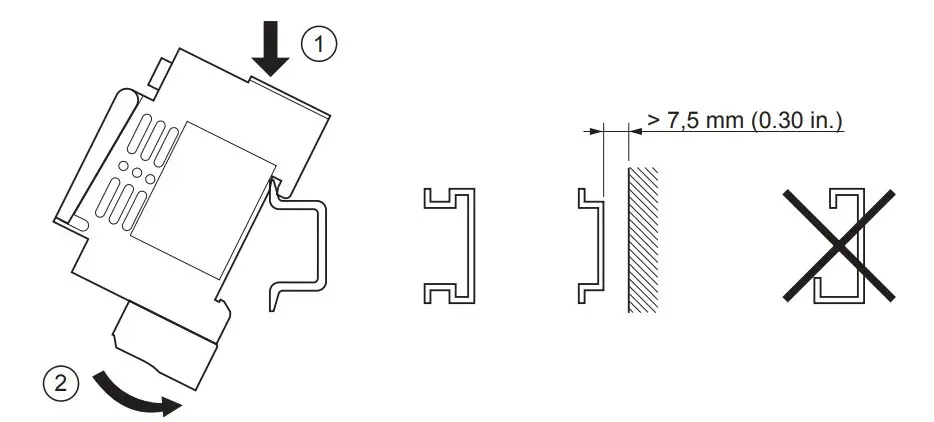

Instruction
DANGER
HAZARDOUS VOLTAGE
Disconnect all power before servicing equipement.
Electric shock will result in death or serious injury
W9 1489237 01 11 A03
DANGER
HAZARDOUS VOLTAGE
Disconnect all power before servicing equipement.
Electric shock will result in death or serious injury
 |  |  |  |  | |
| mm2 | 0.14…1.5 | 0.14…0.75 | 0.14…2.5 | 0.14…4 | 0.14…1.5 |
| AWG | 26…16 | 26…18 | 26…14 | 26…12 | 26…16 |

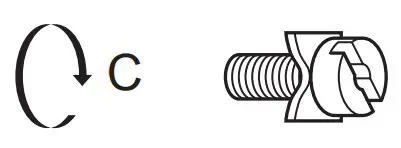

 Ø 3,5 |  | Nm | 0.6 |
| pound-inch | 5.4 |
Charge inductive
DANGER
HAZARDOUS VOLTAGE
Disconnect all power before servicing equipement.
Electric shock will result in death or serious injury.

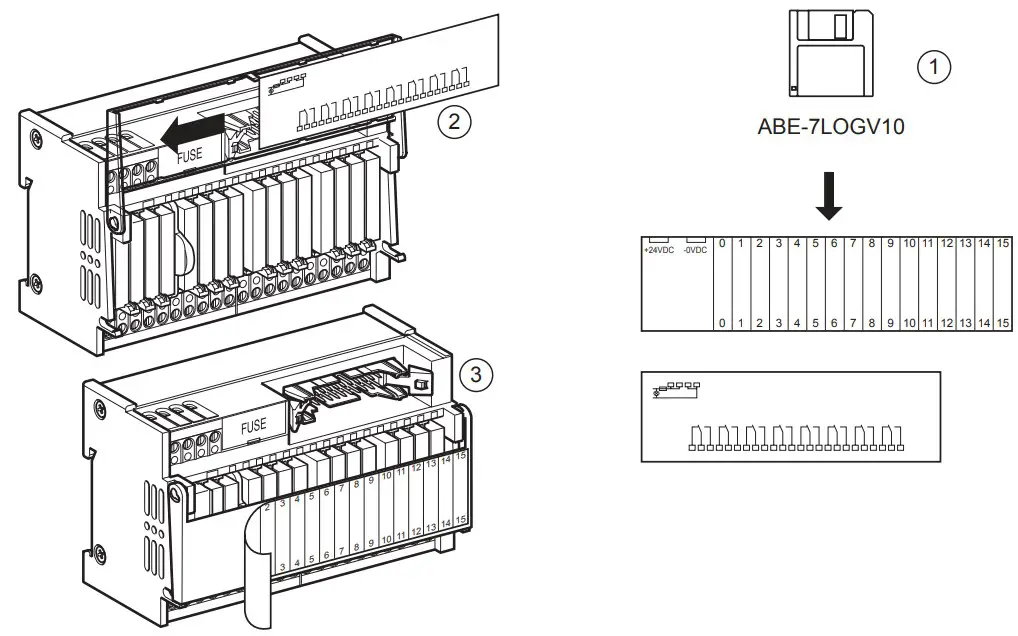

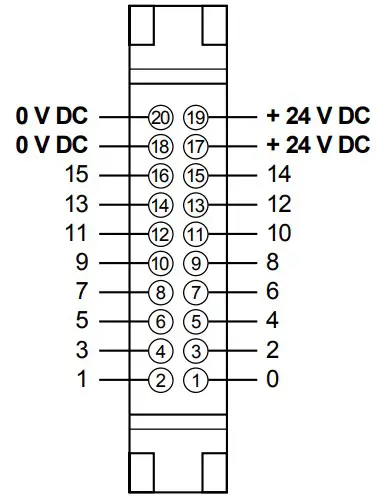

Channels

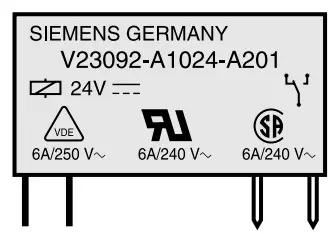

Réf : ABR7S11
(1F) – N/O I th = 6 A
ABE-7R16T111: supplied
ABE-7P16T111: not supplied

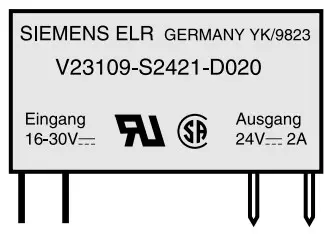

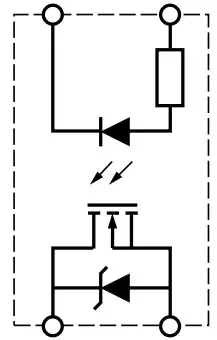

Réf : ABS7 SC1B
24 V DC I maxi = 2 A
not supplied
19…30 V DC 7 mA
24 V DC 0 V DC
0…24 V DC
I maxi = 2 A
WARNING !
INTERNAL FUSE MAY NOT DEACTIVATE OUTPUTS

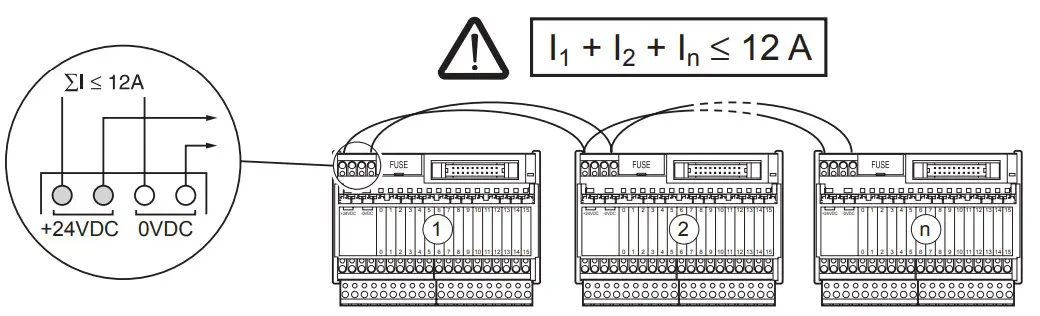

When multiple ABE7 modules are connected to a single PLC output source, module outputs may remain active after an internal fuse is removed or blown. To deactivate module outputs or to service the equipement, halt the PLC, disconnect all power and disconnect the HE10.
Failure to follow these instructions can result in death, serious injury or equipement damage.
