Miboxer Fut006 4 Zone Rotating Wheel Remote Instructions

Mi Light
Subordinate New Brand

Features

Product adopt the widely used 2.4GHz wireless technology with the features of low power consumption, long signal transmitting and strong ant-interference, etc. Product has
auto-transmitting function. Widely used on the controlling of hotel lighting and home lighting.
single Color LED Light

	Dim brightness
	2.46 RF wireless transmission technology
	Support PUSH dimming
	Signal transmitting
	Remote control Control distance 30m
	Smartphone app control (2.4GHz gateway is needed)
	Support third party voice control (2.4GHz gateway is needed)

Dual White LED Light

	Color temperature adjustable
	Dim brightness
	2.4G RF wireless transmission technology
	Support PUSH dimming
	Remote control Control distance 30m
	Smartphone app control (2.4GHz gateway is needed)
	Support third party voice control (2.4GHz gateway is needed)
	Signal transmitting

Linking Code / Unlinking Code Instructions

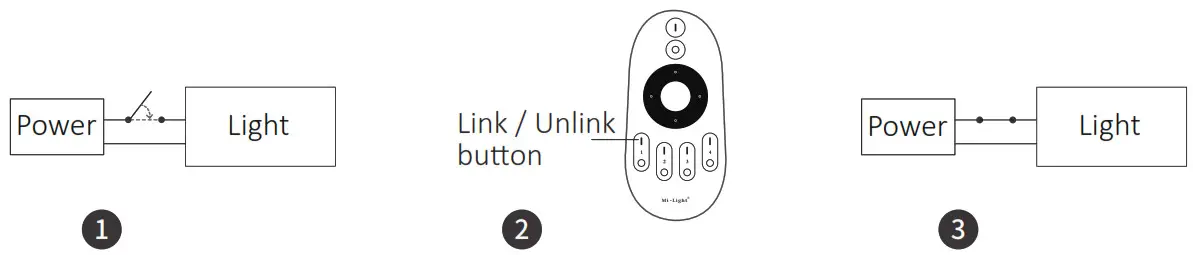

Linking Code Instruct Tons

1. Switch off light, after 10 seconds then switch on again.
2. Short press ” I ” button 3 times within 3 seconds when light on.
3. Lights blink 3 times slowly means linking is done successfully.

Linking failed if light is not blinking slowly, Please follow above steps again.
(Note: Light that have linked can’t link again)

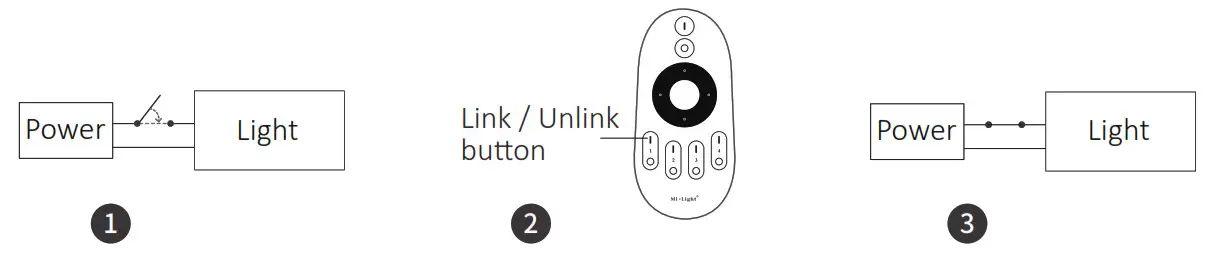

Unlinking Code Instructions

1. Switch off light, after 10 seconds then switch on again.
2. Short press ” I ” button 5 times within 3 seconds when light on.
3. Lights blink 10 times quickly means unlinking is done successfully.

Unlinking failed if light is not blinking quickly, Please follow above steps again.
(Note: Light haven’t linked that don’t need to unlink)

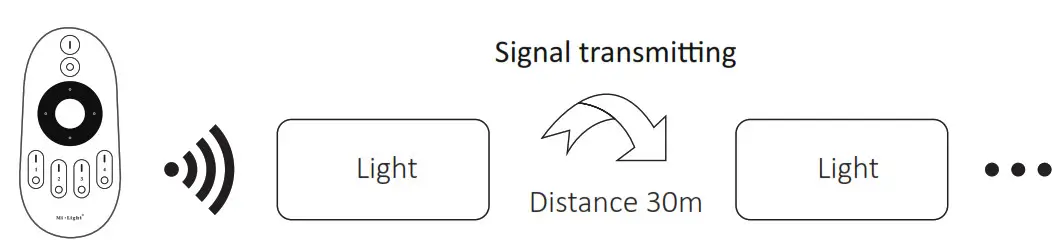

Signal transmitting

One light can transmit the signals from the remote control to another light within 30m, as long as there is a light within 30m, the remote control distance can be limitless.

PUSH dimming

Short press push switch:

• Turn on or turn off light.

Long press push switch:

• Stepless dimming brightness.
• Long press / release and long press again to increase or decrease brightness.

Scan QR code to watch video instruction

https://miboxer.com/light/video/wifi_2.html Smartphone app control (WL-Box1 video)	https://miboxer.com/light/video/voice_2.html Third party voice control

Attention

1. Please check whether the voltage of the power supply is in accordance with the light, and please check the connector of both the cathode and anode, otherwise the light will be broken.
2. Please don’t connect wires with power on. Please turn on again only when it is in right connector and no short circuit.
3. Non-professional user cannot dismantle the laughing fixtures directly.
4. Please do not use the light in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.

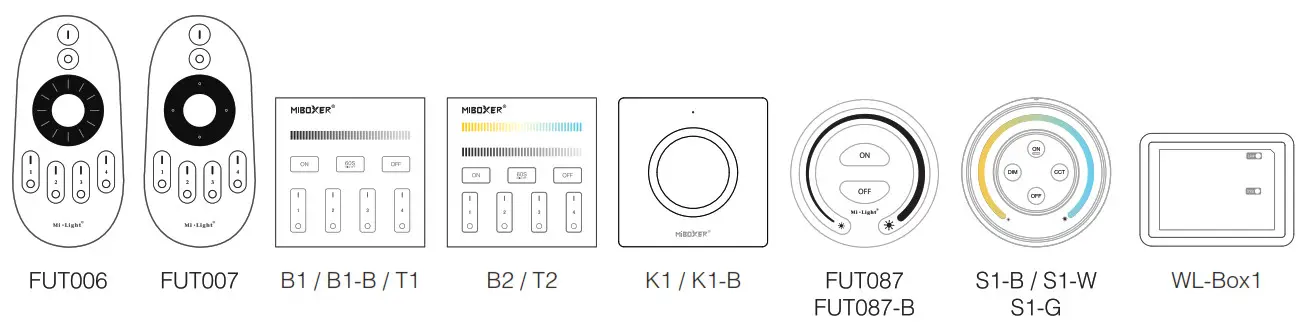

Compatible with these remote controls (Purchased separately)

Made in China
