AIRZONE AZEZ8CB1IAQ Easyzone IAQ Slim + CMV IB8 GG0 Installation Guide

Contents hide

1 EASYZONE IAQ

2 TECHNICAL SPECIFICATIONS

9 Documents / Resources

9.1 References

10 Related Posts

EASYZONE IAQ

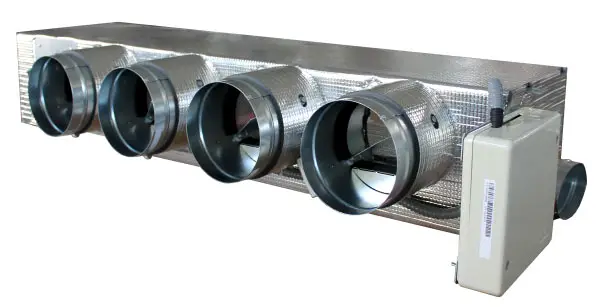

Airzone motorized plenum with neck that mechanically adapts to the main ducted AC units Airzone motorized plenum includes

Main control board (AZEZ8CB1IAQ) that controls the system through wired and wireless devices.

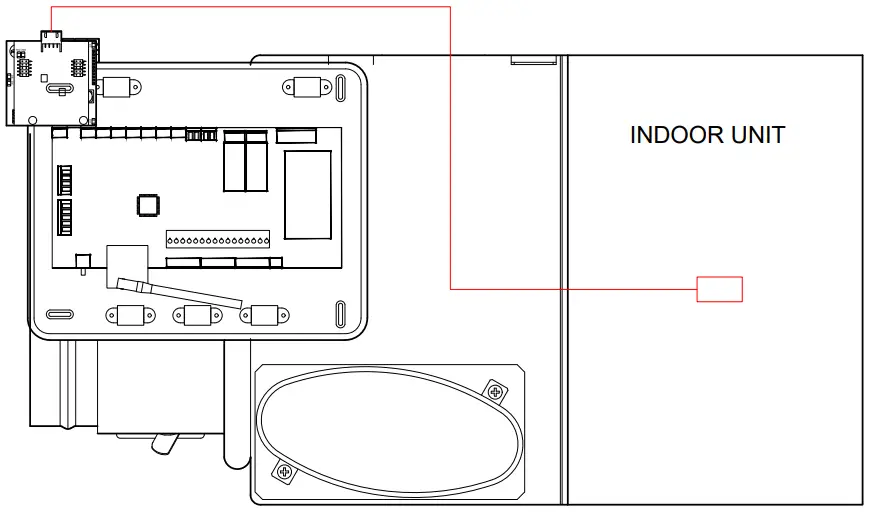

Communication gateway (for more information, see the technical datasheet ofthe gateway).
Round dampers of 150/200 mm in diameter.
Manual airflow control system.
Controlled mechanical ventilation (CMV) input of 150 mm in diameter (Available only in ST and SL).
Airzone particulate matter sensor.
Air purification system by ionization.

Depending on the motorized plenum (nº of dampers and settings) and the controlled indoor unit, the sound pressure may vary to ±3 dB(A) and the pressure drop may vary from 5 to 15 Pa. For further information about our products, go to myzone.airzone.es

TECHNICAL SPECIFICATIONS

V max	110/230 Vac
I max	250 mA
Frequency	60/50 Hz
Stand-by consumption	4.85/1.68 W
Module over-current protection	250 mA

AZ1 – AZ2 – AZ3 – IU

Shielded twisted pair: 2 x 0.22 + 2 x 0.5mm2
V max: 12 Vdc

DM1

Shielded twisted pair: 2 x 0.22 + 2 x 0.5 mm2
Communications protocol: MODBUS RS-485
Maximum distance: 100 m

Communications via radio

Communications protocol	Airzone
Frequency	868 MHz
Radiation power	5 dBm
Maximum distance in open space	40 m

IO1 … IO8

Maximum number of outputs per damper	2
Maximum number of ionization modules per output	1
V max	34 Vdc
I max	270 mA

IAQ

V max	250 Vac / 24 Vdc
I max	12 A

Temperaturas operativas

Storage	-20 … 70 ºC
Operation	0 … 50 ºC

Mechanical aspects

Protection class	IP 21
Weight	616 g

Purification

Minimum size of particles detected	2.5 μm
Minimum- maximum detectable density	0 – 2000 μg/m3
Maximum- detection error consistency	±10 %
Sensor response time	1s
Time from first sensor reading	8s
Ion type	Negative
Quantity of ozone per ionizer	0.15 mg/h
Number of ions	8000000 io./cm3

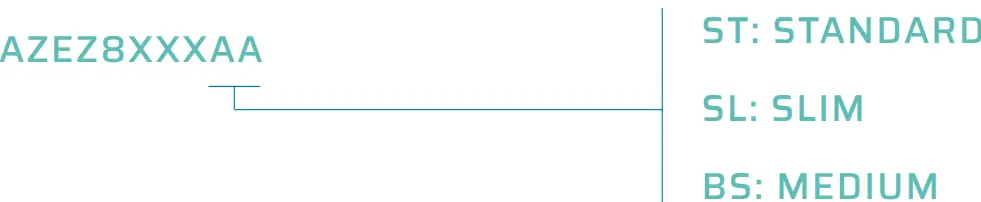

Motorized plenum

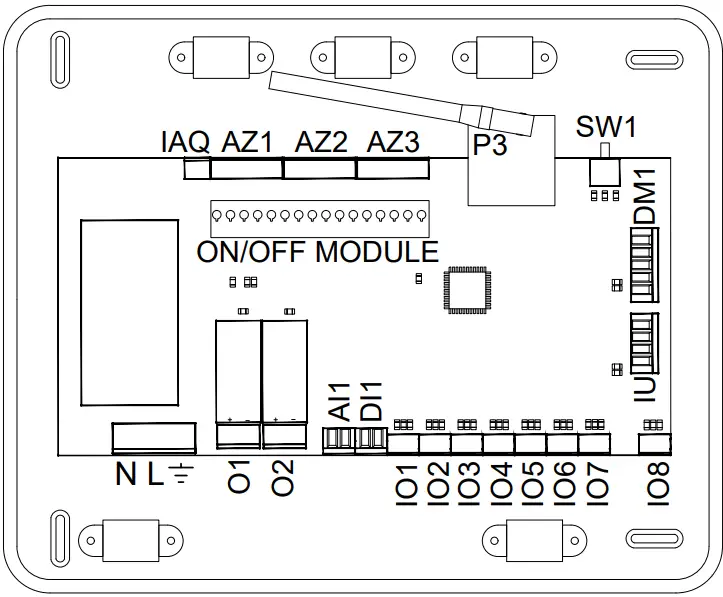

DEVICE ELEMENTS

Nº	Description
AZ1…AZ3	Airzone connection bus
P3	Wireless module
SW1	SW1
DM1	Automation bus
IU	AC unit bus
IO1…IO8	Actuator and purification outputs
DI1	Alarm input (normally close)
AI1	Temperature probe
O1	AC start-stop relay
O2	CMV/Boiler
N L	Power
ON/OFF	Contact on/off (optional)
IAQ	Airzone particle sensor

SELF-DIAGNOSIS

Nº	Meaning
D1	Data reception from automation bus	Blinking	Green
D2	Data transmission from automation bus	Blinking	Red
D3	Main control board activity	Blinking	Green
D4	Data transmission from connection bus	Blinking	Red
D5	Data reception from connection bus	Blinking	Green
D6	AC unit On/Off	Switches	Green
D7	CMV/Boiler	Switches	Green
D8	Data transmission from AC unit bus	Blinking	Red
D9	Data reception from AC unit bus	Blinking	Green
D10	Wireless data packets reception	Switches	Green
D11	Main control board power	Fixed	Red
D18	Associated element	Fixed	Green
D19	Association channel: active	Fixed	Red
	Open dampers	On	Green
A	Close dampers	On	Red
	Purifier activated	Fixed	Blue

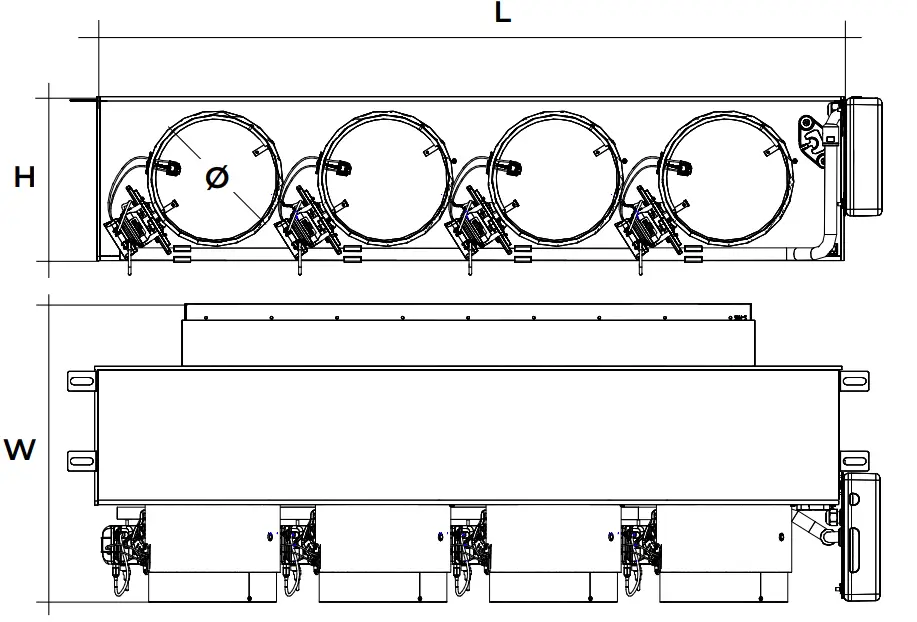

	N	(kg)	W	H	L	Ø
ST	3 4 5 6 7/8	11±1 15±1 18±1 21±1 28±2	454 454 454 454 454	300 300 300 300 515	930 1140 1425 1638 1425	200
SL	3 4 5	10±1 12±1 14±1	444 444 444	210 210 210	720 930 1140	150
BS	3 4 5 6	10±1 13±1 15±1 18±1	454 454 454 454	250 250 250 250	930 1140 1425 1638	200

Nº of dampers

If the system has CMV L = L+180 mm

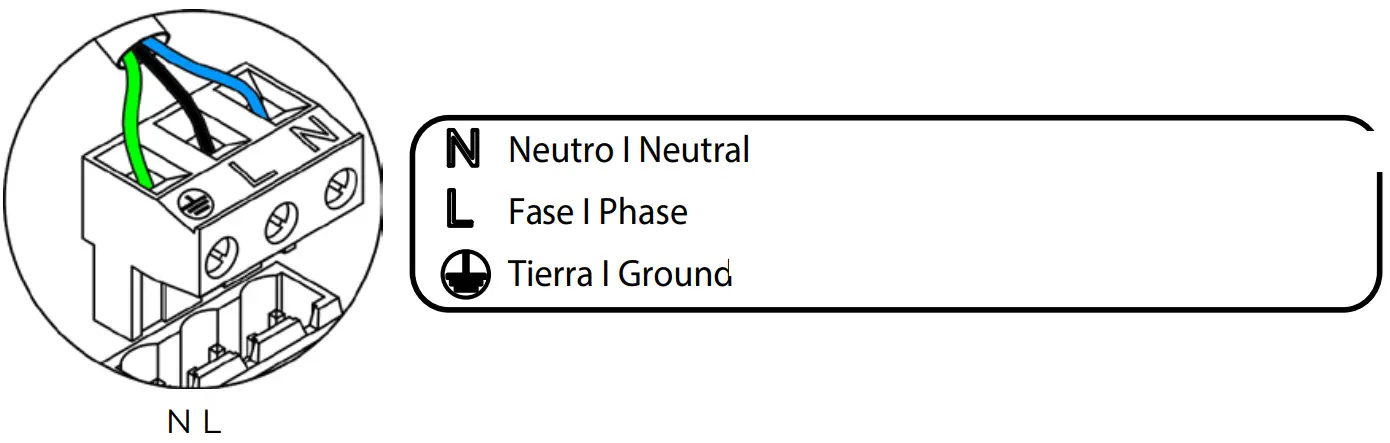

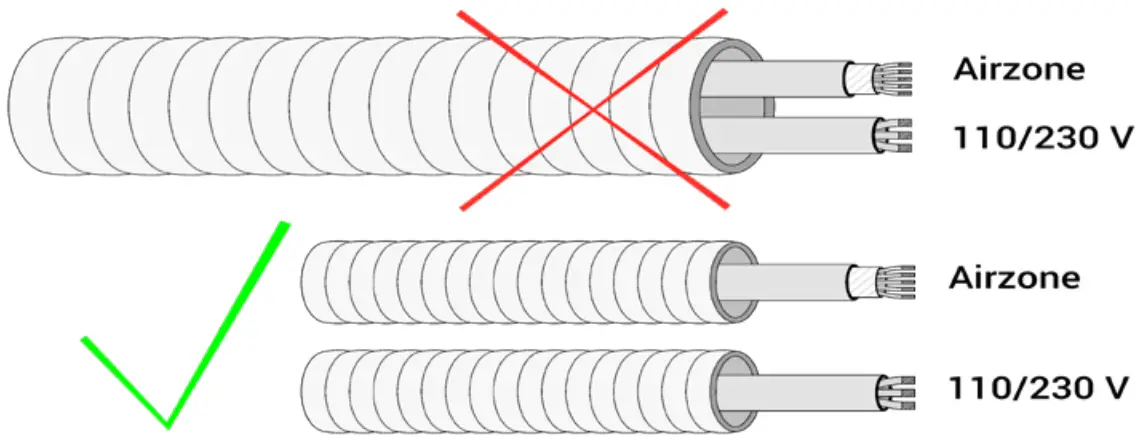

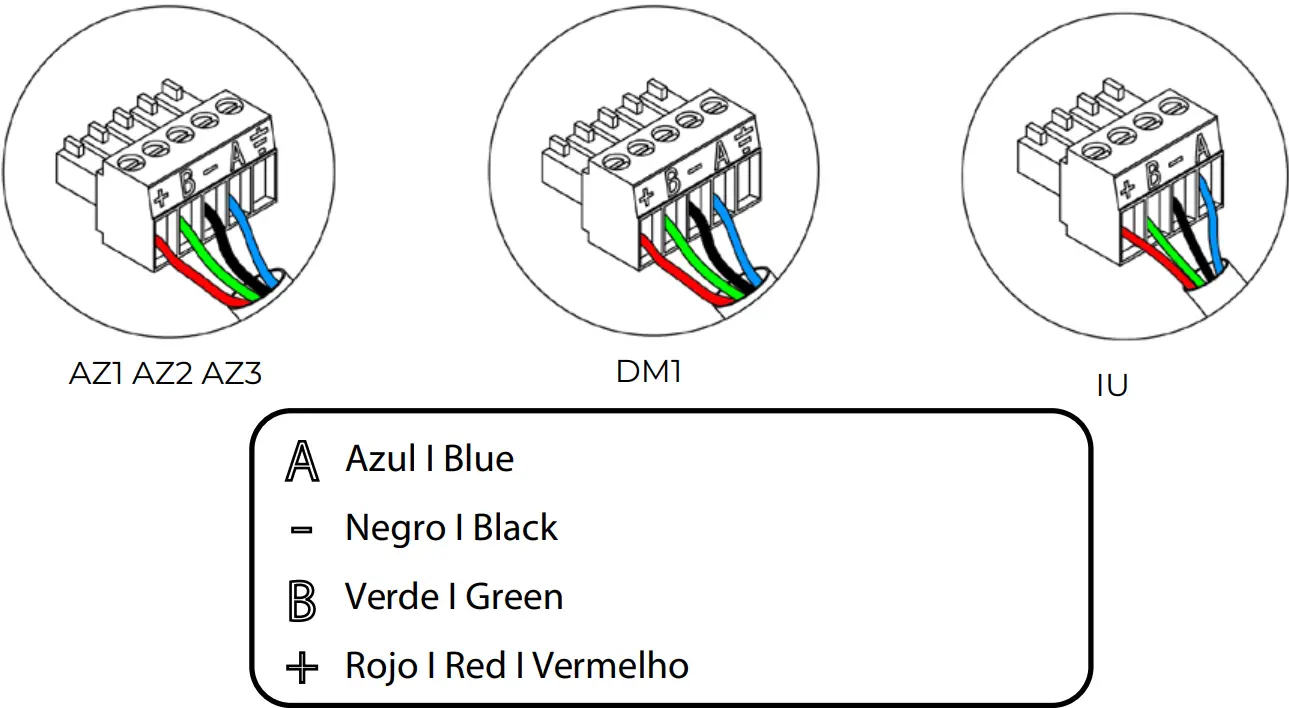

CONNECTION

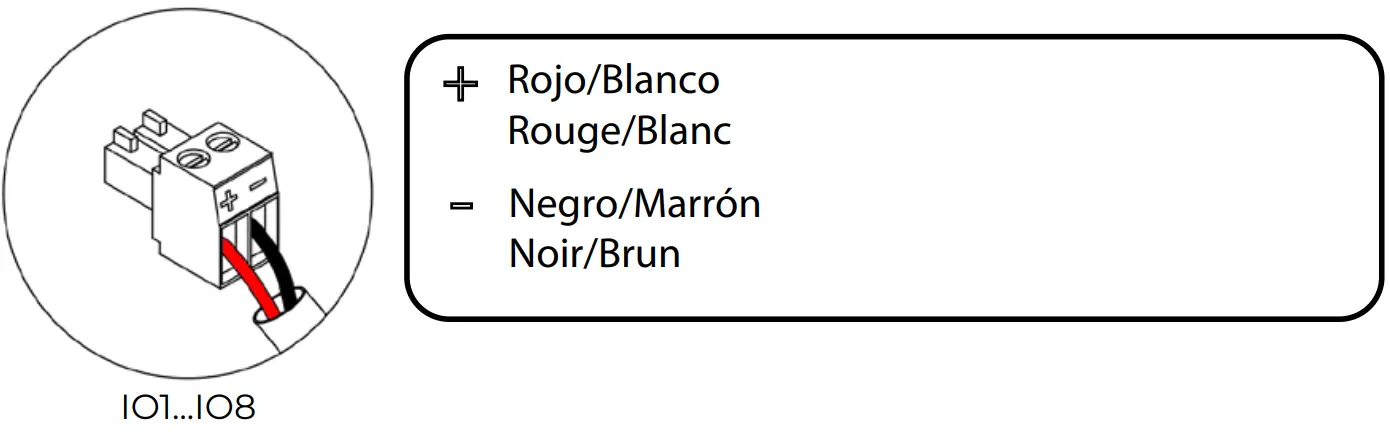

Do not connect the “-“ pole to the “+” terminal. It may damage the device.

The Easyzone plenum is grounded via the indoor unit.

EU.BAC

Type	Airzone Central V1.3
Licence	215562
Application	Variable air volume system (without h/c coil)
Application	Heating Cooling
Control accuracy (K)	0.3 0.3
