X-PLOR Portable Concentrator Resources
User Guide
XPLORoxygen.com
X-PLOR Portable Concentrator Resources
CHECK LIST
Locate the following items in your X-PLOR® box to get started:
 | X-PLOR Unit |
 | Carrying Bag |
 | Replaceable Cartridge (found in Mylar bag) |
 | Nasal Cannula |
 | AC Power Supply |
 | DC Power Supply |
 | Handle (Attaches to Carrying Bag) |
 | Shoulder Strap (Attaches to Carrying Bag) |
 | 8-Cell Battery |
DO NOT TURN ON THE X-PLOR UNTIL YOU REACH STEP 4.
It is quick and easy to get your X-PLOR started, but please read the entire User Manual before using.

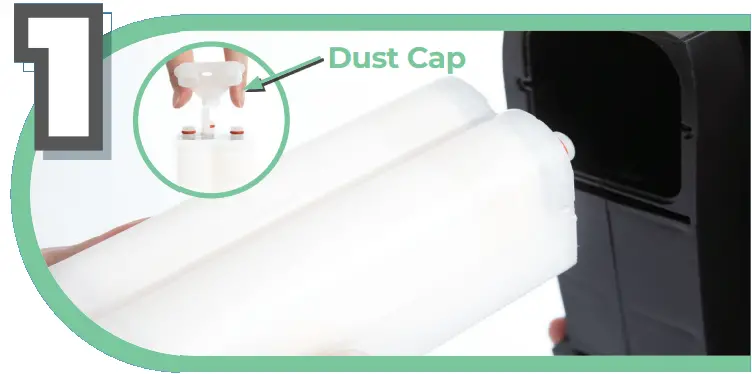

REMOVE DUST CAP & INSERT CARTRIDGE
- Remove cartridge from mylar bag.
- Remove the dust cap from the cartridge.
- Then insert the cartridge all the way into the unit so the handle lays flat.

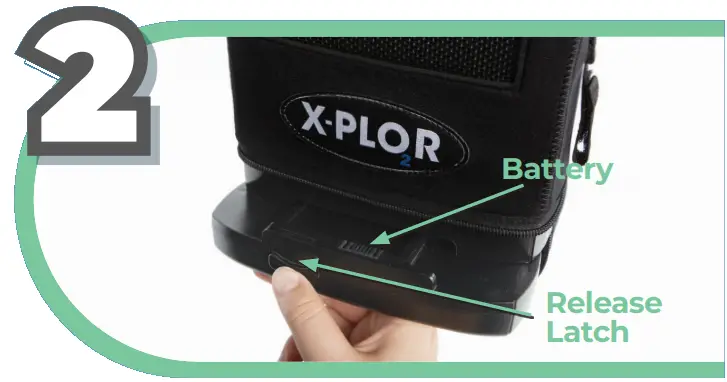

LOCATE THE BATTERY
- Insert your X-PLOR into the carry bag. When the X-PLOR is correctly inserted into the bag, the LCD screen is seen through the plastic window and the air intake and exhaust are aligned with mesh panels.
- To attach the battery, slide it on until the latch is in the locked position and zip the bag.
- To disconnect the battery, simply push the release latch down and slide the battery towards you. 55

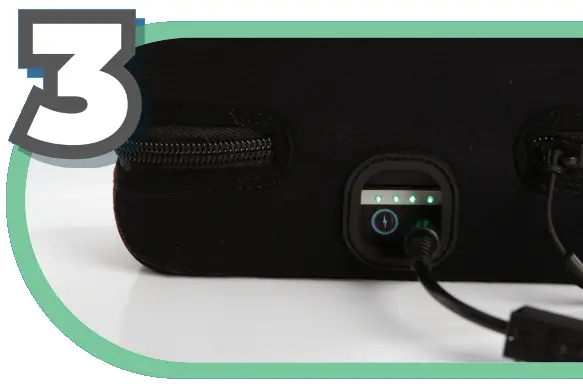

CHARGE THE BATTERY
- Place in a well-ventilated area to fully charge the battery before using your X-PLOR, which can take up to 6 hours for the 8-cell battery.
- To charge, insert the AC power connector into the battery’s power receptacle and the other end into an electrical outlet.

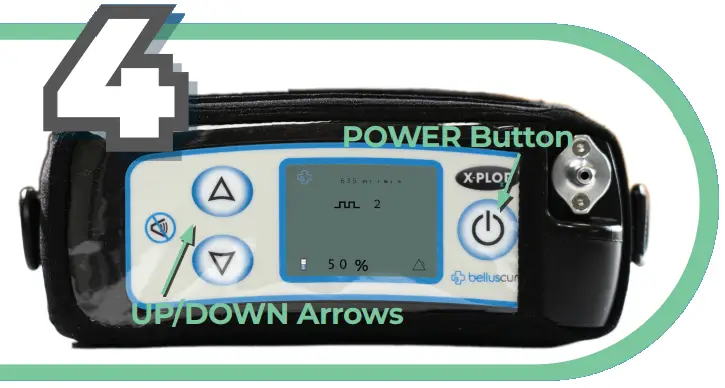

TURN ON & SET OXYGEN FLOW
- Press the POWER button for 2 seconds to turn on your X-PLOR.
- When powered on, position the unit upright to warm-up (Warm-up time is less than 2 minutes.)
- Use the UP/DOWN ARROWS to set the oxygen flow level, as specified in your oxygen prescription.

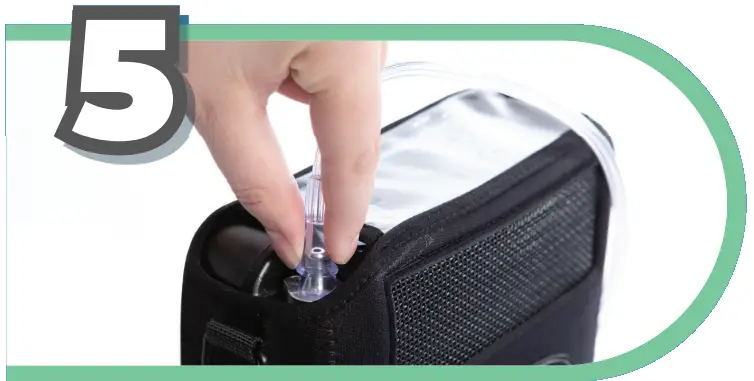

NASAL CANNULA
- A nasal cannula is included in your shipment box.
Additional cannulas must be purchased separately. - Connect the nasal cannula to the oxygen output nozzle located on top of the X-PLOR.
- Place the other end in your nostrils. Oxygen will be delivered through the nasal cannula with each breath.
- Remember to breathe through your nose as normal.
GO X-PLOR!
- Attach the shoulder strap and handle to your X-PLOR device and enjoy your new found mobility!
LIVE LIFE. BREATHE EASY.
GO X-PLOR.
TRAVEL WITH X-PLOR
The X-PLOR lets you travel with ease.
It’s perfect for carrying on buses, trains, planes, and cruise ships! Now with X-PLOR
supplemental oxygen and direct-charge batteries, exploring has never been so easy.
X-PLOR IS FAA COMPLIANT.
