140003 150W HIGHLITE Spotlight
Instructions
Product information
A cost-effective outdoor lamp with strong UV resistance and anti-corrosion, built for harsh environment. Universal mounting bracket and angle adjustment makes the installation quick and easy. The new hollow design lets the heat upwards and away from the LED light source. The radiator on the backside leads the rainwater away and prevents water accumulation.
Specifications
| Voltage | 230V |
| Width x Height x Depth | 252,6 mm x 337 mm x 55,2 mm |
| Brightness | 21000 lm |
| Power | 150W |
| Efficacy | 140lm/W ±10 |
| Colour temperature | 4000K |
| Beam angle | 90 ° |
| IP class | IP67 |
| IK | 9 |
| CRI | >70 |
| Ambient temperature | -30°c to + 50°c |
| LED type | SMD5050 |
| Lifetime | 102.000 hours (L70) |
| Dimmable | No |
| Gross weight | 2,16kg |
| Certificates | CE, RoHS |
| Warranty | 5 years |
Used electrical and electronic products, including all types of batteries, must be delivered for recycling at a separate collection point. (acc. to directive 2012/19/EU and 2006/66/EC).
Construction
| Body material | Aluminium |
| Optic material | Polycarbonate |
| Lens material | Toughened glass |
| Bracket material | Galvanized iron |
| Color | Black |

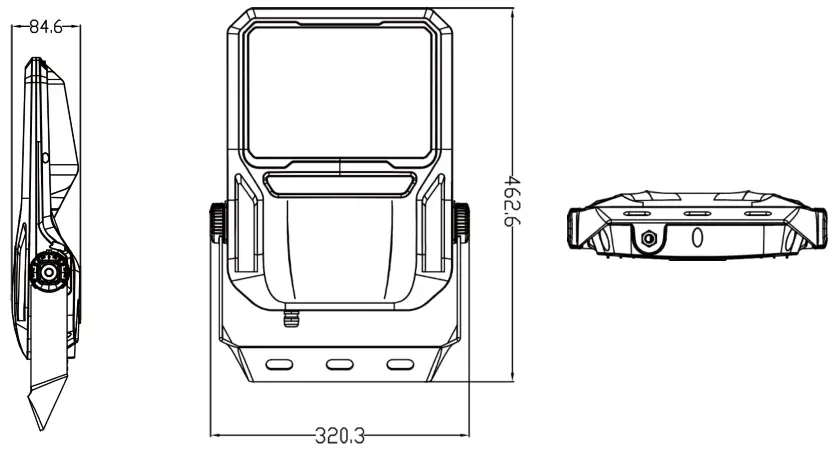

Dimensions

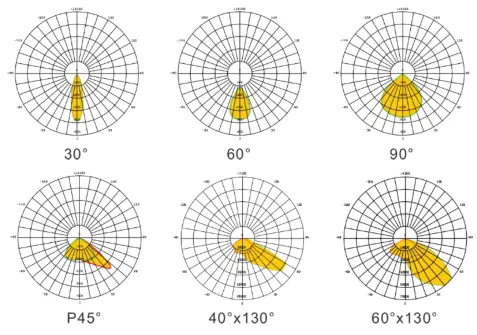

Photometric diagrams
