KC43150618 Oak Look Short Bookshelf
Instruction Manual
CARE INSTRUCTIONS:
WIPE CLEAN WITH A SOFT CLOTH. DO NOT USE SCOURERS, ABRASIVE MATERIALS OR CHEMICAL SOLVENTS. CHECK AND TIGHTEN ALL PARTS REGULARLY.
STORE IN A DRY PLACE AND KEEP AWAY FROM WATER AND DIRECT SUNLIGHT. FOR INDOOR AND DOMESTIC USE ONLY.
WARNING:
DO NOT STAND OR SIT ON THIS UNIT. DO NOT USE UNTIL ALL SCREWS ARE FIRMLY SECURED. USE ONLY ON A FLAT SURFACE. DO NOT DRAG WHEN MOVING
THE PRODUCT TO AVOID DAMAGING THE JOINS. FAILURE TO FOLLOW THESE WARNINGS COULD RESULT IN SERIOUS INJURY.
MAXIMUM SAFE LOAD:3KG FOR TOP SHELF, 6KG FOR MIDDLE SHELF, 9KG FOR BOTTOM SHELF.
Hardware list
| a | Ø4x35mm | 8PCS | |
| b | Ø6x30mm | 2PCS | |
| c | 20PCS | ||
| d | Ø5x50mm | 20PCS | |
| e | 10x1Omm | 20PCS | |
| f | 2PCS | ||
| g | Ø4x12mm | 2PCS | |
| h | Ø6x3Omm | 2PCS | |
| i | 4PCS |
Tools required not provided
| Philips Head Screw Driver |
Do not tighten the screws fully during assembly.
Fully tighten screws after the final assembly steps
![]() | ![]() |
![]() | ![]() |
User instructions should include the wording:
- It is strongly recommended that this product is permanently fixed to the wall.
- Please seek professional advice if you are in doubt of what fixing device to use.
- Regularly check that anchors are securely maintained.
- Stability of tall items may be affected by thick pile carpet or uneven floors .
- Do not place unanchored televisions on furniture .
CAUTION: for your safety when attaching the anchor fixings, please note the following:
- Check any electrical wires or plumbing inside the wall before drilling any holes (if you are unsure please seek professional advice from a qualified tradesperson).
| WARNING: PLEASE SECURE YOUR FURNITURE WITH THE SUPPLIED WALL FIXING. SCAN THE CODE FOR MORE INFORMATION. |
http://www.productsafety.gov.au/news/toppling-furniture-anchor-it-and-protect-a-child

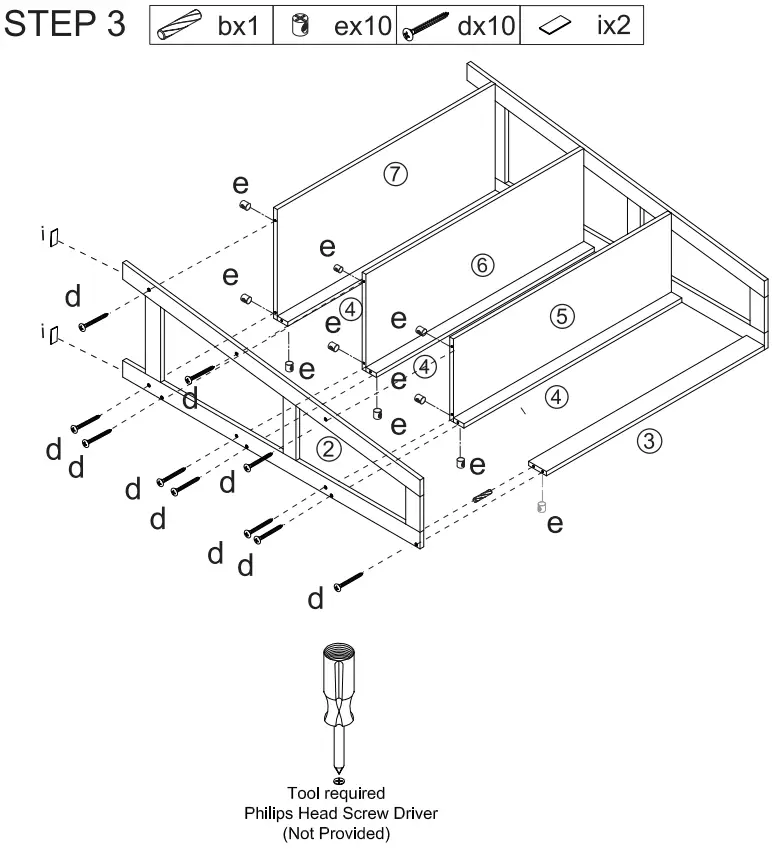

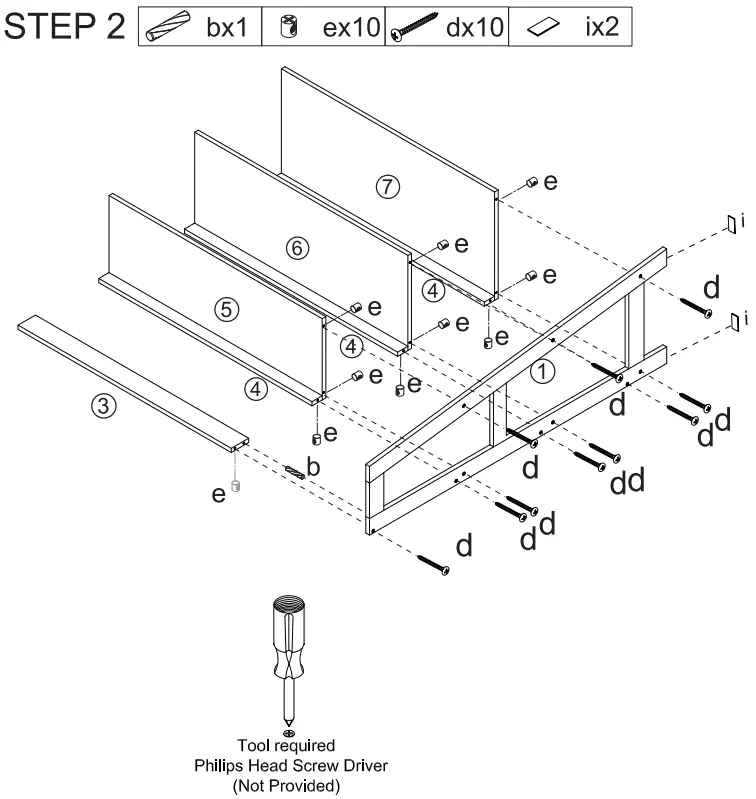

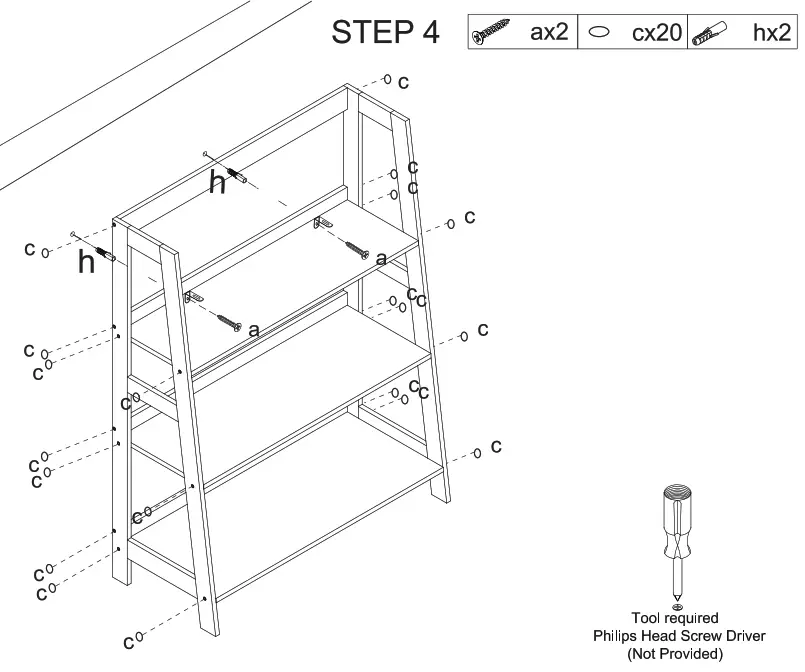

Assembly Instructions
KC43150618 OAK LOOK SHORT BOOKSHELF
