Winsen Fr03h Flow Sensor User Guide

Flow Sensor
FR03H
Version ：1.1
Issue Date：2022.02.16
Zhengzhou Winsen Electronic Technology Co., Ltd

FR03H Flow Sensor

Statement

This manual copyright belongs to Zhengzhou Winsen Electronics Technology Co., LTD. Without the written permission, any part of this manual shall not be copied,  ranslated, stored in database or  retrieval system, also can’t spread through electronic, copying, record ways.
Thanks for purchasing our product. In order to let customers use it better and reduce the faults caused by misuse, please read the manual carefully and operate it correctly in  accordance with the instructions. If users disobey the terms or remove, disassemble, change the components inside of the sensor, we shall not be responsible for the loss. The  specific such as color, appearance, sizes &etc, please in kind prevail.
We are devoting ourselves to products development and technical innovation, so we reserve the right to improve the products without notice. Please confirm it is the valid  version before using this manual. At the same time, users’ comments on optimized using way are welcome.
Please keep the manual properly, in order to get help if you have questions during the usage in the future.

Zhengzhou Winsen Electronics Technology CO., LTD

Profile：

FR03H flow sensor is an upgrading developed from F1012 . It adopts MEMS Thermal principle to monitor the flow of pipeline gas medium. This product adopts low  pressure loss design and is widely used for all kinds of gas measurement.

Features：

• High sensitivity；
•  Very low pickup flow；
• High Accuracy；
• Low voltage loss;
• Modular design;
• High measurement repeatability;
• Suitable for customization of various products

Technical Parameters

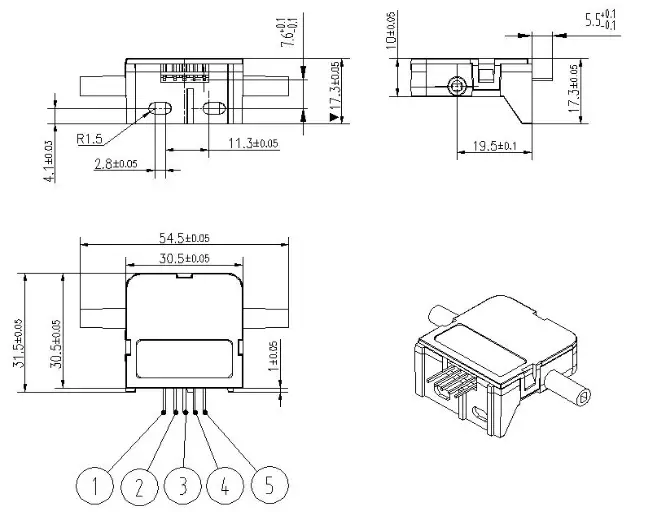

3.1 Structure Parameters

3.2 Electrical Index

3.2 Calibration
The flow sensor of our company adopts standard condition and air calibration by default. If the user has special requirements, calibrate according to the customer’s requirements.

3.2.1 Standard Condition：
Temperature :0℃，Air Pressure: 101.325kPa
SCCM：Standard mL/min
SLM：Standard L/min
3.2.2Manufacture Environment：
Manufactured and calibrated in environment with temperature of 22±2℃,Purify and（30%～35%）RH.

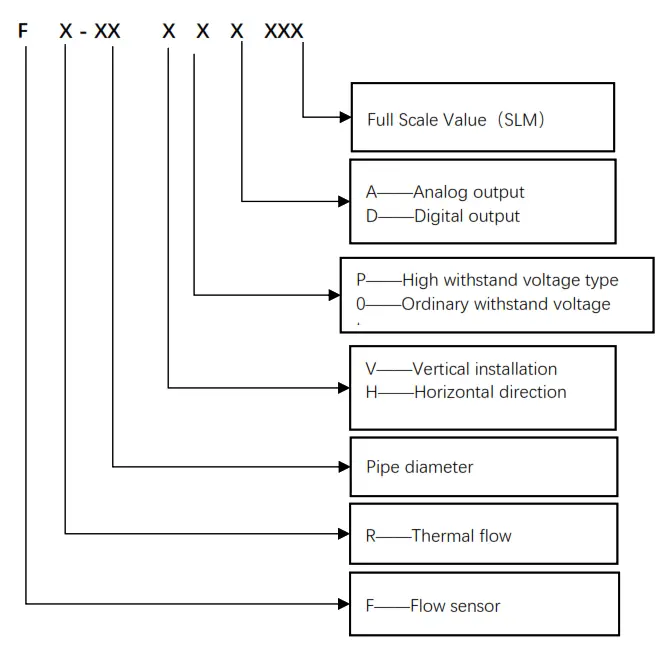

Naming Rule

Output Calculation

Actual flow=full scale * (sensor actual output voltage-zero output voltage) / (full scale output voltage-zero output voltage) For example: the sensor full scale is 2 SLM, the  sensor zero output voltage is 0.5V and full scale output voltage is 4.5V, and the actual output is 2.5V. Then the actual flow=2 SLM * (2.5V – 0.5V)/(4.5V- 0.5V) = 0.75SLM

Cautions

6.1 The gas used must be purified to avoid dust, liquid and oil stain. If necessary, a filtering device can be installed in the gas circuit.
6.2 The medium used must be dry and clean non-corrosive gas.
6.3 The pressure of the medium used shall not exceed 1.2 times of the maximum working pressure of the product.
6.4 In order to ensure the measurement accuracy of the sensor, it is recommended to install a straight pipe section at least 5 times the nominal diameter at the inlet of the  sensor and at least 3 times the nominal diameter at the outlet.

Fault Diagnosis

7.1 Preliminary inspection
7.1.1 Check the opening of air source and inlet.
7.1.2 Ensure the correct connection of communication lines.
7.1.3 Check whether the medium pressure and ambient temperature meet the product technical indicators.
7.2 Fault Check

Disclaimer

Our company is not responsible for the damage caused by the following circumstances:

• Natural disasters.
•  Incorrect operation or unreasonable use.
• Operate or store in unsuitable or harsh environment.
•  Unauthorized modification or disassembly of products.
•  Violent means lead to product damage.

Appendix

get gas flow =Sensor Reading Value ×Conversion coefficient
