Samsung Rf29bb8600 Bespoke 4 Door French Door Refrigerator User Guide

RF29BB8600

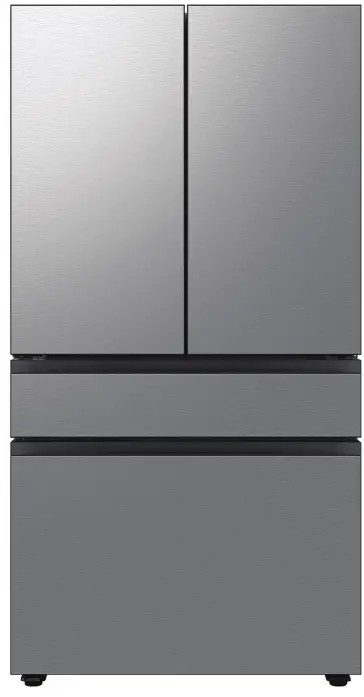

Bespoke 4-Door French Door Refrigerator
(29 cu. ft.) with Beverage Center ™

Signature Features

Customizable Door Colors
Customize the design of your refrigerator with changeable door panels.
Choose from a variety of colors and two finishes to create a space that fits your style.

Beverage Center ™
Quick access to refreshingly cool, filtered water two ways. Choose from an internal dispenser or a built-in pitcher that automatically refills, with the option to infuse with a flavor.
Extra-large Capacity
With 29 cu. ft. of capacity, this spacious refrigerator is designed for convenience, offering flexibility and organization to store and access all your favorite foods with ease.

Bespoke 4-Door Refrigerator Standard Color Models

Design

• Customizable Door Colors
• Modern Design
• Recessed Handle

Technology

• Beverage Center ™
• Wi-Fi Enabled

Performance

• Dual Ice Maker with Ice Bites
• FlexZone™ Drawer
• Metal Cooling
• 29 cu. ft. Capacity
• Twin Cooling Plus

Rating
ENERGY STAR® rated: 685 kWh/yr

ADA Compliant

Installation Specifications

1. Measure the height, width and depth of the opening, making sure to include baseboards, molding tile, countertop overhang, etc. Check to be sure there is enough room  to open the door (consider walls, islands or other obstacles when measuring).
2. Refer to illustration below to determine dimensions.
3. Allow 2.5″ of clearance on hinge side of refrigerator when installing next to a wall where handle may make contact.
4. Allow 1″ minimum clearance at rear for proper air circulation and water/electrical connections. Allow a 3/8″ minimum clearance at sides and top for ease of installation.
5. Ensure each door and entryway in the home is wide enough for the refrigerator to be moved through easily.
   For optimal usage and ability to open refrigerator doors completely, do not install next to a wall.
   Please note: The following dimension and cutout information is for planning purposes only.
   For complete installation details, consult manual packed with product, or download manual online at samsung.com.

Dimensions

Total Capacity: 28.8 cu. ft.
Refrigerator: 16.7 cu. ft.

• 4 Tempered Glass Spill-Proof Shelves
• 2 Clear Drawers, Including Crisper+
• 6 Door Bins
  Right: 1 Gallon Bin, 2 Regular Bins
  Left: 3 Regular Bins
• Surface Lighting

FlexZone ™ Drawer: 3.1 cu. ft.

• 5 Temperature Zones
  – Soft Freeze (23°F)
  – Meat/Fish (30°F)
  – Cold Drinks (34°F)
  – Deli/Snacks (37°F)
  – Wine/Party Dishes (41°F)
• 2 Drawer Dividers
• High Efficiency LED Lighting

Freezer: 9.0 cu. ft.

• Dual Ice Maker in Freezer (Cubed Ice AND Ice Bites)
• Ice Bucket with Cover and 1 Scoop
• Produces up to 5.3 lbs ice/day, stores up to 9.9 lbs
• High Efficiency LED Lighting

Accessories

Water Filter: HAF-QIN

Warranty
One (1) Year Parts and Labor on Refrigerator
Two (2) Years Parts and Labor on Ice Maker
Five (5) Years Parts and Labor on
Sealed Refrigeration System Only*
Ten (10) Years Parts and Five (5) Years
Labor on Digital Inverter Compressor
*Compressor, evaporator, condenser, drier and connecting tubing.

Product Dimensions

Dimensions (WxHxD with hinges and doors): 35 3/4″ x 70″ x 341/4″
Dimensions (WxHxD without hinges and door): 353/4″ x 687/8″ x 293/8″
Shipping Dimensions (WxHxD)
Dimensions: 381/4″ x 753/4″ x 361/4″

Actual color may vary. Design, specifications, and color availability are subject to change without notice.
Non-metric weights and measurements are approximate.
©2022 Samsung Electronics America, Inc., 85 Challenger Road, Ridgefield Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
