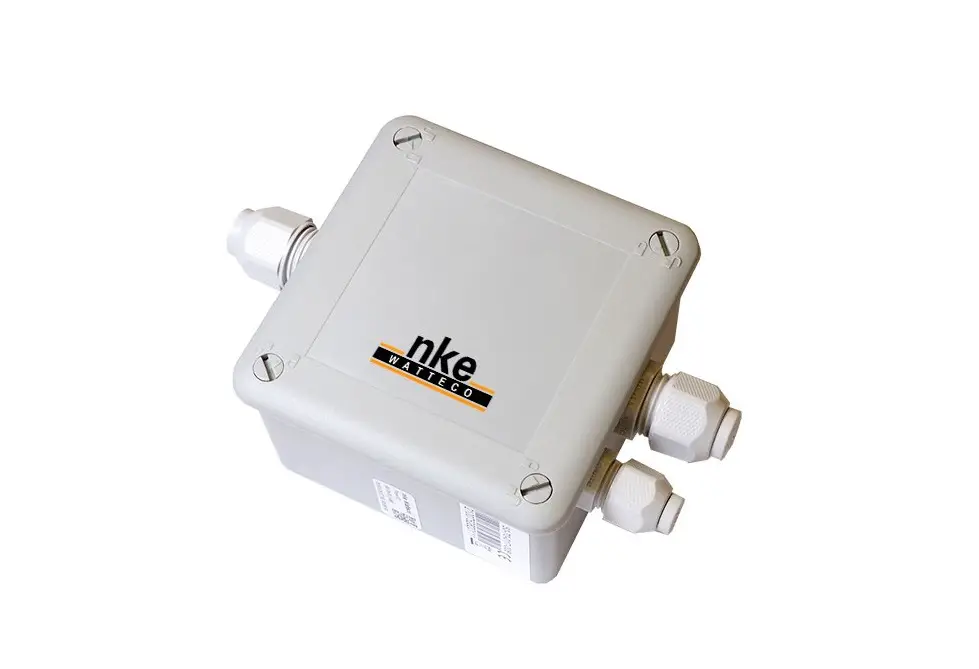

Connectique compatible produit AtEx Zone 1

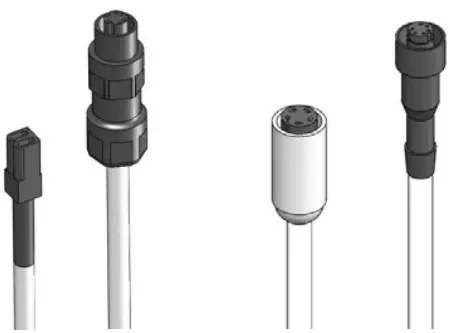

AtEx Zone 1 product compatible connectors
User Guide

Contents hide

1 Digital input

2 4-20mA Analog Inputs

3 0-5V Analog Inputs

4 Documents / Resources

4.1 References

5 Related Posts

Digital input

Free wire cable:
It is possible to use the 18-40-263 connector, consisting of an overfolded connector on a 2m IP68 1m@48h cable with 6 wires of 24 AWG diameter.

Colours	Pulse input
White	1+
Brown	1-
Green	2+
Yellow	2-
Pink	3+
Blue	3-

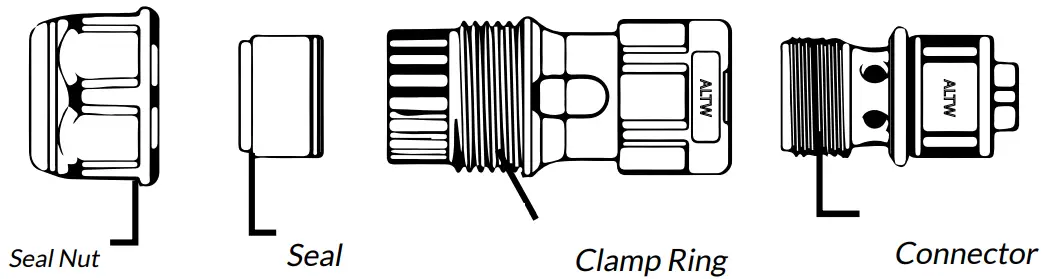

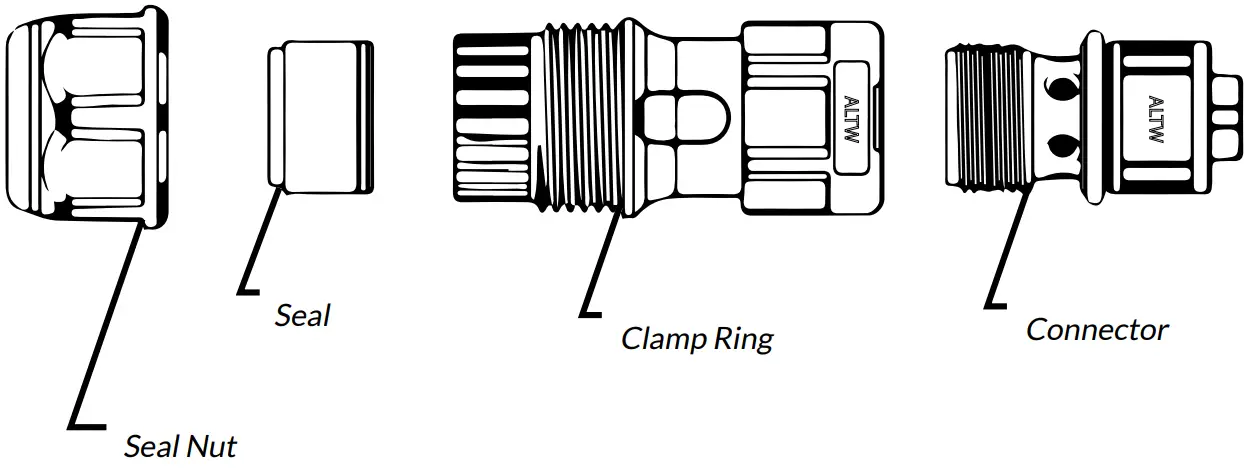

Screw IP68 connector:
Wire conductor: 20-24AWG
Red seal: cable diameter 4.0 to 6.0 mm
Blue seal: cable diameter 6.0 to 8.0 mm

Pin 1	1+
Pin 2	1- [GND]
Pin 3	2+
Pin 4	2- [GND]
Pin 6	3+
Pin 7	3- [GND]

Elster Binder cable

Pin 3 & 4	1+
Pin 5 & 6	1-
Pin 1	2+
Pin 2	2-

For Elster meter, it is possible to use the 7170-115-000 2m cable connected to a binder connector on which pin 3 & 4 and pin 6 & 5 are shunted.
Gazpar JAE cable
For Gazpar meter, it is possible to use the 71-70116 cable which is connected like this:

JAE Pin 1	1+
JAE Pin 2	1-

4-20mA Analog Inputs

Free wire cable:
It is possible to use the 18-40-262 connector, consisting of an overfolded connector on a 2m IP68 1m@48h cable with 4 wires of 20 AWG diameter.

Free wire	Device 4-20 mA Inputs
Black	OUT V+ [~12.6Vcc@20mA]
Brown	GND
Red	IN 4-20mA Measure
Orange	Not connected

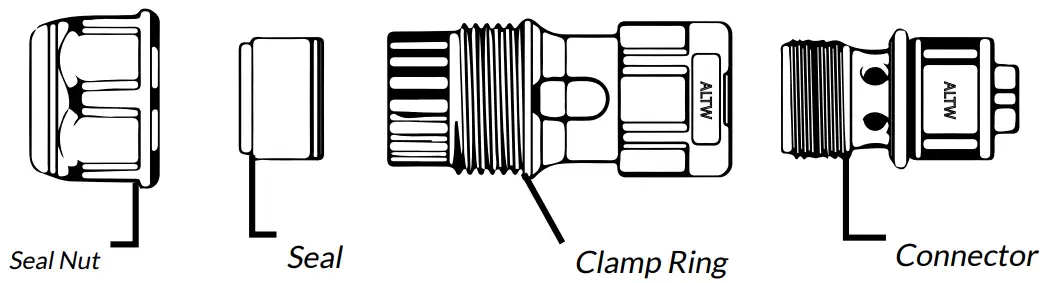

Screw IP68 connector:
Wire conductor: 20-24AWG / Wire conductor: 20-24AWG. Gasket
red: cable diameter from 4.0 to 6.0 mm
blue seal: cable diameter from 6.0 to 8.0 mm

Pinout	Device 4-20 mA Inputs
Pin1	OUT V+ [~12.6Vcc@20mA]
Pin 2	GND
Pin 3	IN 4-20mA Measure
Pin 4	Not connected

0-5V Analog Inputs

Free wire cable:
It is possible to use the 18-40-263 connector, consisting of an overmoulded connector on a 2m IP68 1m@48h cable with 6 wires of 24 AWG diameter.
