GAZEBO III 42 IN. CEILING FAN
USE AND CARE GUIDEItem #1007 743 832/ 1007 743 823/ 1007 743 839
Model #YG988-BN/ YG988-MBK/ YG988-MWH

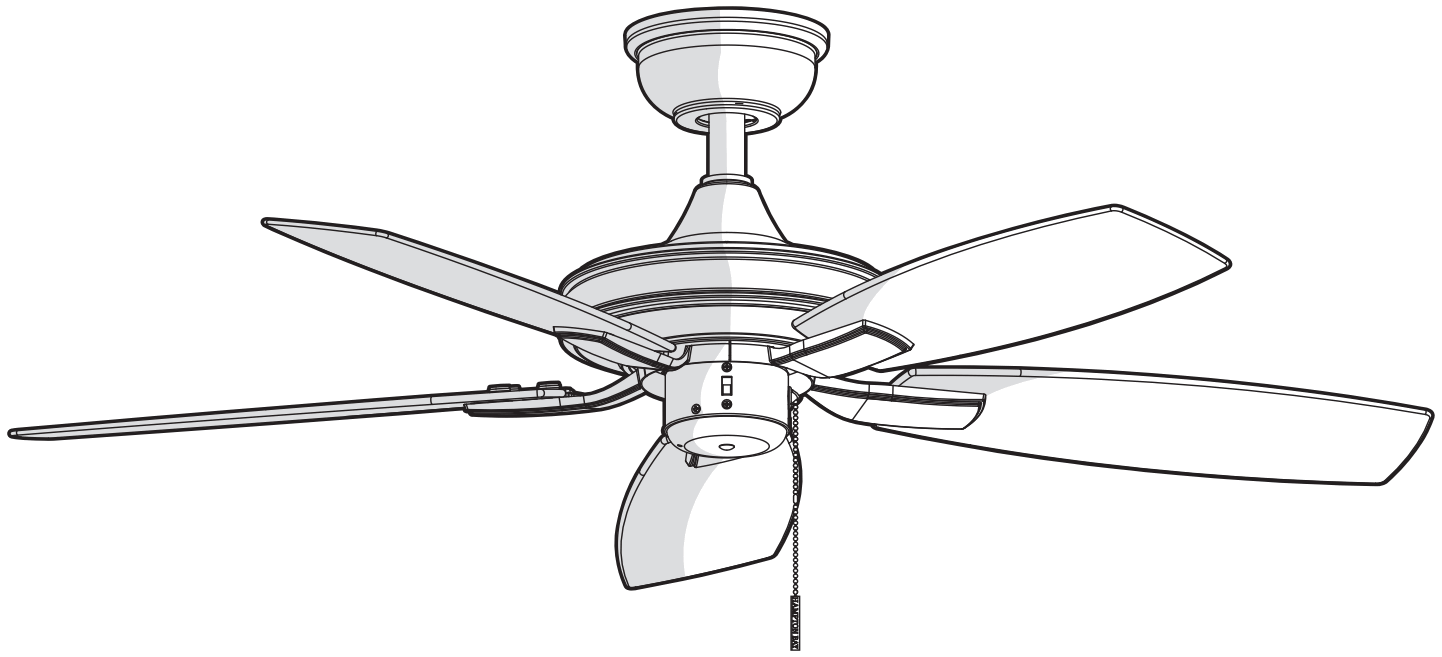

YG988-BN Gazebo III 42 Inch Ceiling Fan

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday-Friday, 9 a.m. – 6 p.m., EST Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM

Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find this fan and click the link of visual instruction in the product overview section.
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

Safety Information

1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70” and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.
3. The outlet box and support structure must be securely mounted and capable of reliably supporting a minimum of 35 lb (15.9 kg) or less. Use only UL Listed outlet boxes marked “FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft (2.1 m) clearance from the trailing edge of the blades to the floor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.
8. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box and ungrounded conductor on the other side of the outlet box.
9. All set screws must be checked and retightened where necessary before installation.

WARNING: To reduce the risk of electrical shock or fire, do not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not bend the blade arms (also referred to as flanges), when installing the brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating fan blades.
WARNING: To reduce the risk of fire, electric shock or personal injury, mount the fan to an outlet box marked acceptable for fan support with the screws provided with the outlet box.
CAUTION: To reduce the risk of personal injury, use only the screws provided with the outlet box.
NOTE: Suitable for use in wet locations.

READ AND SAVE THESE INSTRUCTIONS

Warranty

The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installation or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give the longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
Pre-Installation
SPECIFICATIONS

NOTE: These are approximate measures. They do not include amps and wattage used by the light kit.
TOOLS REQUIRED

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.

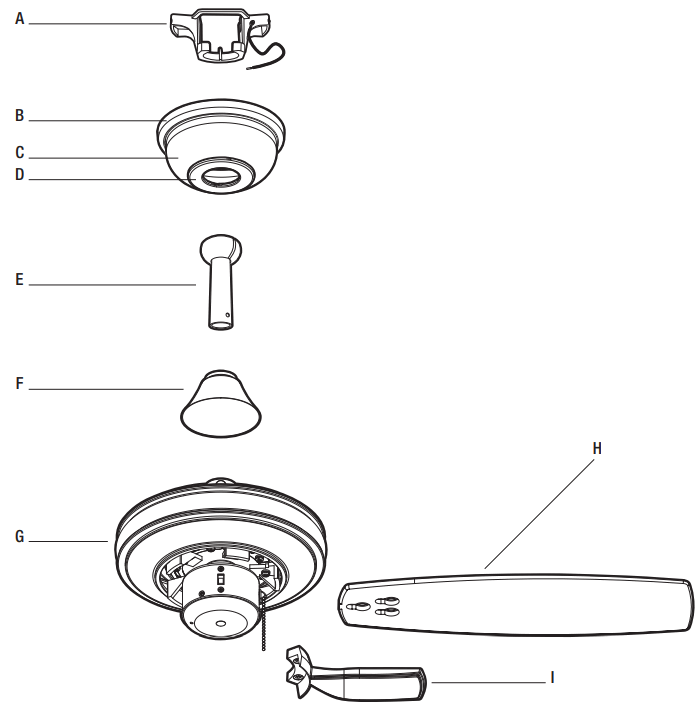

PACKAGE CONTENTS

Installation’

MOUNTING OPTIONS
WARNING: To reduce the risk of fire, electric shock, or personal injury, mount the fan to an outlet box marked acceptable for fan support using the screws provided with the outlet box. An outlet box commonly used for the support of lighting fixtures may not be acceptable for fan support and may need to be replaced. If in doubt, consult a qualified electrician.
If your ceiling fan does not have an existing UL Listed mounting box, then install one using the following instructions:

• Disconnect the power by removing the fuses or turning off the circuit breakers.
• Secure the outlet box (not included) directly to the building structure. Use appropriate fasteners and materials (not included). The outlet box and its bracing must be able to fully support the weight of the moving fan (at least 35 lb). Do not use a plastic outlet box.

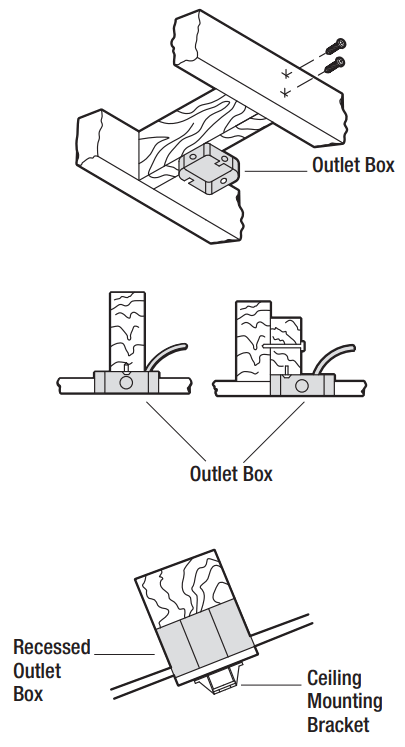

The illustrations below show three different ways to mount the outlet box (not included).

NOTE: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling. The maximum angle allowable is 18° away from horizontal. If the canopy (C) touches the hanger ball/downrod assembly (E), remove the decorative canopy bottom cover (D) and turn the canopy (C) 180° before attaching the canopy (C) to the mounting bracket (A).

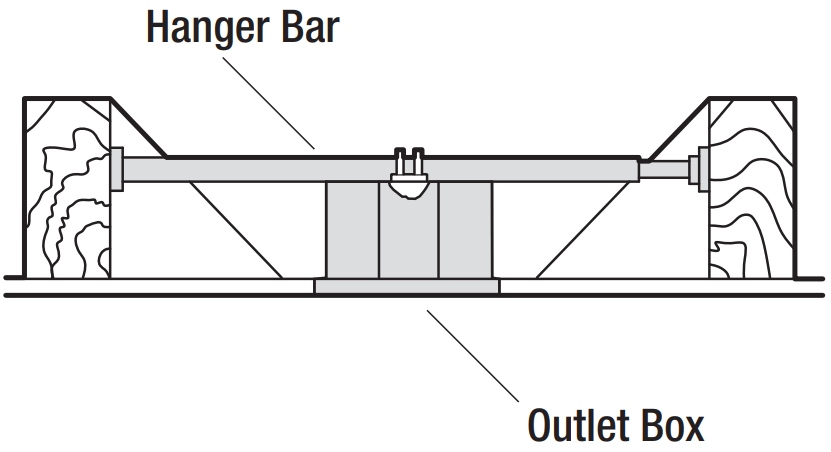

To hang your fan where there is an existing fixture but no ceiling joist, you may need an installation hanger bar (not included) as shown above.

Assembly

Standard Ceiling Mounting

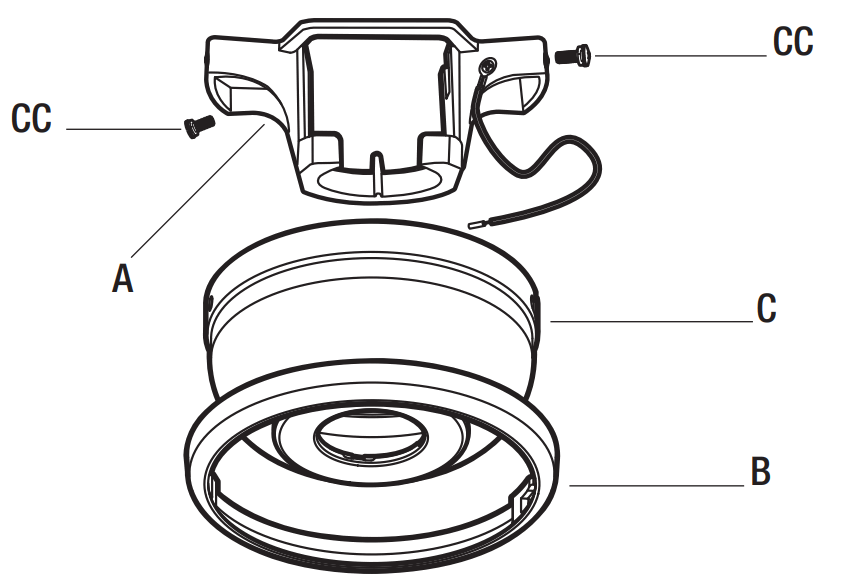

1. Preparing the canopy

• Remove the canopy ring (B) from the canopy (C).
• Remove the two non-slotted canopy mounting screws with lock washers (CC) from the canopy (C), and loosen the slotted canopy mounting screws with lock washers (CC) on the canopy (C).
• Remove the canopy (C) from the mounting bracket (A) by turning the canopy (C) counterclockwise.

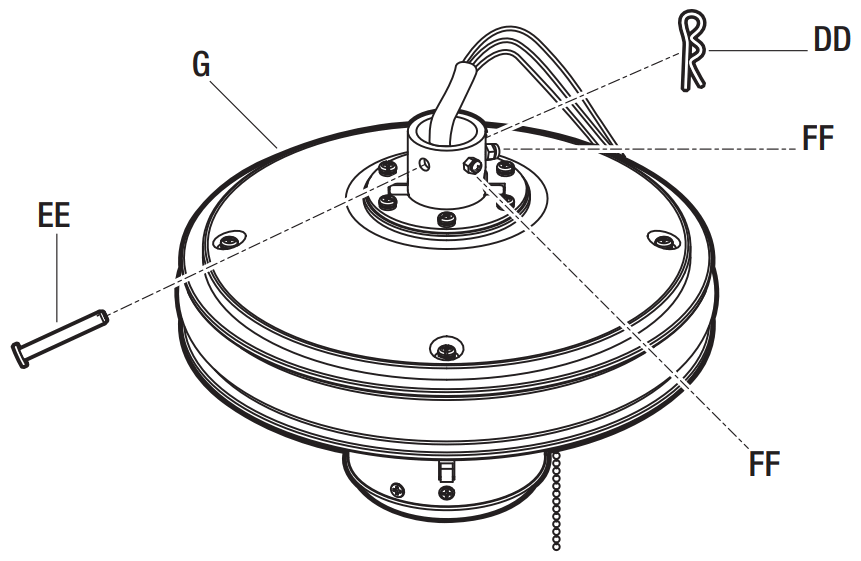

2. Preparing the motor

• Remove the cotter pin (DD) and clevis pin (EE), and loosen the two collar set screws (FF) from the fan motor assembly (G) collar.

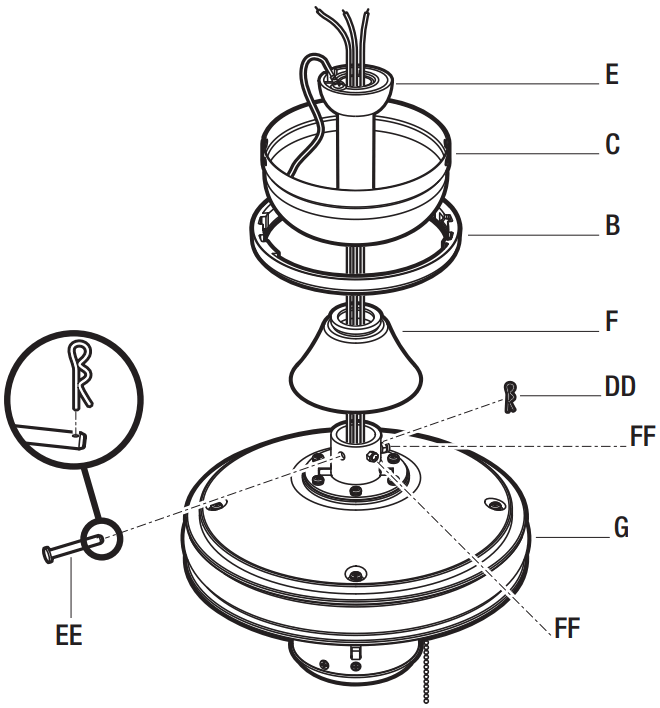

3. Assembling the fan
WARNING: Failure to properly install the cotter pin (DD) could result in the fan loosening and possibly falling.
NOTE: If a longer downrod is needed (not included), take out the screw located in the hanger ball, lower the hanger ball and remove the pin. Remove all three pieces from the downrod, and assemble them onto the new longer downrod before proceeding to the downrod installation.

• Route the wires exiting from the top of the fan motor assembly (G) through the coupling cover (F). Ensure the slot openings are on top.
• Route the wires through the canopy ring (B), canopy (C) and then through the hanger ball/downrod assembly (E).
• Align the holes at the bottom of the hanger ball/downrod assembly (E) with the holes in the collar on top of the fan motor assembly (G).
• Carefully insert the clevis pin (EE) through the holes in the collar and the hanger ball/downrod assembly (E). Be careful not to jam the clevis pin (EE) against the wiring inside the hanger ball/downrod assembly (E).
• Insert the cotter pin (DD) through the hole near the end of the clevis pin (EE) until it snaps into the locked position.
• Firmly tighten the two collar set screws (FF) on top of the fan motor assembly (G).

Assembly — Close-to-Ceiling Mounting

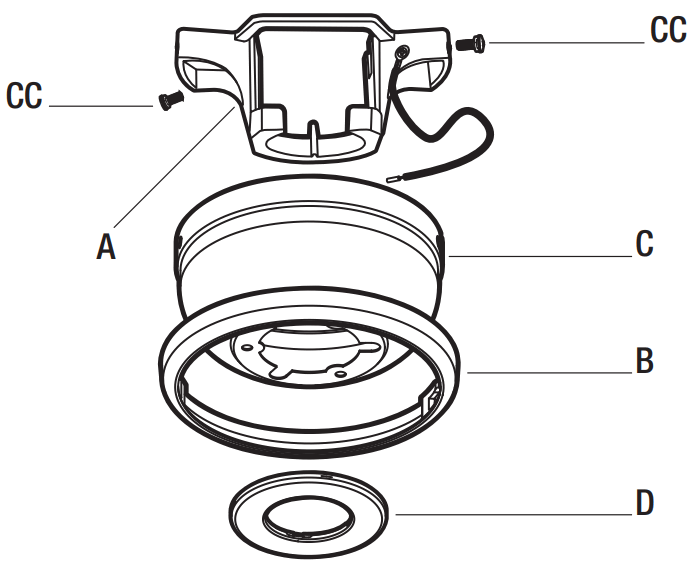

1. Preparing the canopy

• Remove the canopy ring (B) from the canopy (C).
• Remove the mounting bracket (A) from the canopy (C) by loosening the four canopy mounting screws with lock washers (CC) on the top of the canopy (C). Remove the two non-slotted canopy mounting screws with lock washers (CC) and loosen the slotted canopy mounting screws with lock washers (CC).
• Remove the canopy bottom cover (D) from the canopy (C).

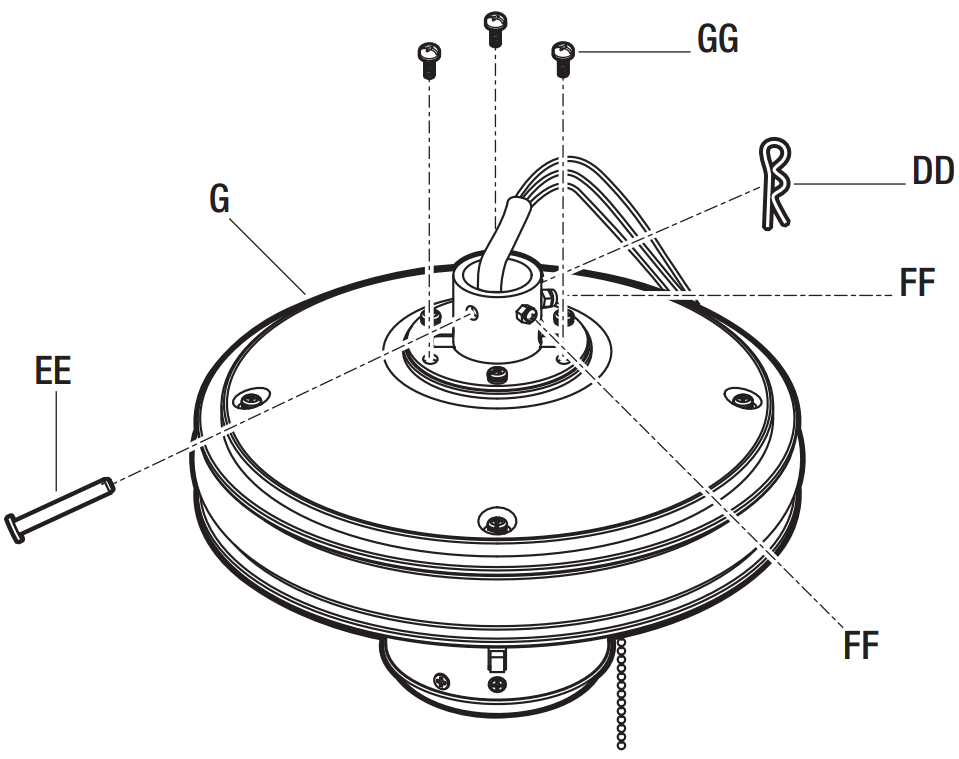

2. Preparing the motor

• Remove the cotter pin (DD) and clevis pin (EE), and two collar set screws (FF) from the fan motor assembly (G) collar.
• Remove three of the six collar mounting screws with lock washers (GG) (every other one) from the collar on top of the fan motor assembly (G).

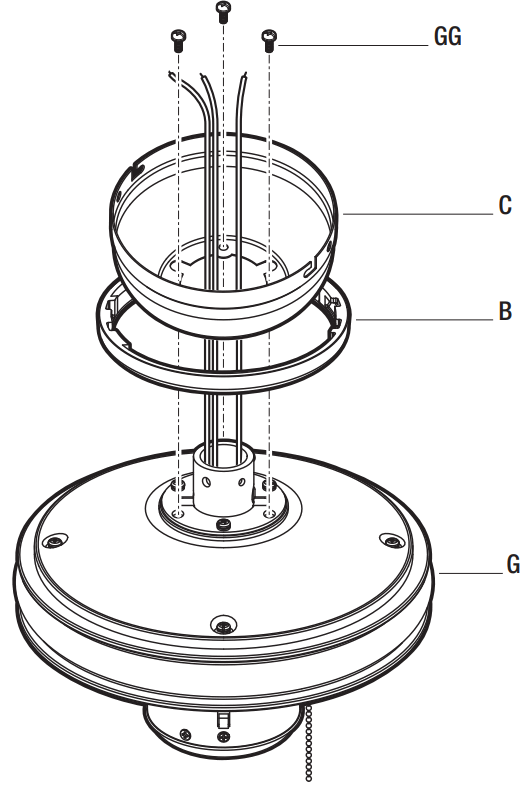

3. Assembling the fan
WARNING: Failure to completely tighten the three collar mounting screws with lock washers (GG) could result in the fan becoming loose and possibly falling.

• Make sure the slot openings of the canopy ring (B) are on top, and then proceed to place the canopy ring (B) and canopy (C) over the collar at the top of the fan motor assembly (G).
• Align the mounting holes in the bottom of the canopy (C) with the holes in the top of the fan motor assembly (G). Fasten using the three collar mounting screws with lock washers (GG) previously removed.
• Tighten the collar mounting screws with lock washers (GG) securely.

Assembly — Hanging the Fan

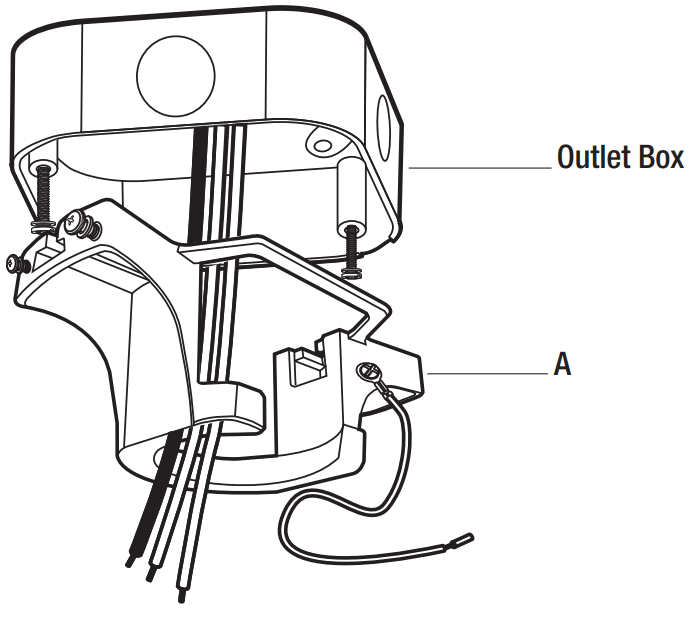

4. Attaching the fan to the electrical box
WARNING: To reduce the risk of fire, electric shock or other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box.

• Pass the 120-volt supply wires through the center hole in the mounting bracket (A).
• Attach the mounting bracket (A) on the outlet box by sliding the mounting bracket (A) over the screws provided with the outlet box. When using “close-to-ceiling” mounting, it is important that the mounting bracket (A) be level. If necessary, use leveling washers (not included) between the mounting bracket (A) and the outlet box. Note that the flat side of the mounting bracket (A) is toward the outlet box.
• Securely tighten the two mounting screws.

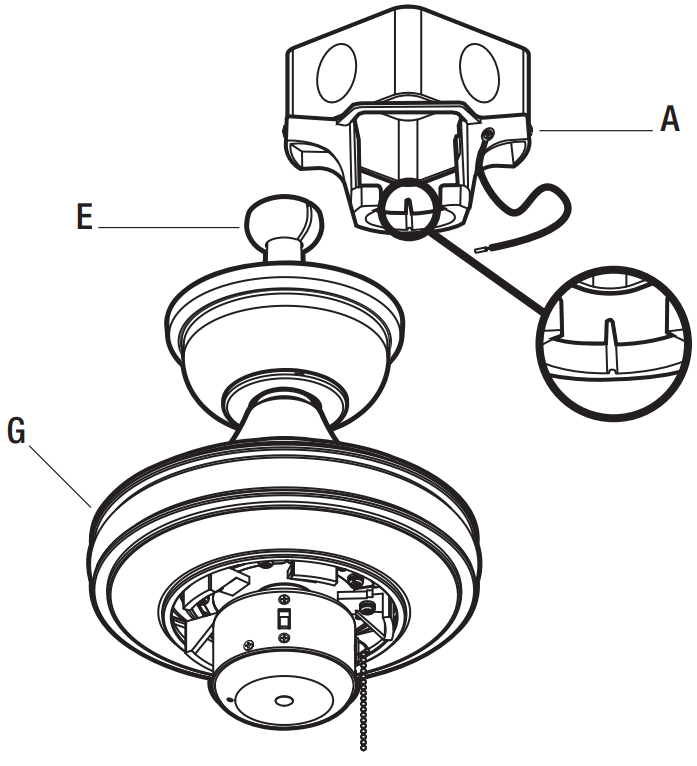

5a. Hanging instructions for standard mounting
WARNING: The tab in the ring must rest in the groove of the hanger ball (E). Failure to properly seat the tab in the groove could cause damage to the wiring.

• Carefully lift the fan motor assembly (G) up to the mounting bracket (A) and seat the hanger ball (E) in the mounting bracket (A) socket. Make sure the tab on the mounting bracket (A) socket is properly seated in the groove in the hanger ball (E). This will help to balance the ceiling fan.

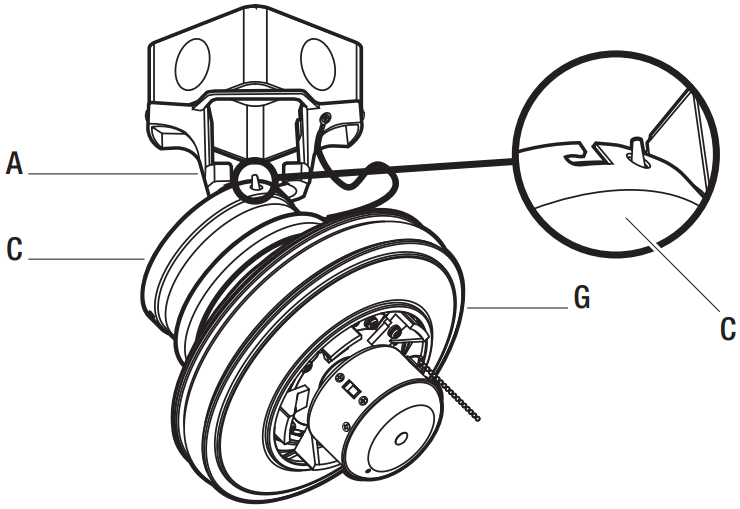

5b. Hanging instructions for close-to-ceiling mounting
WARNING: The hook is only to hold the fan while attaching wiring. Failure to hang as instructed may result in the tab breaking causing the fan to fall. The hook must pass from the inside to the outside of the canopy (C).

• Carefully lift the fan motor assembly (G) up to the mounting bracket (A) and hang the fan on the hook provided using one of the holes at the outer rim of the canopy (C).

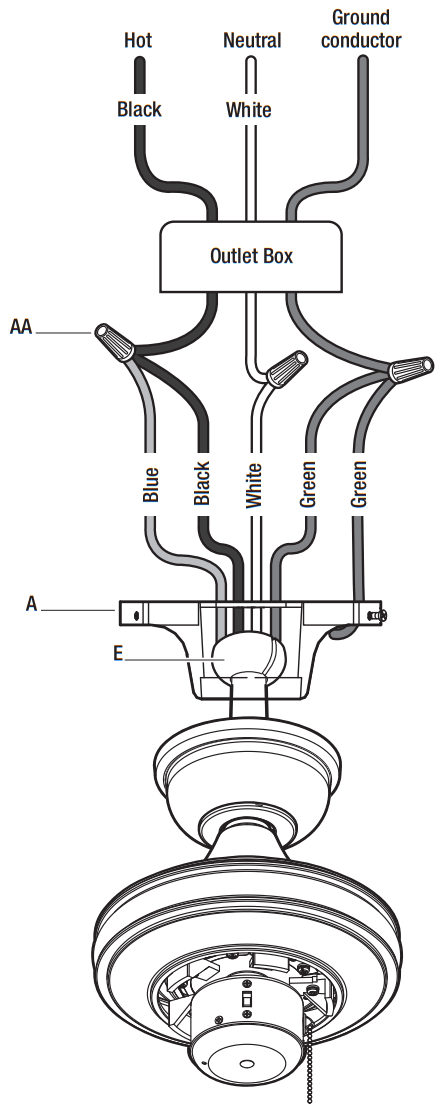

6a. Making the electrical connections
WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.
WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
If you feel you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household wiring. Use the plastic wire nuts (AA) with your fan. Secure the plastic wire nuts (AA) with electrical tape. Make sure there are no loose strands or connections.

• Make wire connections as follows, using the wire nuts (AA).


  From Fan	To Receiver
  Black + Blue Wires	Black Wire (Hot)
  White Wire	White Wire (Neutral)
  Green Wires*	Green or Bare Wire (Ground)

  * There are two green grounding leads: one from the mounting bracket (A) and one from the hanger ball/downrod assembly (E) if installed.

• Turn the wire nut connections upward, spreading them apart so the green (ground) and white wires will be on one side of the outlet box and the black and blue wires will be on the other side. Carefully tuck the connections up into the outlet box.

Assembly — Hanging the Fan (optional)
6b. Single Switch Connections

• On a single switch the fan and light can be turned on or off together. Make wire connections as follows, using the wire nuts (AA). Wall switch not included.

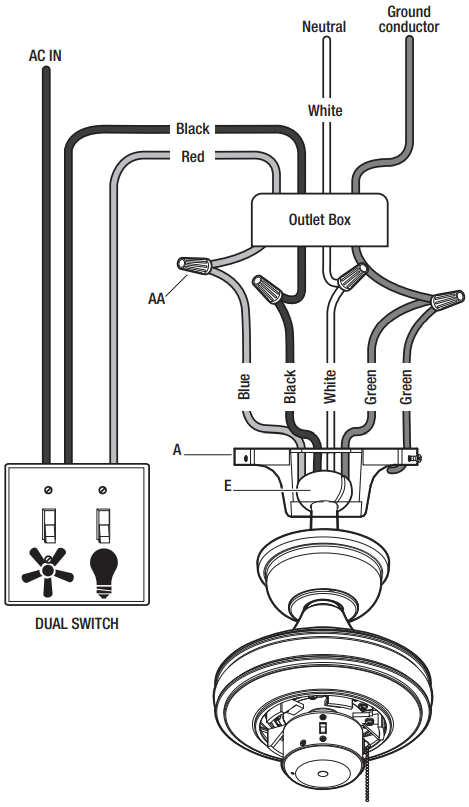

6c. Dual Switch Connections

• On a dual switch the fan and light can be turned on or off separately. Make wire connections as follows, using the wire nuts (AA). Wall switch not included.

Assembly — Hanging the Fan (optional)

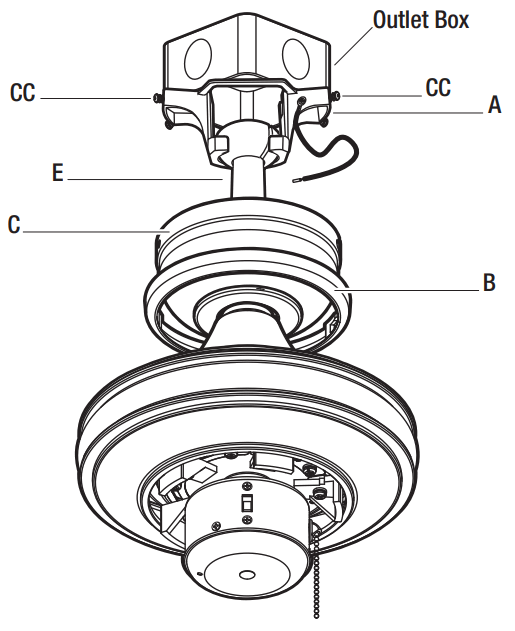

7a. Standard ceiling mounting
WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball (E) before attaching the canopy (C) to the mounting bracket (A) by turning the canopy (C) until it drops into place.
WARNING: The locking slots of the canopy (C) are provided only as an aid to mounting. Do not leave the fan assembly unattended until all four canopy mounting screws with lock washers (CC) are engaged and firmly tightened.

• Slide the canopy (C) up to the ceiling. Make sure you have placed the wires safely into the outlet box.
• Secure the canopy (C) to the mounting bracket (A) with the four canopy mounting screws with lock washers (CC) included with your fan.
• Raise up the canopy ring (B) and line up the four grooves with the four screw heads on the canopy (C). Once lined up, slide the canopy ring (B) and secure it to the canopy (C) until snug.

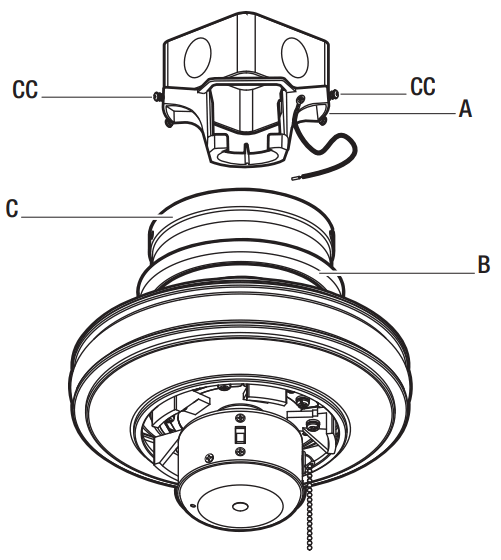

7b. Close-to-ceiling mounting
WARNING: The locking slots of the canopy (C) are provided only as an aid to mounting. Do not leave the fan assembly unattended until all four canopy mounting screws with lock washers (CC) are engaged and firmly tightened.

• Remove the fan from the hook on the mounting bracket (A).
• Secure the canopy (C) to the mounting bracket (A) with the four canopy mounting screws with lock washers (CC) provided.
• Raise up the canopy ring (B) and line up the four grooves with the four screw heads on the canopy (C). Once lined up, slide the canopy ring (B) and secure it to the canopy (C) until snug.

Assembly — Attaching the Fan Blades

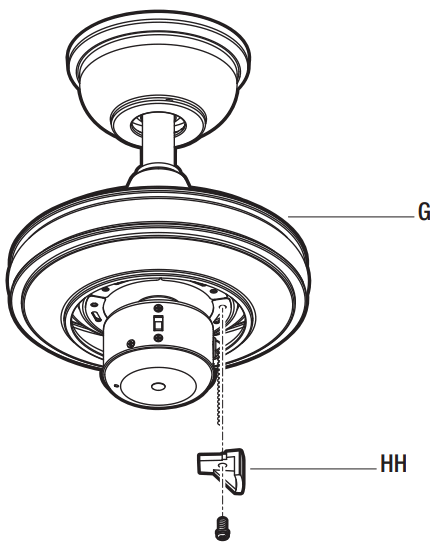

8. Removing the rubber packing mounts

• The fan motor assembly (G) is shipped with rubber packing mounts (HH) to prevent movement during transportation. Remove the five rubber packing mounts (HH) from the fan motor assembly (G) and discard prior to attaching the blade arms (I).

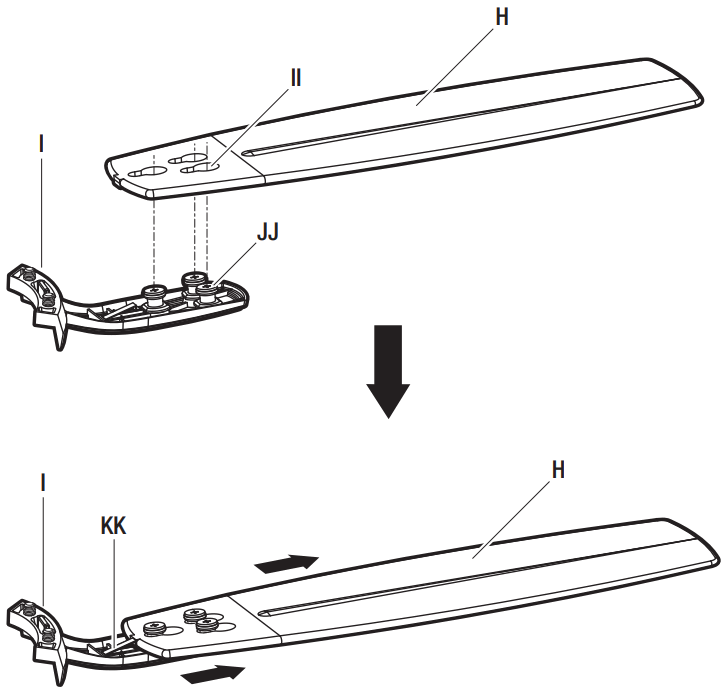

9. Attaching the blades to the blade arms
WARNING: Failure to properly seat the blades (H) on the blade arms (I) and engage in the spring locking mechanism (KK) could result in the fan blades (H) loosening and possibly falling.
NOTE: Your fan blades are reversible. Select the blade side finish which best accentuates your decor.
To install the blades to the blade arms:

• Hold the blade (H) with hands close to the blade arm (I), align the key-slot holes (II) with the blade arm posts (JJ) and press the blade down firmly. Ensure the key-slot holes (II) are properly seated on the blade arm posts (JJ).
• Firmly slide the blade (H) away from the blade arm (I) until the blade (H) engages in the spring locking mechanism (KK). Make sure the spring of the spring locking mechanism (KK) is upward and the butt of the spring locking mechanism (KK) is against the edge of the blade.

To detach the blade from the blade arm:

• Press down the spring locking mechanism (KK) to release the blade (H) from the blade arm (I). Slide the blade (H) toward the blade arm (I) until the blade (H) disengages from the spring locking mechanism (KK). Carefully push the blade (H) up to detach from the blade arm (I).

Assembly — Attaching the Fan Blades (continued)
10. Fastening the blade assemblies to the motor
WARNING: To reduce the risk of personal injury, do not bend the blade arms (I) while installing, balancing the blades (H), or cleaning the fan. Do not insert foreign objects between rotating fan blades (H).

• Fasten the blade assemblies to the fan motor assembly (G) by lining up the slots (LL) of the motor with the tabs (MM) on the blade arms (I).
• Tighten the two blade arm screws with lock washers (NN) already installed in the blade arms (I).
• Repeat this procedure for the remaining blade arms (I).

Operation

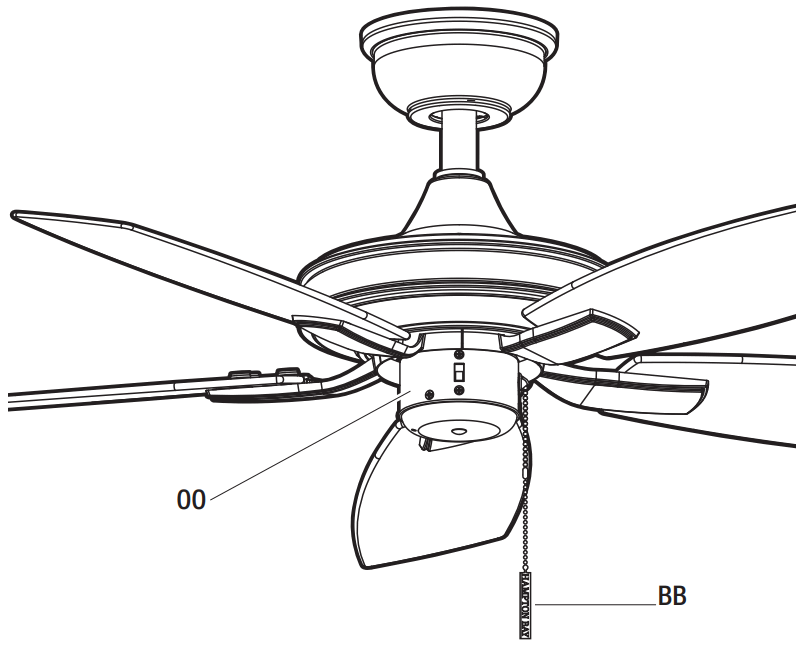

PULL CHAIN OPERATING INSTRUCTIONS
Install the pull chain and fob (BB) onto the pull chain located in the switch housing (OO). Turn on the power and check the operation of the fan.
The pull chain controls the fan speed as follows:
1 pull – High, 2 pulls – Medium, 3 pulls – Low, and 4 pulls – Off.
Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, and numbers of fans.

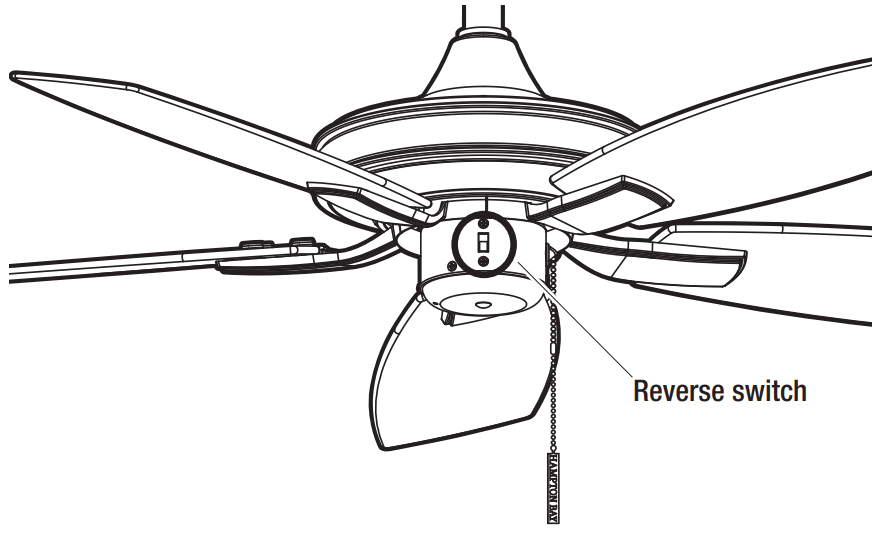

REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the surface of the switch housing.
This switch controls directions: forward (switch down) or reverse (switch up).
NOTE: Wait for the fan to stop before reversing the direction of the blade rotation.

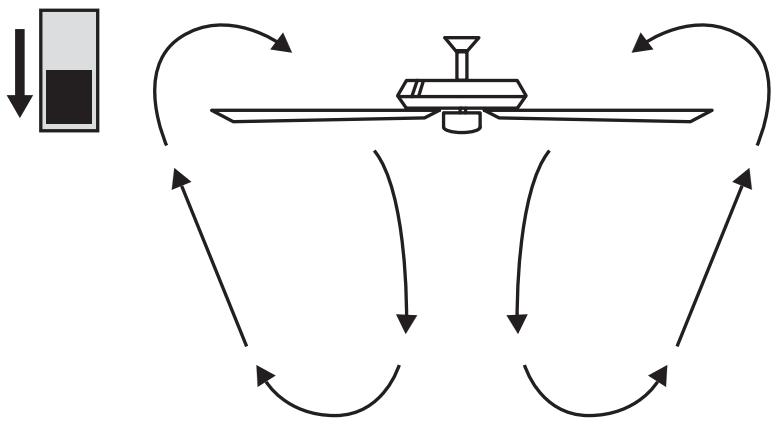

Warm weather – (Counterclockwise Direction) A downward air flow creates a cooling effect. This allows you to set your air conditioner on a warmer setting without affecting your comfort.

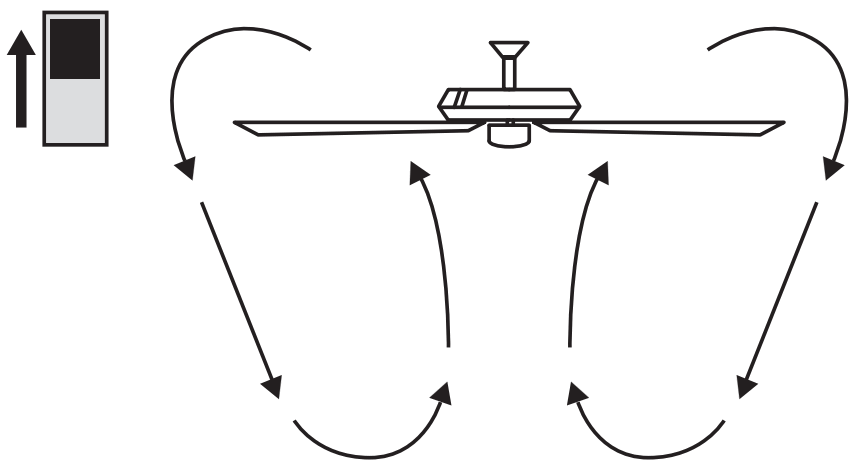

Cool weather – (Clockwise Direction) An upward air flow moves warm air off the ceiling. This allows you to set your heating unit on a cooler setting without affecting your comfort.

Care and Cleaning

Do

• Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling.
• Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to minimize discoloration or tarnishing.
• (Optional) Apply a light coat of furniture polish to the wood blades.
• (Optional) Cover small scratches with a light application of shoe polish.

Do not

• Use water when cleaning. Water could damage the motor, or the wood, or possibly cause an electrical shock.
• Apply oil to your fan or motor. The motor has permanently-lubricated sealed ball bearings.

Troubleshooting

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
