Find X5 Smartphone
User Guide
Greetings from OPPO Mobile
This guide will show you how to use the phone and its important functions. You may also visit OPPO official website to get more information about the phone.

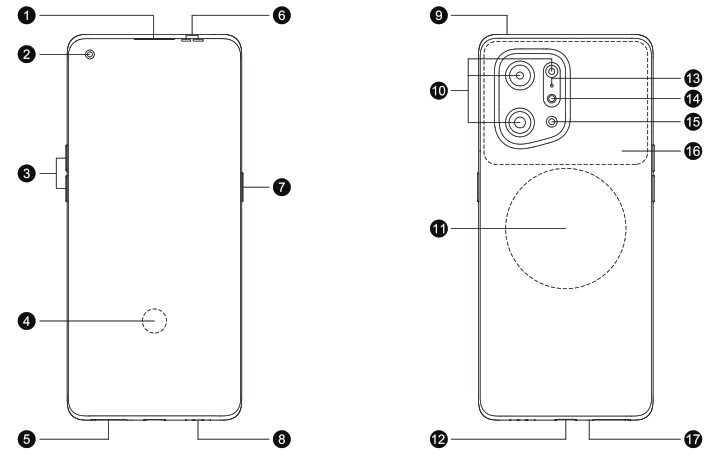

| 1.Receiver 2.Front Camera 3.Volume Key 4.Screen Fingerprint 5.SIM card tray 6.Proximity & Light & color temperature sensor 7.Power Key & Screen Lock Key 8.Speaker | 9.Sub MIC 10.Rear Camera 11.Wireless charging 12.USB & Earphone Jack 13.Third MIC 14.Color temperature sensor 15.Flash 16.NFC 17.Main MIC |
How to reboot the phone
Press and hold the Power Button and Volume Up Button at the same time until the OPPO boot animation is displayed to reboot the phone.
How to Transfer Old Mobile Content to a New Mobile
You can use OPPO Clone Phone to easily transfer photos, videos, music, contacts, messages, apps, etc from your old phone to the new one.
- If your previous phone was a non-OPPO Android phone, search “OPPO Clone Phone” in the Google Play store and install the app. You can also scan he QR code below to install it. If your previous phone was an OPPO phone, you don’t need to install this app. Then run Clone Phone on both phones and follow the on-screen instructions.
https://i.clonephone.colores/download - If your previous phone was an iPhone, run “Clone Phone” on your new phone, and follow the onscreen instructions to migrate your data from your iCloud account.
Accessories and Software Information
You are provided with the following standard accessories:
1 Phone, 1 Charger, 1 USB data cable, 1 Safety Guide, 1 Quick Guide, 1 SIM Ejector Tool, 1 Protective Case, 1 USB Dongle(Type-A to Type-C).
The product software version is: ColorOS V12.1
For the most recent information about accessories and software, please see the DoC (Declaration of Conformity) at www.oppo.com/en/certification.
The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
Specification
| Product | CPH2307 | |
| Main screen parameter | 16.64cm(6.55″) | |
| Dimension | 160.3×72.6×8.7(mm) | |
| Battery (Rechargeable Lithium-ion Battery) | DC 7.74V 2340mAh/18.11Wh(Min) DC 7.74V 2400mAh/18.57Wh(Typ) (Equaling to DC 3.87V 4680mAh/18.11Wh(Min) DC 3.87V 4800mAh/18.57Wh(Typ)) | |
| Camera | 50Megapixels+50Megapixels +13Megapixels Rear 32Megapixels Front | |
| Operating temperature | 0°C-35°C | |
| SAR Values | CE/UK SAR | 0.992W/kg(Head) 1.216W/kg(Body) |
| FCC SAR | 1.004W/kg(Head) 0.384W/kg(Body) 0.882W/kg(Hotspot) | |
Note: The SAR values above are the highest values reported for this device.
| Radio | Frequency | Max. Output Power |
| GSM | 850MHz | 33.5d Bm |
| 900MHz | 34dBm | |
| 1800MHz | 31dBm | |
| 1900MHz | 30.5d Bm | |
| WCDMA | Bands 1/5/6/8/19 | 25dBm |
| Bands 2/4 | 24dBm | |
| LTE FDD | Bands 1/3/5/8/12/17/18/19/20 | 25dBm |
| Bands 2/4/7/25/26/66 | 24dBm | |
| Band 13 | 24.5dBm | |
| Band 28 | 24.8d Bm | |
| Band 32 | / | |
| LTETDD | Bands 34/38 | 24.5dBm |
| Bands 39/40 | 25dBm | |
| Band 41 | 26dBm | |
| 5G NR | n1/n3/n5/n7/n8/n12/n13/n18/ n20/n26/n38/n40/n41/n66 | 24.2dBm |
| n28 | 25dBm | |
| n77 | 24.5dBm | |
| n78 | 26dBm | |
| Bluetooth | 2.4-2.4835GHz | 17.3dBm(EIRP) |
| 2.4G Wi-Fi | 2.4-2.4835GHz | 20dBm(EIRP) |
| 5G Wi-Fi | 5.15-5.35GHz; 5.47-5.725GHz | 20d Bm(EIRP) |
| 5.725-5.85GHz | 13dBm(EIRP) | |
| NFC | 13.56MHz | 42dBpA/m @10m |
| WPT | 110KHz-148.5KHz | 42dBpA/m @10m |
This product is conformed to High-Resolution Audio standard defined by Japan Audio Society.
The High-Resolution Audio logo is used under license from Japan Audio Society.
To experience Hi-Res Audio, you need to purchase an OPPO Hi-Res Audio headset accessory or other Hi-Res Audio headsets.
Copyright © Guangdong OPPO Mobile Telecommunications Corp., Ltd. 2022. All rights reserved.
