User Guide
Greetings from OPPO Mobile
This guide will show you how to use the phone and its important functions. You may also visit OPPO’s official website to get more information about the phone.

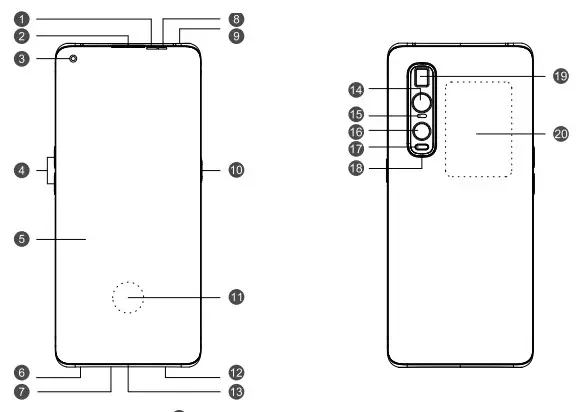

| 1. Light & color temperature sensor 2. Receiver 3. Front Camera 4. Volume Key 5. Touch-screen 6. SIM card tray | 7. Main MIC 8. Proximity sensor 9. Sub MIC 10. Power Key & Screen Lock 11. Key Screen Fingerprint 12. Speaker 13. USB & Headphone Jack | 14. Wide-angle camera Laser focus 15. Main camera 16 .Color temperature sensor & flash 18. Third MIC 19. Periscope camera NEC |
Accessories and Software Information
You are provided with the following standard accessories:
1 Phone, 1 Charger, 1 Earphone, 1 USB data cable, 1 Safety Guide, 1 Quick Guide, 1 SIM Ejector Tool, 1 Protective Case.
The product software version is: ColorOS V7.1
For the most recent information about accessories and software, please see the DoC (Declaration of Conformity) at www.oppo.com/en/certification.
How to reboot the phone
Press and hold the Power Button and Volume Up Button at the same time until the OPPO boot animation is displayed to reboot the phone.
How to Transfer Old Mobile Content to a New Mobile
You can use the OPPO Clone Phone to easily transfer photos, videos, music, contacts, messages, apps, etc from your old phone to the new one.
- If your previous phone was a non-OPPO Android phone, search “OPPO Clone Phone” in the Google Play store and install the app. You can also scan the QR code below to install it. If your previous phone was an OPPO phone, you don’t need to install this app. Then run Clone Phone on both phones and follow the on-screen instructions.
- If your previous phone was an iPhone, run “Clone Phone” on your new phone, and follow the onscreen instructions to migrate your data from your iCloud account.
https://i.clonephone.coloros.com/download
Warning
Your device has been tested in a controlled environment and certified to be splash, water, and dust resistant in specific situations (meets requirements of classification IP68 as described by the international standard IEC 60529; test conditions: 15-35 C, 86-106 kPa, 1.5 meter, 31 minutes). The waterproof and dustproof levels might decrease as a result of normal wear. Do not charge your device in wet conditions.
CLASS 1 LASER PRODUCT
Class 1 Laser Information This device is classified as a Class 1 Laser product per IEC60825-1:2014. This device contains a Laser that could be damaged during repair or disassembly, which could result in hazardous exposure to infrared laser emissions that are not visible. This equipment should be serviced by OPPO or an authorized service provider.
Specification
| Product | CPH2025 | |
| Main screen parameter | 17.2cm(6.7) | |
| Dimension | Black: 165.2×74.4×8.8(mm) Orange: 165.2×74.4×9.5(mm) | |
| Battery | DC7.74V 2085mAh/16.13Wh(Min) DC7.74V 2130mAh/16.48Wh(Typ) (Equaling to DC3.8N4170mAh/16.13Wh(Min) DC3.8N 4260mAh/16.48Wh(Typ)) | |
| Camera | 48Megapixels+48Megapixels +13Megapixels Rear 32Megapixels Front | |
| Operating tempe ature | 0°C-35°C | |
| SAR Values | CE SAR | 0.883W/kg(Head)1.149W/kg(Body) |
Note: The SAR values above are the highest values reported for this device.
Radio Waves Specifications
| Radio | Frequency | Max. Output Power |
| GSM | 850MHz | 32.511dBm |
| 900MHz | 33±1dBm | |
| 1800MHz | 30±1dBm | |
| 1900MHz | 29.5±1dBm | |
| WCDMA | Bands 1/5/6/8/19 | 24±1dBm |
| Bands 2/4 | 23±1dBm | |
| LTE FDD | Bands 1/3/5/8/20/28 | 24±1dBm |
| Bands 2/4/12/13/17/18/19/25/26/66 | 23±1dBm | |
| Band 7 | 23.5±1dBm | |
| Bands 29/32 | / | |
| LTETDD | Band 34 | 23.511dBm |
| Band 42 | 22.5±1 dBm | |
| Band 41 | 25±1dBm | |
| Bands 38/39/40 | 24±1dBm | |
| NR TDD NSA | MO | 23±1dBm |
| n41/n77/n78/n79 | 24.2±1dBm | |
| NR TDD SA | n41/n78/n79 | 25±1dBm |
| NR FDD NSA | n1/n3/n5/n7/n28A | 23.2±1dBm |
| Bluetooth | 2.4-2.4835GHz | 9±2dBm(EIRP) |
| 2.4G Wi-Fi | 2.4-2.4835GHz | 17.5±2dBm(EIRP) |
| 56Wi-Fi | 5.15-5.35GHt 5.47-5.725GHz | 16.5±2dBm(EIRP) |
| 5.725-5.85GHz | 10.5±2dBm(EIRP) | |
| NFC | 13.56MHz | 542dBuA/m @o10m |
The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
Copyright Guangdong OPPO Mobile Telecommunications Corp., Ltd. 2020. All rights reserved.
|
| AT | BE | BG | HR | CY | CZ | DK |
| EE | Fl | FR | DE | EL | HU | If | |
| IT | LV | LT | W | MT | NL | PL | |
| PT | RO | SK | SI | ES | SE | UK | |
| CH | IS | LI | NO | TR |
