Find X5 Pro Smartphone
User Guide
Greetings from OPPO Mobile
This guide will show you how to use the phone and its important functions. You may also visit OPPO official website to get more information about the phone.

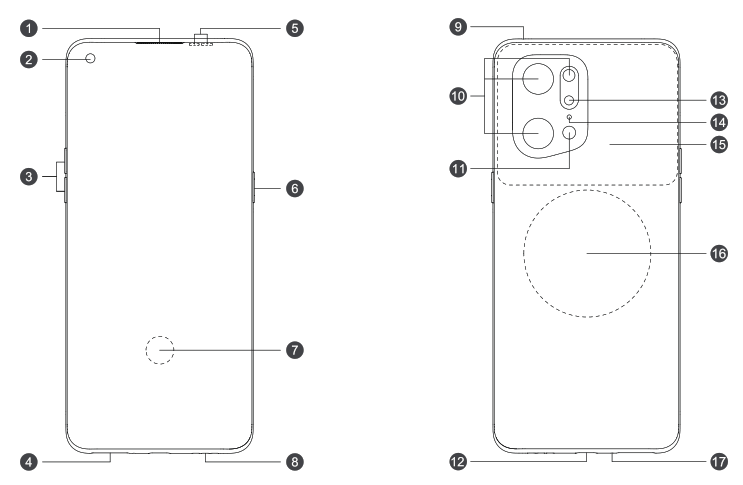

| 1.Receiver 2.Front Camera 3.Volume Key 4.SIM card tray 5.Light & color temperature sensor 6.Power Key & Screen Fingerprint 7.Screen Lock Key 8.Speaker | F9.lash 10.Sub MIC 11.Rear Camera 12.USB & Earphone Jack 13.Rear color temperature 14.Main MIC 15.Third MIC 16.NFC 17.Wireless charging |
How to reboot the phone
Press and hold the Power Button and Volume Up Button at the same time until the OPPO boot animation is displayed to reboot the phone.
How to Transfer Old Mobile Content to a New Mobile
You can use OPPO Clone Phone to easily transfer photos, videos, music, contacts, messages, apps, etc from your old phone to the new one.
- If your previous phone was a non-OPPO Android phone, search “OPPO Clone Phone” in the Google Play store and install the app. You can also scan the QR code below to install it. If your previous phone was an OPPO phone, you don’t need to install this app. Then run Clone Phone on both phones and follow the on-screen instructions.
https://iclonephonecolores.com/download - If your previous phone was an iPhone, run “Clone Phone” on your new phone, and follow the onscreen instructions to migrate your data from your iCloud account.
Accessories and Software Information
You are provided with the following standard accessories:
1 Phone, 1 Charger, 1 USB data cable, 1 Safety Guide, 1 Quick Guide, 1 SIM Ejector Tool,
1 Protective Case, 1 USB Dongle(Type-A to Type-C).
The product software version is: ColorOS V12.1
For the most recent information about accessories and software, please see the DoC
(Declaration of Conformity) at www.oppo.com/en/certification.
Warning
Your device has been tested in a controlled environment and certified to be splash, water, and dust resistant in specific situations (meets requirements of lassification IP68 as described by the international standard IEC 60529; test conditions: 15-35 ºC, 86-106 kPa, 1.5 metre, 30 minutes). The waterproof nd dustproof level might decrease as a result of normal wear. Do not charge your device in wet conditions.
Specification
| Product | CPH2305 | |
| Main screen parameter | 17.02cm(6.7″) | |
| Dimension | 163.7×73.9×8.5(mm) | |
| Battery (Rechargeable Lithium-ion Battery) | DC7.74V 2440mAh/18.88Wh(Min) DC7.74V 2500mAh/19.35Wh(Typ) (Equaling to DC3.87V 4880mAh/18.88Wh(Min) DC3.87V 5000mAh/19.35Wh(Typ)) | |
| Camera | 50Megapixels+50Megapixels/+13Megapixels Rear/32Megapixels Front | |
| Operating temperature | 0°C-35°C | |
| SAR Values | CE/UK SAR | 0.989W/kg(Head)/1.272W/kg(Body) |
| FCC SAR | 1.17W/kg(Head)/0.81 W/kg(Body)/1.17W/kg(Hotspot) | |
Note: The SAR values above are the highest values reported for this device.
Radio Waves Specifications
| Radio | Frequency | Max. Output Power |
| GSM | 850MHz | 33.5dBm |
| 900MHz | 34d Bm | |
| 1800MHz | 31dBm | |
| 1900MHz | 30.5dBm | |
| WCDMA | Bands 1/2/5/6/8/19 | 25dBm |
| Band 4 | 24dBm | |
| LTE FDD | Bands 1/3/5/8/12/17/18/19/20/26 | 25dBm |
| Band 28 | 24.8d Bm | |
| Bands 2/4/7/13/25/66 | 24dBm | |
| Band 32 | ||
| LTETDD | Band 38 | 24.5dBm |
| Bands 34/39/40 | 25dBm | |
| Band 41 | 26dBm | |
| Band 42 | 23.5dBm | |
| 5G NR | nl/n2/n3/n5/n7/n8/n12/n13/n18/ n20/n25/n26/n38/n40/n41/n66 | 24.2dBm |
| n77 | 24.5dBm | |
| n78 | 26dBm | |
| n28 | 25dBm | |
| n79 | 24d Bm | |
| Bluetooth | 2.4-2.4835GHz | 15.5dBm(EIRP) |
| 2.4G Wi-Fi | 2.4-2.4835GHz | 20dBm(EIRP) |
| 5G Wi-Fi | 5.15-5.35GHz; 5.47-5.725GHz | 19.5dBm(EIRP) |
| 5.725-5.85GHz | 13dBm(EIRP) | |
| NFC | 13.56MHz | 42d BIJA/m @10m |
| WPT | 110KHz-148.5KHz | 42d BIJA/m @10m |
This product is conformed to High-Resolution Audio standard defined by Japan Audio Society. The High-Resolution Audio logo is used under license from Japan Audio Society.
To experience Hi-Res Audio, you need to purchase an OPPO Hi-Res Audio headset accessory or other Hi-Res Audio headsets.
The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
