A101OP Smartphone
User Guide
Greetings from OPPO Mobile
This guide will show you how to use the phone and its important functions. You may also visit OPPO’s official website to get more information about the phone.

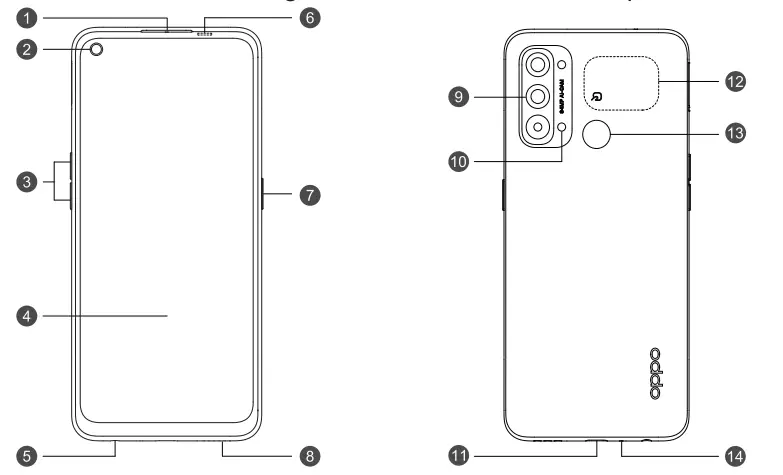

| Receiver Front Camera Volume Key Earphone Jack Touch-screen | Ambient Light Sensor Power Key/Screen Lock Key Speaker Rear Camera Flash | USB Jack NFC Fingerprint Sensor MIC |
Standard accessories
You are provided with the following standard accessories:
- 1 Phone,
- 1 Charger,
- 1 Earphone,
- 1 USB data cable,
- 1 Safety Guide,
- 1 Quick Guide,
- 1 SIM Ejector Tool,
- 1 Protective Case.
How to reboot the phone
Press and hold the Power Button and Volume Up Button at the same time until the OPPO boot animation is displayed to reboot the phone.
How to Transfer Old Mobile Content to a New Mobile
You can use OPPO Clone Phone to easily transfer photos, videos, music, contacts, messages, apps, etc from your old phone to the new one.
If your previous phone was a non-OPPO Android phone, search “OPPO Clone Phone” in the Google Play store and install the app. You can also scan the QR code below to install it. If your previous phone was an OPPO phone, you don’t need to install this app. Then run Clone Phone on both phones and follow the on-screen instructions.
https://i.clonephone.coloros.com/download
2. If your previous phone was an iPhone, run “Clone Phone” on your new phone, and follow the onscreen instructions to migrate your data from your iCloud account.
Warning
Your device has been tested in a controlled environment and certified to be splash, water, and dust resistant in specific situations (meets requirements of classification IP68 as described by the international standard IEC 60529; test conditions: 15-35 ℃, 86-106 kPa, 1.5 meters, 31 minutes). The waterproof and dustproof levels might decrease as a result of normal wear. Do not charge your device in wet conditions.
Specification
| Product | A1010P | |
| Main screen parameter | 16.5cm(6.5″) | |
| Dimension | 162.0×74.4×8.2(mm) | |
| Battery | 3890mAh/14.97Wh(Min) 4000mAh/15.40Wh(Typ) | |
| Camera | 64Megapixels+8Megapixels +2Megapixels+2Megapixels Rear 16Megapixels Front | |
| Operating tempe ature | 0°C-35°C | |
| SAR Values | CE SAR | x.xxxW/kg(Head) x.xxxW/kg(Body) |
| Radio Waves Specifications | ||
| Radio | Frequency | Max. Output Power |
| GSM | 850MHz | 32±1dBm |
| 900MHz | 32-±1dBm | |
| 1800MHz | 29-±1dBm | |
| 1900MHz | 29±1dBm | |
| WCDMA | Bands 1/4 | 23.5±I dem |
| Band 2 | 23±1dBm | |
| Bands 5/6/8/19 | 24±1dBm | |
| LTE FDD | Bands 1/3/28 | 23.5-21 dam |
| Bands 5/8/18/26 | 23.8± I dBm | |
| Bands 4/12/17/19 | 23±1dBm | |
| Bands 2/7 | 22.5-21 dam | |
| LTE TDD | Band 39 | 19±1dBm |
| Band 40 | 22.5-21 dBm | |
| Bands 38/42 | 23±1dBm | |
| Band 41 | 25.5-21 dam | |
| 5G NR | n28 | 23±1dBm |
| n3 | 23±1.2dBm | |
| n77/n78 | 23±1.2dBm | |
| Bluetooth | 2.4-2.4835GHz | 9±2dBm(EIRP) |
| 2.4G Wi-Fi | 2.4-2.4835GHz | 15±2dBm(EIRP) |
| 5G Wi Fi | 5.15-5.35GHz; 5.47-5.725GHz | 14±2.5dBm(EIRP) |
| 5.725-5.85GHz | 14±2.5dBm(EIRP) | |
| NFC | I 3.56MHz | 42dBuA/m @I Om |
The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
Some content may differ from your device depending on the region, service provider, or software version, and is subject to change without prior notice.
