CPH2357 Smartphone
User Guide
Greetings from OPPO Mobile
This guide will show you how to use the phone and its important functions. You may also visit OPPO official website to get more information about the phone.

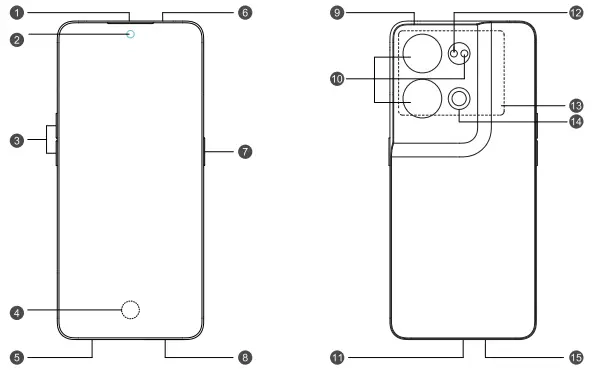

| 1. Receiver 2. Front Camera 3. Volume Key 4. Screen Fingerprint 5. SIM card tray 6.Speaker 7. Proximity Sensor and Light Sensor 8 Power Key & Screen Lock Key | 9. Rear camera 10. Sub MIC 11. USB & Earphone Jack 12. Color temperature sensor 13.NFC 14. Flash 15. Main MIC |
Standard accessories
You are provided with the following standard accessories: 1 Phone, 1 Charger, 1 USB data cable, 1 Safety Guide, 1 Quick Guide, 1 SIM Ejector Tool, 1 Protective Case.
How to reboot the phone
Press and hold the Power Button and Volume Up Button at the same time until the OPPO boot animation is displayed to reboot the phone.
How to Transfer Old Mobile Content to a New Mobile
You can use OPPO Clone Phone to easily transfer photos, videos, music, contacts, messages, apps, etc from your old phone to the new one.
- If your previous phone was a non-OPPO Android phone, search “OPPO Clone Phone” in the Google Play store and install the app. You can also scan the QR code below to install it. If your previous phone was an OPPO phone, you don’t need to install this app. Then run Clone Phone on both phones and follow the on-screen instructions.
https://i.clonephone.coloros.com/download - If your previous phone was an iPhone, run “Clone Phone” on your new phone, and follow the onscreen instructions to migrate your data from your iCloud account.
Specification
| Product | CPH2357 | |
| Main screen parameter | 17.02cm(6.7″) | |
| Dimension | 161 x74x7.3(mm) | |
| Battery | DC 7.78V2185mAh/16.99Wh(Min) DC 7.78V 2250mAh/17.50Wh(Typ) (Equaling to DC 3.89V4370mAh/16.99Wh(Min) DC 3.89V 4500mAh/17.5Wh(Typ)) | |
| Camera | 50Megapixels+8Megapixels +2Megapixels Rear 32Megapixels Front | |
| Operating temperature | 0°C-35°C | |
| SAR Values | FCC SAR | 1.18W/kg(Head) 0.78W/kg(Body) 0.99W/kg(Hotspot) |
Radio Waves Specifications
| Radio | Frequency | Max. Output Power |
| GSM | 850MHz | 34dBm |
| 900MHz | 34dBm | |
| 1800MHz | 31dBnn | |
| 1900MHz | 31dBm | |
| WCDMA | Bands 1/2/4/5/6/8/19 | 25dBm |
| LTE FDD | Bands 1/3 | 24.8d Bm |
| Bands 5/8/12/17/18/19/20/26/28 | 25dBm | |
| Bands 2/4/7 | 24.5d Bm | |
| LTE TDD | Bands 38/39/40 | 24.5d Bm |
| Band 41 | 25dBm | |
| 5G NR | n1/n5/n38/n41/n77 | 24.5d Bm |
| n3 | 24.2d Bm | |
| n7/n40 | 24dBm | |
| n8/n20 | 24.8d Bm | |
| n28 | 25dBm | |
| n78 | 26.5d Bm | |
| Bluetooth | 2.4-2.4835GHz | 14dBm(EIRP) |
| 2.4G Wi-Fi | 2.4-2.4835GHz | 17.3dBm(EIRP) |
| 5G Wi-Fi | 5.15-5.25GHz | 15.1d Bm(EIRP) |
| 5.25-5.35GHz | 15.1 dBm(EIRP) | |
| 5.47-5.725GHz | 15.1dBm(EIRP) | |
| 5.725-5.85GHz | 13.6dBm(EIRP) | |
| NFC | 13.56MHz | 42d BIJA/m @10m |
The N-Markis a trademark or registered trademark of NFC Forum, Inc. in the united states and in other countries.
Some content may differ from your device depending on the region, service provider, or software version, and is subject to change without prior notice.
Copyright© Guangdong OPPO Mobile Telecommunications Corp. Ltd. 2022. All rights reserved.
