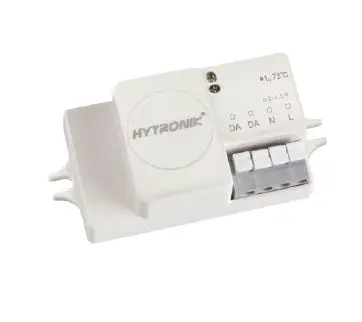

HYTRONIK HCD405D2/H DALI 2 HF High Bay Motion Sensor
Product Description
HCD405D2/H built-in microwave sensor has been certified as a DAL-2 input device with daylight sensor instance and HF motion sensor instance. It is a high-bay motion sensor, with the capability of upto 1Sm installation height. HCD405D2/H is suitable for any typical indoor applications such as offices, classrooms, car park, warehouses and other commercial/industrial areas.
Features
- DAL-2 multi-sensor input device
- Compliant to IEC62386_101, 103, 303, 304
- HF antenna design against wireless interference
- High-bay (up to 15m height)
- 5-Year Warranty

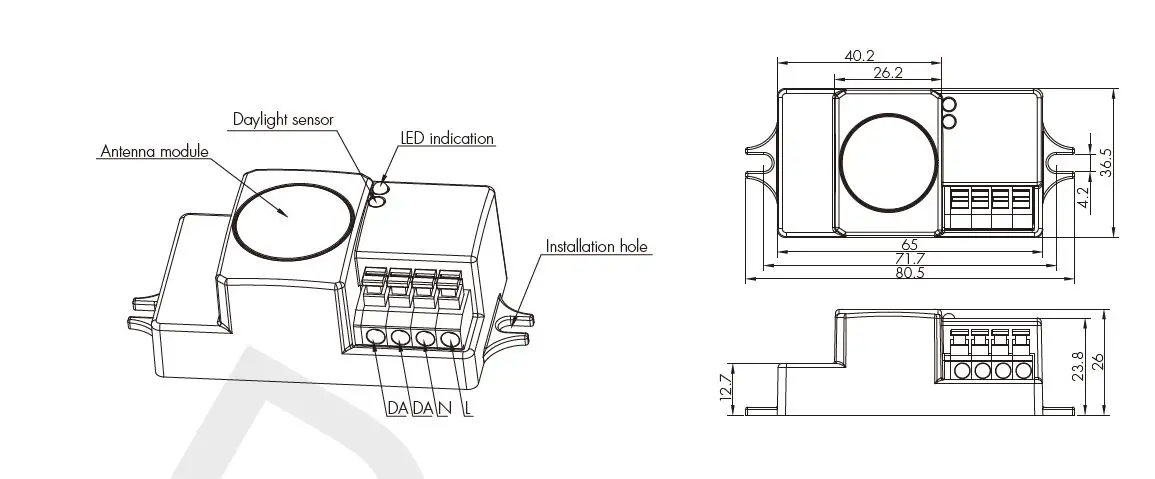

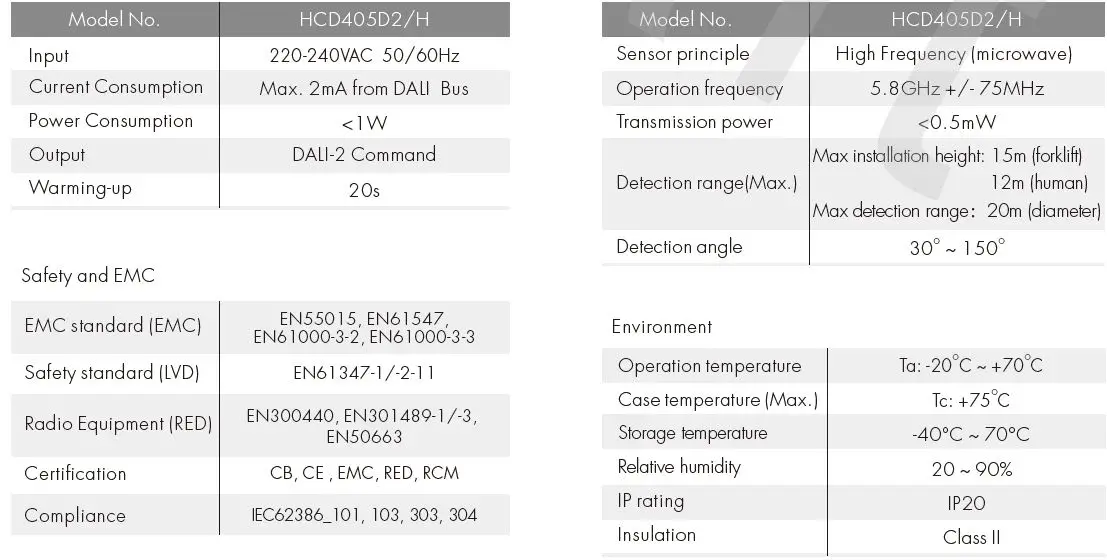

Technical Data
Note:
We recommend the mounting distance between sensor to sensor should be more than 2m to prevent sensors from talse-tr

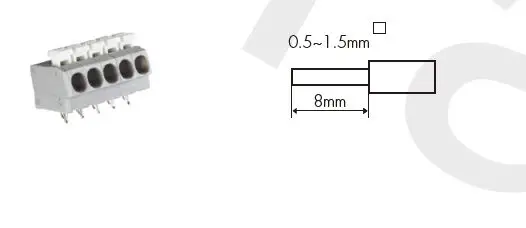

Wire Preparation

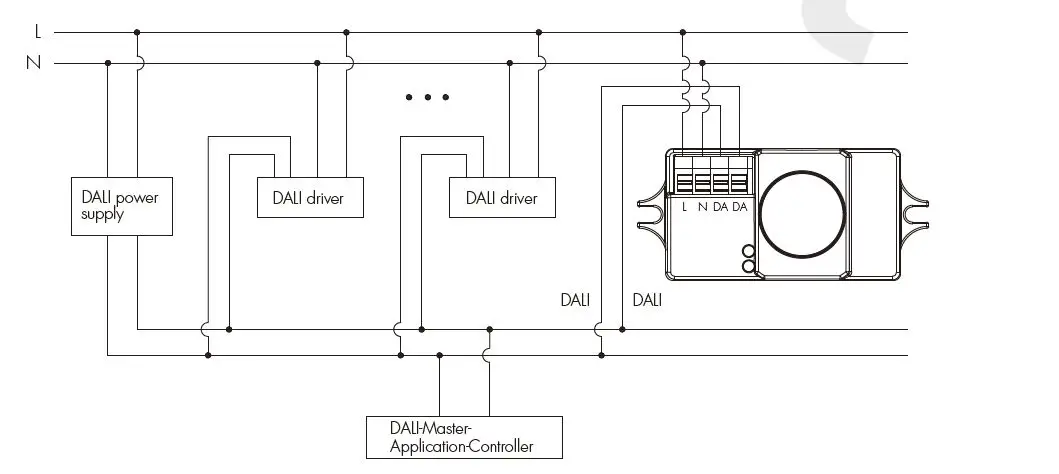

Wiring Diagram
Note:
HCD405D2/H has been used as DALI-2 input device to only report DALI instance(light sensor instance and motion sensor instance) toDALI-2 application controller, who is the “main brain” to process the data communication between input devices and the control gear and assign different function.

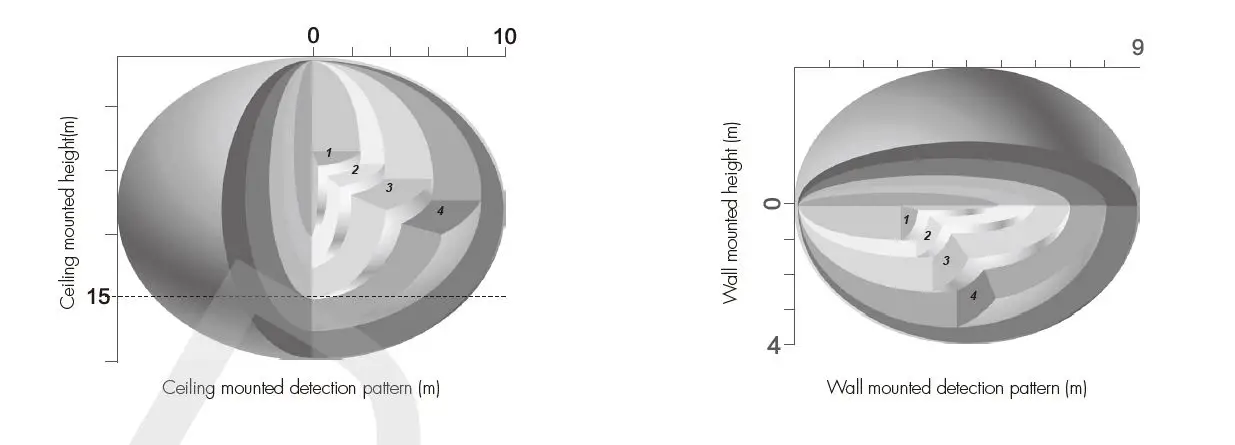

Detection Pattern
Sensitivity adjustments:
Factory default is 100% and additional gear range 1-4 value has been pre-defined in BANK1 offset Oxl1 so that DALI 2 application controller can tind the position to decode it and further adjust sensitivity, the higher the number, the more sensitive it is. PS: Please check it DALI 2 application controller supplier has right software to decode it.
Additional Information / Documents
- Regarding precautions tor microwave sensor installation and operation, please kindly reter to www.hytronik.com/dovwnload ->knowledge >Microwave Sensors – Precautions for Product Installation and Operation
- Regarding Hytronik’s standard guarantee policy, please refer to www.hytronik.com/download >knowledge >Hyronik Standard Guarantee Policy
