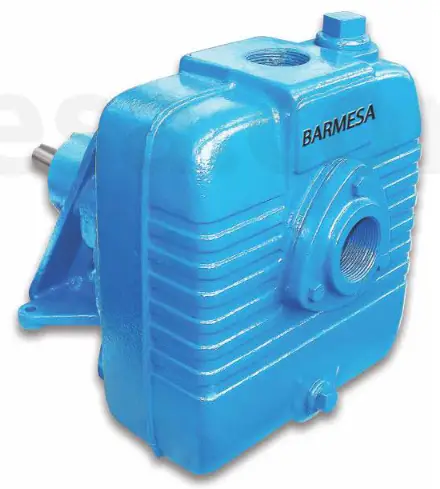

BSP10ICU Self-Priming Frame Mounted Pump
2″ x 2″ Universal Drive
Instruction Manual
Self-Priming Frame Mounted Pump
IMPORTANT! – Read all instructions in this manual before operating or servicing a pump.
General Safety Information
Before installation, read the following instructions carefully. Failure to follow instruction and safety information could cause serious bodily injury, death and/or property damage. Each Barmesa product is carefully inspected to insure proper performance. Closely following these instructions will eliminate potential operating problems, assuring years of trouble-free service.
DANGER “Danger” indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. WARNING “Warning” indicates an imminenty hazardous situation which, if not avoided, MAY result in death or serious injury. CAUTION “Caution” indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury.
IMPORTANT! – Barmesa Pumps is not responsible for losses, injury or death resulting from failure to observe these safety precautions, misuse, abuse or misapplication of pumps or equipment.
ALL RETURNED PRODUCTS MUST BE CLEANED, SANITIZED, OR DECONTAMINATED PRIOR TO SHIPMENT, TO INSURE EMPLOYEES WILL NOT BE EXPOSED TO HEALTH HAZARDS IN HANDLING SAID MATERIAL. ALL APPLICABLE LAWS AND
WARNING Installation, wiring, and junction connections must be in accordance with the National Electric Code and all applicable state and local codes. Requirements may var y depending on usage and location.
WARNING Installation and servicing is to be conducted by qualified personnel only.
Keep clear of suction and discharge openings. Do not insert fingers in pump with power connected; the rotating cutter and/or impeller can cause serious injury. Always wear eye protection when working on pumps. Do not wear loose clothing that may become entangled in moving parts.
DANGER
Pumps build up heat and pressure during operation. Allow time for pumps to cool before handling or servicing the pump or any accessory items associated with or near the pump. DANGER
Risk of electric shock. To reduce risk of electric shock, always disconnect pump from power source before handling any aspect of the pumping system. Lockout power and tag. WARNING Do not use these pumps in water over 160° F. Do not exceed manufacturers recommended maximum performance, as this could cause the motor to overheat.
DANGERThispumpisnot intendedforusein swimming pools or water installations where there is human contact with pumped fluid.WARNING
Operation against a closed discharge valve will cause premature bearing and seal failure on any pump, and on end suction and self priming pump the heat build may cause the generation of steam with resulting dangerous pressures. It is recommended that a high case temperature switch or pressure relief valve be installed on the pump body.
WARNING Carefullyread instruction manuals supplied with motor or engine before operating or servicing. CAUTION Makesurelifting handles are securely fastened each time before lifting. Do not operate pump without safety devices in place.
Always replace safety devices that have been removed during service or repair. S ecure the pump in its operating position so it can not tip over, fall or slide.
DANGER
These pumps are not to be installed in locations classified as hazardous in accordance with the National Electric Code, ANSI/NFPA 70.
IMPORTANT! – Prior to installation, record Model Number, Serial, Amps, Voltage, Phase and HP from pump name plate for the future reference. Also record the Voltage and Current Readings at Startup:
Model Number:…………Serial:…………
Amps:……… Voltage: …………
Phase:………….. HP:…………….
Specifications & Dimensions
| SUCTION/DISCHARGE | 2″ x 2″ NPT, female flange. |
| LIQUID TEMPERATURE | 160 °F (71 °C) max. |
| VOLUTE: | Cast iron ASTM A-48 class 30. |
| BODY: | Cast iron ASTM A-48 class 30. |
| PEDESTAL: | Cast iron ASTM A-48 class 30. |
| IMPELLER: | Open, trash type, dynamically balanced. Cast iron ASTM A-48 class 30. |
| SHAFT: | Stainless steel. |
| SHAFT SLEEVE: | Stainless steel. |
| O-RINGS: | Buna-N. |
| PAINT: | Air dry enamel, water based. |
| SEAL: | Single mechanical with lip seal, water lubricated. Ceramic stationary part, carbon ring seal and exclusion in the rotating part. Buna-N elastomer and stainless steel spring. |
| CHECK VALVE: | Flap-neoprene, weight of steel. |
| HARDWARE: | Steel & stainless steel. |
| BEARING-DRIVE END: | Single row, ball, grease lubricated. |
| BEARING-PUMP END: | Single row, ball, grease lubricated. |
| SHIM SET: | Stainless steel. |
| OPTIONAL: | Bronze fitted volute and impeller. |
Recommendations, Warnings & Installation
- Receiving inspection
Upon receiving the pump, it should be inspected for damage or shortages. If damage has occurred, file a claim immediately with the company that delivered the pump. If
the manual is removed from the packaging, do not lose or misplace. - Storage
Any product that is stored for a period longer than six (6) months from the date of purchase should be bench tested prior to installation. A bench test consists of, checking the impeller to assure it is free turning and a run test to assure the motor (and switch if provided) operate properly. Do not pump out of liquid. - Installation Location
The pump should be located as near as possible to the liquid to be pumped and in no case should the pump be more than 25 feet above the surface of the liquid supply. The pump should always be as level as possible.
Locate the pump on a firm footing to make sure the pump will not move due to vibration. Flex coupled and Vbelt driven units should be permanently grouted onto a cement foundation. The pumps should be level to provide favorable operating conditions. In addition, the flexible coupling should be realigned after grouting in order to eliminate excessive wear on the coupling.
Allow a minimum of 18 inches in front of the pump case cover or hatch cover to permit easy removal and access to the interior of the pump. On belt driven units, allow a minimum of 10 inches at the shaft end to permit easy removal of the pedestal or rotating cartridge. - Controls
Be sure the electrical specification of the control selected properly match the electrical specifications of the pump. - Motor connection
All wiring of motor and control, overload protection and grounding should be in accordance with the National Electrical Code, State and Local codes. Make motor connection per label located on motor or motor manufactures manual. - Rotation
All units rotate clockwise as viewed from shaft end of pump. It is necessary to slide one half of the flex coupling back when checking rotation to eliminate the possibility of unscrewing the impellers which are threaded on the shaft. - SuctionCAUTION
THIS PUMP SHOULD NOT BE OPERATED WITHOUT A STRAINER ON THE END OF THE SUCTION LINE TO PREVENT STICKS, STONES, RAGS AND OTHER FOREIGN MATTER FROM BEING DRAWN INTOTHE IMPELLER. THE STRAINER SHOULD BE CLEANED REGULARLY TO INSURE FULL FLOW.
The use of pipe the same size as the port size is highly recommended.
Using a smaller pipe line can cause internal damage. Make sure all lines have air-tight joints. The smallest air leak in the suction line may prevent the pump from priming. All
horizontal suction lines should slope up to the pump to avoid trapped air pockets. All piping should be properly supported.
- Discharge
Connect discharge hose or pipe to the discharge port. Make sure all lines have air-tight joints - Lubrication
The seal is the only component that requires lubrication. It is grease filled at the factory but must be checked before putting unit into operation. A spring loaded grease cup attached to the seal chamber maintains the grease fill.

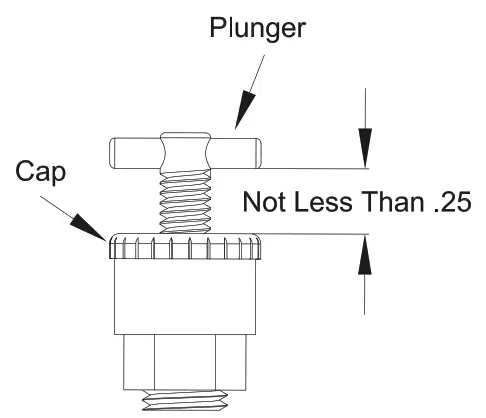

The plunger and handle should be no less than 1/4″ above the cap which indicates the seal chamber is full or pressurized. If less than 1/4″ above cap, the seal chamber needs additional lubricant.
Filling through the grease cup by turning the handle clockwise in order to compress the plunger spring into the cap. Removing cap, fill with grease, replace cap and release spring by turning handle counterclockwise until it is in contact with plunger flange.
Approved grease: SHELL ALVANIA R2, MOBILE MOBILUX 2, AMPOL RR2, B.P.
ENERGERASE LS2, CALTEX MULTIFAX 2 or equal. CAUTION
PLUNGER AND HANDLE MUST BE TOGETHER AND NO LESS THAN 1/4″ ABOVE CAP DURING PUMP OPERATION.
- Priming
Remove pipe plug in top of body and fill the pump body completely with solids free liquid. In freezing weather prime pump with warm water.
CAUTION
DO NOT OPERATE PUMP WITHOUT PRIMING FIRST. OPERATING DRY WILL DAMAGE SEAL.
- Starting
To start pump, apply power to motor per the MOTOR OR ENGINE INSTRUCTIONS MANUAL. - Shutdown
Discontinue operation by stopping the engine as stated in ENGINE MANUAL or by disconnecting electric power to motor. It is recommended to drain and flush pump if pump has been operating in freezing weather. - Service
Turn off and lock out power before servicing pump - Check valve
Disconnect suction piping and remove hex nuts and suction flange. Remove gasket, weights, screw and lockwasher and replace if worn or damaged.
To replace, the HINGE section of gasket is at the TOP and the LARGE weight is on the pump side of gasket. - Body, Volute & Impeller
Disconnect suction and discharge piping. Remove hex nuts and lockwashers then remove body, oring and seal plate from pedestal.
Pull volute and gasket from seal plate. Remove cap screw and washers. Unscrew the impeller from shaft in the right hand direction. Take note of the size and quantity of shims used. To replace lip seal, press out of seal plate.
To reassemble, use the required number of shims to result in an impeller-to-volute clearance of .010″ to .020″. - Shaft seal
Remove rotating member, spring and retaining ring of seal from shaft. To remove stationary, remove cap screws and lockwashers and pull seal plate from pedestal. Press stationary out of seal plate. If any part shows wear or damage replace complete seal. Replace shaft sleeve if worn or damaged.
CAUTION
HANDLEALLSEAL PARTS WITH EXTREME CARE. DO NOT DAMAGE LAPPED FACES.
Replace seal plate onto pedestal.
Lightly oil shaft and inner surface of stationary. Press over shaft and into seal plate
Oil inner surface of rotating member and with lapped surface facing pedestal, slide rotating member onto shaft until lapped faces of stationary and rotating member are together.
Replace the rest of the seal. Replace shims and impeller, making sure that spring is properly seated against impeller.
- Pedestal & Shaft
Remove capscrews, lockwashers and bearing cap from pedestal. Remove shaft, slinger and bearing assembly.
To replace bearing remove retaining ring and slinger. Press off bearings from shaft.
REASSEMBLE REMAINDER OF PUMP IN OPPOSITE ORDER.

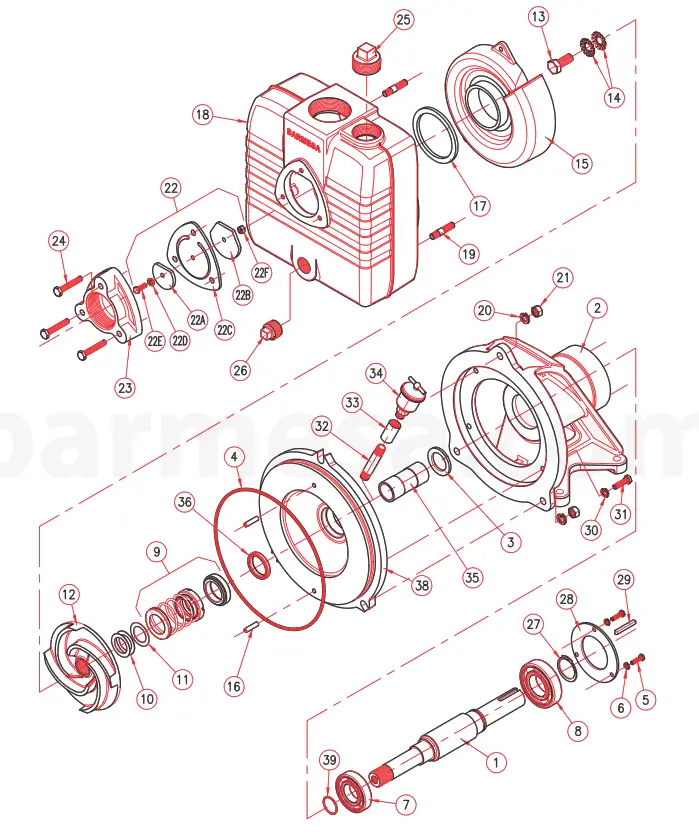

EXPLODED VIEW SELF PRIMING FRAME MOUNTED PUMP BSP1OICU
For Repair Part Please supply: Model Number and Serial as shown on Name Plate, and Part Description and Part Number as shown on Parts List.
Self Priming Frame Mounted Pump BSP1OICU, Parts List
| Item | Part No. | Description | Qty | Material | ||
| 1 | 30400774 | Shaft | 1 | Stainless | ||
| 2 | 3,040,030 F | Pedestal | 1 | Cast Iron | ||
| 3 | 92010014 | Slinger | 1 | ■ | ♦ | Neoprene |
| 4 | 92010033 | 0-Ring # 2-269 | 1 | ■ | ♦ | Buna |
| 5 | 91010220A | Hex Hd Screw # 10-32UNF x ‘A” lg. | 3 | ♦ | Steel | |
| 6 | 91010010H | Lockwasher #10 | 3 | Steel | ||
| 7 | 31020009 | Bearing | 1 | ♦ | Brand NSK | |
| 8 | 31020022 | Bearing | 1 | ♦ | Brand NSK | |
| 9 | 31030136 | Shaft Seal | 1 | ■ | ♦ | C/CE/B/SS |
| 10 | 91010121 | Shim 0.010″ | 3 | ■ | ♦ | Stainless |
| 11 | 91010130 | Shim 0.031″ | 2 | ■ | ♦ | Stainless |
| 12 | 3140225 | Impeller 10CCE & ICU, 5%T; | 1 | Bronze | ||
| 3140232 | Cast Iron | |||||
| 13 | 91010349B | Hex hd Screw 1/2″-20UNF x 1.0″ SS | 1 | ■ | ♦ | Stainless |
| 14 | 91010081 | Shakeproof Washer IA” | 2 | ■ | ♦ | Stainless |
| 15 | 3120035 | Volute 10CCE & ICU | 1 | Bronze | ||
| 3120039 | Cast Iron | |||||
| 16 | 91010181 | Volute Pin # 17715’/4″0 x 1″ | 2 | ♦ | Steel | |
| 17 | 92010091B | Volute Gasket | 1 | ■ | ♦ | Buna |
| 18 | 3090097 | Body | 1 | Cast Iron | ||
| 19 | 91010374 | Stud 3/8″-16UNC x 2.0″ lg. SS | 3 | Stainless | ||
| 20 | 91010013 | Lock washer 3/8″ SS | 3 | ♦ | Stainless | |
| 21 | 91010414 | Hex Nut 3/8″ SS | 3 | Stainless | ||
| 22 | Check Valve Assembly | |||||
| 22A | 1080002 | Weight 1.56″0 | 1 | Steel | ||
| 22B | 1080001 | Weight 21/4″0 | 1 | Steel | ||
| 22C | 92010229 | Gasket | 1 | ■ | ♦ | Neoprene |
| 22D | 91010066 | Lock washer ‘A” SS | 1 | Stainless | ||
| 22E | 91010407B | Round Hd Screw 1/4″-20NC x 1.0″ SS | 1 | Stainless | ||
| 22 F | 91010411C | Hex Nut IA” SS | 1 | Stainless | ||
| 23 | 3050021 | Suction Flange | 1 | Cast Iron | ||
| 24 | 91010225 | Hex Hd Screw 5/16″-18UNC x TA” lg. | 3 | Stainless | ||
| 25 | 93010146 | Pipe Plug 11A” NPT | 1 | Cast Iron | ||
| 26 | 93010148 | Pipe Plug 3A” | 1 | Cast Iron | ||
| 27 | 31010004 | Snap Ring # 5100-137 | 1 | ♦ | Truarc | |
| 28 | 30400850C | Bearing Cap | 1 | Steel | ||
| 29 | 30400633 | Shaft Key 1/4″ x ‘A” x 11/4″ lg. | 1 | ♦ | Steel | |
| 30 | 91010060 | Lock washer 5/16″ SS | 4 | Steel | ||
| 31 | 91010343C | Hex Hd Screw 5/16″-18UNC x 1.0″ | 4 | Steel | ||
| 32 | 93010067A | Pipe Niple IA” x 2I/2″ | 1 | Steel | ||
| 33 | 93010031 | Coupling IA” | 1 | Steel | ||
| 34 | 93010042 | Grease Cup | 1 | Steel | ||
| 35 | 30400840C | Shaft Sleeve | 1 | ■ | ♦ | 304 SS |
| 36 | 31150012 | Lip Seal (11/4″0 x 1.688″0 x ‘A”) | 1 | ■ | ♦ | Brand SKF |
| 38 | 3180037 | Seal Plate | 1 | Cast Iron | ||
| 39 | 92010029J | 0-Ring # 0-022 | 1 | Buna |
Sea Kit: (■) 3, 4, 9, 10, 11, 13, 14, 17, 22C, 35, 36
Overhaul Kit: (♦) 3, 4, 5, 7, 8, 9, 10, 11, 13, 14, 16, 17, 20, 22C, 27, 29, 35, 36
For Repair Part Please supply: Model Number and Serial as shown on Name Plate, and Part Description and Part Number as shown on Parts List.
Troubleshooting Chart
Always disconnect the pump from the electrical power source before handling.
If the system fails to operate properly, carefully read instructions and perform maintenance recommendations.
| Symptom | Possible Ca use(s) | Corrective Action |
| Little or no discharge and unit will not prime | 1.Casing not filled with water 2.Total head too high 3.Suction head higher than pump designed for 4.Impeller partially or completely plugged 5.Leak in suction line 6.Foot-valve too small 7.Impeller damaged 8.Foot-valve or suction line not submerged deep enough in water, pulling air 9.Insufficient inlet pressure or suction head 10.Suction piping too small 1 1. Body gasket leaking 12.Suction or discharge line valves closed 13.Piping damaged 14.Clogged strainer or foot-valve | 1.Fill pump body with water. 2.Shorten suction head 3.Lower suction head, install foot-valve and prime 4.Disassemble pump and clean out impeller 5.Repair or replace suction line 6.Match foot-valve size to piping or install one larger size foot-valve 7.Disassemble pump and replace impeller 8.Submerge lower in water 9.Increase inlet pressure by adding more water to tank or increasing back pressure by turning gate valve on discharge line partially closed 10.Increase pipe size to pump inlet size or larger 11.Replace 12.Open 13.Clean or replace 14.Clean or replace |
| Loss of suction after satisfactory operation | 1.Air leak in suction line 2.Whe n pump was last turned off, water siphoned out of pump body 3.Suction head higher than pump designed for 4.Insufficient inlet pressure or suction head 5.Clogged foot-valve, strainer or pump 6.Defective wearplate | 1.Re paire or replace suction line 2.Refill (reprime) pump body before restarting 3.Lower suction head, install foot-valve and prime 4.Increase inlet pressure by adding more water to tank or increasing back pressure by turning gate valve on discharge line to partially closed. 5.Unclog or replace 6.Replace |
| Pump overloads driver | 1.Total head lower than pump rating, unit delivering too much water 2.Specific gravity and viscosity of liquid being pumped different than the pump rating | 1.Increase back pressure by turning gate valve on discharge line to partially closed position that will not overload motor. 2.Consult factory |
| Pump vibrates and/or makes excessive noise | 1.Mounting plate or foundation not rigid enough 2.Foreign material in pump causing unbalance 3.Impeller bent 4.Cavitation present 5.Piping not supported to relieve any strain on pump assembly | 1.Reinforce 2.Disassemble pump and remove 3.Replace impeller 4.Check suction line for proper size and check valve in suction line if completly open, remove any sharp bends before pump and shorten suction line 5.Make necessary adjustments |
| Pump runs but no fluid | 1.Air leak in suction piping 2.Pump located too far from fluid source 3.Gate valor closed 4.Clogged strainer 5.Fouled foot-valve 6.Discharge height too great 7.Fouled impeller 8.Faulty mechanical seal | 1.Replace 2.Replace 3.Open 4.Clean or Replace 5.Clean or Replace 6.Lower the height 7.Clean or Replace 8.Replace |
| Pump leaks at shaft | 1.Worn mechanical seal 2.Seal not installed properly | 1.Replace 2.Follow service instructions for installing seal |
BARMESA PUMPS FACTORY WARRANTY
Barmesa Pumps warrants that products of our manufacture will be free of defects in material and workmanship under normal use and service for 18 months from date of manufacture or 12 months from installation date whichever occurs first. This warranty gives you specific legal rights, which vary from state to state.
This warranty is a limited warranty, and no warranty related claims of any nature whatsoever shall be made against Barmesa Pumps, until the ultimate consumer or his/her successor notifies us in writing of the defect and delivers the product and/or defective part(s) freight prepaid to our factory or nearest authorized service station as instructed by Barmesa Pumps. THERE SHALL BE NO FURTHER LIABIUTY, WHETHER BASED ON WARRANTY, NEGUGENCE OR OTHERWISE. PRODUCT SHALL BE EITHER REPLACED OR REPAIRED AT THE ELECTION OF BARMESA PUMPS. Guarantees relating to performance specifications provided in addition to the foregoing material and workmanship warranties on a product manufactured by Barmesa Pumps, if any, are subject to possible factory testing. Any additional guarantees, in the nature of certified performance specifications or time frame must be in writing and such writing must be signed by our authorized factory manager at time of order placement and/or at time of quotation. Due to inaccurades in field testing and should a conflict arises between the results of field testing conducted by or for the user, Barmesa Pumps reserves the right to have the product returns to our factory for additional testing.
This warranty shall not apply when damage is caused by (1) improper installation, (2) improper voltage, (3) lightning, (4) excessive sand or other abrasive material, (5) corrosion build-up due to excessive chemical content or (6) uncontrollable acts of god. Any modification of the original equipment will also void the warranty. We will not be responsible for loss, damage or labor cost due to interruption of service caused by defective pumps, parts or systems. Barmesa Pumps will not accept charges incurred by others without our prior written approval.
This warranty is void if our inspection reveals the product was used in a manner inconsistent with normal industry practice and/or our specific recommendations. The purchaser is responsible for communication of all necessary information regarding the application and use of the product.
UNDER NO CIRCUMSTANCES WILL WE BE RESPONSIBLE FOR ANY OTHER DIRECT OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TRAVEL EXPENSES, CONTRACTOR FEES, UNAUTHORIZED REPAIR SHOP EXPENSES, LOST PROFITS, LOST INCOME, LABOR CHARGES, DELAYS IN PRODUCTION, IDLE PRODUCTION, WHICH DAMAGES ARE CAUSED BY ANY DEFECTS IN MATERIAL AND/OR WORKMANSHIP AND/OR DAMAGE OR DELAYS IN SHIPMENT. THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY OTHER EXPRESS OR IMPLIED WARRANTY. No rights extended under this warranty shall be assigned to any other person, whether by operation of law or otherwise, without our prior written approval.
IMPORTANT!
If you have a claim under the provision of the warranty, contact Barmesa Pumps or your
authorized Barmesa Pumps Distributor:
[email protected]
www.barmesapumps.com
Barmesa Pumps USA | Quality Pumps Since 1953
