45W PWM Output LED Driver
I D P V- 4 5 series

http://www.meanwell.com.cn/Upload/PDF/LED_EN.pdf

Contents hide

8 OUTPUT LOAD vs TEMPERATURE

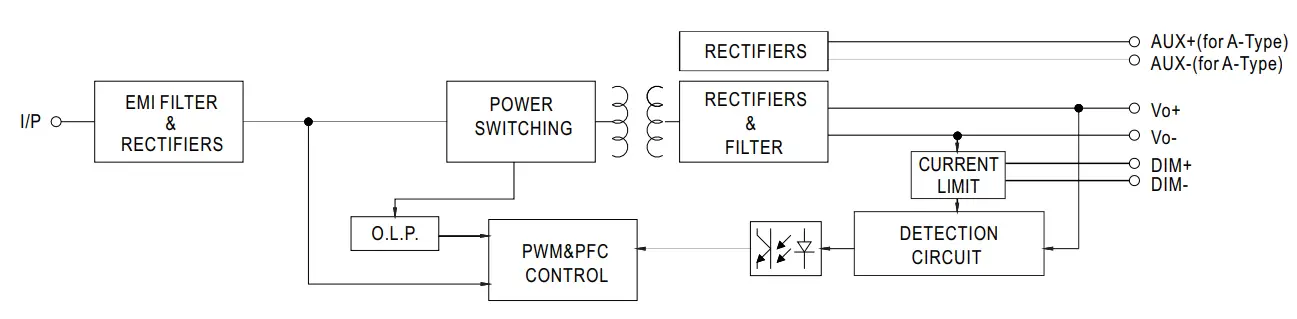

9 BLOCK DIAGRAM

10 MECHANICAL SPECIFICATION

11 INSTALLATION MANUAL

12 Documents / Resources

12.1 References

13 Related Posts

Features

Constant Voltage PWM style output with frequency 1 KHz
PCB type design
Built-in active PFC function
No load power consumption<0.5W
Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output
3 years warranty

Applications

LED strip lighting
Indoor LED lighting
LED decorative lighting
LED architecture lighting

GTIN CODE

MW Search. haps://www.meanwell.corniserviceGTIN.aspx

Description

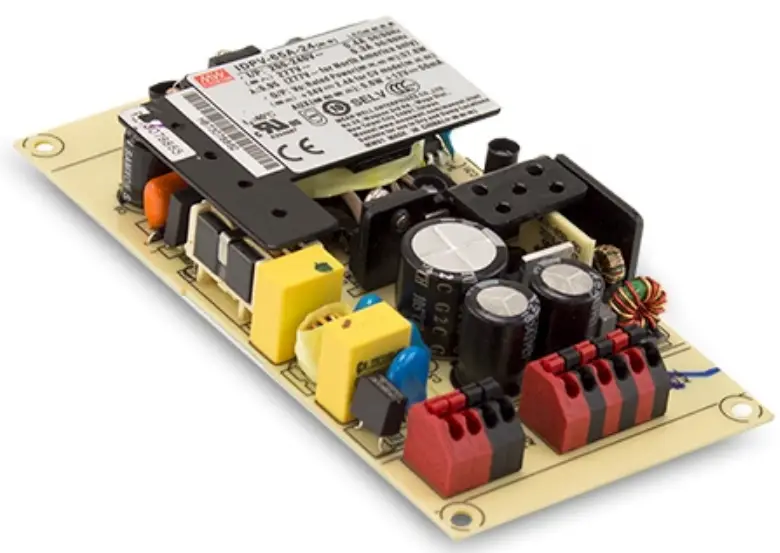

IDPV-45 series is a 45W PCB type AC/DC LED driver featuring the constant voltage mode PWM style output design. IDPV-45 operates from 90-295VAC and offers models with different rated voltages ranging between 12V and 60V. Thanks to the high efficiency of up to 90%, with the fanless design, the entire series is able to operate for -20 C -+40 C ambient temperature under free air convection. IDPV-45 is equipped with various function options, such as dimming methodologies, so as to provide design flexibility for the LED lighting systems.

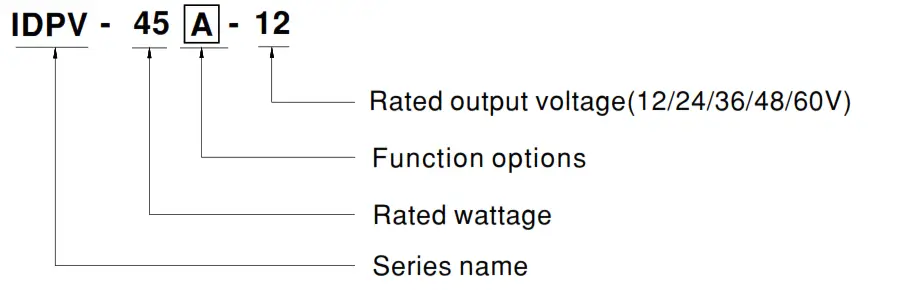

Model Encoding

Type	Function
Blank	2 in 1 dimming (0-10VDC and 10V PWM)
A	2 in 1 dimming and Auxiliary DC output

SPECIFICATION

MODEL		IDPV-45❑12	IDPV-450-24	IDPV-4C-36	IDPV450-48	IDPV-45❑-60
OUTPUT	DC VOLTAGE	12V	24V	36V	48V	60V
	RATED CURRENT	3.0A	1.88A	1.25A	0.94A	0.75A
	RATED POWER	36W	45.12W	45W	45.12W	45W
	DIMMING RANGE	0-100%
	VOLTAGE TOLERANCE	±10%
	PWM F REQUE NCY (Typ.)	1KHz(±20%)
	SETUP TIME Note.3	500ms / 230VAC 1200ms/115VAC
	AUXILIARY DC OUTPUT NOW	Nominal 1 2V(deviation 11.4-12.6)@50 mA for A-Type only

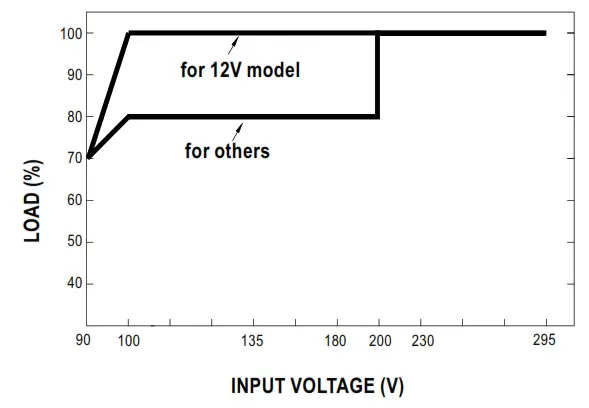

INPUT	VOLTAGE RANGE Note.2	90 – 295VAC 127 – 417VDC (Please refer to the ‘STATIC CHARACTERISTIC’ section)
	FREQUENCY RANGE	47 – 63Hz

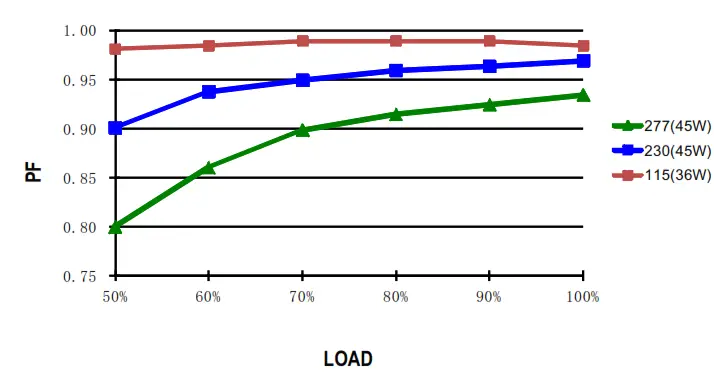

	POWER FACTOR (Typ.)	PF>0.95/115VAC, PF>0.92/230VAC, PF>0.9/277VAC@full load (Please refer to TOWER FACTOR (PF) CHARACTERISTIC’ section)

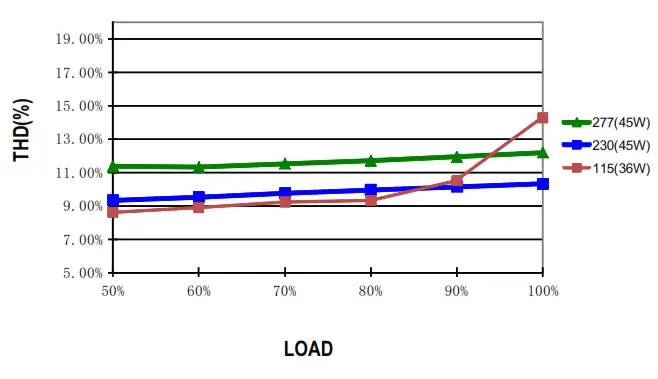

	TOTAL HARMONIC DISTORTION	T HD< 20°0(@load60°0/115VAC,230VAC; @load75°0/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION’ section)

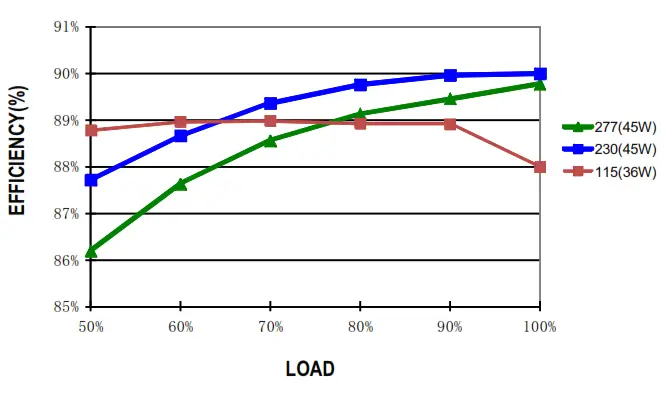

	EFFICIENCY (Typ.)	84%	186%	188%	188%	190%
	AC CURRENT (Typ.)	0.6A / 115VAC 0.4A / 230VAC 0.3A / 27NAC
	INRUSH C UR RENT(Typ.)	COLD START 30A(hvidth=150)..ts measured at 50% (peak) at 230VAC; Per NE MA 410
	MAX. No. of PSU s on 16A CIRCUIT BREAKER	32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
	LEAKAGE CURRENT	<0.75mA/ 277VAC
	NO LOAD POWER CONSUMPTION	<0.5W for Blank-Type, <1.2W for A-Type
PROTECTION	SHORT CIRCUIT	Shut down 0/P voltage, re-power on to recovery
	OVER CURRENT	105 -115%
		Protection type: Hiccup mode, recovers automatically after the fault condition is removed

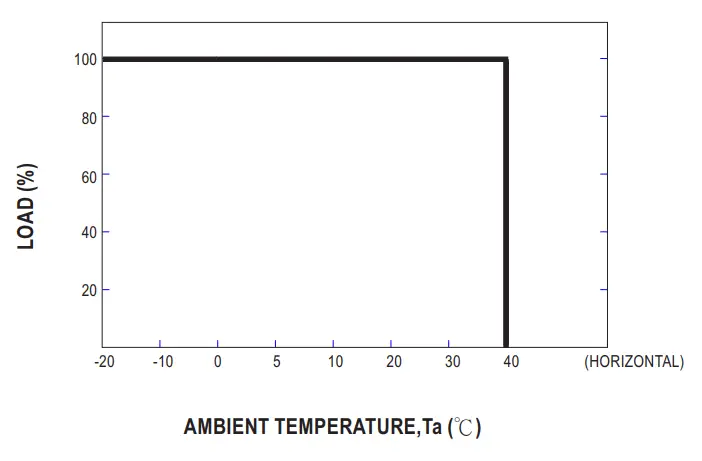

ENVIIGINENT	WORKING TEMP.	Ta=-20 – +40C (Please refer to OUTPUT LOAD vs TEMPERATURE’ section)
	WORKING HUMIDITY	20- 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40- +80°C, 10 -95% RH
	TEMP. COEFFICIENT	±0.03%/°C (0- 40°C)
	VIBRATION	10- 500Hz, 2G 10minficycle, the period for 60min. each along X, Y, and Z axes
SAFETY & EMC	SAFETY STANDARDS	UL8750,CSAC22.2 NO.250.13-12;E NEC BS EN/EN61347-1& BS E N/E N61347-2-13 independent, BS EN/EN62384 approved
	WITHSTAND VOLTAGE	UP-0/P:3.75KVAC
	ISOLATION RESISTANCE	UP-0/P:100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to BS EN/E N55015, BS EN/EN61000-3-2 Class C (@load % 60%) ; BS EN/E N61000-3-3
	EMC IMMUNITY	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/E N61547, light industry level(surge im mu nity: Lin e-Lin e:1KV)
OTHERS	MTBF	4022.6K hrs min. Telcordia SR-332 (Bellcore); 425.1K hrs mm. MI L-H DBK-217F (25^°C)

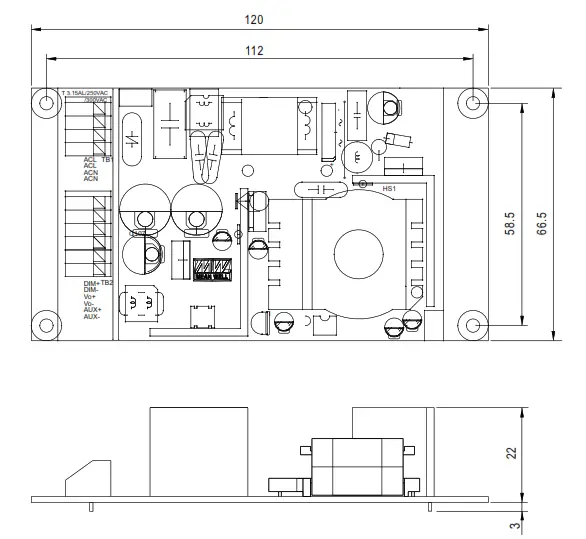

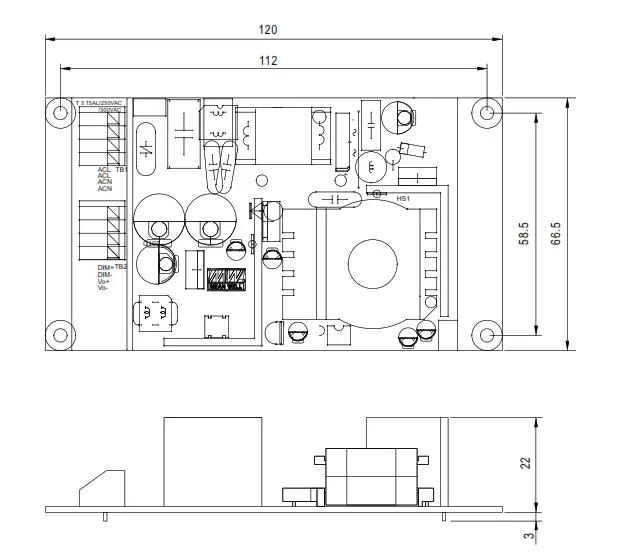

	DIMENSION	120’66.5’22mm (L’W*H)
	PACKING	0.14Kg;81pcs/12.5Kg11.32CUFT
NOTE	1. All parameters NOT securely mentioned are measured at 230VAC input, rated current, and 25°C of ambient temperature. 2. De. rating may be needed under low input voltages. Please refer to ‘STATIC CHARACTERISTIC* sections for details. 3. Length of setup time is measured at cold first std. Turning ON/OFF the driver may lead to b increase in the setup time. 4. Aux. 12V will be damaged with a short circuit; It will not be available with dimming off or output no load condition. 5. The driver is considered as a component that will be operated in combination with final equipment. Sinai, EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. To fall! into the requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without being permanently connected to the mains.※Product Liability Disclaimer: For detailed information, please refer to htlps://www.meanwell.com/reerviceDisdaimer.aspx

DIMMING OPERATION

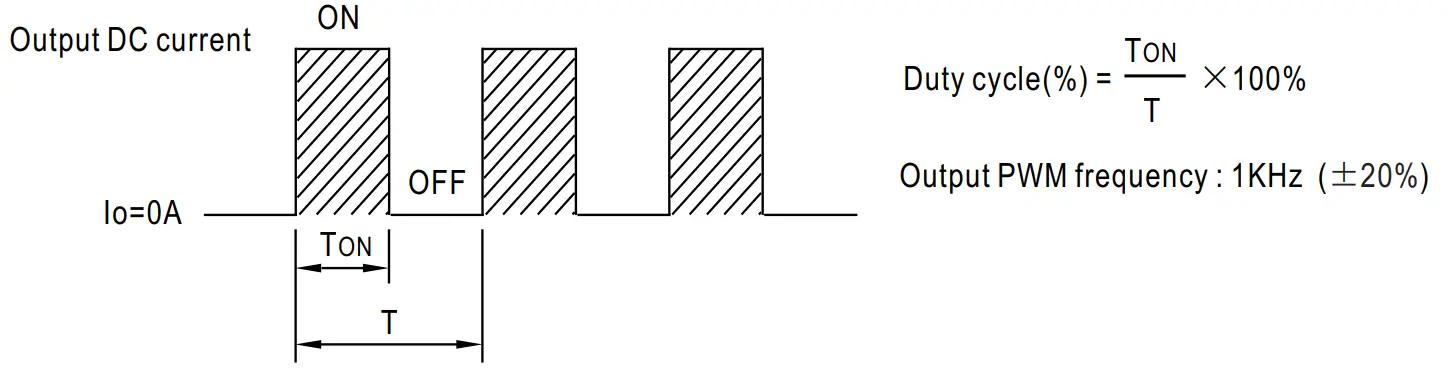

※ Dimming principle for PWM style output

Dimming is achieved by varying the duty cycle of the output current.

※ 2 in 1 dimming function

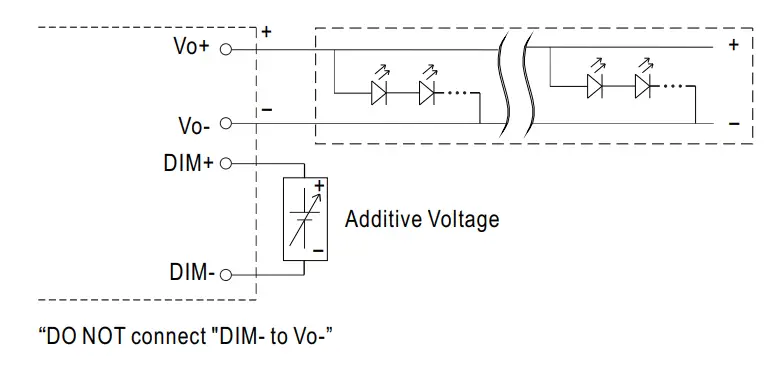

◎ Applying additive 0 ~ 10VDC

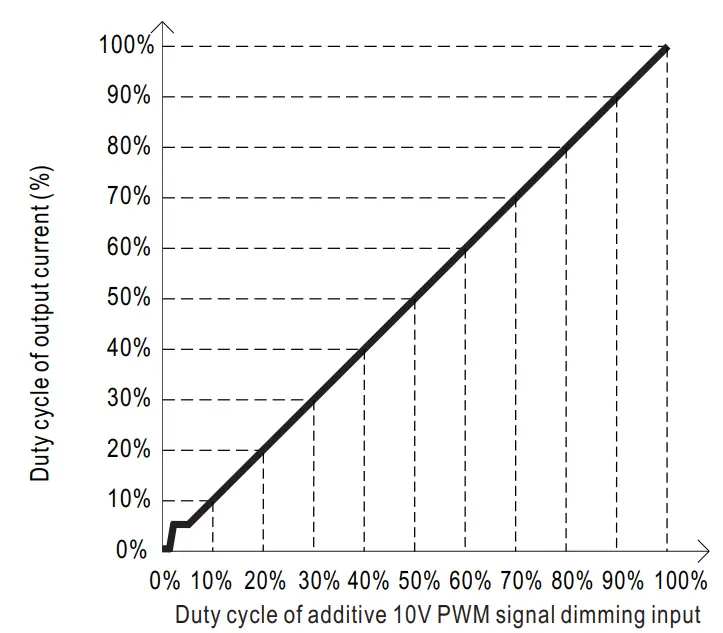

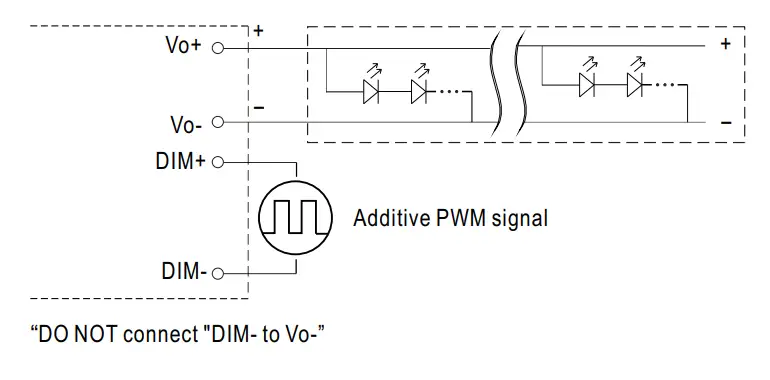

◎ Applying additive 10V PWM signal (frequency range 300Hz~3KHz):

Note

Min. duty cycle of output current is about 8% and the output current is not defined when 0%< Iout<8%.
The duty cycle of output current could drop down to 0% when dimming input is about 0Vdc or 10V PWM signal with 0% duty cycle.
