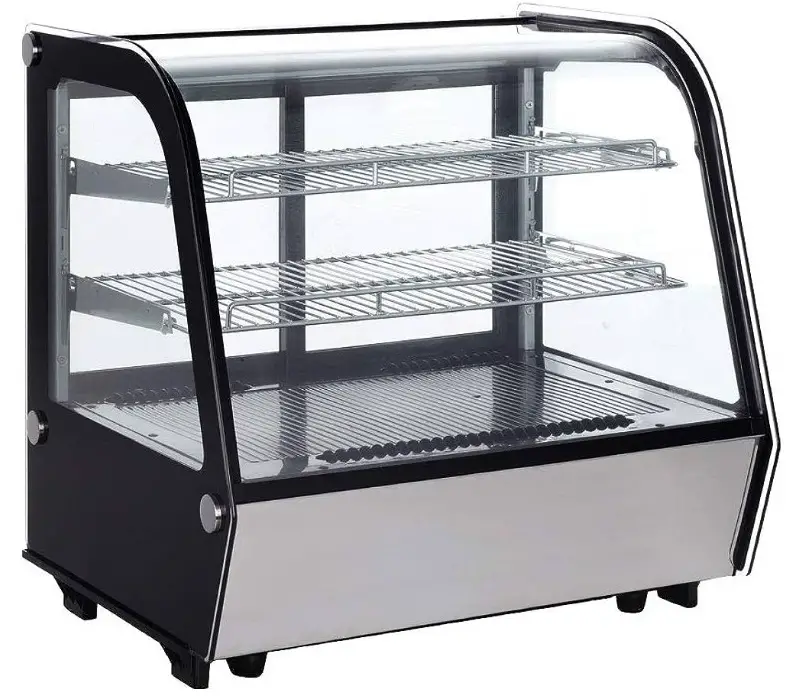

OMCAN RS-CN-0120-5 Commercial Countertop Refrigerated Display Case User Manual
Parts Breakdown
| Item No. | Description | Position |
| AA062 | Power Cord for 47107 | 1 |
| 68510 | Fixed Board of PCB Box for 47107 | 2 |
| AA063 | Condensator for 47107 | 3 |
| AA047 | Left Condensator Cushion for 47107 | 4-1 |
| AH715 | Right Condenser Pad for 47107 | 4-2 |
| AH716 | Left Glass for 47107 | 5 |
| AH717 | Left Panel for 47107 | 6 |
| AA050 | Control Box for 47107 | 7-1 |
| AA051 | Control Box Cover for 47107 | 7-2 |
| 68332 | Temperature Sensor for 47107 | 8-1 |
| AA049 | Defrost Probe for 47107 | 8-2 |
| AH718 | High Temperature Sensor for 47107 | 8-3 |
| AA052 | Main Circuit Board for 47107 | 8-4 |
| AA053 | Digital Controller for 47107 | 8-5 |
| AH719 | Compressor for 47107 | 9 |
| AH720 | Right Panel for 47107 | 10 |
| AH721 | Right Glass for 47107 | 11 |
| 79314 | Decoration Nut Gasket for 47107 | 12-1 |
| 79313 | Nut Gasket for 47107 | 12-2 |
| 79312 | Nut Decoration for 47107 | 12-3 |
| 30624 | Dry Filter for 47107 | 13 |
| 30617 | Wire Board for 47107 | 14 |
| 30744 | Water Pipe for 47107 | 15 |
| AH722 | Front Glass for 47107 | 16 |
| AH723 | Upper Glass for 47107 | 17 |
| 67313 | Bottom Shelf Bracket Left for 47107 | 18 |
| AH724 | Fan Blade for 47107 | 19-1 |
| 30793 | Fan Blade for 47107 | 19-2 |
| AA055 | Motor Fan for 47107 | 20 |
| 67314 | Bottom Shelf Bracket Right for 47107 | 21 |
| 30751 | Pillar for Bracket for 47107 | 22 |
| AH725 | Left Seal for 47107 | 23 |
| AH726 | Right Seal for 47107 | 24 |
| 30754 | Decorative Board for 47107 | 25 |
| 30755 | Top Panel for 47107 | 26 |
| 30756 | Shelf 1 for 47107 | 27-1 |
| 30757 | Shelf 2 for 47107 | 27-2 |
| 30758 | Vent Tray for 47107 | 28 |
| 30759 | Evaporator Protect Board for 47107 | 29 |
| 30760 | Rear Middle Pillar for 47107 | 30 |
| 30761 | Rear Base Panel for 47107 | 31 |
| AH727 | Front Middle Pillar for 47107 | 32 |
| AH728 | Evaporator for 47107 | 33 |
| 30764 | Foam Base of Evaporator for 47107 | 34 |
| 30765 | Plastic Base for Foam for 47107 | 35 |
| 30766 | Rear Bottom Pillar for 47107 | 36 |
| 30767 | Front Bottom Pillar for 47107 | 37 |
| AA058 | Bottom Base of Compressor for 47107 | 38 |
| 30769 | Front Frame for 47107 | 39 |
| 30770 | Outer Door Frame for 47107 | 40 |
| 30771 | Inner Door Frame for 47107 | 41 |
| AH729 | Door Glass for 47107 | 42 |
| AA060 | LED Light for 47107 | 43-1 |
| 68356 | Driver for 47107 | 43-2 |
| 30742 | Accumulator for 47107 | 44 |
| AH730 | Copper Tube Clamp for 47107 | 45 |
| AH731 | High Temperature Tube for 47107 | 46 |
