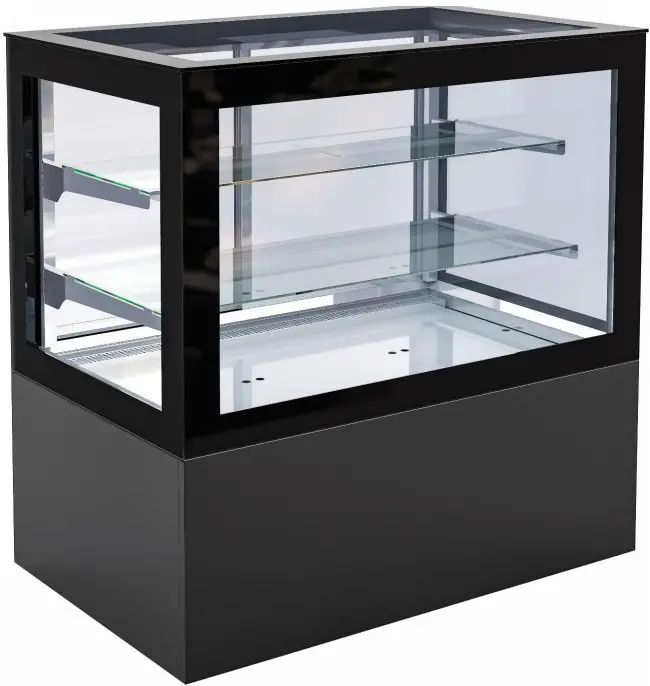

ggm gastro KTVF375 Refrigerated Display Case Instruction Manual
CHARACTERISTIC SPECIALITIES
Climate class :N
Safety class :1
Working temperature °C :-2 / +10 °C
Thermostat set temperature :+4 °C
Ambienttemperature :+30 °C
Humidity :%40
Energy consumption :0,30 KW/h
Power ::0,40 KW
Voltage – Frequency 220-240V / 50 Hz
ACCESORIES AND CONTROL SWITCHES
Digital thermometer : 2 Sonden (Digital) / 2 Probes (Digital)
Power lamp:Stk. / Pcs. 2
Power switch :Stk. / Pcs. 1
Hinge group :Stk. / Pcs. 4
Feet :Stk. / Pcs. 6
TECHNICAL CHARACTERISTICS
Outside dimensions :1010x790x1300mm
Inside dimensions :915x690x750mm
Packing dimensions :1200x950x1400mm
Gross weight :270 kg
Net Weight :260 kg
External housing :0,50 mm INOX 430 +PVC
Internal housing :0,50 mm INOX 430 +PVC

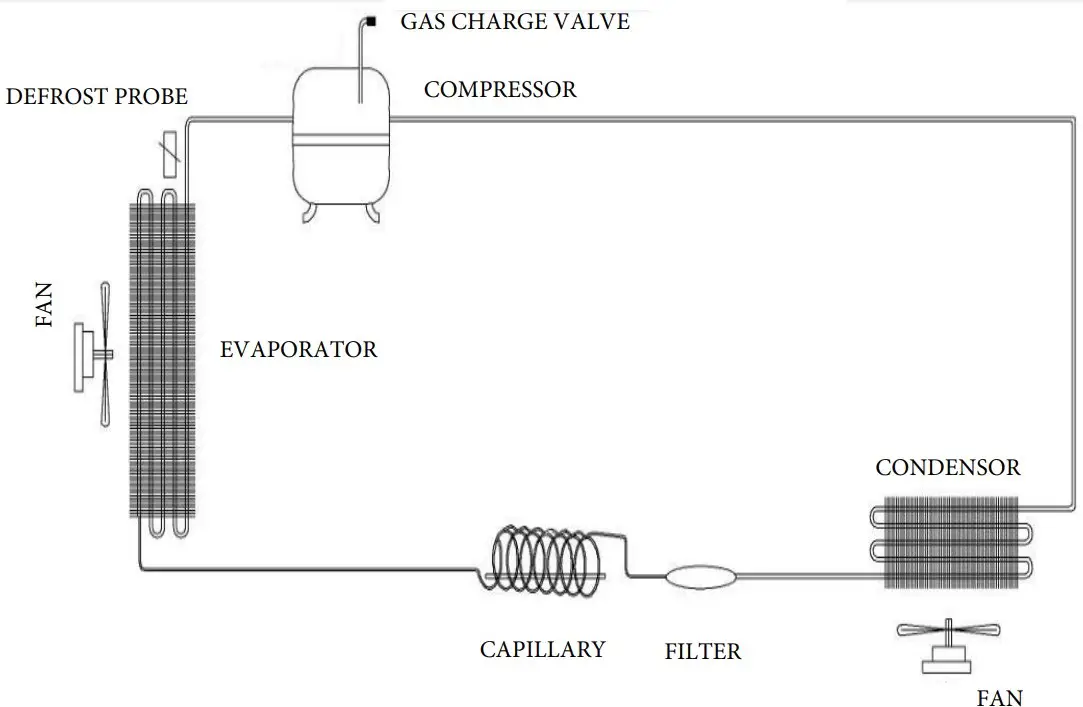

Compressor :NEU 6210 U R290 – 50Hz
Condenser :Without fan
Condenser fan :10W
Evaporator :VTN100
Evaporator fan :10W
Dryer :30 gr 15002SGDR02
Refrigerant :R290
Refrigerant amount :100 gram
Certifications :TS 2225 EN 30335-2-4
Serial No : On the packaging
Package : Holzpalette , Verpackt in Karton und Nylon Wooden pallet , Packed in carton and nylon

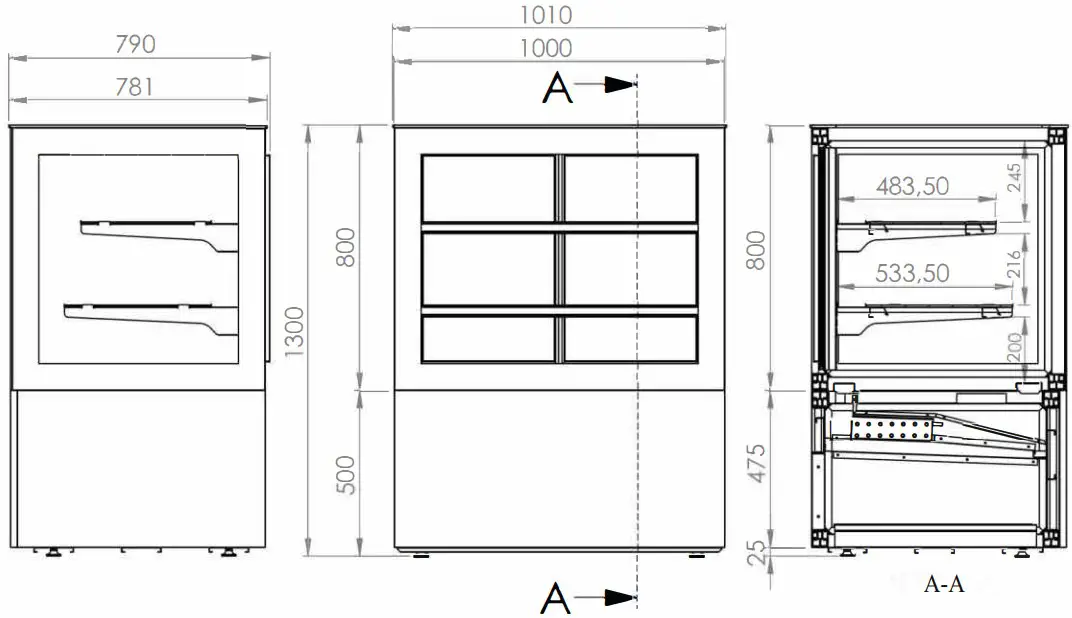

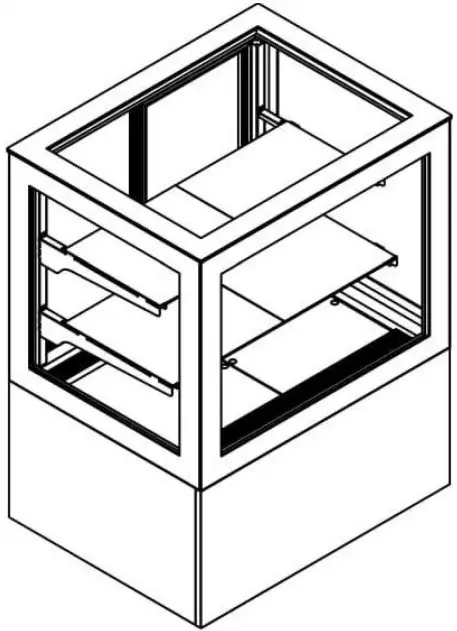

PRODUCT DIMENSION
- OUTSIDE DIMENSIONS : 1010X790Xl 300
- INSIDE DIMENSIONS: 915X690X750

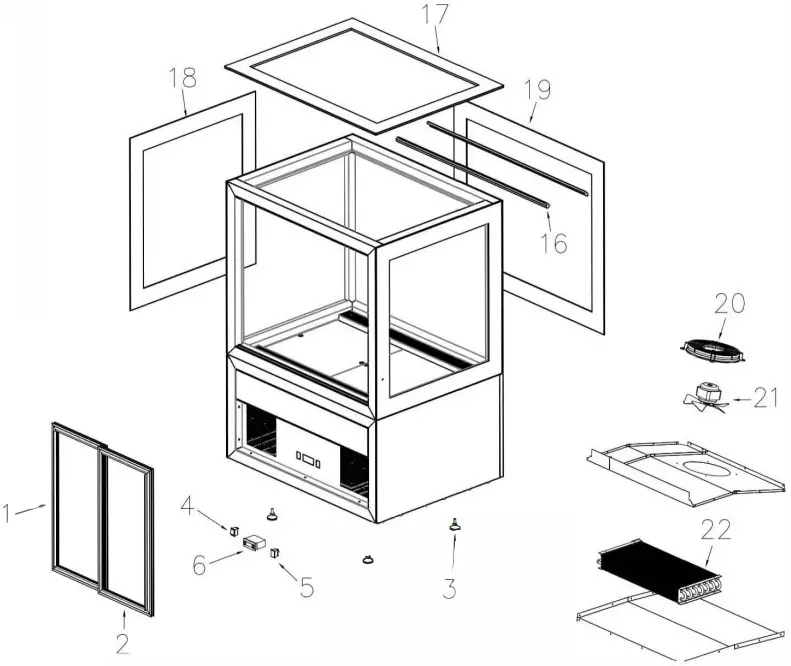

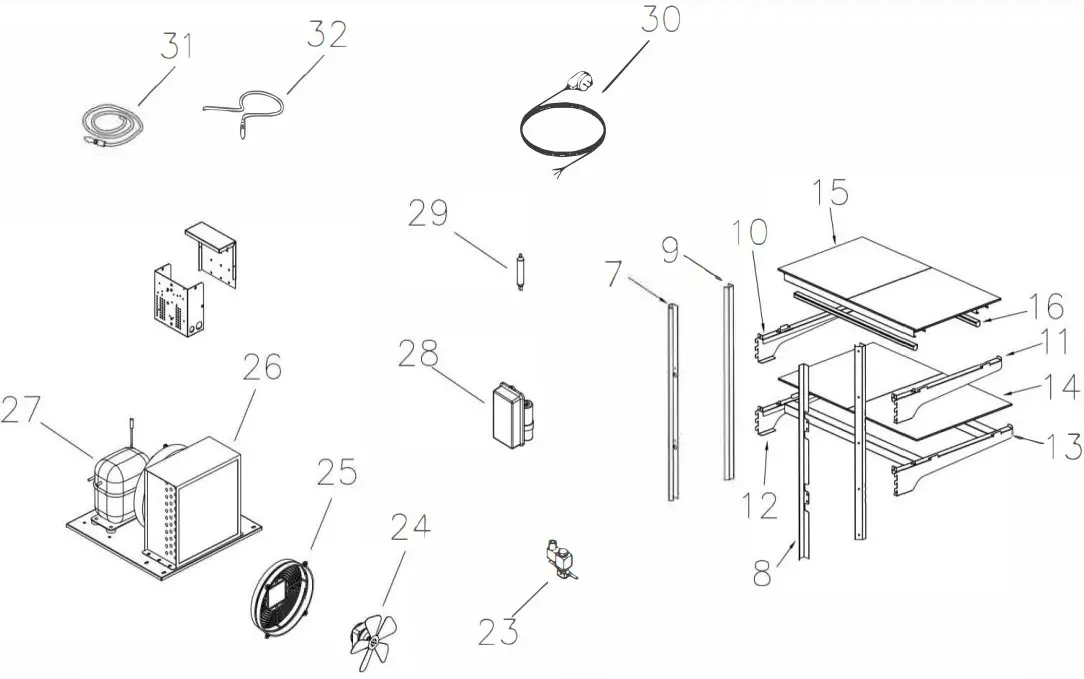

PARTS
INSTALLATION
| NR. | CODE | DESCRIPTION | ANZAHL QUANTITY |

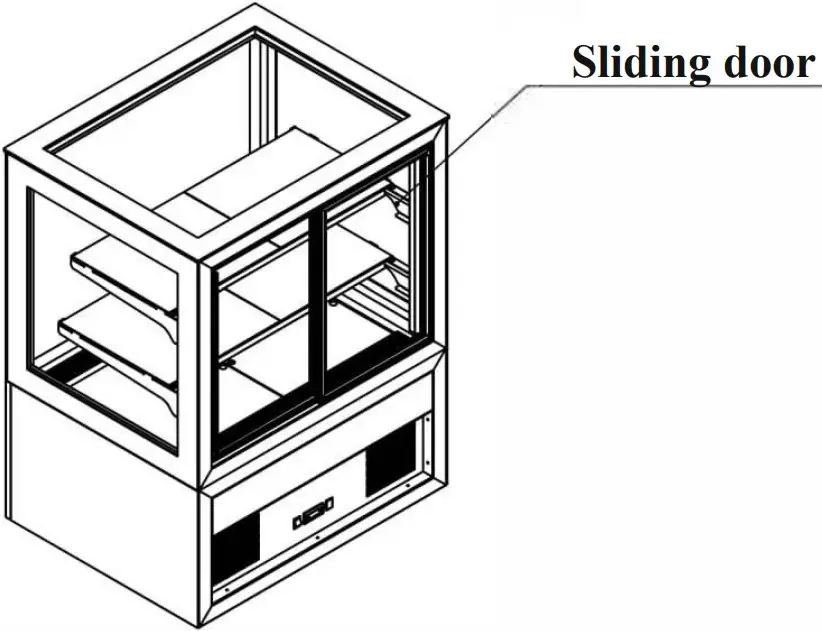

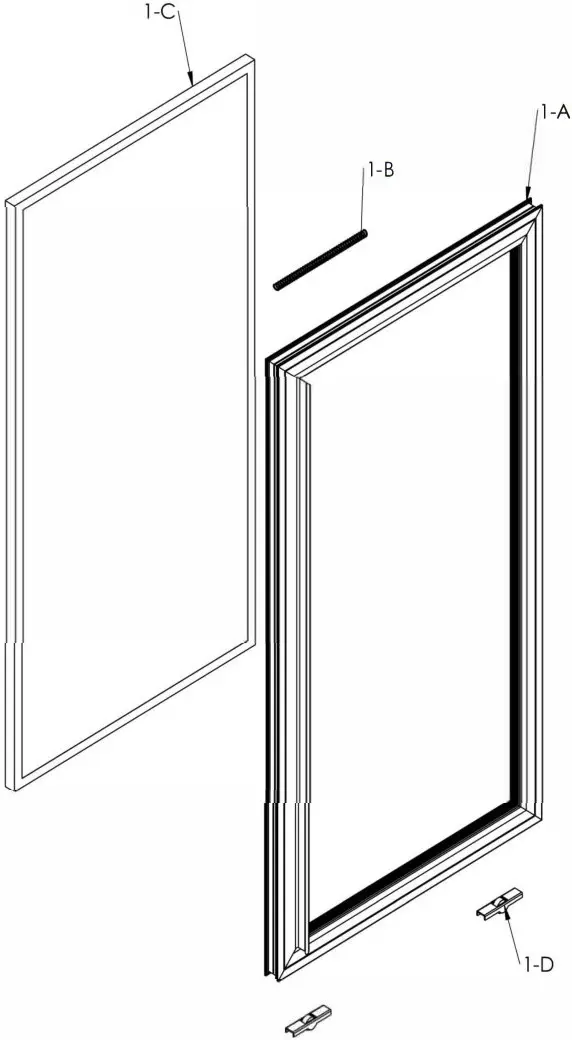

| 1 | SLIDING DOOR (LEFT) | 1 | |
| 1-A | DOOR GASKET | 1 | |
| 1-B | FEDER | 1 | |
| 1-C | B00CA513 | GLASS (SLIDING DOOR) | 1 |
| 1-D | B00AY109 | WHEEL | 2 |
| 2 | SLIDING DOOR (RIGHT) | 1 | |
| 3 | B00AY114 | FEET | 6 |
| 4 | B00DU102 | ON – OFF SWITCH | 1 |
| 5 | B00DU101 | POWER SWITCH | 1 |
| 6 | A00DJ100-Dİ | DIGITAL THERMOSTAT (DİXELL) | 1 |
| 7 | ROD (LEFT) | 1 | |
| 8 | ROD (RIGHT) | 1 | |
| 9 | COVER | 2 | |
| 10 | RACK RAIL | 1 | |
| 11 | RACK RAIL | 1 | |
| 12 | RACK RAIL | 1 | |
| 13 | RACK RAIL | 1 | |
| 14 | B00CA506 | GLASS SHELF | 2 |
| 15 | B00CA505 | GLASS SHELF | 2 |
| 16 | B00LA274 | LED | 5 |
| 17 | B00CA496 | UPPER GLASS (BLACK) | 1 |
| 17 | B00CA526 | UPPER GLASS (WHITE) | 1 |
| 18 | B00CA467 | SIDE GLASS (BLACK) | 2 |
| 18 | B00CA468 | SIDE GLASS (WHITE) | 2 |
| 19 | B00CA495 | REAR GLASS (BLACK) | 1 |
| 19 | B00CA527 | REAR GLASS (WHITE) | 1 |
| 20 | A00EP100 | FAN COVER | 1 |
| 21 | A00FA109 | 10W ELCO FAN | 1 |
| 22 | A00EV217 | EVAPORATOR VTN100 | 1 |
| 23 | A00SL100 | SOLENOID VALVE 1/4 | 1 |
| 24 | A00FA109 | 10W ELCO FAN | 1 |
| 25 | A00EP101 | FAN COVER | 1 |
| 26 | A00KN113 | CONDENSER WITHOUT FAN | 1 |
| 27 | A00KO203 | KOMPRESSOR NEU 6210 U R290 – 50Hz | 1 |
| 28 | A00KO203-A | RELAY BOX | 1 |
| 29 | A00DR100 | DRYER | 4 |
| 30 | B00FK100 | PLUG CABLE | 1 |
| 31 | A00DJ109 | PROBE | 1 |
| 32 | A00DJ102 | PROBE | 1 |
DIGITAL THERMOSTAT
M1 :FAN MOTOR (CONDENSER)
M2 : FAN MOTOR (VERDAMPFER)
S1 : PROBE
S2 : PROBE
L1 : POWER LAMP
L2 :ON OFF LIGHT
R: EVAPORATE RESISTANCE
