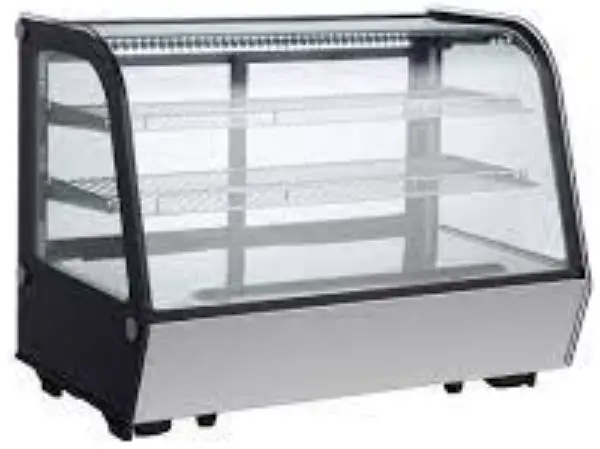

OMCAN RS-CN-0160-4D Countertop Refrigerated Display User Manual

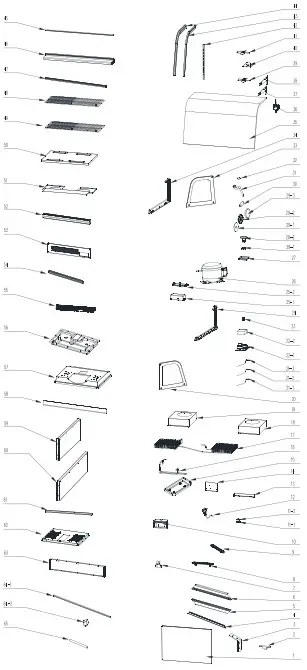

Parts Breakdown
| Item No. | Description | Position |
| AL596 | Door Glass for 48887 | 1 |
| 71639 | Door Wheel for 48887 | 2 |
| AK105 | Door Frame Square Connector for 48887 | 3 |
| AL597 | Upper and Lower Door Frame for 48887 | 4 |
| AK107 | Left and Right Door Frame for 48887 | 5 |
| AK108 | Door Frame with Handle for 48887 | 6 |
| AL566 | Front Frame Support for 48887 | 7 |
| 30776 | Cover for Air Outlet for 48887 | 8 |
| AK110 | Cover for Air Outlet for 48887 | 9 |
| 68298 | Switch Base for 48887 | 10 |
| 61246 | Wire Clip Holder for 48887 | 11-1 |
| 61245 | Wire Clip Cover for 48887 | 11-2 |
| AA062 | Power Cord for 48887 | 12 |
| AL567 | Condenser Limiting Plate for 48887 | 13 |
| AL568 | Fixed Board of PCB Box for 48887 | 14 |
| AL569 | Water Receiver for 48887 | 15 |
| AL570 | Tray of Heater for 48887 | 16 |
| AL571 | Condensator for 48887 | 17 |
| AL598 | Right Condensator Cushion for 48887 | 18 |
| AL599 | Left Condensator Cushion for 48887 | 19 |
| AL574 | Left Glass for 48887 | 20 |
| 68332 | Temperature Sensor for 48887 | 21-1 |
| AA049 | Defrost Probe for 48887 | 21-2 |
| AH718 | High Temperature Sensor for 48887 | 21-3 |
| AA052 | Main Circuit Board for 48887 | 22-1 |
| AA082 | Digital Controller for 48887 | 22-2 |
| 60119 | Switch for 48887 | 23 |
| AL575 | Left Panel for 48887 | 24 |
| AA050 | Control Box for 48887 | 25-1 |
| AA051 | Control Box Cover for 48887 | 25-2 |
| 60534 | Compressor for 48887 | 26 |
| AA083 | Backing Plate for 48887 | 27 |
| 71518 | Nut for 48887 | 28-1 |
| AL576 | Drainage Pipe Joint for 48887 | 28-2 |
| 79314 | Decoration Nut Gasket for 48887 | 29-1 |
| 79313 | Nut Gasket for 48887 | 29-2 |
| 79312 | Nut Decoration for 48887 | 29-3 |
| 30624 | Dry Filter for 48887 | 30 |
| AL309 | Drain Pipe for 48887 | 31 |
| AL376 | Pipe Clip for 48887 | 32 |
| AL577 | Right Glass for 48887 | 33 |
| AL578 | Right Panel for 48887 | 34 |
| 30791 | Front Curved Glass for 48887 | 35 |
| AL600 | Motor Fan for 48887 | 36 |
| 67313 | Bottom Shelf Bracket Left for 48887 | 37 |
| 67314 | Bottom Shelf Bracket Right for 48887 | 38 |
| AH724 | Fan Blade for 48887 | 39 |
| 79662 | Metal Base of Fan Motor for 48887 | 40 |
| AL579 | Fan Blade for 48887 | 41 |
| 30751 | Pillar for Bracket for 48887 | 42 |
| 30798 | Right Seal for 48887 | 43 |
| 30797 | Left Seal for 48887 | 44 |
| 30799 | Decorative Board for 48887 | 45 |
| 30800 | Top Panel for 48887 | 46 |
| AL601 | Top Insert Board for 48887 | 47 |
| 71683 | Chrome Shelf 1 for 48887 | 48 |
