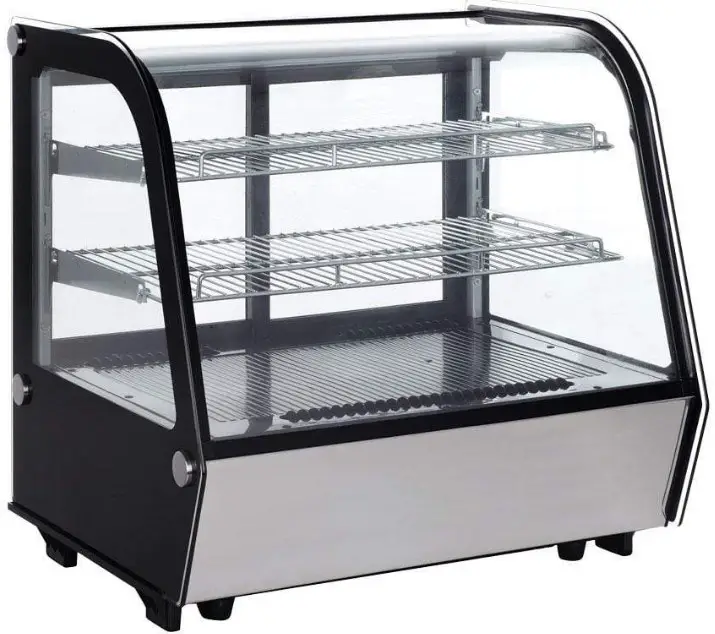

OMCAN RS-CN-0120-4D Countertop Full Service Refrigerated Display Case User Manual

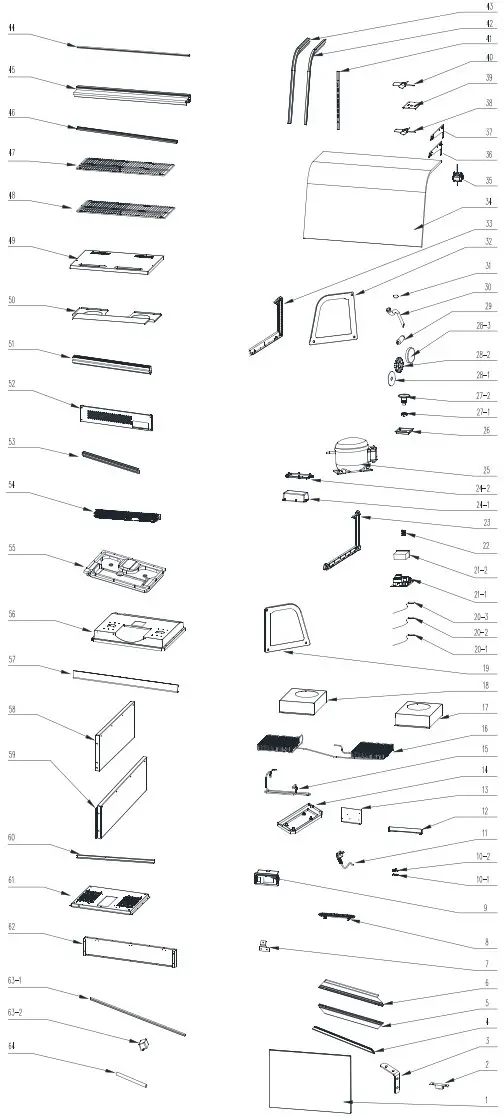

Parts Breakdown
| Item No. | Description | Position |
| AL564 | Door Glass for 47560 | 1 |
| 71639 | Door Wheel for 47560 | 2 |
| AK105 | Door Frame Square Connector for 47560 | 3 |
| AL565 | Upper and Lower Door Frame for 47560 | 4 |
| AK107 | Left and Right Door Frame for 47560 | 5 |
| AK108 | Door Frame with Handle for 47560 | 6 |
| AL566 | Front Frame Support for 47560 | 7 |
| 30776 | Cover for Air Outlet for 47560 | 8 |
| 68298 | Switch Base for 47560 | 9 |
| 61246 | Wire Clip Holder for 47560 | 10-1 |
| 61245 | Wire Clip Cover for 47560 | 10-2 |
| AA062 | Power Cord for 47560 | 11 |
| AL567 | Condenser Limiting Plate for 47560 | 12 |
| AL568 | Fixed Board of PCB Box for 47560 | 13 |
| AL569 | Water Receiver for 47560 | 14 |
| AL570 | Tray of Heater for 47560 | 15 |
| AL571 | Condensator for 47560 | 16 |
| AL572 | Right Condensator Cushion for 47560 | 17 |
| AL573 | Left Condensator Cushion for 47560 | 18 |
| AL574 | Left Glass for 47560 | 19 |
| 68332 | Temperature Sensor for 47560 | 20-1 |
| AA049 | Defrost Probe for 47560 | 20-2 |
| AH718 | High Temperature Sensor for 47560 | 20-3 |
| AA052 | Main Circuit Board for 47560 | 21-1 |
| AA082 | Digital Controller for 47560 | 21-2 |
| 60119 | Switch for 47560 | 22 |
| AL575 | Left Panel for 47560 | 23 |
| AA050 | Control Box for 47560 | 24-1 |
| AA051 | Control Box Cover for 47560 | 24-2 |
| 60534 | Compressor for 47560 | 25 |
| AA083 | Backing Plate for 47560 | 26 |
| 71518 | Nut for 47560 | 27-1 |
| AL576 | Drainage Pipe Joint for 47560 | 27-2 |
| 79314 | Decoration Nut Gasket for 47560 | 28-1 |
| 79313 | Nut Gasket for 47560 | 28-2 |
| 79312 | Nut Decoration for 47560 | 28-3 |
| 30624 | Dry Filter for 47560 | 29 |
| AL309 | Drain Pipe for 47560 | 30 |
| AL376 | Pipe Clip for 47560 | 31 |
| AL577 | Right Glass for 47560 | 32 |
| AL578 | Right Panel for 47560 | 33 |
| 30746 | Front Curved Glass for 47560 | 34 |
| 68336 | Fan for 47560 | 35 |
| 67313 | Bottom Shelf Bracket Left for 47560 | 36 |
| 67314 | Bottom Shelf Bracket Right for 47560 | 37 |
| AH724 | Fan Blade for 47560 | 38 |
| 79662 | Metal Base of Fan Motor for 47560 | 39 |
| AL579 | Fan Blade for 47560 | 40 |
| 30751 | Pillar for Bracket for 47560 | 41 |
| 30798 | Right Seal for 47560 | 42 |
| 30797 | Left Seal for 47560 | 43 |
| 30754 | Decorative Board for 47560 | 44 |
| 30755 | Top Panel for 47560 | 45 |
| AL580 | Top Insert Board for 47560 | 46 |
| 30757 | Shelf 2 for 47560 | 47 |
| 30756 | Shelf 1 for 47560 | 48 |
| AL581 | Vent Tray for 47560 | 49 |
| AL582 | Evaporator Protect Board for 47560 | 50 |
| AL583 | Rear Middle Pillar for 47560 | 51 |
| AL584 | Rear Base Panel for 47560 | 52 |
| AL585 | Front Middle Pillar for 47560 | 53 |
| AL586 | Evaporator for 47560 | 54 |
| AL587 | Foam Base of Evaporator for 47560 | 55 |
| AL588 | Plastic Base for Pillar for 47560 | 56 |
| AL589 | Front Decorative Board for 47560 | 57 |
| AL590 | Left Frame for 47560 | 58 |
| AL591 | Right Frame for 47560 | 59 |
| AL592 | Front Middle Pillar Lining for 47560 | 60 |
| AL593 | Bottom Base of Compressor for 47560 | 61 |
| AL594 | Front Frame for 47560 | 62 |
| AL595 | LED Light for 47560 | 63-1 |
| 68356 | Driver for 47560 | 63-2 |
| 30742 | Accumulator for 47560 | 64 |
Model RS-CN-0120-4D 47560
