OMCAN RS-CN-0200-B Dry Bakery Display Case User Manual

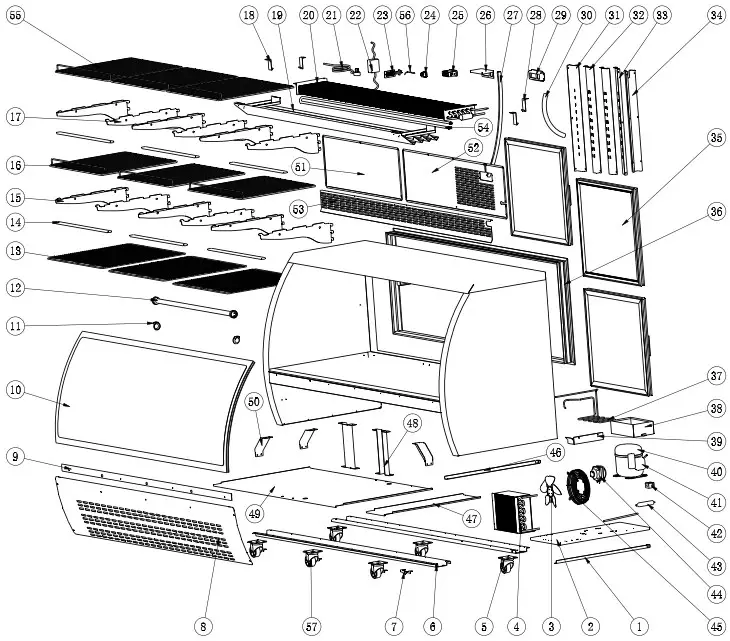

Parts List
| Item No. | Description | Position |
| AB607 | Right Track of Installation Board for 50078 | 1 |
| AB634 | Installation Board of Compressor for 50078 | 2 |
| AA248 | Condenser Fan Blade for 50078 | 3 |
| AA300 | Condenser for 50078 | 4 |
| AA185 | Leveling Feet for 50078 | 5 |
| AB759 | Support Board of Leveling Feet for 50078 | 6 |
| AA304 | Installation Board Limited Block for 50078 | 7 |
| AB761 | Front Grill for 50078 | 8 |
| AB762 | Fixed Board of Curve Glass for 50078 | 9 |
| 64242 | Curve Glass for 50078 | 10 |
| AG538 | LED Light and Socket for 50078 | 11, 12 |
| AG544 | Bottom Shelf for 50078 | 13 |
| AB765 | Shelf Support Board Connector for 50078 | 14 |
| AB642 | Right Shelf Support Board for 50078 | 15 |
| AG545 | Middle Shelf for 50078 | 16 |
| AB644 | Left Shelf Support Board for 50078 | 17 |
| AB769 | Right Hanger of Grill for 50078 | 18 |
| AM938 | Grill Components for 50078 | 19 |
| AG546 | Evaporator for 50078 | 20 |
| AA135 | Power Cord for 50078 | 21 |
| AM939 | Power Supply for 50078 | 22 |
| AA378 | Temperature Probe Fixer for 50078 | 23 |
| AA124 | Power Switch for 50078 | 24 |
| AM940 | Digital Thermostat for 50078 | 25 |
| AA214 | Thermostat Water Proof Cover for 50078 | 26 |
| AB604 | Sealing Rubber Strip for Curved Glass for 50078 | 27 |
| AB772 | Left Hanger of Grill for 50078 | 28 |
| AE984 | Thermostat Installation Cover for 50078 | 29 |
| AA528 | Inner Drain Pipe for 50078 | 30 |
| AB652 | Left Bracket for 50078 | 31 |
| AB650 | Middle Bracket for 50078 | 32 |
| AB619 | Right Bracket for 50078 | 33 |
| AB651 | Air Pipe Protection Board for 50078 | 34 |
| AB778 | Glass Door for 50078 | 35 |
| AB779 | Framework of Glass Door for 50078 | 36 |
| AB589 | Coiled Copper Pipe of Outer Drain Pan for 50078 | 37 |
| AA874 | Outer Drain Pan for 50078 | 38 |
| AG542 | Inner Drain Pipe for 50078 | 39 |
| 26230 | Compressor for 50078 | 40 |
| AM941 | Compressor Components for 50078 | 41 |
| AB595 | Filter Fixer for 50078 | 42 |
| AB594 | Filter for 50078 | 43 |
| AM942 | Condenser Fan Motor for 50078 | 44 |
| AA249 | Condenser Fan Motor Cover for 50078 | 45 |
| AB657 | Left Track of Installation Board for 50078 | 46 |
| AB658 | Cover Board of Machine Room (Small) for 50078 | 47 |
| AB784 | Support Board of Machine Room for 50078 | 48 |
| AB785 | Cover Board of Machine Room (Big) for 50078 | 49 |
| AB659 | Support Holder of Cabinet for 50078 | 50 |
| AB787 | Right Back Grill for 50078 | 51 |
| AB667 | Thermostat Mounting Plate for 50078 | 52 |
| AB789 | Baffle for Evaporator for 50078 | 53 |
| AB790 | Defrost Heater for 50078 | 54 |
| AG547 | Upper Shelf for 50078 | 55 |
| AA379 | Temperature Probe for 50078 | 56 |
| AB084 | Evaporator Temperature Sensor for 50078 | 57 |
