POTTER RA-6500F LCD Annunciator Flush Mount

RA-6500FLCD Annunciator Flush Mount

Features

• Industry leading 4 line by 40 Character LCD
• Common buttons for navigation
• Common LEDs for status indication
• 31 annunciator per panel
• Maximum wire length of 6,500 feet
• Available in 4 colors
• Product includes a 5 year warranty
• UUKL Listed for Smoke Control

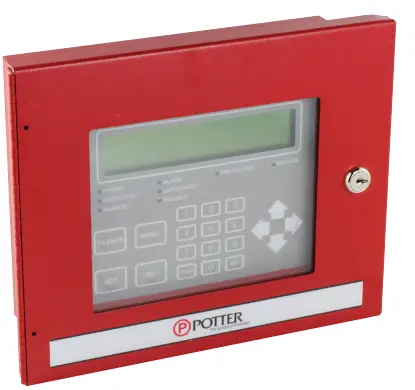

Description

The RA-6500F is a flush mount LCD remote annunciator for various Potter fire control panels. The RA-6500F communicates using a RS-485 connection to the main panel providing common indication of Alarms, Supervisory, Trouble and other system status and control functions.

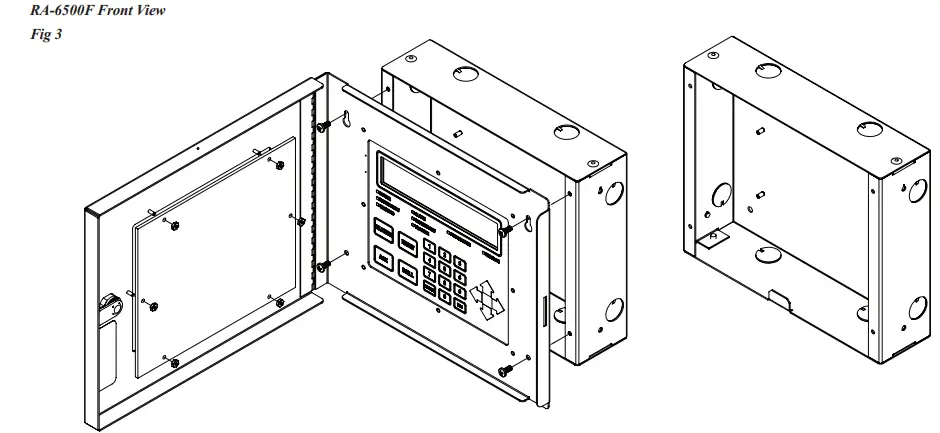

The RA-6500F features a 4×40 LCD display with LED’s for Power, Alarm, Supervisory, Trouble, Silence, Pre-Release, and Release conditions. It can be flush mounted or surface mounted. The annunciator is enclosed in a sheet metal enclosure and has a Potter lock securing the keypad.

Technical Specifications

Installation

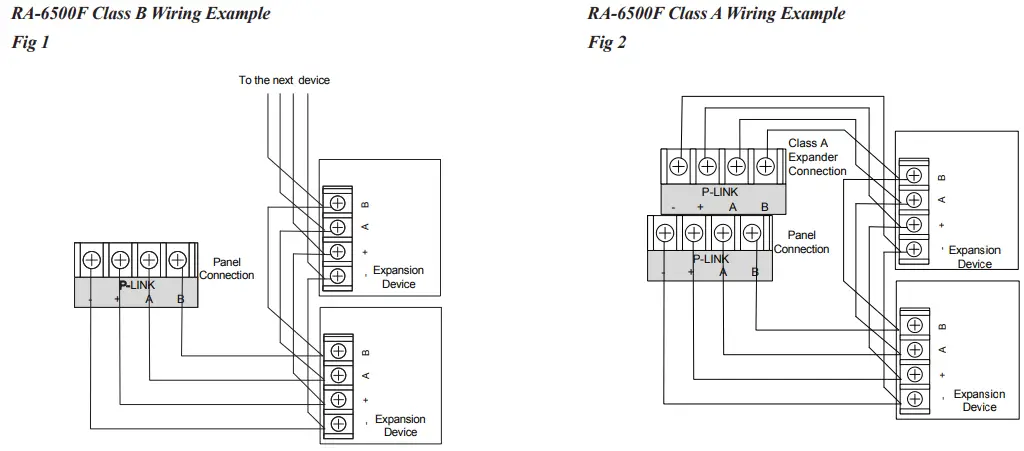

The RA-6500F is connected to the PFC series or IPA series fire control panels using a four wire RS-485 connection. The connection is power limited and supervised. Up to thirty-one (31) RA-6500F LCD annunciators can be connected using Class B or Class A wiring. Class A wiring requires an optional Class A Expander.

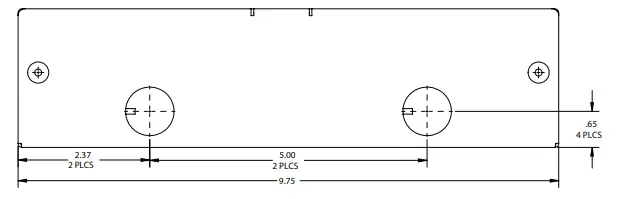

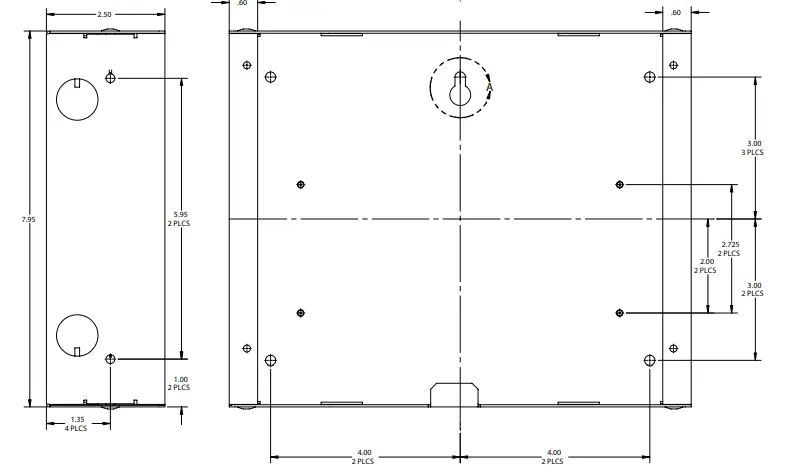

Dimensions

Dip Switch Settings

Refer to the table below for dip switch settings per Annunciator Address.

Ordering Information
