POTTER RA-6006 LCD Annunciator Installation

Features

• Standby Current 20 mA
• Alarm Current 25 mA
• Operating Temperature 0°C-49°C (32°F-120°F) 10%-93%
  @ 30°C (86°F) non-condensing humidity
• Maximum Wire Length 6500 FT
• Maximum Annunciators 31
• Dimensions (WxHxD) 8” x 6-1/4” x 1-5/8” (Cabinet)
• Wire Gauge 14 AWG-22 AWG
• Display 2 lines x 16 characters
• Product includes 5 year warranty

Canadian listed remote annunciator for the Potter PFC-6006 Sprinkler Monitoring Panel.

Description

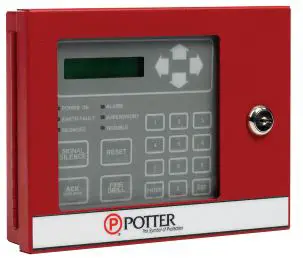

The RA-6006 is a LCD remote annunciator for the PFC-6006 Sprinkler Monitoring Panel. The RA-6006 communicates using a RS-485 connection to the main panel providing common indication of Alarms, Supervisory, Trouble and other system status and control functions.

The RA-6006 features a 32 character, 16×2 LCD display with LED’s for Power, Alarm, Supervisory, Trouble, and Silenced conditions.
It can be mounted on a single gang electrical box or a four square electrical box. The annunciator is enclosed in a sheet metal enclosure and has a Potter lock securing the keypad.

Installation

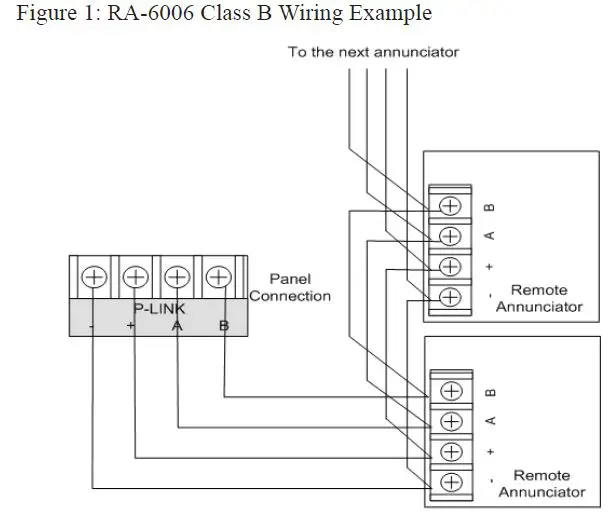

The RA-6006 is connected to the PFC-6006 using a four wire RS-485 connection. The connection is power limited and supervised. Up to four (4) RA-6006 LCD annunciators can be connected using Class B wiring.

NOTICE
Install in accordance with compatible fire alarm panel.

Address Settings

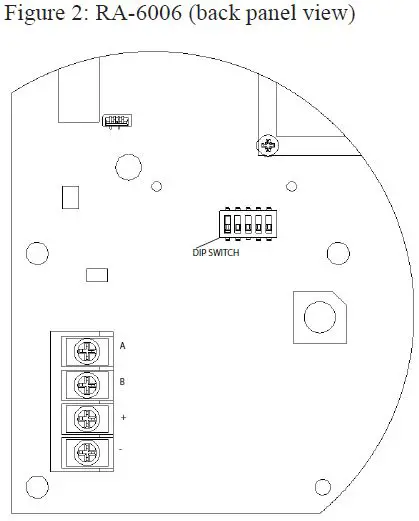

The RA-6006 address is set by dip switch S1 located on the back of the RA-6006. The address must be set in the range of 1 to 31 to be recognized by the control panel.

Dip Switch Settings

Refer to the table below for dip switch settings per Annunciator Address.

Potter Electric Signal Company, LLC • St. Louis, MO • Cust Service: 866-956-1211 • Tech Support: 866-240-1870 • Canada: 888-882-1833 • www.pottersignal.com

MFG. #5406081 – REV A
